Description

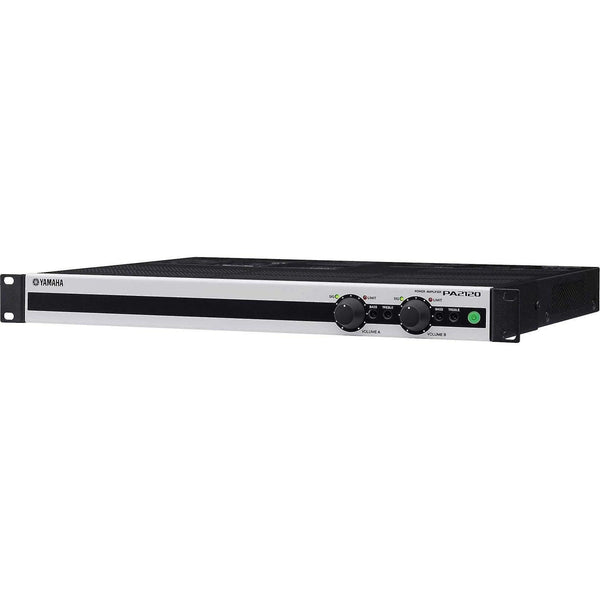

The Yamaha PA2120 is a compact power amplifier with a stereo output of 2 x 120 watts at 4 ohms or 2 x 120 watts / 1 x 200 watts @ 100 volt line.

The highly efficient Class D amplifier is energy efficient and offers cool running without the need for cooling fans. This is combined with intelligent protection functions in the power supply and amplifier section for excellent reliability. The design is energy saving too, as an auto-standby feature will switch the amp into standby mode if no signal is detected for a period of 25 minutes. Power is restored upon receipt of an incoming signal.

The PA2120 benefits from a rugged metal chassis and is ideal for small commercial installations.

The Yamaha PA2120 is complemented by the MA2120 mixer amplifier (see related products) and these can be used together for larger installations.

This amp also features EQ settings for VXS subwoofers, as well as HPF and selectable LPF settings.

Rack mounted in only 1U rack space.

PA2120

Easy setup, and a user-friendly interface for effortless operation
Supporting Lo-Z (120W x 2ch @4½ or 100W x2 ch @ 3½/8½) and Hi-Z (120W x 2ch or 200W x 1ch, 70V/100V) speaker systems
1 stereo/2 mono line inputs
Output EQ for optimizing the sound of each Output channel
Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
Service areas or zoning areas can be expanded by adding a PA2120
Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
Intelligent protection function ensures safe, reliable operation
Certified by ENERGY STAR
Certified as Yamaha Eco Products
Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
