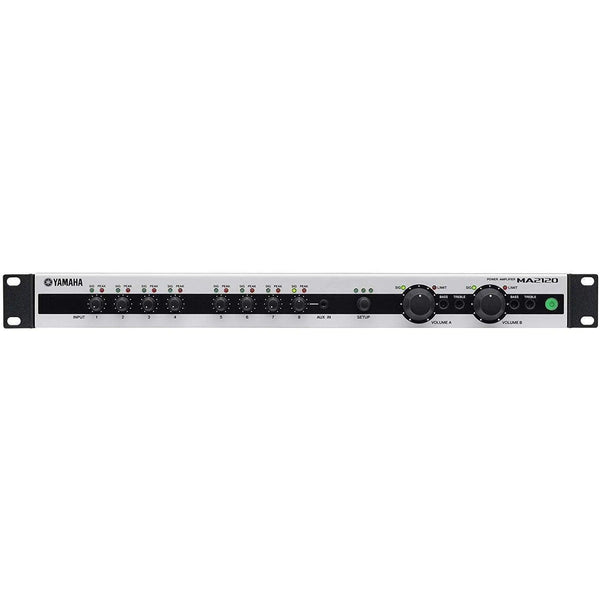

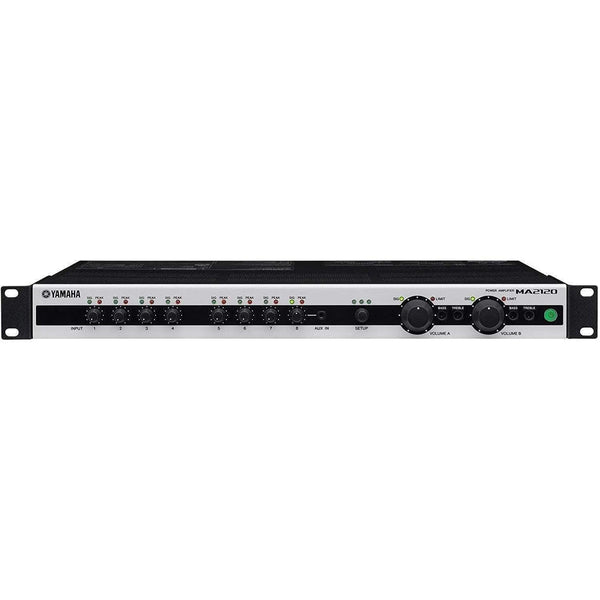

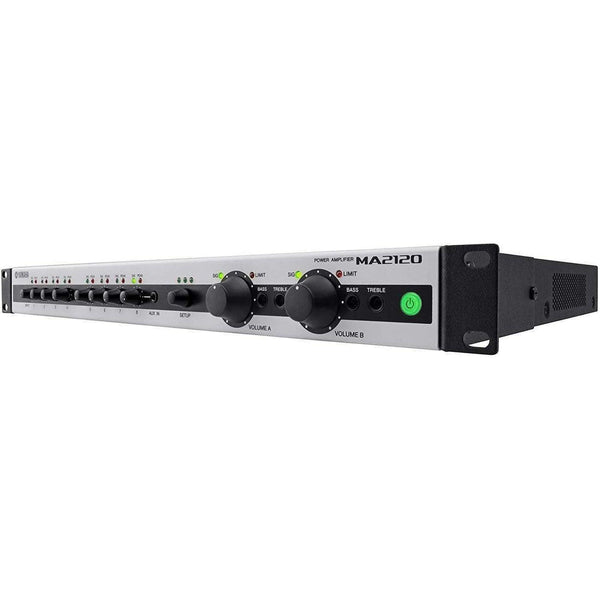

Yamaha MA2120 Power Amplifier
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 1288.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES
- 2-channel, 120W per-channel power amplifier
- Perfect for music playback and microphone applications
- Lo-Z (120W x 2 channels) and Hi-Z (200W x 1-channel) functionality
- Built-in highpass and lowpass filter
- Compact 1U rack size fits in nearly any setup
- Conventional cooling system — bottom-to-top airflow
- Advanced DSP functions (Feedback Suppressor, Priority Ducker, Leveler, Reverb, Echo, and Compressor)
- Speaker EQ optimum for Yamaha VXC/VXS series speakers
- Yamaha Eco Product and Energy Star certified with efficient class-D amplifier
Description
With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's latest additions to our Commercial Installation Solutions lineup, the MA/PA Series compact power amplifiers. All models combine a familiar, unassuming construction with efficient, flexible performance, while the MA2120 and MA2030 offer mixing capability with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha state-of-the-art DSP technologies featured in our professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA/PA Series provides you with a simple, yet powerful tool to help shape your ideal commercial sound environment. - Designed for Effortless Everyday Use - Yamaha DSP Features for Enhanced Music and Microphone Operation - Safe and Efficient in Any Environment - Supports Lo-Z and Hi-Z Speaker Systems - Flexibile Connectivity - Flexible EQ Functions - Build a System that Meets Your Needs.
Tech Specs
| Easy setup and a user-friendly interface | Yes |
| Highly-efficient Class-D amplifier | Yes |
| Switchable, Lo-Z & Hi-Z speaker systems | Yes |
| Output Power: Lo-Z | 2x 120W at 4Ohms 2x 100W at 3Ohms/8Ohms |
| Output Power: | Hi-Z2x 120W at 70V/100V 1x 200W at 70V/100V |
| Flexible inputs | 6 Mic/Line inputs & 2 Stereo inputs |
| Useful DSP functions for BGM application | Priority Ducker, Leveler: Yes |
| seful DSP functions for MC application | Feedback Suppressor, HPF: Yes Compressor, Reverb & Echo: Yes |
| Built-in stereo source EQ | Yes |
| Output EQ | Yes |
| FiltersHPF: | Yes LPF: Yes |
| No of source & volume-controllable zone | 2 |
| Compatible DCPDC | P4V4S, DCP1V4S, DCP4S |
| Number of maximum DCP panels per unit | 2 |
| Output power |
1kHz (THD+N=1%: 3Ohms): 2x 100W (20ms Burst) 1kHz (THD+N=1%: 4Ohms): 2x 120W (20ms Burst) 1kHz (THD+N=1%: 8Ohms): 2x 100W (20ms Burst) High impedance: 100V line: 2x 120W or 1x 200W High impedance: 70V line: 2x 120W or 1x 200W |
| Total harmonic distortion |
<=0.2% (Line in to Speaker out, Half power at 1kHz, 3Ohms/4Ohms/8Ohms), <=0.2% (Line in to Speaker out, Half Power at 1kHz, 70V/100V, 120W/200W) |
| Frequency response |
0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ohms/4Ohms/8Ohms), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) |
| Crosstalk |
<= -70dB (MIC/LINE input to other MIC/LINE input) |

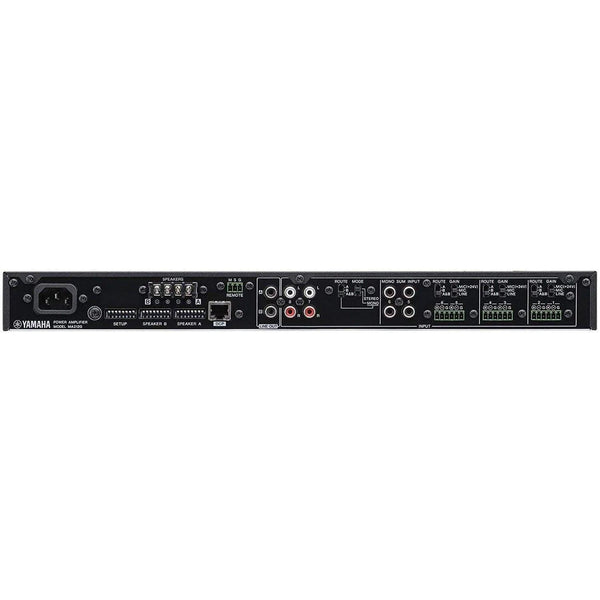

| I/O Connectors |
Mic/Line Input: 3x Input 1-6: 3.5mm Euroblock (6-pin, balanced) Line Input: Input 7-8: 2x Stereo RCA pin (unbalanced), Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5-6: 4x RCA pin (MONO SUM, unbalanced) |
|
Speaker Output |
Barrier strip x 2 pairs |
| Line Out |
LINE OUT: 2x MONO RCA pin (unbalanced) |
| Control ports |
RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) |
| Input Level |
Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip) |
| Output Level | -10dBV (LINE OUT, Nominal) |
| Processors | Speaker EQ (VXS: Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) |
| Protection circuit |
Load protection: Power switch on/off: Mute the output, Output voltage protection: Compress the output, DC-fault: Power supply shutdown (Restored automatically) Amplifier protection: Thermal: Limit the output -> Mute -> Shutdown, Over current: Mute the output, Integrated power limit: Compress the output(Restored automatically) |
| Protection circuit (Cont.) |
Power supply protection: Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output -> Power supply shutdown (Restored automatically) |
| Amplifier class | Class D |

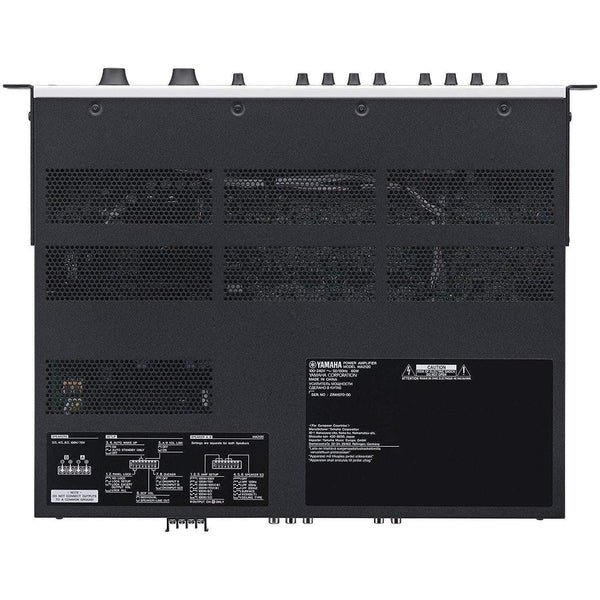

| Cooling | Conventional cooling, bottom to up airflow |
| Power requirements | 100V, 120V, 230V - 240V, 50Hz / 60Hz |
| Power consumption | 60W (1/8 max power, 4Ohms, AC100V, pink noise at all channels) |
| Operating Temperature | 0 to 40 deg. C (32 to 104 deg. F) |
| Storage Temperature | -20 to 60 deg. C (-4 to 140 deg. F) |
| Dimensions (WxHxD) | 480 x 45 x 379mm (18.90 x 1.77 x 14.92") |
| Weight | 4.9kg (10.80 lbs) |
