JBL Pro Control 12C/T Compact Ceiling Loudspeaker

Sale priceDhs. 342.00

Did You Find a Better Price?

On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.

Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.

Please note: we only match product prices vs other UAE websites.

Sold out

JBL Pro Control 12C/T Compact Ceiling Loudspeaker - Control12C/T

Talk to a Pro

Speak to our Music & Audio Pros

The quickest way to get some info

+971558907585

Chat with our Pros on Whatsapp

We're available from Monday to Saturday (9.30am-6.30pm GST)

×

JBL Pro Control 12C/T Compact Ceiling Loudspeaker

MM Market

Pickup currently unavailable

Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates

+971558907585

MM Warehouse

Pickup currently unavailable

Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates

+971558907585

Pay as low as Dhs. 85.5\/mo. without fees with Tabby.

Free & Express Shipping in UAE Available.

Authorized JBL Retailer

JBL - MusicMajlis
Earn Dhs. 342 MM Notes 🎶 when you sign in and order

Notify me when this product is available:

Note: Price mentioned is for Single piece , but sold as a pair. Please add 2 qty in cart to buy the product.

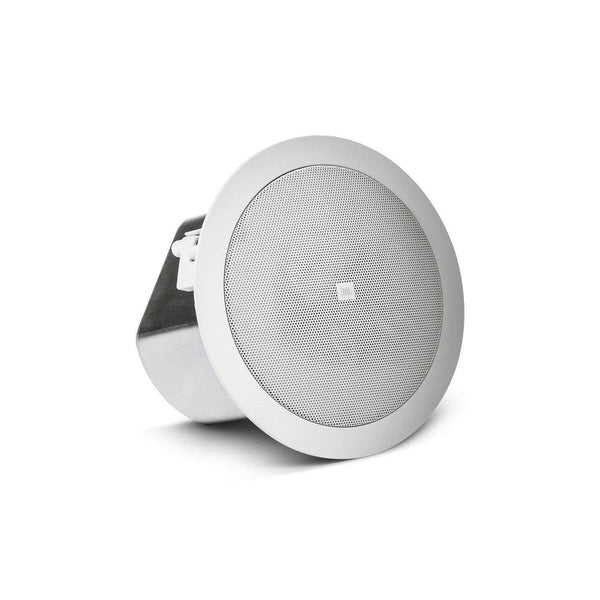

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inches) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount back can for quick and easy installation.

Features

  • 76 mm (3 in) full-range driver
  • Blind-mount back can for quick and easy install
  • Combined 70V/100V and low impedance direct operation
    ‚ 20 Watts at 8Œ© nominal setting
    ‚ 15W multi-tap at 70V/100V
  • 68 Hz ‚ 17 kHz bandwidth with wide 130∞ coverage
  • White or black (-BK)

Specifications

Frequency Range (-10 dB) 68 Hz ‚ 17 kHz
Power Capacity (at low-Z) 40 Watts Continuous Program Power20 Watts Continuous Pink Noise
Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (¬±3 dB) 95 Hz ‚ 15 kHz
Nominal Sensitivity 84 dB
Nominal Coverage Angle 130° conical coverage
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak
Nominal Impedance 8 ohms (indirect/bypass 8Ω setting)
Full-Range Driver 76 mm (3 inches) with polypropylene cone, butyl rubber surround, Kapton‚Ñ¢ voice coil former, high-temperature voice coil, aluminum coupling ring for low distortion, and HF extension
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via a coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel back can
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in-depth)
Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick ceiling dog-ears are available for up to 55 mm (2.2 in) ceiling thicknesses.
Safety Seismic Attachment One point, top surface
Net Weight 1.6 kg (3.5 lbs, one speaker)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
