Audio-Technica AT-XP5 - Dual Moving Magnet Stereo Audiophile DJ Cartridge
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Audio-Technica AT-XP5 - Dual Moving Magnet Stereo Audiophile DJ Cartridge
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 99.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.

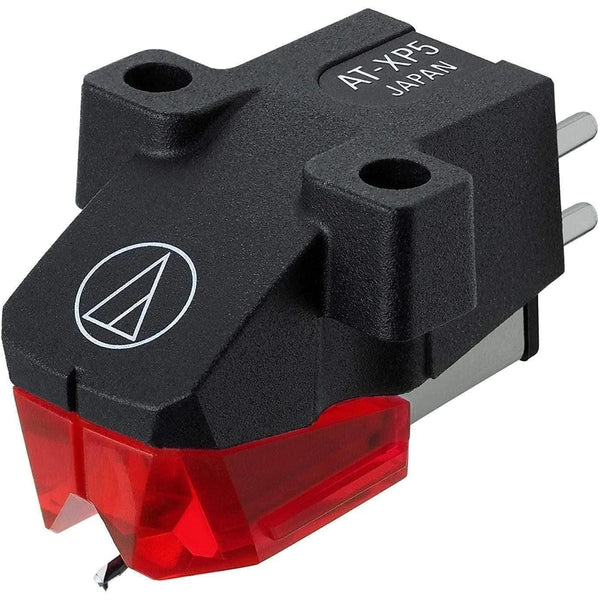

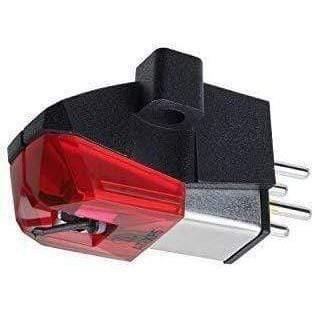

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Features
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon-fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- The design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
Tech Specs
| Frequency Response | 20-18,000 Hz |
| Channel Separation | 20 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 6.7 k ohms (1 kHz) |
| DC Resistance | 990 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Recommended load capacitance | 100 to 200 pF |
| Output | 5.5 mV (1 kHz, 5 cm/sec.) |
| Channel Balance | 2.0 dB (1 kHz) |

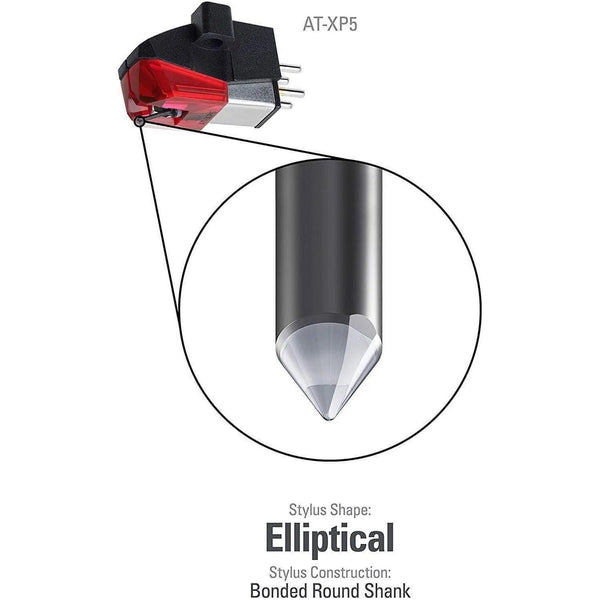

| Stylus Shape | 0.3 x 0.7 mil elliptical |
| Cantilever | Carbon fiber-reinforced ABS |
| Mount | Half-inch |
| Weight | 6.2 g (0.22 oz) |
| Dimensions | 17.2 mm (0.68") H _ 17.8 mm (0.67") W _ 28.3 mm (1.20") D |
| Replacement Stylus | ATN-XP5 |
