Alesis ProLinear 720 DSP Active Monitor (1 pcs)
1,428.00 Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Alesis ProLinear 720 DSP Active Monitor (1 pcs)
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 357.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Note: This studio monitor is sold as a single piece.
DESCRIPTION:
Speakers with built-in DSP functions are likely to become increasingly popular, not only because it means the speakers can have their responses tailored to suit their environment, but also because it provides a means to control multiple speakers at the same time — an essential factor in surround monitoring. DSP speakers can include EQ and time delay to compensate for positioning relative to their ideal positions, but in the case of the Alesis Prolinears, the designers have decided to confine their DSP activities to level control and four-band parametric EQ. Judging by the factory presets, the EQ is used mainly to emulate other speakers, either ones of limited quality or ones with specific frequency characteristics. However, if you know what you are doing, you can also use the DSP to help compensate for speaker placement too close to a wall or corner. The sample rate of the converters is 48kHz, so they won't tell you much if you choose to mix at 96kHz or 192kHz, but for real-world project studio applications they're fine.

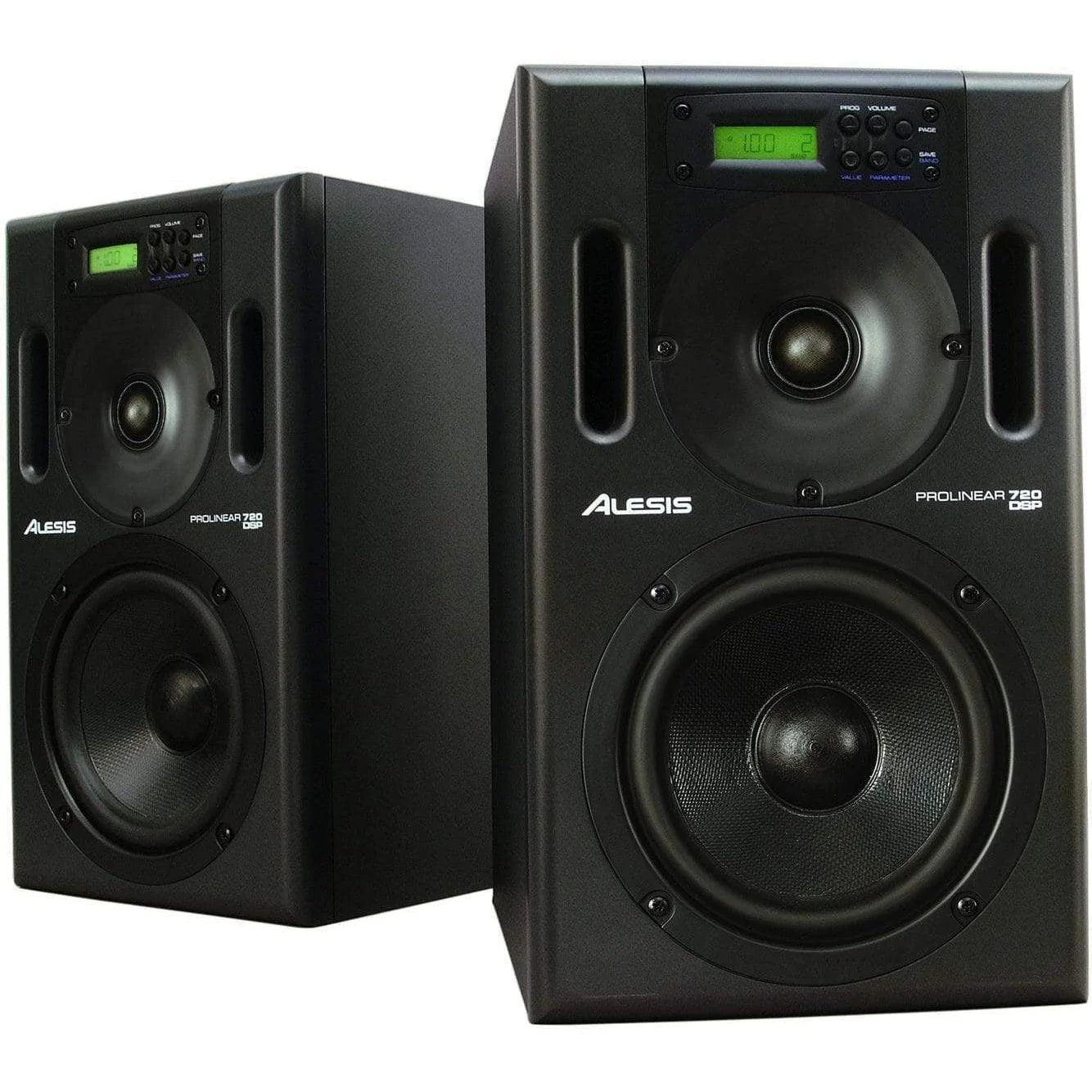

The Prolinear DSPs are available in two sizes, one with an eight-inch bass/mid-range driver and the other with a seven-inch unit. Additionally, both models are available in versions without the built-in DSP. The seven-inch DSP version reviewed here has the drivers mounted symmetrically on the baffle and measures 12 x 9 x 15 inches, with dual bass ports located either side of the tweeter. The one-inch tweeter sits in a contoured waveguide, and is driven from its own 40W amplifier, while the seven-inch bass/mid-range unit is powered by an 80W amplifier. Both can handle peaks of 130W before clipping, but no mention is made of the crossover frequency or any other aspects of the driver construction. The maximum SPL of a pair of these monitors at one metre is 110dB.
SPECIFICATIONS:
| HF Driver Power Amp: | 40 watts RMS typical, 120 watts peak. Frequency response: 50hz - 20kHz +/- 1.5dB. Bass level -3dB @ 43hz typical, |
| Impedance | 10kΩ |
| Inputs | Nominal input level: +4dBu (-15dBFS). Maximum input level: +20dBu (7.0 Vrms) |
| LF Driver Power Amp: | 80 watts RMS, 120 watts peak. |
| Max SPL | 110dB at 1 meter at max input below clipping. |
HOW IT WORKS:
1. Plug in the speaker to your device.
2. Input a constant test signal (e.g. pink noise, white noise).

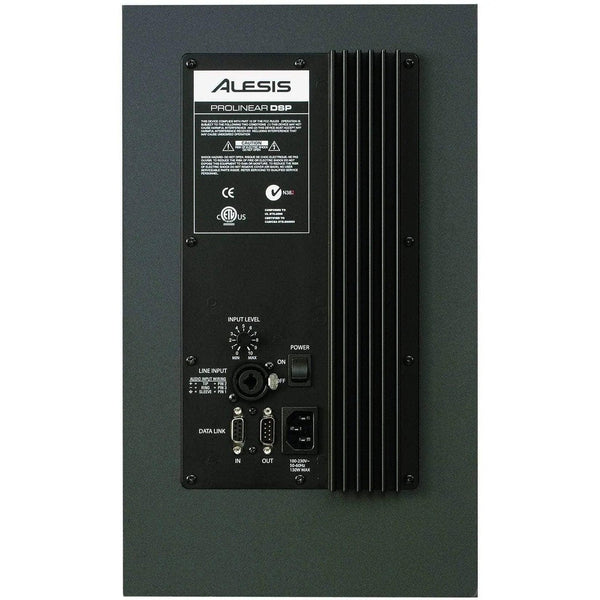

3. Adjust the rear panel pot to the desired level.
4. Push a couple of the front panel buttons to dynamically update and show the input level into the speaker.
PRODUCT FAQ:
Q: What type of input does the ProLinear 720 require?
A: The ProLinear 720 requires a nominal input level of +4dBu (-15dBFS) with a maximum input level of +20dBu (7.0 Vrms).
Q: What is the frequency response of the ProLinear 720?
A: The frequency response of the ProLinear 720 is 50Hz - 20kHz +/- 1.5dB with a bass level -3dB @ 43hz typical.
