Neumann KH 80 DSP Studio Monitor

Notify me when this product is available:

Note: This studio monitor is sold as a single piece.

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.


  • New DSP-engine optimizes output to achieve reference class sound
  • Mathematically modelled dispersion to deliver excellent detail in any surroundings
  • Optional Neumann.Control iPad® app for setup, room alignment and operation

Tech Specs

Powered: Yes
Power Configuration: Bi-amped
LF Driver Size: 4" long-throw driver
HF Driver Size: 1" tweeter
LF Driver Power Amp: 120W peak
HF Driver Power Amp: 70W peak
Frequency Response: 57Hz-21kHz (±3 dB)
Crossover Frequency: 1.8 kHz, 48dB slope per octave
Maximum Peak SPL: 108.8 dB SPL

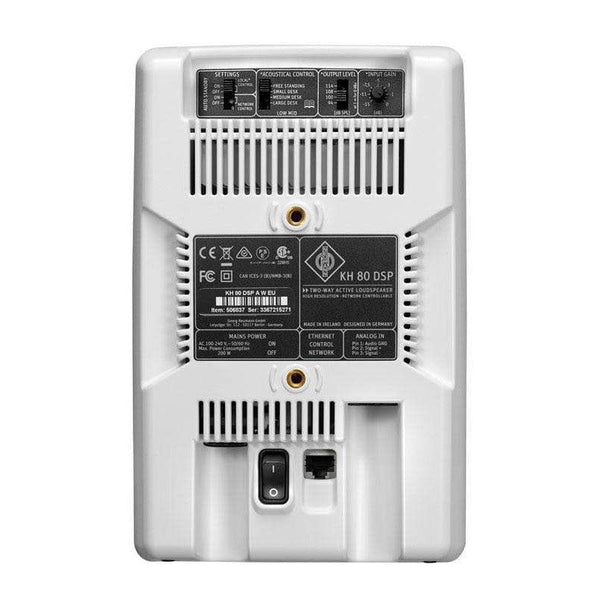

Input Types: 1 x XLR-1/4" combo
Other I/O: Ethernet control network
Features: DSP engine with network control, Elliptical Dispersion waveguide surface (MMD), 2 x M6 mounting points
Enclosure Type: Front ported
Height: 9.1"
Width: 6.0"
Depth: 7.6"
Weight: 7 lbs. 8 oz.
