Wharfedale Pro DIAMONDSTUDIO5BT Active Bluetooth Speaker 5"
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
Download Product Data Sheet
KEY FEATURES
- 5.0″ Active bi-amplified studio monitor
- 140 watts continuous
- 280 watts peak
- 110 dB Max SPL @ 1 M
DESCRIPTION

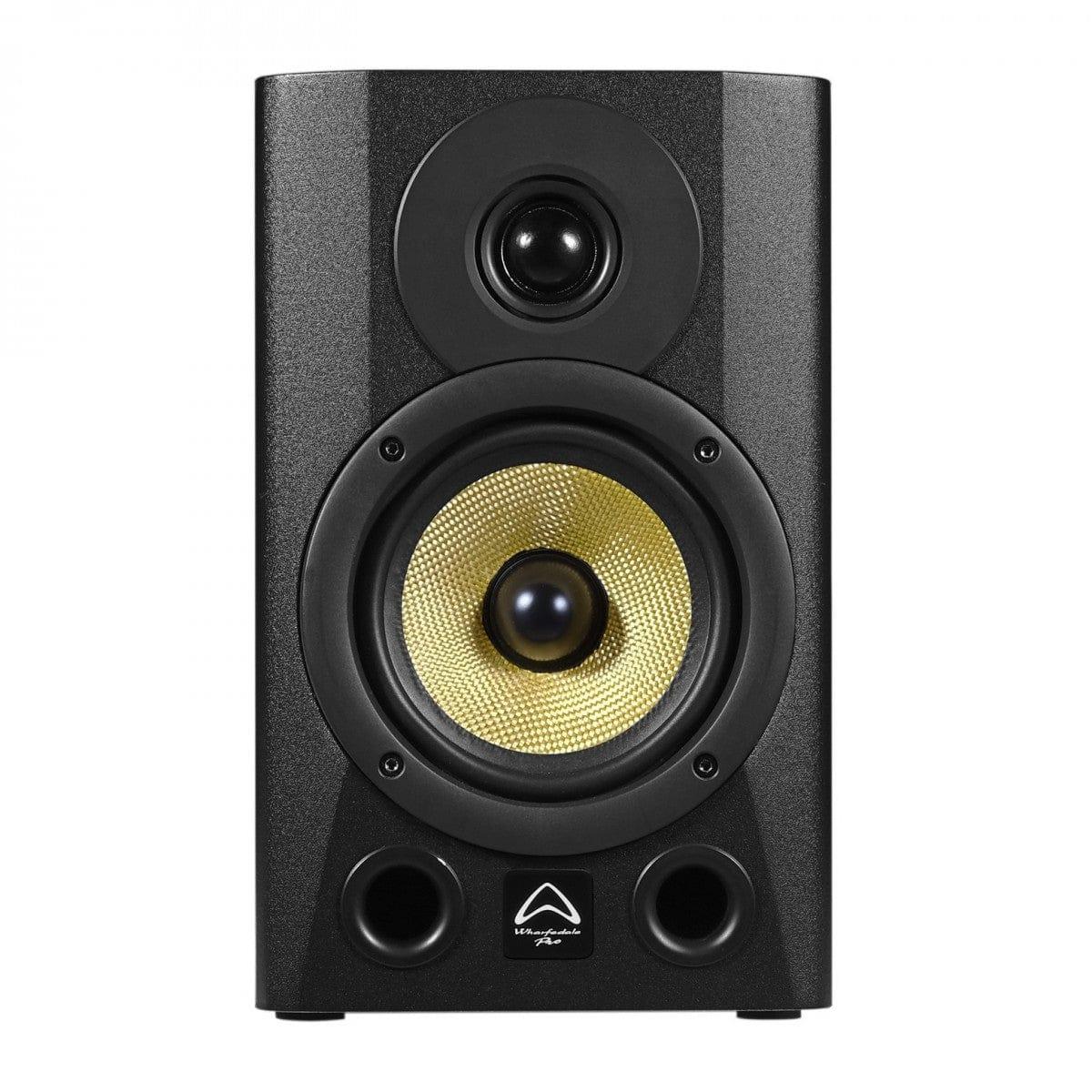

The Wharfedale Pro Diamond Studio 5-BT is a compact studio monitor that provide highly accurate sound. The most important thing when mixing is that you have monitors you can rely on with an an uncoloured sound and a full frequency response. With a 5" woven fibreglass woofer and two bass reflex ports built into the enclosure, the Diamond Studio 5-BT offers consistent, smooth low-frequency reproduction. A soft dome tweeter extends this same accuracy to the high-frequencies, for a smooth studio monitoring experience that doesn't mask a thing.
Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair. Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.
Diamond Studio -BT monitors are designed to be super accurate. Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest.
A great mix is still a great mix. A bad mix, is still a bad mix. Either way, Diamond Studio -BT will let you hear the reality.
SPECIFICATIONS
| Freq. Range (-10 dB) Analog Input | 45 Hz-25 KHz |
| Maximum SPL (peak @1 m) | 110 dB |
| LF Transducer | 5″ Fiberglass composite woofer |
| HF Transducer | Silk Soft dome tweeter |
| Coil Size (mm / inches) | 25.4 mm / 1” |
| High Frequency Coverage (H x V) | 135° x 110° |
| Total Power Amplifiers | 140 W |
| Low-Frequency Power Amplifier (Class D) | 80 W Continuous / 160 W Peak |
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak |
| Electronic Crossover: | |
| Crossover Frequency | 2.2 KHz |
| Controls | |
| Equalization (dB) | HF / LF Level Adjust (-2, 0, +1 ,+2) |
| System Volume | -∞ to +10 dB |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED/white LED (LOGO) |

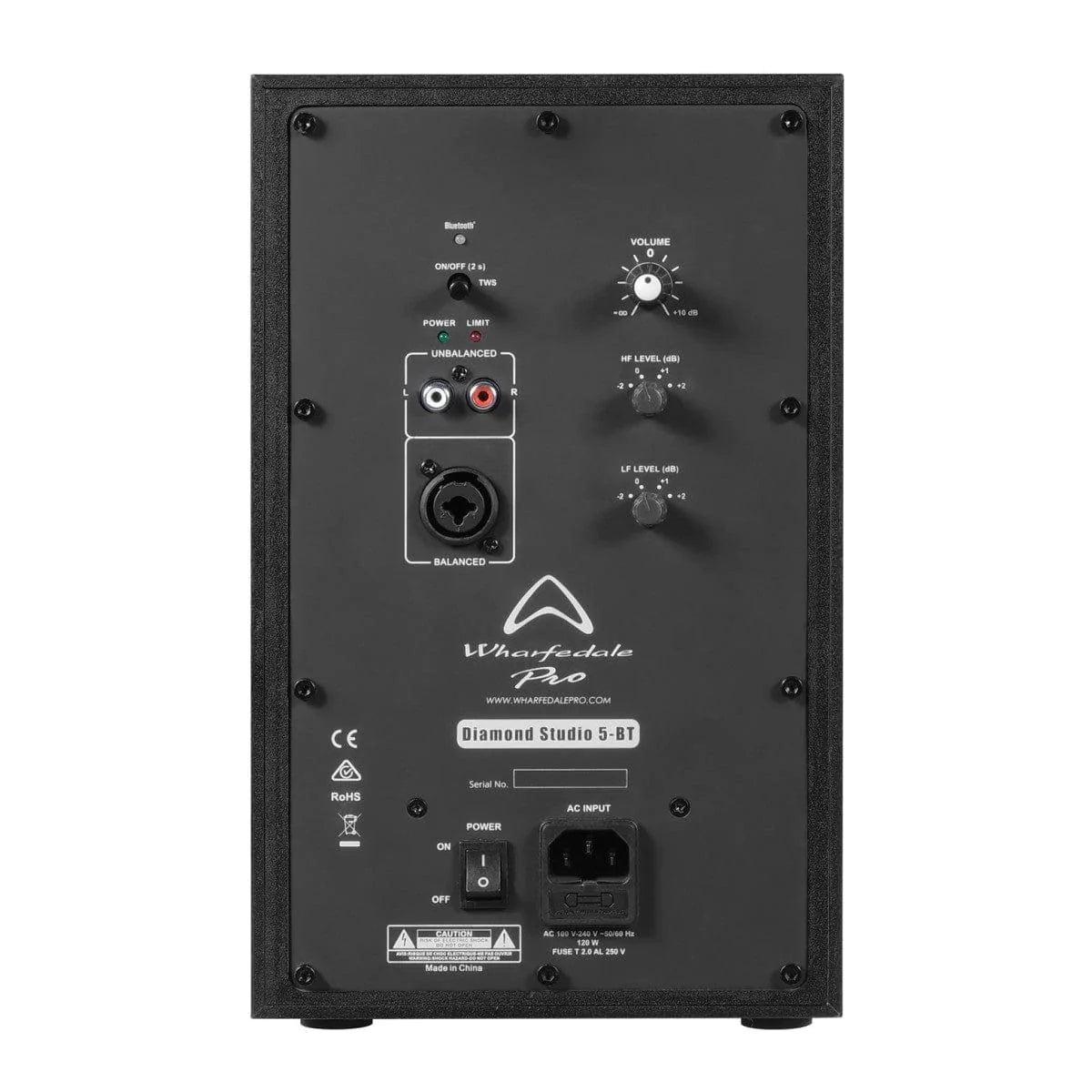

| Input type | Balanced / Unbalanced / Bluetooth |
| Input Connectors | TRS JACK / FEMALE XLR/RCA |
| AC Power Options | 100 V-240 V |
| Power On Indicator | LED |
| Cabinet Material | MDF |
| Cabinet Colour | black |
| Dimensions (Unpacked): | |
| Height | 290 mm /11.42 in |
| Width | 180 mm /7.1 in |
| Depth | 240 mm /9.45 in |
| Weight | |
| Net Weight | 5.62 kg /12.4 lbs |
