TC Electronic MONITORPILOT Multi-Monitor Switching Control Station w/ Desktop Controller
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 142.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
-
Multi-monitor switching control station for up to three sets of studio monitors and one set of headphones
-
Easy access master volume control in elegant design with monitor switching controls
-
Separated I/O housing and control panel for tidy cable runs and sleek aesthetic
-
High-quality main studio stereo XLR inputs and 1/8" TRS jack input for use with external media devices
-
All stereo outputs include independent precision trim pots for calibrated listening
-
High-quality passive switching to A/B between monitor sets
-
All-analog signal path retains original audio quality
-
High-grade aluminum desktop control housing with visual feedback of active speaker set
-
Extremely easy to setup and use
-
Universal wall wart included
DESCRIPTION
Tried and True TC Flight
Literally thousands of world-leading recording and mastering studios, as well as film, post and broadcast facilities, have relied on our tried-and-true high-end monitor controllers like CLARITY X, SYSTEM 6000, BMC2 and LEVEL PILOT over several decades. Yes, we know monitor control, which is your guarantee that when you are flying with the MONITOR PILOT, you can have absolute peace of mind that you’re in for a smooth and safe flight!
We even got you a seat in First Class with a delicious and complementary three-course menu of unparalleled flexibility, transparent connectivity and direct access to volume level and stereo speaker selection right at your fingertips.
Meet and Greet with the Pilot

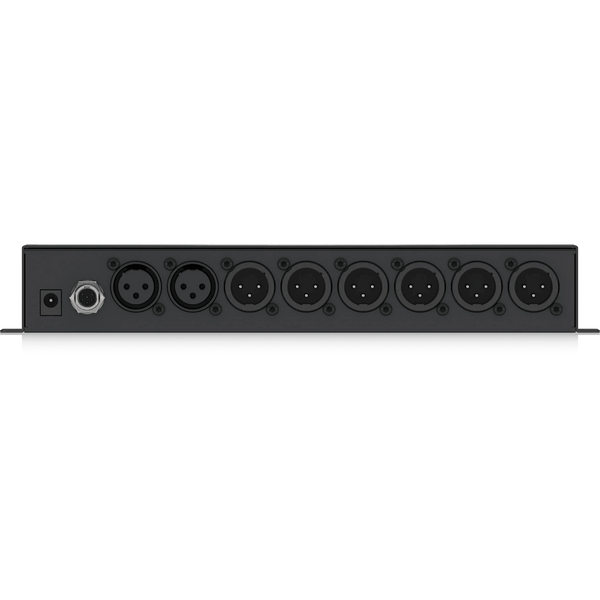

First of all, you can connect up to three stereo speaker sets on fully balanced, 22 dBu line level professional XLR connectors, as well as a pair of headphones on a ¼” TRS jack connector, which is conveniently available on the front panel.
On the input side, you will find another pair of balanced XLR connectors ready to take on the main output from your audio interface. On top of that, you also have the option of connecting any media device via the 1/8” mini jack connector on the front panel. Note that it will happily entertain balanced as well as unbalanced signals, depending on what device you connect.
Once you have installed your MONITOR PILOT, you are set for seamless and transparent switching between speakers, as well as clear visual indication of which speakers are currently active.
Smooth and Elegant Integration

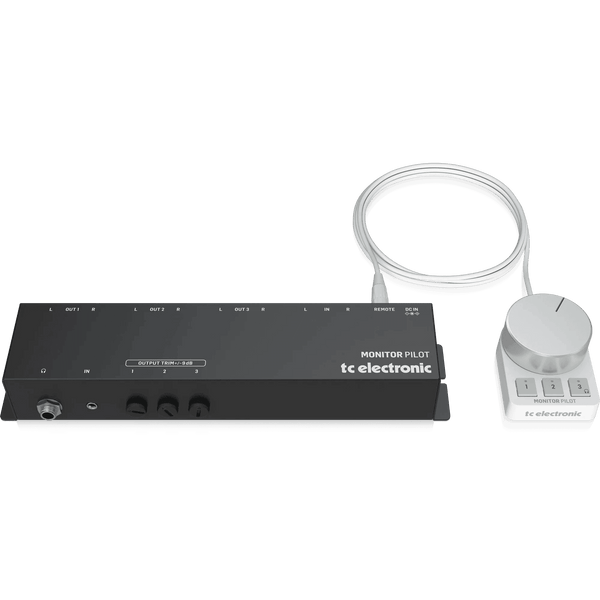

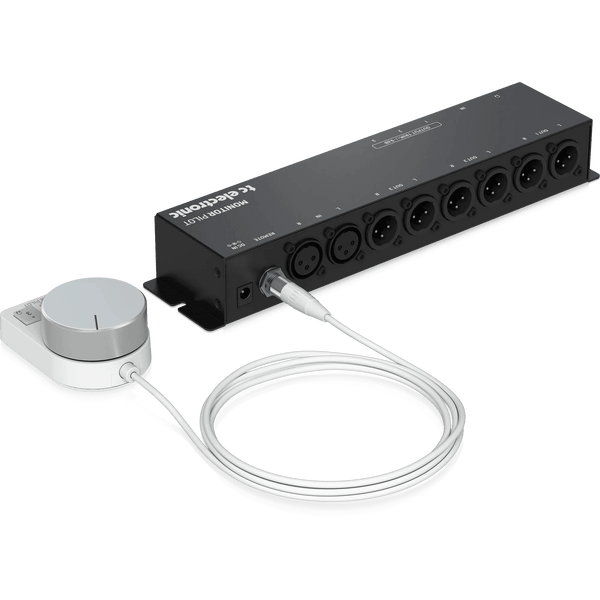

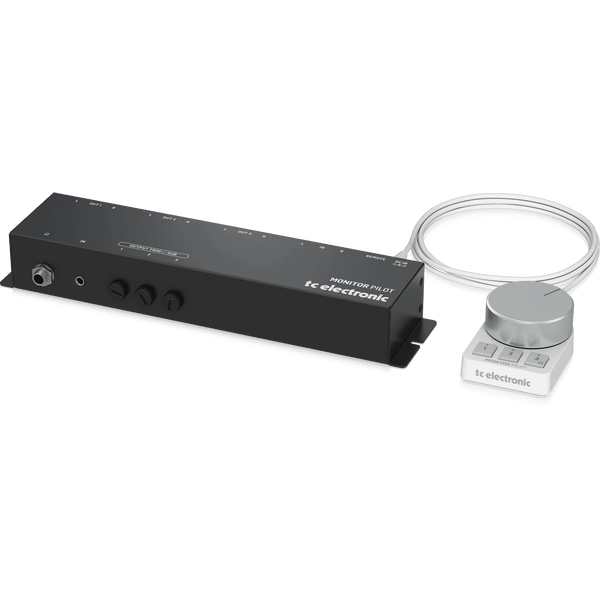

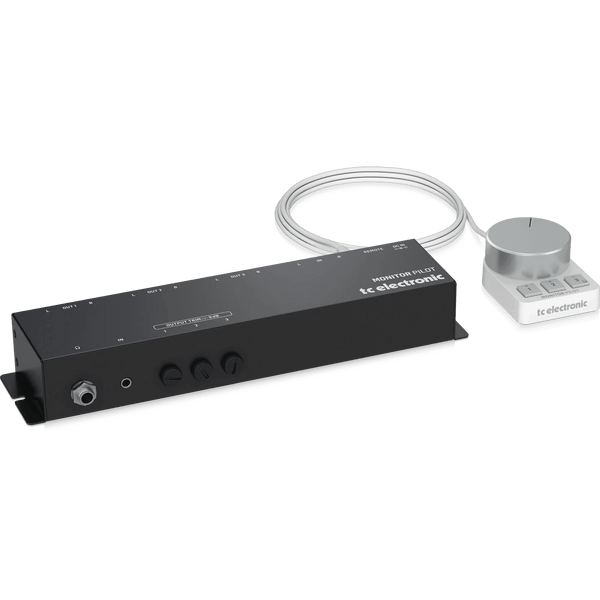

Most pilots are used to going just about anywhere and adapting seamlessly to the destination. MONITOR PILOT is no exception. The most visible part of the system is the remote control, which combines a sleek design with tactile deliciousness and a tiny footprint. In short, it will not take up a lot of desktop real estate and with a solid rubber base, it will sit firmly wherever you decide it should reside. Finally, the single-cable connection keeps your desktop clutter free.
The I/O box can be easily mounted on top of your desk, or underneath the table for easy access to the headphones output and 1/8” mini jack input. Since it’s also an all-analog solution, the MONITOR PILOT is completely computer independent, making integration an absolute breeze.
SPECIFICATIONS
| Category | Specification |
|---|---|
| Analog Inputs | |
| Main Input | 2 x XLR, balanced |
| Input Impedance | 10 kΩ balanced, 5 kΩ unbalanced |
| Max Input Level | +22 dBu |
| Aux Input | 1/8" TRS, stereo unbalanced |
| Aux Input Impedance | 500 Ω |
| Aux Max Input Level | +5 dBu |
| Analog Outputs | |
| Monitor Out 1-3 | 2 x XLR, balanced |
| Monitor Output Impedance | 100 Ω balanced, 50 Ω unbalanced |
| Monitor Max Output Level | +22 dBu |
| Phones Output | 1/4" TRS, stereo |
| Phones Output Impedance | 50 Ω |
| Phones Max Output Level | +22 dBu |
| System (XLR In to XLR Out) | |
| Frequency Response | +0 / -0.2 dB, 20 Hz to 20 kHz |
| Dynamic Range | >105 dB (0 dB gain), unweighted, BW 20 Hz - 20 kHz |
| Crosstalk | < -90 dB @ 1 kHz |
| Max Gain | +6 dB |
| Trim Gain per Output Pair | -18 to 0 dB |
| Power Supply / Voltage | |
| Mains Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 12 W max |
| Power Supply | 12 V DC, 1000 mA (included) |
| Main Unit Dimensions / Weight | |
| Dimensions (H x W x D) | 39 x 261 x 70 mm (1.5 x 10.3 x 2.8") |
| Weight | 0.6 kg (1.2 lbs) |
| Finish | Powder coated black steel plate |
| Remote Dimensions / Weight | |
| Dimensions (H x W x D) | 37 x 53 x 78 mm (1.5 x 2.1 x 3.1") |
| Weight | 0.2 kg (0.4 lbs) |
| Finish | Aluminum anodized knob, plastic body with metal foot |
