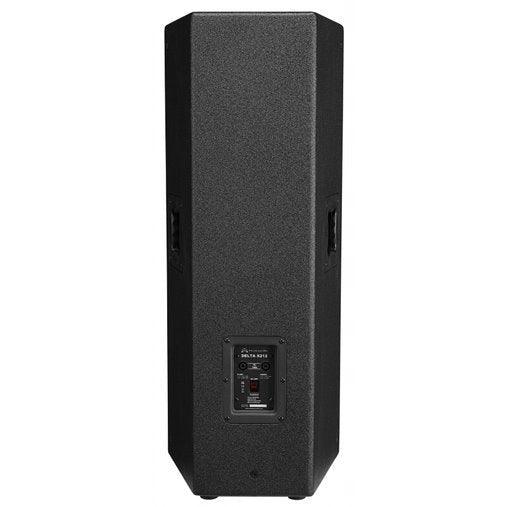

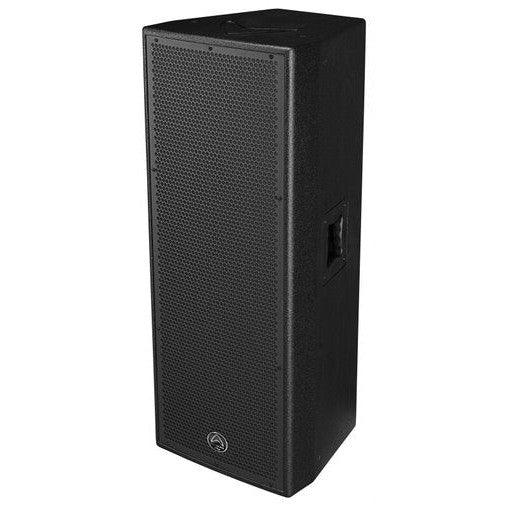

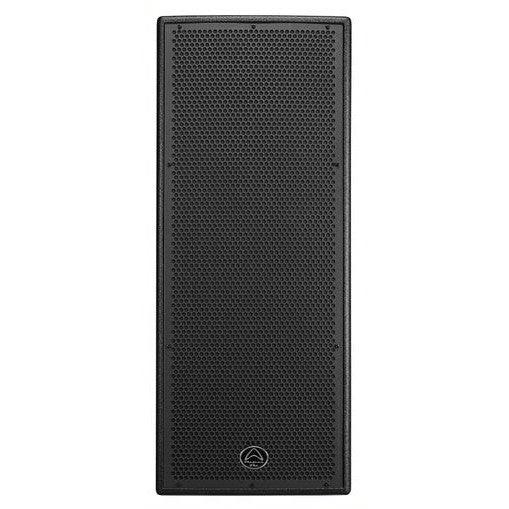

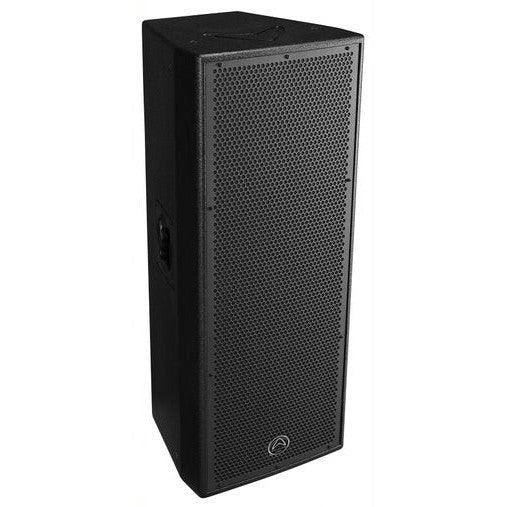

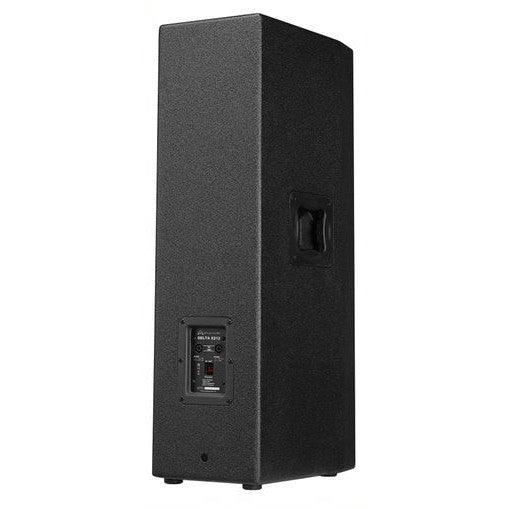

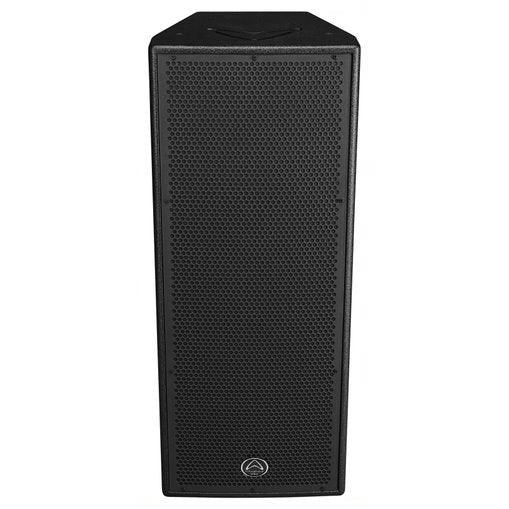

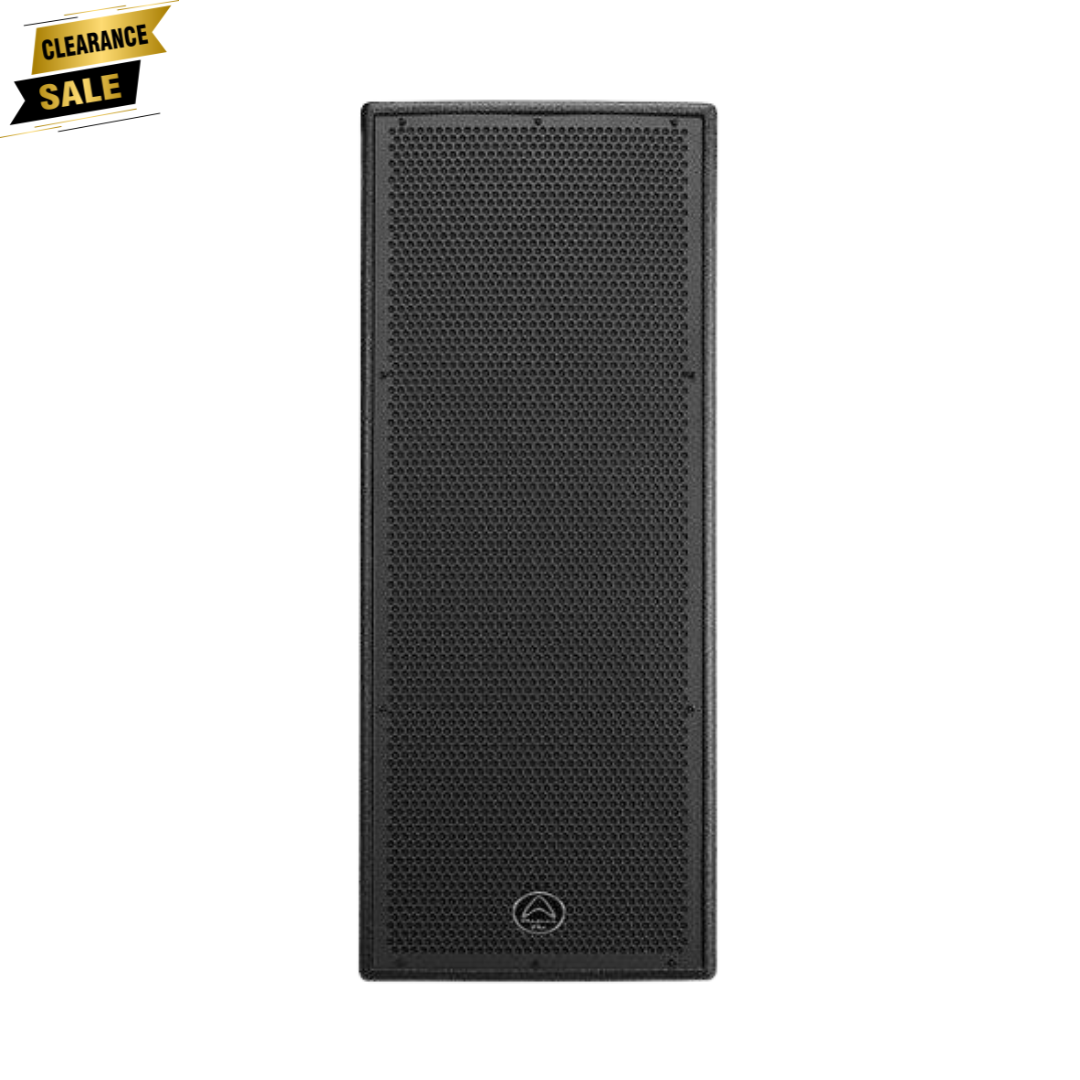

Wharfedale Pro Delta X212 Speaker Passive 2x12" 800W RMS 4Ohm Wooden Paint Body
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsApp
Secure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Choose options
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Download Product Data Sheet
KEY FEATURES
- Dual 12″ 2-way passive
- 2.0″ voice coil HF driver
- 3.0″ LF voice coils
- 800 watts AES (RMS)
- 1600 watts Programme
- 3200 watts Peak
- 135 dB Max SPL @ 1 meter
DESCRIPTION
Delta-X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta-X models are instantly recognisable by their engraved iconic Wharfedale Pro ‘boomerang’ logo on their cabinets. The fresh cosmetic design however is not the only improvement the engineering team have made.
Internally Delta-X also has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.
With rear panel switching, Delta-X can operate in either Bi-Amp or Full range modes. This routing flexibility allows for Delta-X systems to be refined using multiple amplifiers and external crossovers.
Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta-X10, 2” titanium compression drivers are coupled to 90° x 45° elliptical waveguides for impressive output level and smooth HF dispersion.
With a full lineup of 12 models, ranging from the 300w RMS Delta-X10 to the 1600w RMS Dual Chamber 2 x 18” Delta-X218 subwoofer, Delta-X models are perfect for fixed installation and touring applications.
SPECIFICATIONS
| Model Name | Delta X212 |
| System Type | Passive |
| Configuration | Quasi Three-way |
| Frequency Response (+/-3 dB) | 53 Hz-20 KHz |
| Frequency Range (-10 dB) | 45 Hz-20 KHz |
| Sensitivity (2.83 v / 1 m) | 100 dB |
| Calculated Maximum SPL @1 m | 135 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 2 x 332 mm / 12″ |
| Voice Coil Size | 77.1 mm / 3″ |
| Rated Impedance | 2 x 8 Ω |
| LF Power (re:AES2-2012) | 2 x 400 w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 50.8 mm / 2″ |
| Exit Size | 35.6 mm / 1.4″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 50 w |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 800 w |
| System Programme Power | 1600 w |
| System Peak Power | 3200 w |
| Crossover frequency | 1.8 KHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Pole Mount | |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | 15 mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions – Unpacked | |
| Height | 964.4 mm / 37.97” |
| Width Front | 390 mm / 15.3″ |
| Width Rear | 241.7 mm / 9.5” |
| Depth | 373 mm / 14.7” |
| Dimensions – Packed | |
| Height | 1080 mm / 42.5″ |
| Width Front | 566 mm / 22.3″ |
| Width Rear | 566 mm / 22.3″ |
| Depth | 464 mm / 18.3″ |
| Weight | |
| Net Weight (kg / lbs) | 38 kg / 83.6 lbs |
| Gross Weight (kg / lbs) | 45.0 kg / 99 lbs |
