Sennheiser

508490

Sennheiser WSW-D Portable ENG Set Digital Camera-Mount Wireless Combo Microphone System

The Sennheiser XSW-D PORTABLE ENG SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that's cost effective, as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.

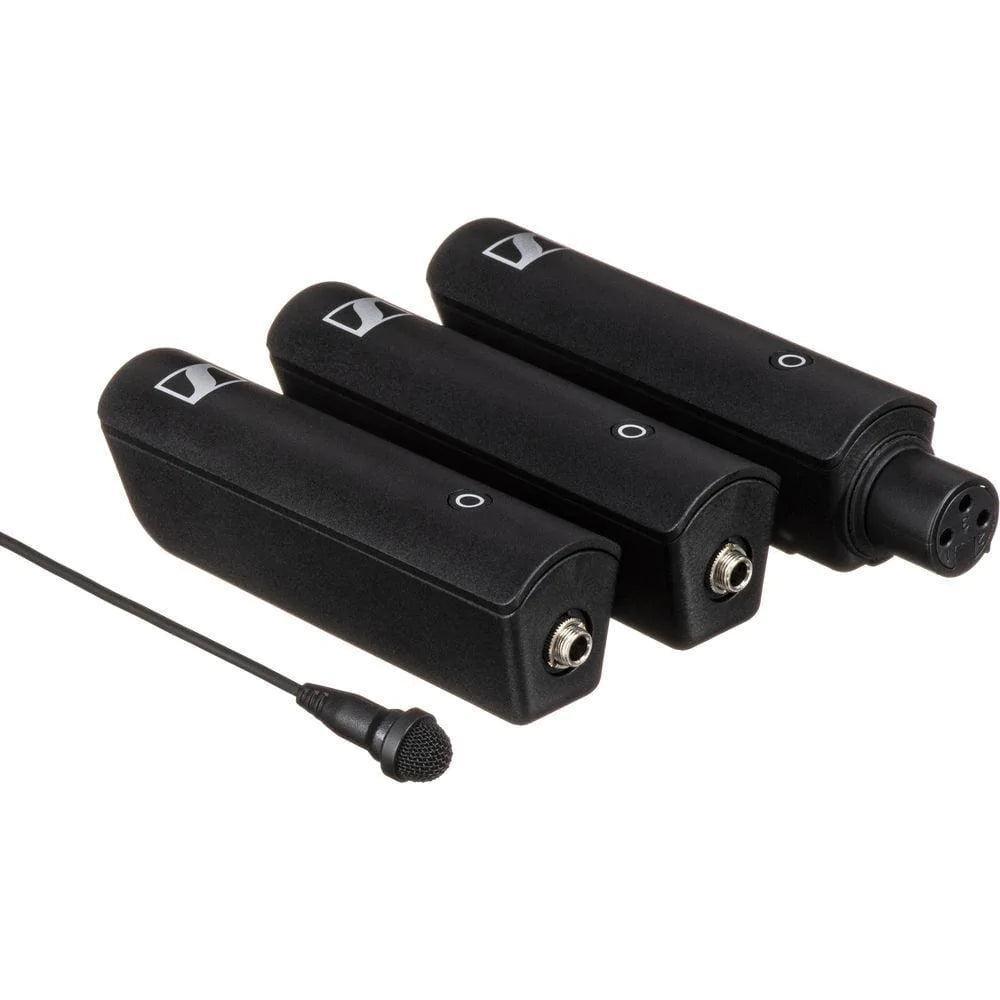

The XSW-D PORTABLE ENG SET is the choice where utmost flexibility is key. This set comes with a bodypack transmitter and the highly popular ME 2-II omnidirectional lavalier microphone. Also included is a plug-on transmitter which can be attached to a handheld microphone of your choice for man-on-the-street interviews or to a shotgun mic for booming (both types of mics are available separately).

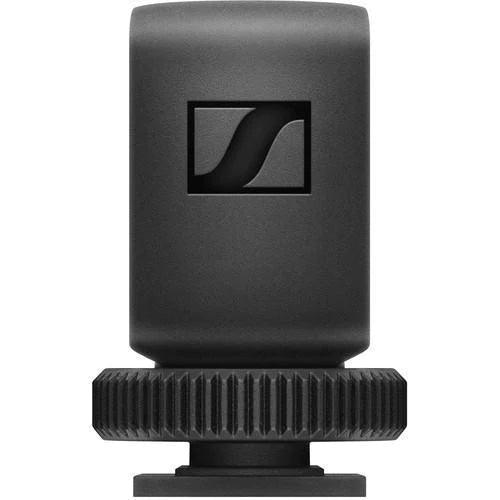

The camera-mount receiver connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.

Note: While this system includes two transmitters, only one can be used at a time.

Features

  • Plug & Record Set for Vlogger
  • ME 2-II Omnidirectional Lav Mic

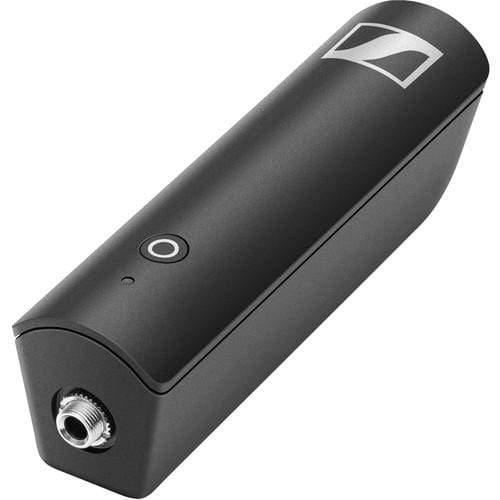

  • Miniature Bodypack Transmitter
  • Miniature Plug-On Transmitter

Tech Specs

Wireless Transmission Digital 2.4 GHz
Included Transmitters 1 x Bodypack
1 x Plug-On
Diversity TDMA
RF Frequency Band 2400 to 2483.5 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 250' / 76.2 m (Line of Sight)
Max Systems per Setup 5
Audio Codec APT-X Live
Encryption None
Modulation GFSK
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 1 x Internal
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Audio Output Level 12 dB (Consumer Level)
Frequency Response 80 Hz to 18 kHz
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity 850 mAh
Battery Charging Time 3 Hours
Approx. Battery Life 5 Hours (Lithium Rechargeable)
Battery Cycle Count Up to 1000 Cycles
Display & Indicators 1 x LED (Battery Status, Mute, RF Level)
Housing Plastic
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%
Dimensions 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm
Microphone
Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 36 dB
Maximum SPL 130 dB SPL Peak
Sensitivity 20 mV/Pa
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 5.25' / 1.6 m
Operating Voltage 7.5 V
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%

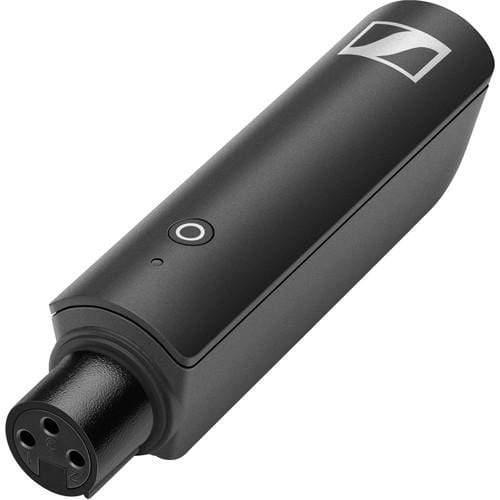

Transmitter 2
Form Factor Plug-On
RF Output Power 10 mW
Audio I/O 1 x XLR 3-Pin Female Unbalanced Input
Muting Off/On Switch
Audio Input Level (Mic Level)
Frequency Response 80 Hz to 18 kHz
Antenna 1 x Internal
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable)
Internal Battery Capacity 850 mAh
Battery Charging Time 3 Hours
Approx. Battery Life 5 Hours (Lithium Rechargeable)
Battery Cycle Count Up to 1000 Cycles
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x LED (Battery Status, Mute, Signal Strength)
Housing Plastic
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 95%
Dimensions 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm
