Sennheiser

SK AVX-3

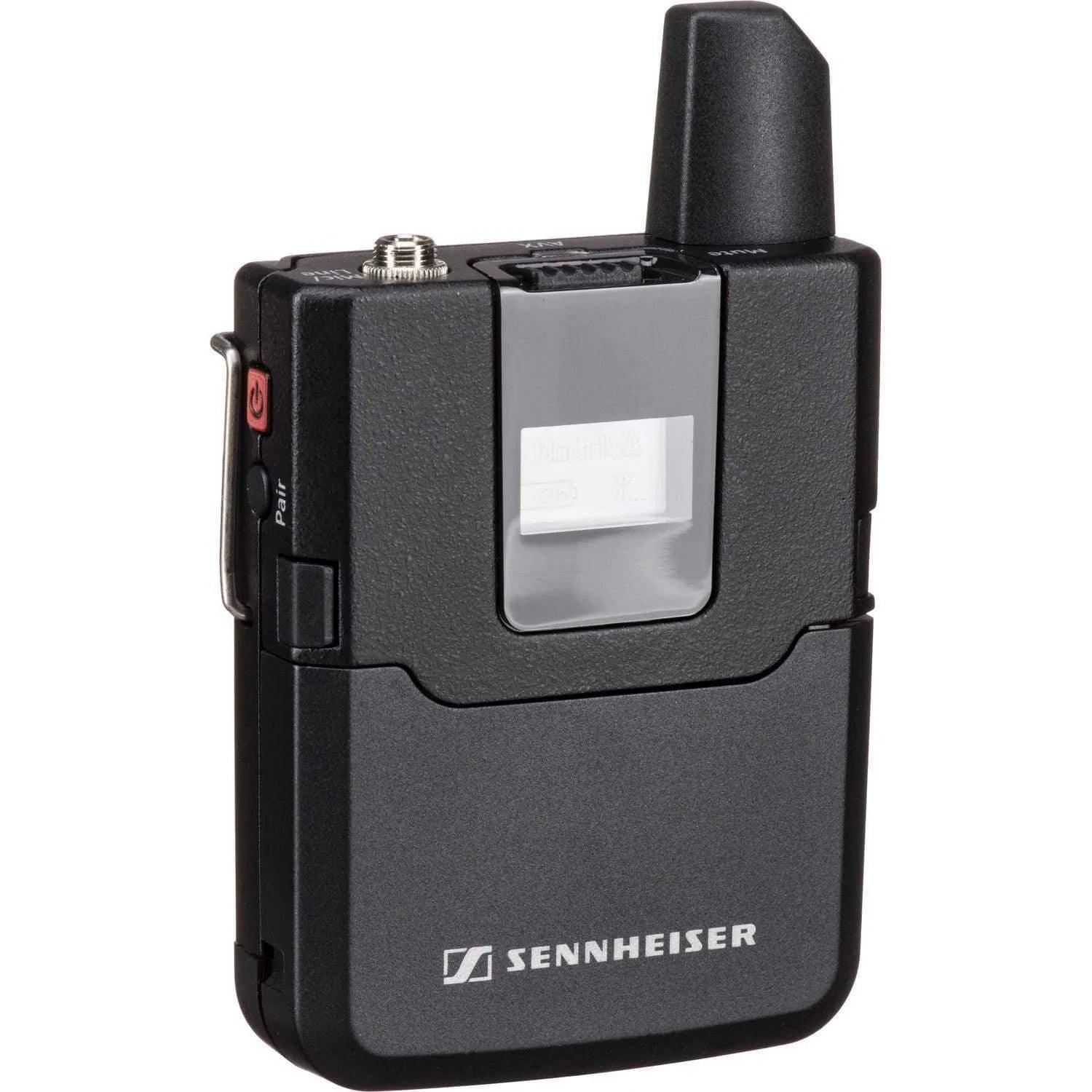

Sennheiser SK AVX-3 Body-Pack Transmitter for the AVX Wireless Microphone System

Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser SK AVX Digital Bodypack Transmitter features an innovative design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.
The bodypack transmitter features a 3.5mm jack and accepts either a microphone with a maximum input of 2.2V RMS (50 to 20,000 Hz response) or a line level source with a maximum input of 3.3V RMS (20 to 20,000 Hz response) for a wide variety of sources. The unit is powered by an optional Li-ion 3.7V battery and has an operating time of 15 hours.

Features


-For Use with AVX Wireless Mic System
-Lightweight, Compact Metal Housing
-Automatic Mic Level Control
-Mute Switch
-15-Hr Rechargeable Battery + USB Power
-98' Range

Tech Specs

Frequency Response 20 to 20,000 Hz
Dynamic Range > 120 dB (A)
THD Typical 0.1%
Audio Sampling 24-bit at 48 kHz
Signal to Noise Ratio > 90 dB (A)
RF Frequency Range 1880 to 1930 MHz (country specific)
Modulation GFSK with return channel
Diversity TDMA fast switching antenna diversity
Latency 19 ms
Temperature Range Operation: 14 to 131° F (-10 to +55° C)
Storage: -4 to 158°F (-20 to +70°C)
Simultaneous Operation of Units Up to 8 units simultaneously under optimal conditions
