KEY FEATURES

• NEUMANN KK 205 condenser capsule (supercardioid) and EM 300-500 G4 9.5" receiver
• 88 MHz bandwidth
• 20 Frequency banks with up to 32 presets for each
• Up to 32 compatible channels
• Network connection for frequency management and control via software WSM (Wireless System Manager)
• Frequency response 25 - 18,000 Hz
• Frequency transmission via infrared interface
• Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
• Pilot tone
• Autotune to find free frequencies
• Integrated EQ
• Audio gain over 60 dB range
• Soundcheck mode
• 4-Level battery indicator on transmitter and receiver
• HDX Compander
• Frequency range: BW Band (626 - 698 MHz)
• LCD with AF level and channel display
• Switchable transmission power 10/30/50mW
• 2 BNC antenna connectors
• XLR male balanced and jack unbalanced
• Power supply 10.5 - 16 V DC
• Includes GA 3 rack mount, microphone holder, NT2 power adapter and 2 AA batteries

DESCRIPTION

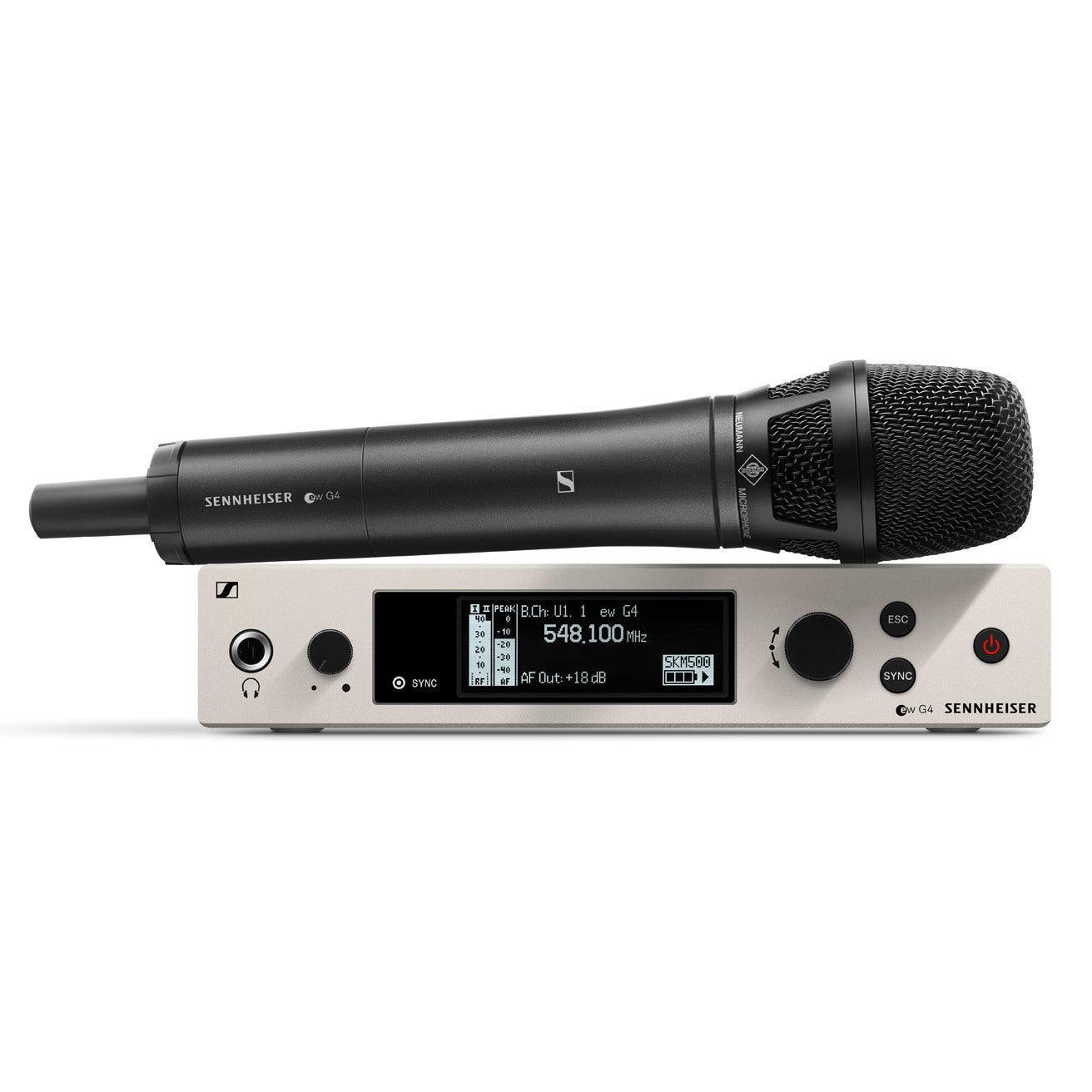

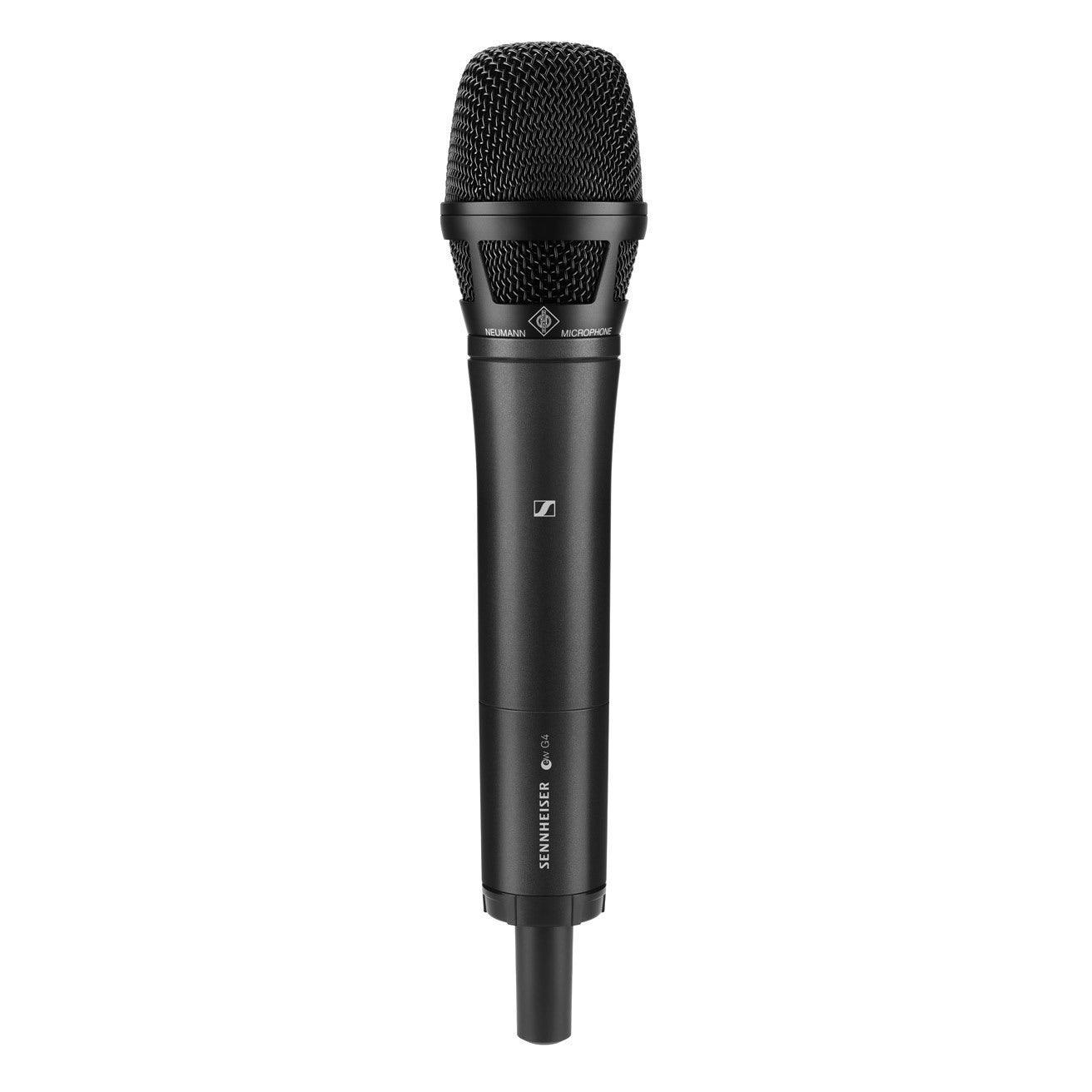

UHF Wireless System with SKM 500 G4 Handheld Transmitter

The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together.

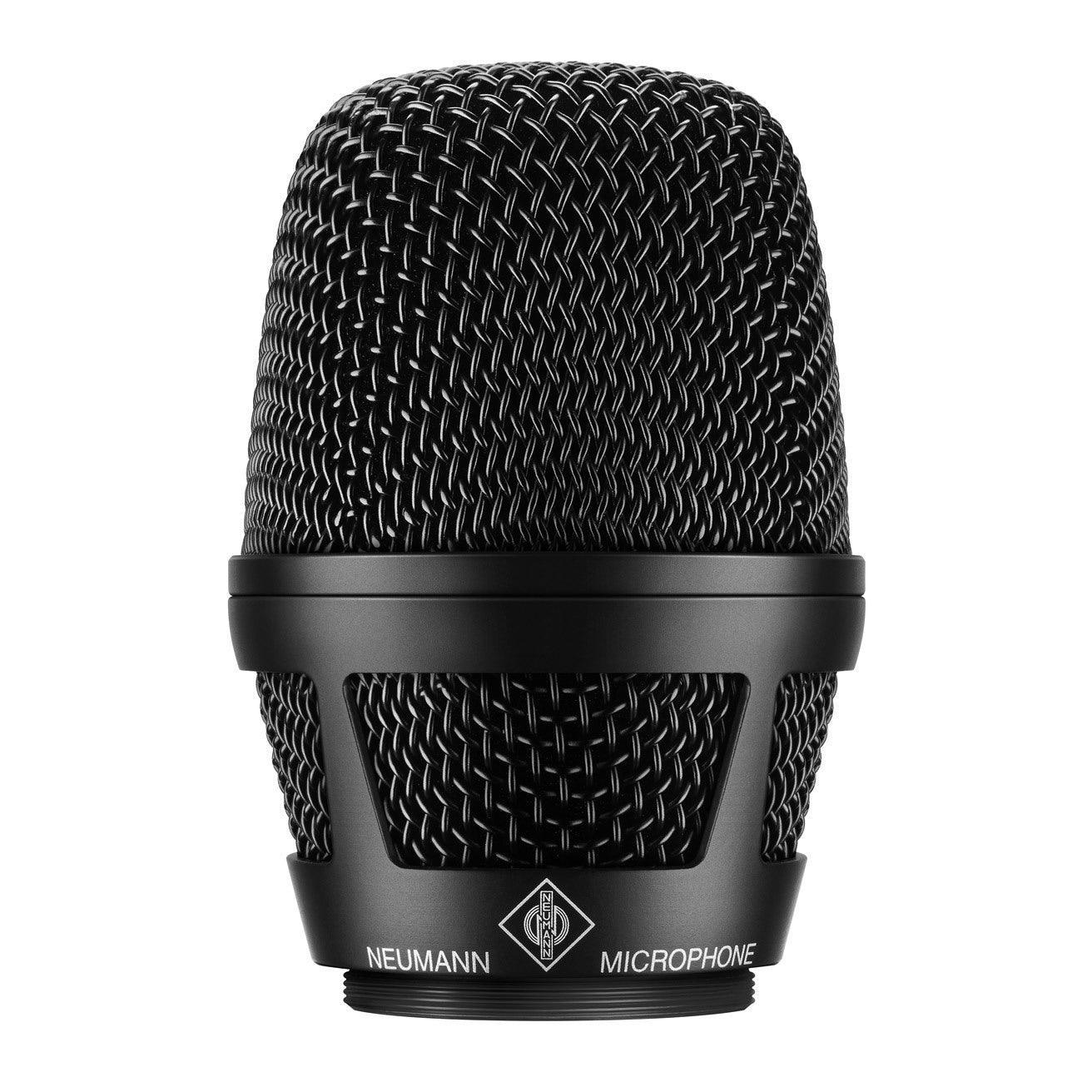

The Neumann super-cardioid condenser capsule KK 205 offers true Neumann sound, combined with Sennheiser G4 wireless transmission to provide you the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection and high feedback resistance. The ew 500 G4 is highly flexible. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
