EY FEATURES

• Compact 500 Series premium compressor/limiter with dynamic presence control
• Fully variable dynamic presence feature preserves high mid-range frequencies for a more natural sound during compression
• Dynamic presence control adds "air" to vocals without introducing noise or pumping effects and reduces the risk of feedback during live performances
• Manual envelope controls with linear peak-sensing compression or easy to use Auto mode with RMS compression
• Soft or hard knee compressor response with selection switch
• Sidechain high pass filter with selection switch eliminates undesirable low frequency compression artefacts
• Premium quality components throughout for a crystal-clear audiophile signal path

DESCRIPTION

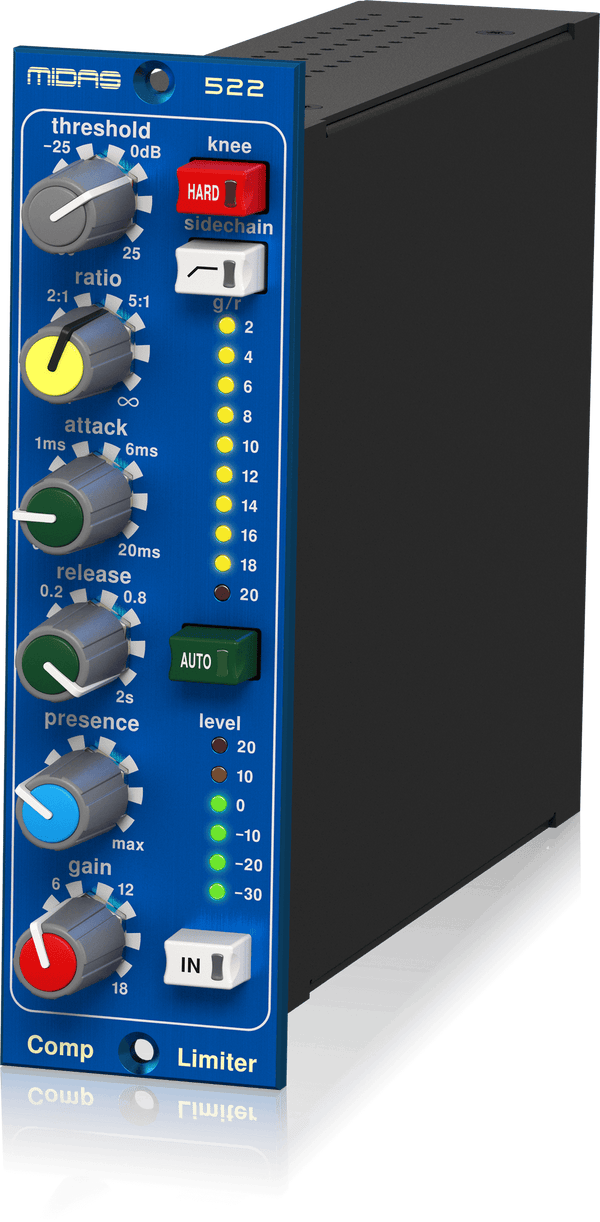

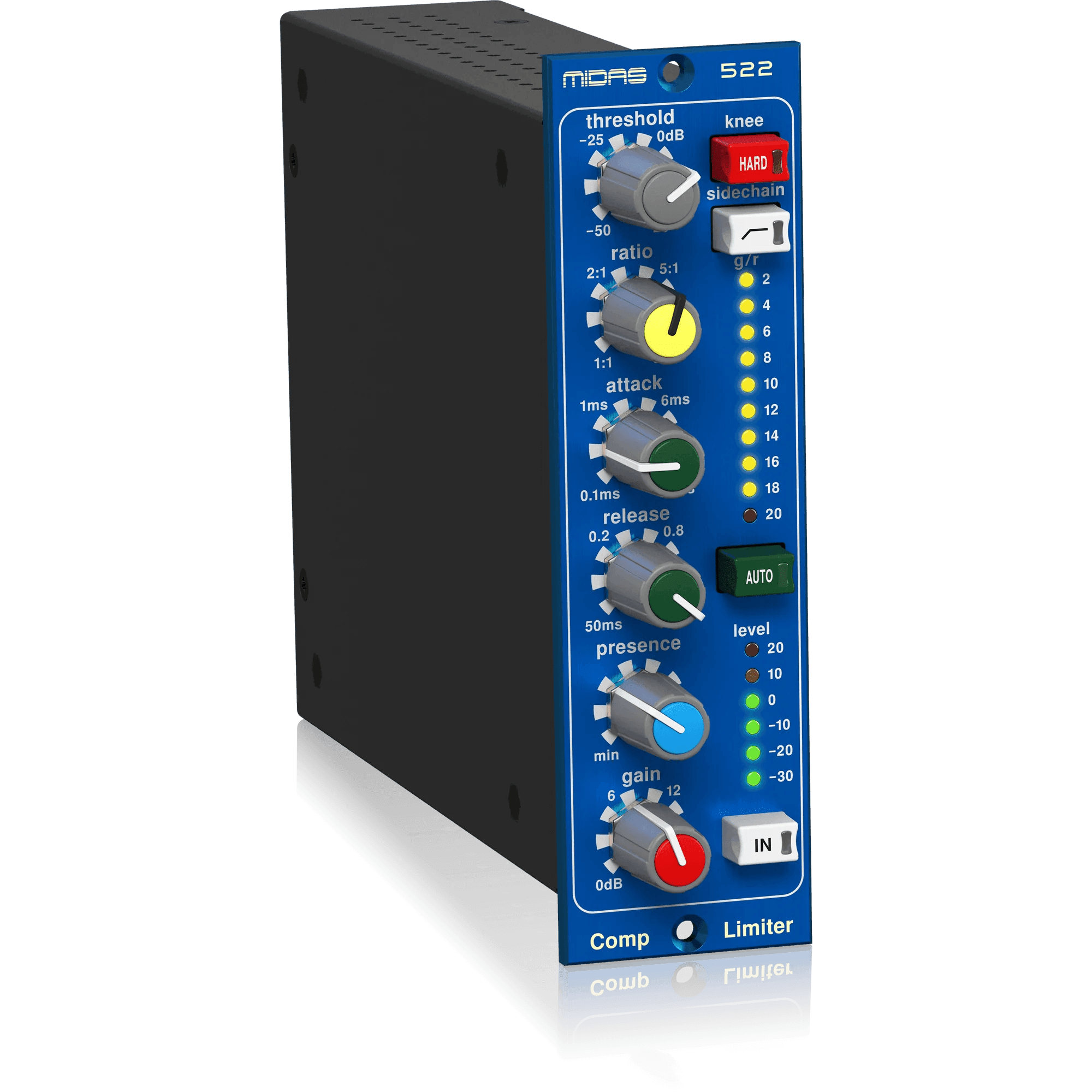

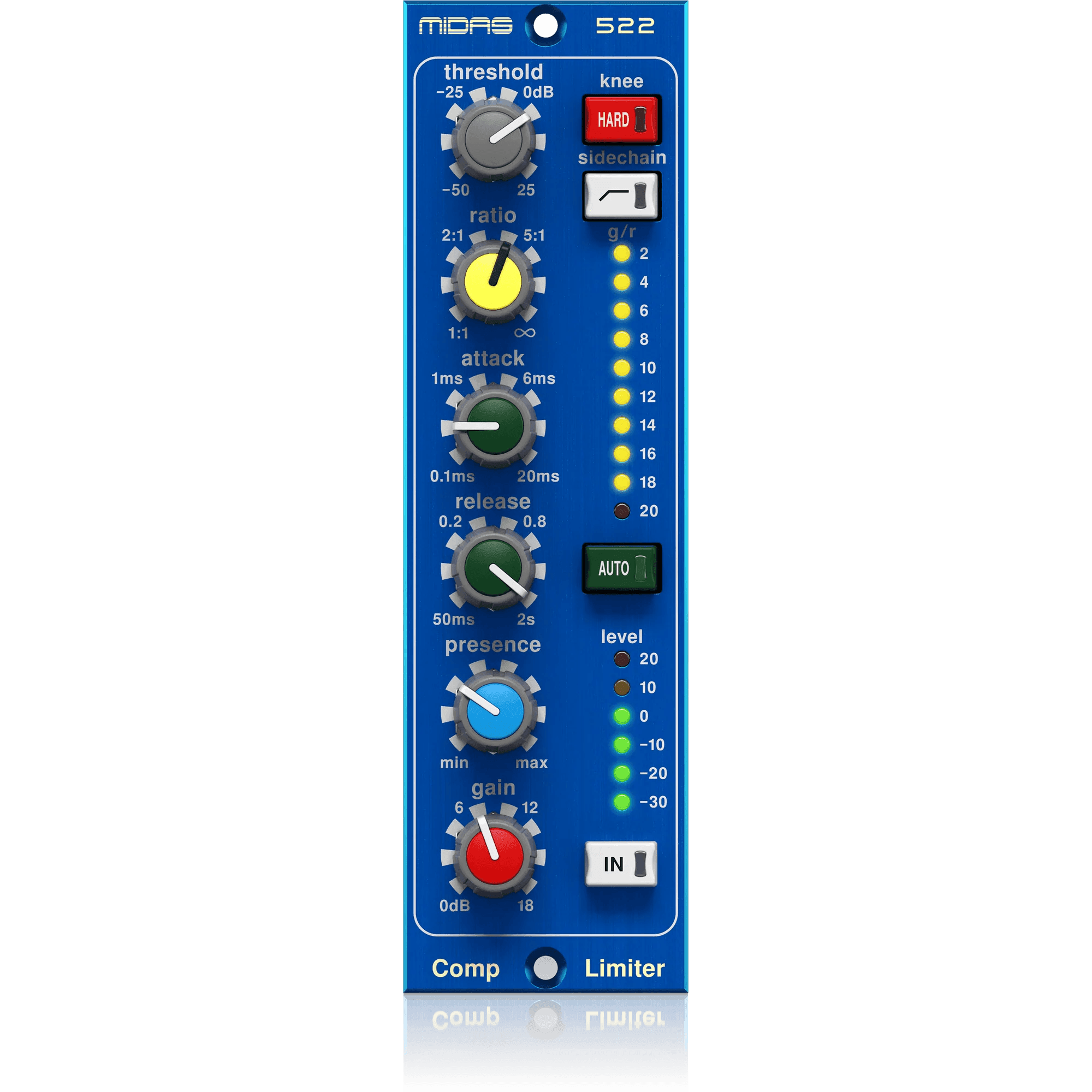

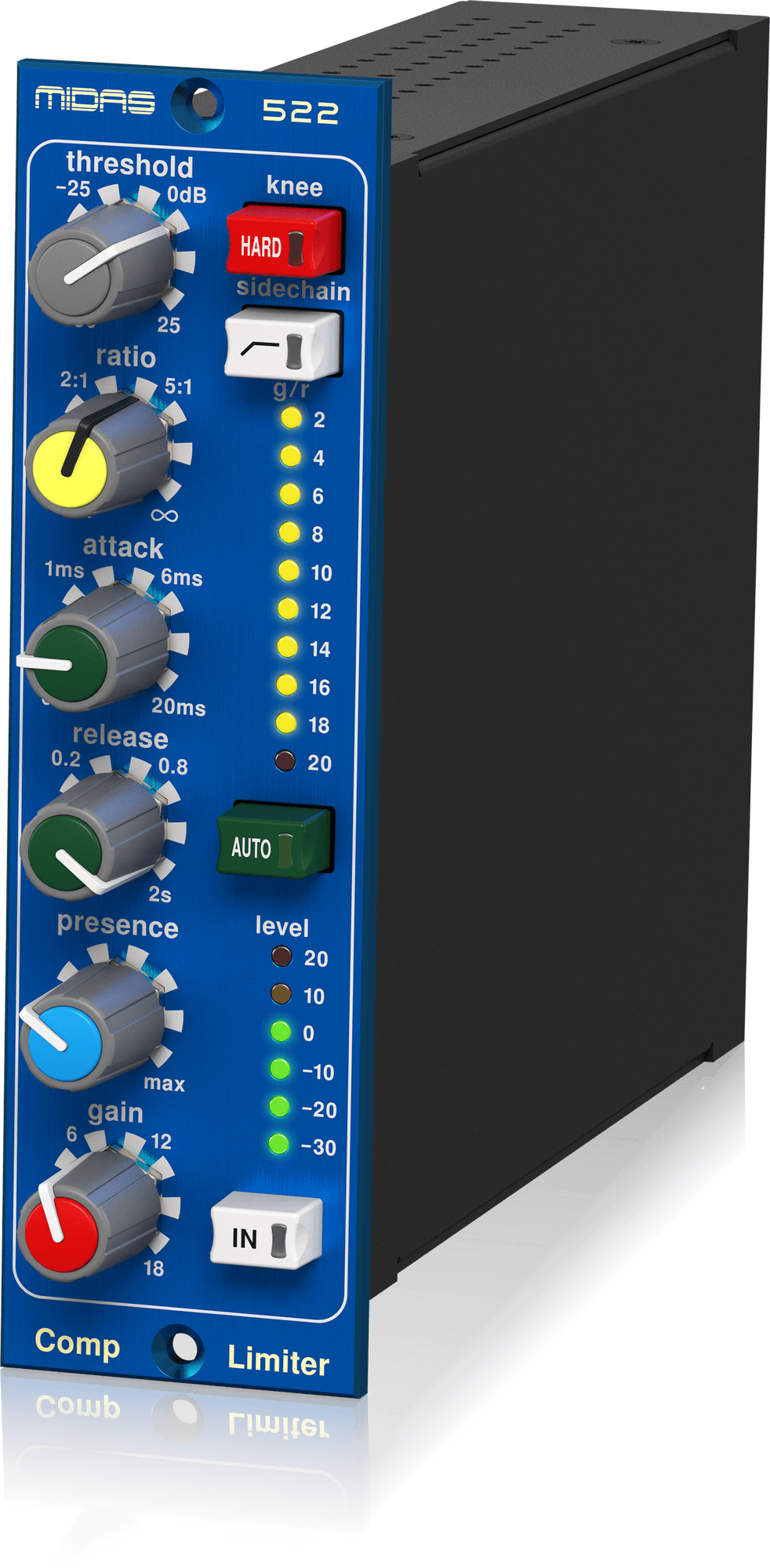

500 SERIES COMPRESSOR LIMITER 522 V2
The COMPRESSOR LIMITER 522 brings state of the industry dynamics control to a compact 500 Series format processor that is good enough to wear the Midas name. When used in conjunction with the LEGEND L10, L6, or other standard 500 Series rackmount chassis, the 522 provides the ideal solution for users seeking the legendary Midas sound in a modular format that boasts upgraded, premium-quality performance. Additionally, the 522’s dynamic Presence control enables operators to add “air” to vocals without the unwanted noise or pumping effects found in competing products – and reduces the risk of feedback occurrence during live performance.

Importance of Dynamics
Dynamics play a major role in music; they help to convey emotion, whether it’s a sultry blues guitar solo, a vocalist belting out his/ her message – or the punchy impact of a bass guitar or kick drum. Those dynamics are the essence of a natural sounding performance; it is what makes music interesting. But out of control dynamics can instantly mar an otherwise perfect performance. That is where compression comes to the rescue – softening loud sounds and boosting low signal levels that can often get lost in the mix. The resulting compressed signal creates a much more dense, impactful sound with richness and room for subtle nuances to come through.

Variable Dynamics & “Air”
The range of mid-high audio frequencies (centered around 5 kHz) can be boosted to increase the sense of presence of vocals and solo instruments. As 522’s Presence control is adjusted above minimum, those mid-high frequencies are increasingly boosted during compression, allowing a sound or instrument to cut through or seem more present in the mix. This variable presence function enables the 522 to effectively operate with two different ratios, one for low frequencies (LF) and the other for mid-high frequencies (reduced ratio). The primary effects are: heavy compression and dynamic control can be applied without sounding unnatural; and the reduced compression in the human ear’s most sensitive range makes the material sound brighter. However, since high frequency (HF) make up gain is not required, unwanted noise, pumping, and howl-round during quiet passages are all greatly reduced.

Manual or Auto Modes
When operating in its default mode (Auto switch not engaged) the 522 functions as a peak-sensing compressor, providing tight peak control via instantaneous changes in gain reduction, which produces more obvious compression. This allows the operator to manually adjust the compressor attack and release times so that the compressor operates in peak mode with linear attack curves. When the Auto switch is engaged, the manual attack and release controls are bypassed and the compressor operates in RMS mode, automatically adjusting the attack and release based on the averaged input signal and the threshold/ratio settings. This produces a smooth, more relaxed compression that is perceived as more musical and natural sounding.

Sidechain HPF
COMPRESSOR LIMITER 522’s Sidechain high pass filter (HPF) switch lets you insert a 200 Hz HPF into the compressor side chain, which keeps LF signals from dominating overall signal compression – and effectively eliminates the unwanted artefacts and pumping effects on higher frequencies.

True Hardware Bypass & Power Up Mute
For those occasions when compression is not needed, 522’s IN switch can be disengaged to remove all circuitry from the signal path via true hardware relay bypass. Additionally, true bypass mode engages should the chassis become accidentally powered down.
