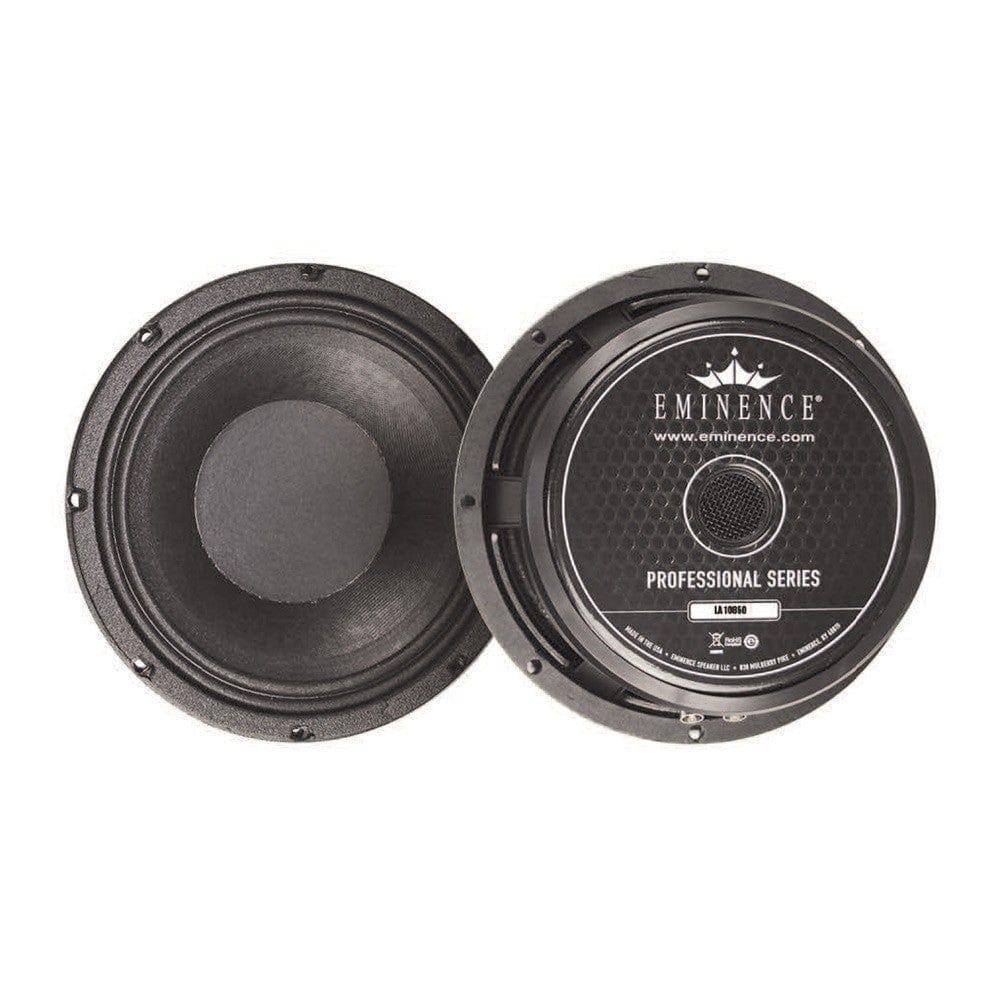

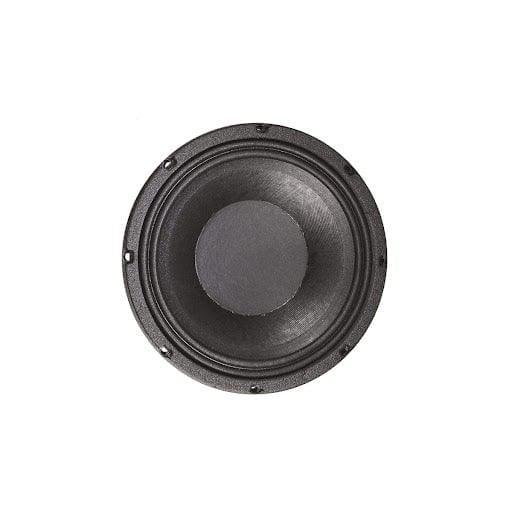

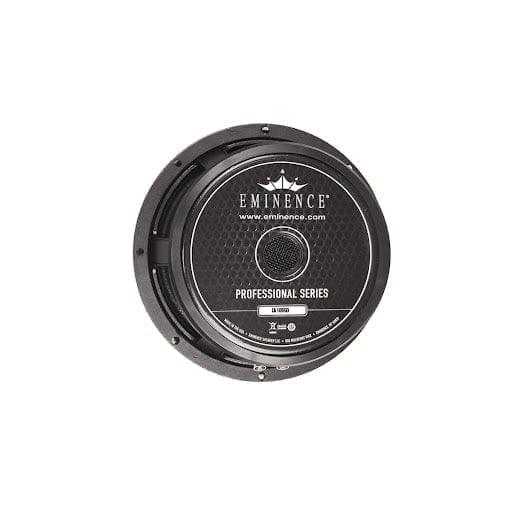

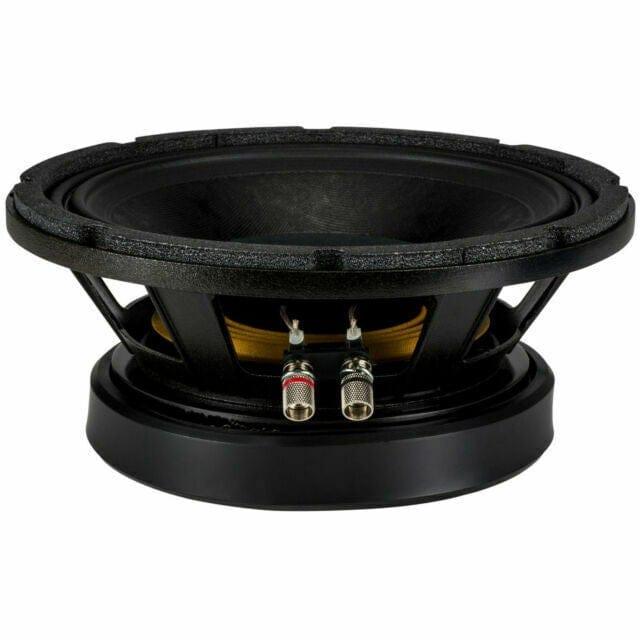

Eminence LA10850 10" Professional Midrange Driver
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 116.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Only 4-1/2" mounting depth
- 3" voice coil for 350 watts RMS power handling
- Inverted dust cap for close placement to phase plugs
- Designed for horn loaded enclosures
DESCRIPTION
Eminence's shallow, cast frame LA10850 packs a lot of power into tight spaces. It's designed to provide high output in space-limited horn loaded applications.
A mere 4.5” deep, the Eminence LA10850 10” high power midrange woofer driver features a 3” voice coil, powerful ceramic motor assembly, and inverted dust cap for close placement to phase plugs used in many horn loaded designs.
Rated at 350 watts, the LA10850 can also be used in small conventional vented enclosures when you need a high power midbass driver, or in very compact sealed enclosures when a true high-power midrange driver is needed.
SPECIFICATIONS
| Nominal Diameter |
10" |
| Bolt Circle Diameter | 9.75 |
| Moving Mass Of Diaphragm (Mmd) | 26 |
| Power Handling (RMS) | 350 Watts |
| Power Handling (MAX) | 700 Watts |
| Impedance | 8Ω |
| Frequency Response | 120 to 4,300Hz |
| Sensitivity | 98.7dB 2.83V/1m |
| Voice Coil Diameter | 3" |
