Eminence

KAPPA15C

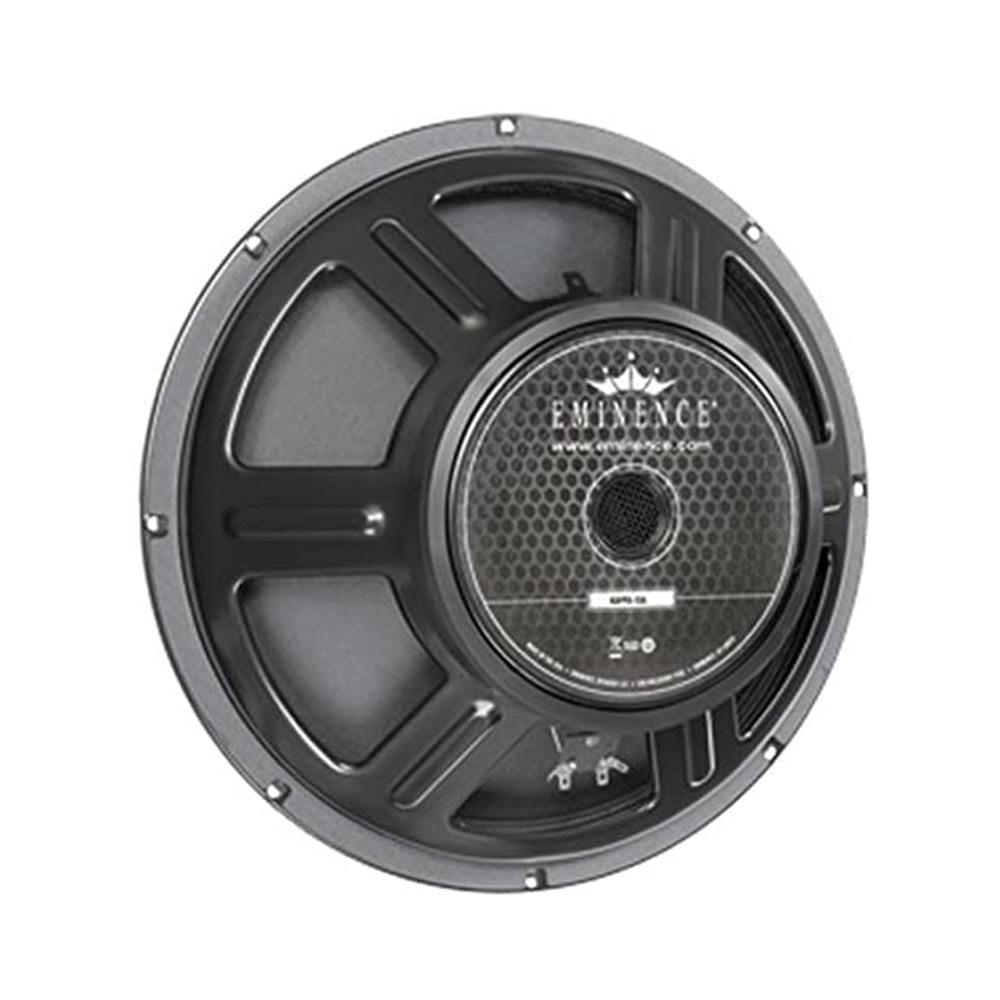

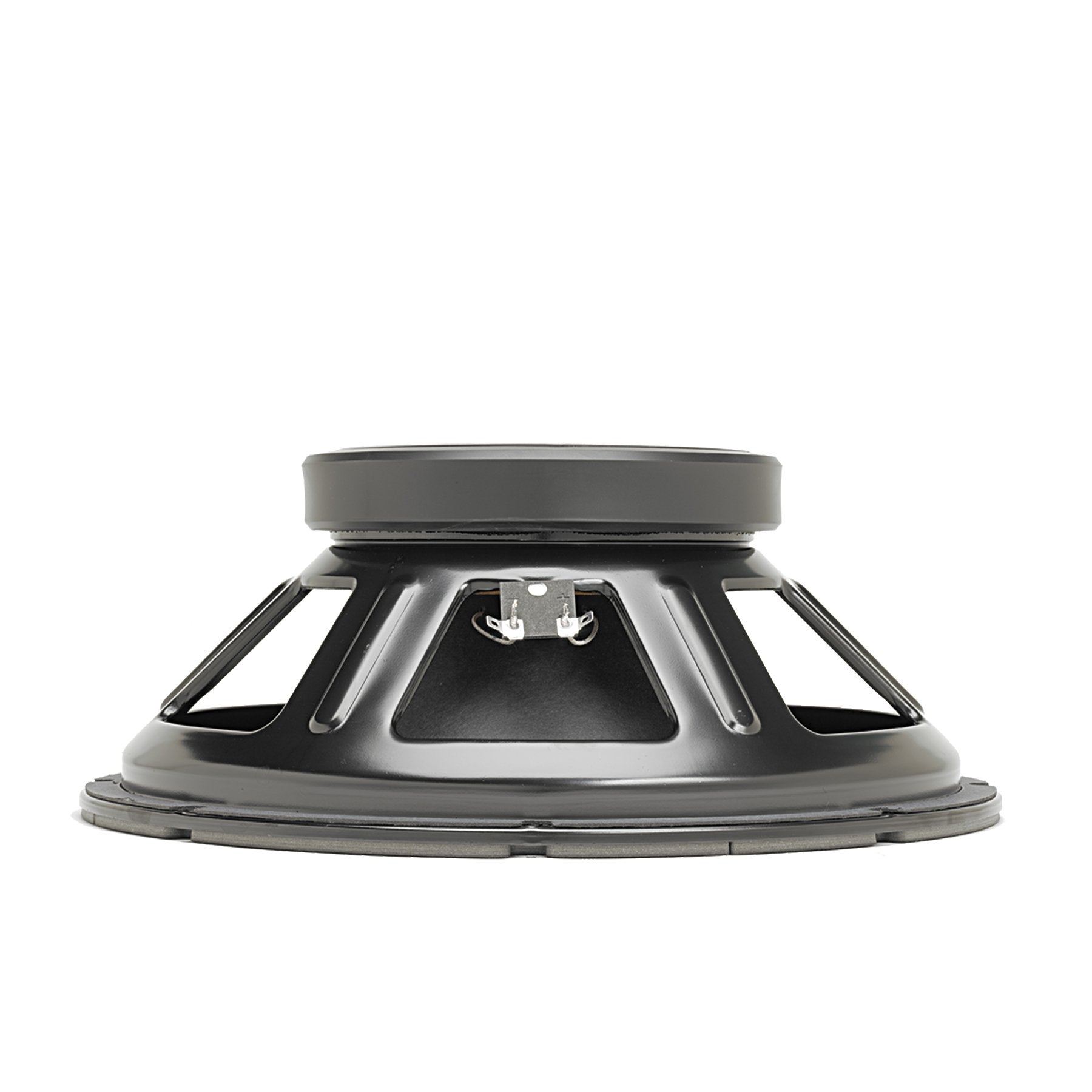

Eminence Kappa-15C 15" 450 W Loudspeaker

Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar and monitors.

Features

  • Composition Solid composition paper dust cap
  • Nominal Basket Diameter 15", 381mm
  • Nominal Impedance 4 ohms

Tech Specs

Nominal Basket Diameter: 15", 381mm
Nominal Impedance*: 4 ohms
Power Rating**
Watts: 450W
Music Program: 900W
Resonance: 31Hz
Usable Frequency Range: 63Hz - 2.8kHz
Sensitivity***: 98.1dB
Magnet 80 oz.
Gap Height: 0.37", 9.53mm
Voice Coil Diameter: 3", 76.2mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs): 31Hz
DC Resistance (Re): 3.68
Coil Inductance (Le): 0.88mH
Mechanical Q (Qms): 10.14
Electromagnetic Q (Qes): 0.25
Total Q (Qts): 0.25
Compliance Equivalent Volume (Vas): 329.9 liters / 11.7 cu.ft.
Peak Diaphragm Displacement Volume (Vd): 206cc
Mechanical Compliance of Suspension (Cms): 0.35mm/N
BL Product (BL): 14.7 T-M
Diaphragm Mass Inc. Airload (MMs): 77 grams
Efficiency Bandwidth Product (EBP): 124
Maximum Linear Excursion (Xmax): 2.4mm
Surface Area of Cone (Sd): 856.3 cm2
Maximum Mechanical Limit (Xlim): 11.6mm
