KEY FEATURES

• Coaxial full range ceiling loudspeaker for installation applications

• 90 Watts continuous, 360 Watts peak power

• 8" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability

• 1" ferrofluid cooled soft dome high frequency driver

• Wide constant directivity dispersion for optimum coverage

• EN54-24:2008 certified Type A

• UL 1480 certified for fire-protected signalling systems

• UL 2043 certified for air-handling spaces

• UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure

• Powder coated aluminium mesh grille with dust protection

• Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input

• Low insertion loss 60 W line transformer with easily accessible tapping switch

• Semi matt white finish fits unobtrusively in any environment

• Mounting C-ring and ceiling tile rails included

• Steel cover and strain relief clamping mechanism for fire rated cable

• Designed and engineered in the U.K.

DESCRIPTION

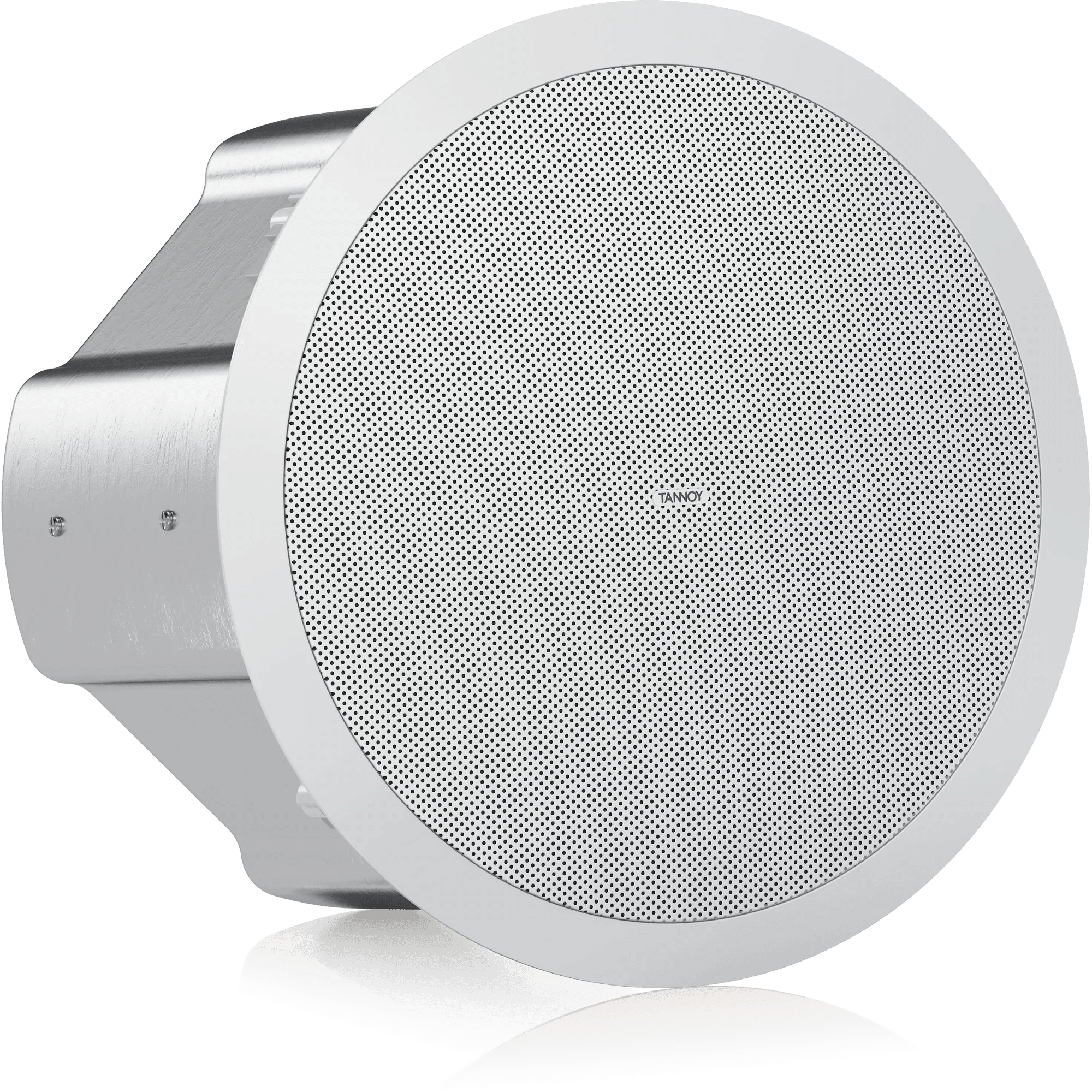

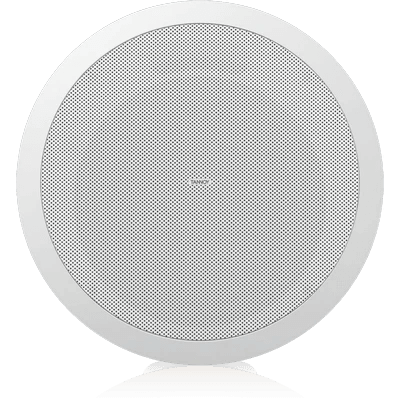

The CVS 801 is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 801 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 801 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.
