KEY FEATURES

• Coaxial full range ceiling loudspeaker for installation applications

• 50 Watts continuous, 200 Watts peak power

• 6.5" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability

• 0.75" ferrofluid cooled soft dome high frequency driver

• Wide constant directivity dispersion for optimum coverage

• EN54-24:2008 certified Type A

• UL 1480 certified for fire-protected signalling systems

• UL 2043 certified for air-handling spaces

• UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure

• Powder coated aluminium mesh grille with dust protection

• Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input

• Low insertion loss 30 W line transformer with easily accessible tapping switch

• Semi matt black finish fits unobtrusively in any environment

• Mounting C-ring and ceiling tile rails included

• Steel cover and strain relief clamping mechanism for fire rated cable

• Designed and engineered in the U.K.

DESCRIPTION

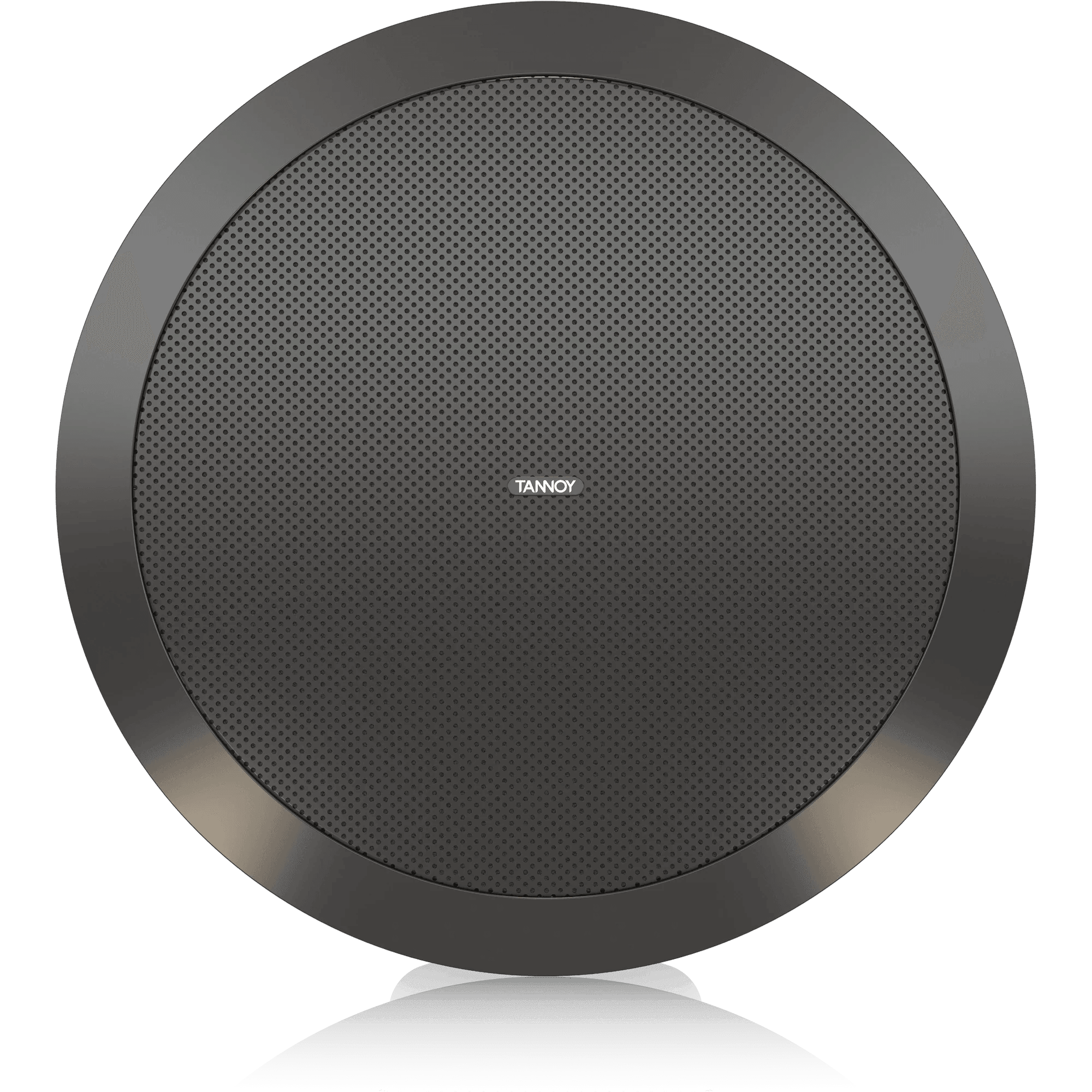

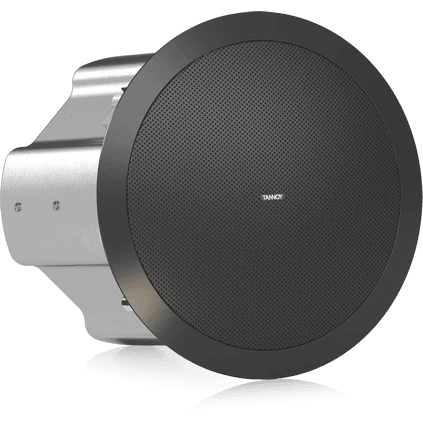

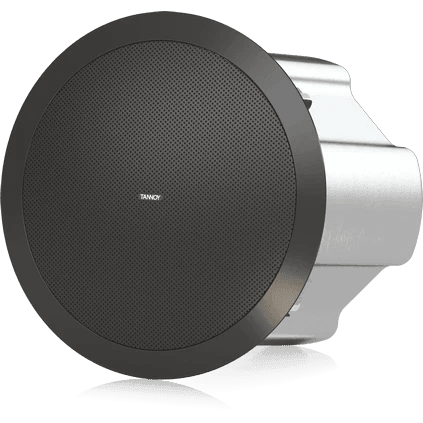

The CVS 601-BK is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 601-BK offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 601-BK the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.

SPECIFICATIONS
