KEY FEATURES
-
Coaxial full range ceiling loudspeaker for installation applications
-
30 Watts continuous, 120 Watts peak power
-
4" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
-
0.75" ferrofluid cooled soft dome high frequency driver
-
Wide constant directivity dispersion for optimum coverage
-
EN54-24:2008 certified Type A
-
UL 1480 certified for fire-protected signalling systems
-
UL 2043 certified for air-handling spaces
-
UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
-
Powder coated aluminium mesh grille with dust protection
-
Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
-
Low insertion loss 25 W line transformer with easily accessible tapping switch
-
Semi matt white finish fits unobtrusively in any environment
-
Mounting C-ring and ceiling tile rails included
-
Steel cover and strain relief clamping mechanism for fire rated cable
DESCRIPTION

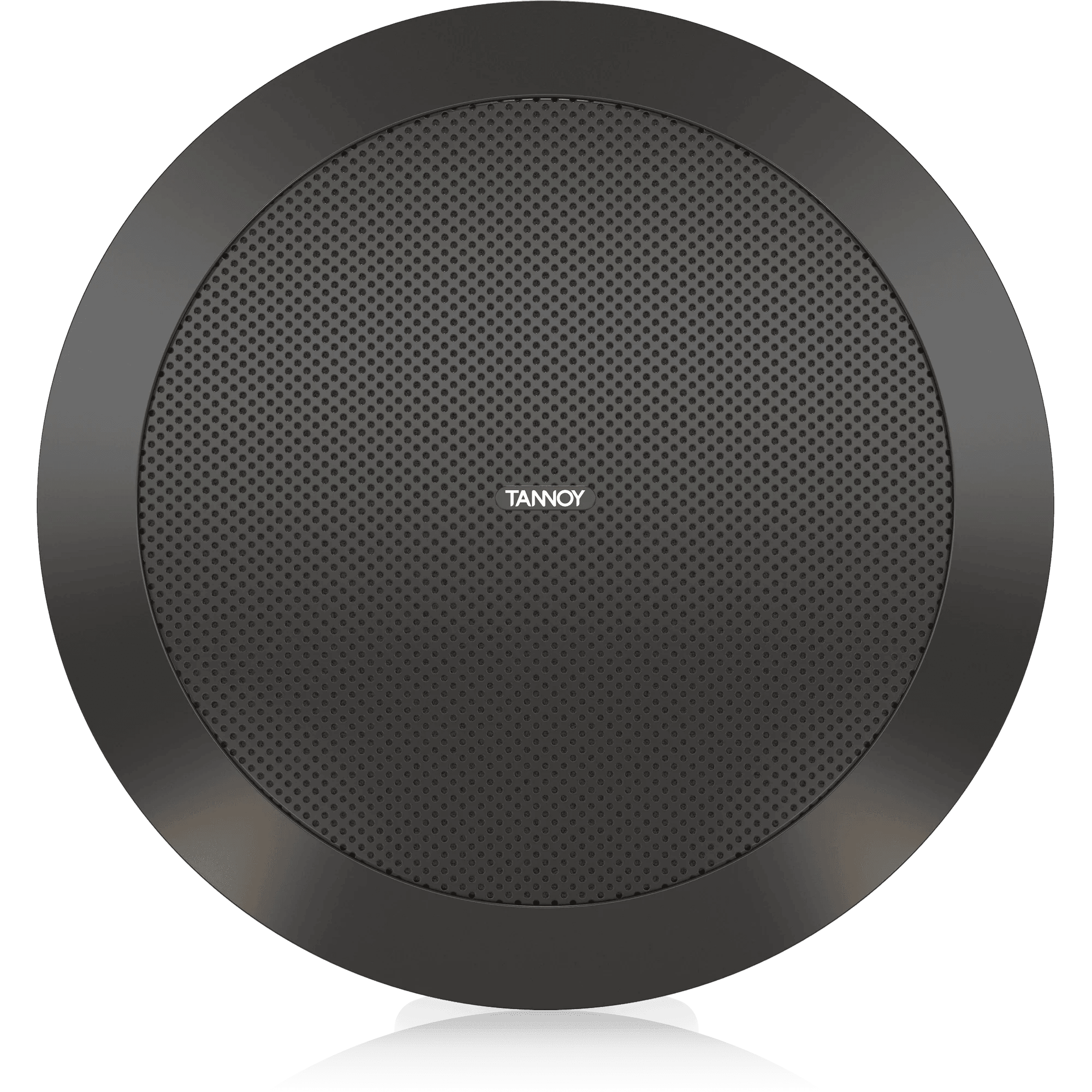

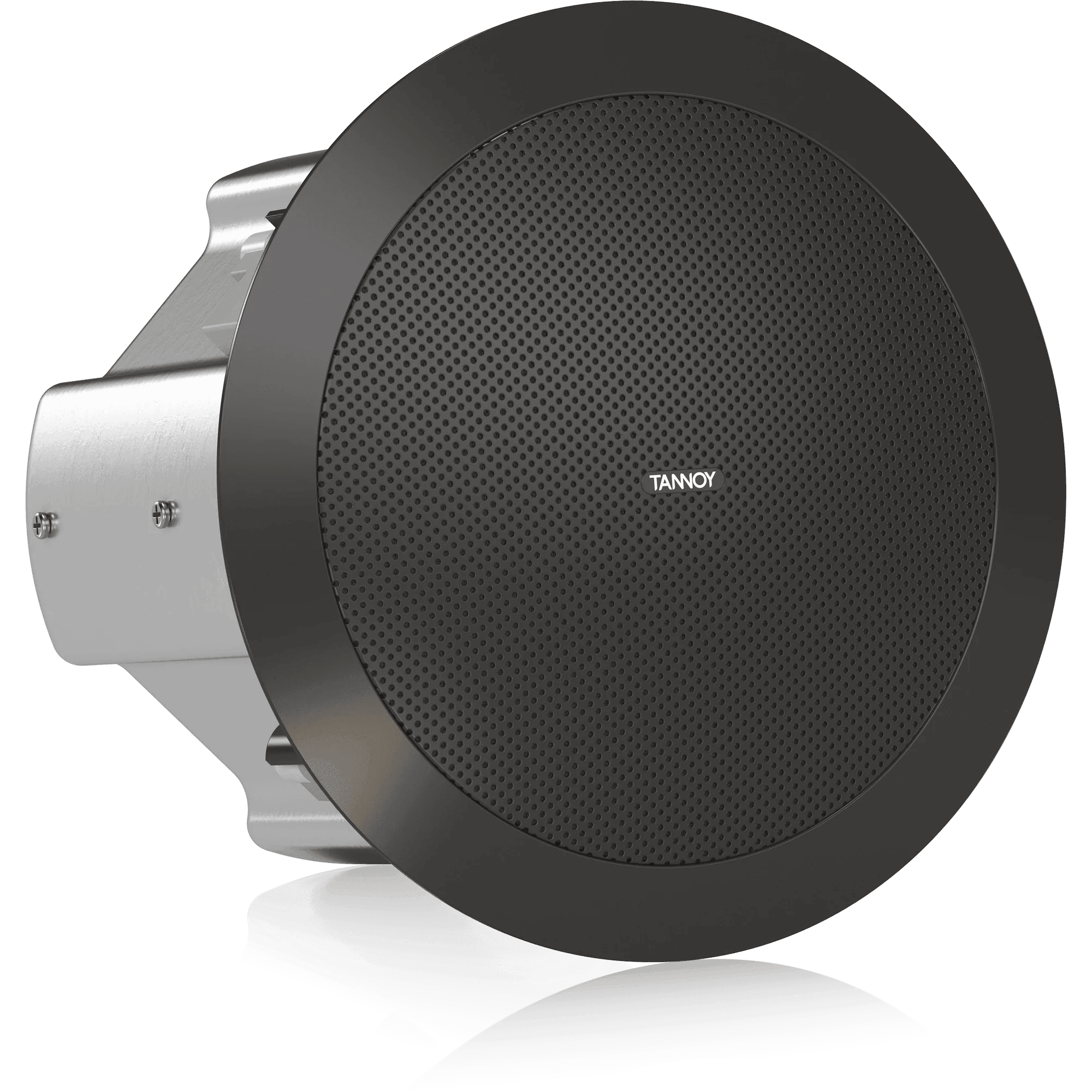

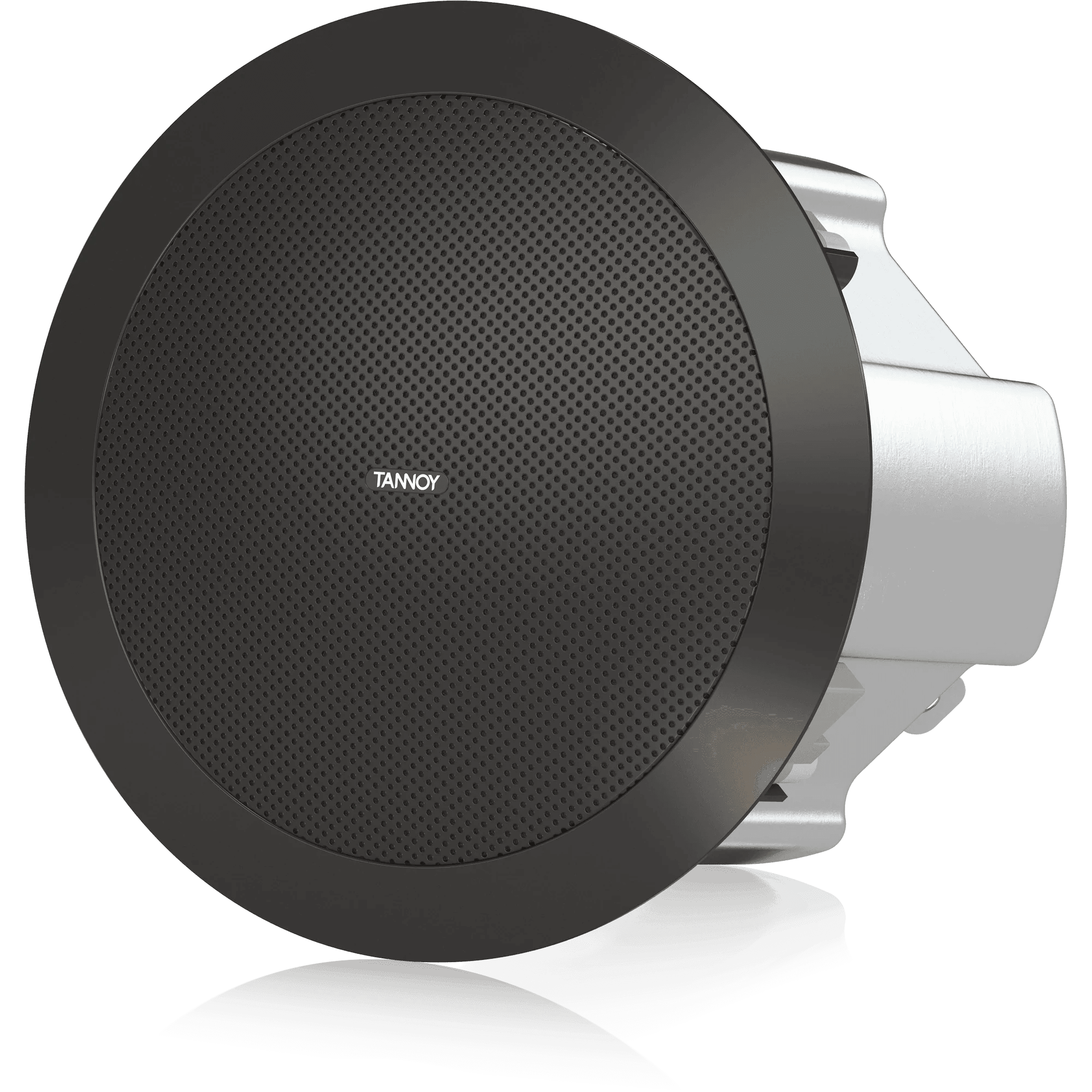

The CVS 401-BK is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 401-BK offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 401-BK the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.
SPECIFICATIONS
Bezel diameter (grille max diameter)
|
200 mm (8") |
| Rear face of baffle to rear of back can |
150 mm (5.91") |
| Rear face of baffle to top of safety loop |
163 mm (6.42") |
| Rear face of baffle to rear of flex conduit |
175 mm (6.89") |
| Hole cutout diameter |
φ172 mm (6.77") |
| Net weight |
2.77 kg (6.09 lbs) ±10% |
| Included accessories |
Metal grille, cable gland, flex conduit, C-ring, tile-bridge kit, paint mask, cutout template |
