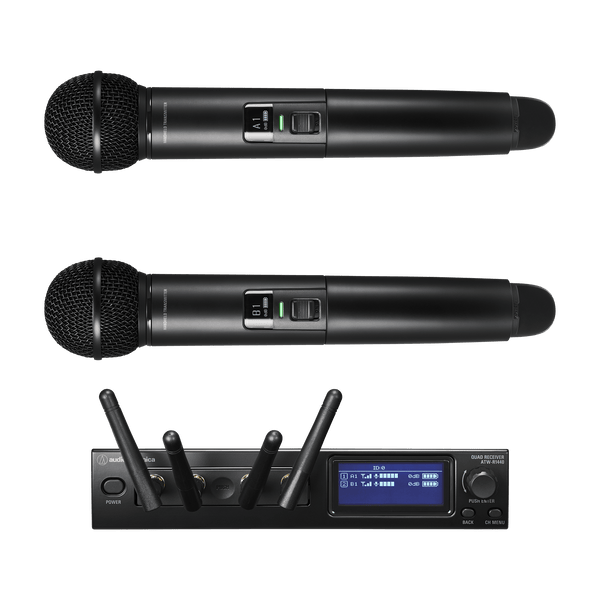

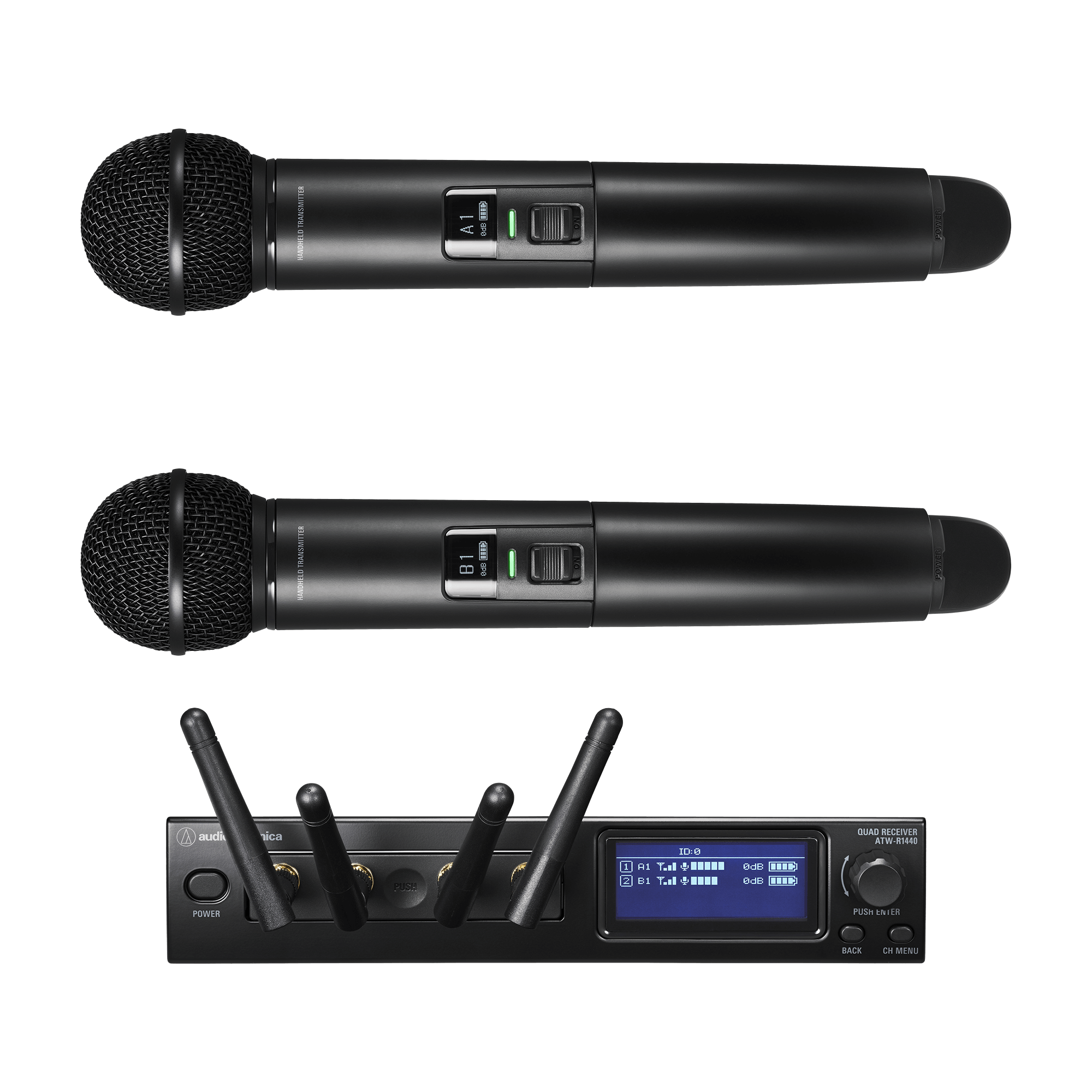

Audio-Technica ATW-1422 System 20 PRO Dual Handheld Microphone System
Out of stock – contact us for more information.
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
FEATURES
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels
SPECIFICATIONS
| Overall System | |
|---|---|
| Operating Frequencies | 2,402 to 2,480 MHz |
| Dynamic Range | 120 dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels HD mode: 20 channels It depends on the region and environment. |
| System Frequency Response | 20 to 20,000 Hz Varies depending on the microphone to be installed. |
| Delay | Standard: 2.8ms HD mode: 6.7ms |
| Audio Sampling Rate | Standard: 24-bit/48 kHz HD mode: 24-bit/48 kHz |
| Encryption Method | AES128 |
