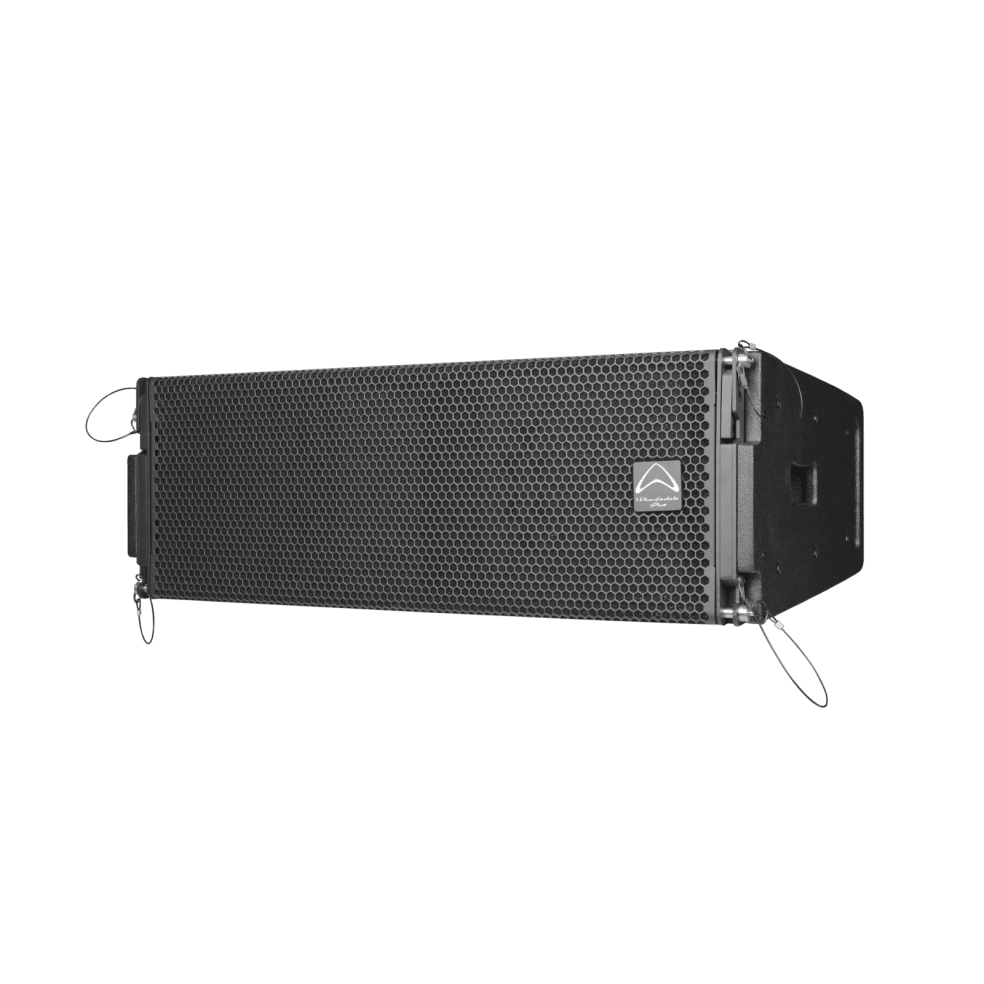

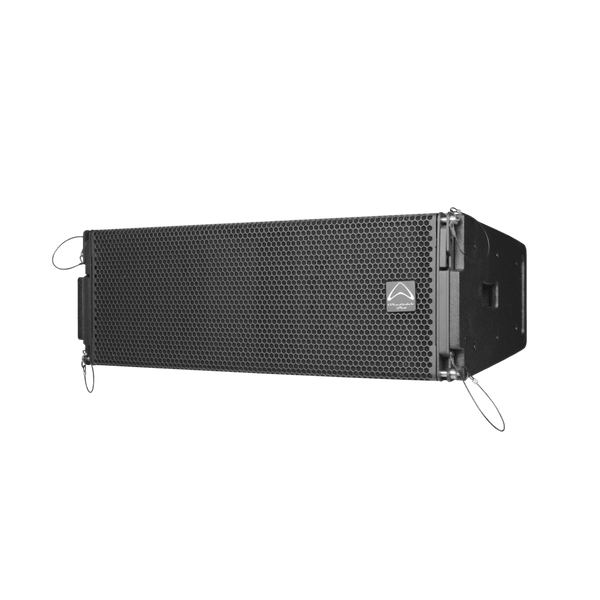

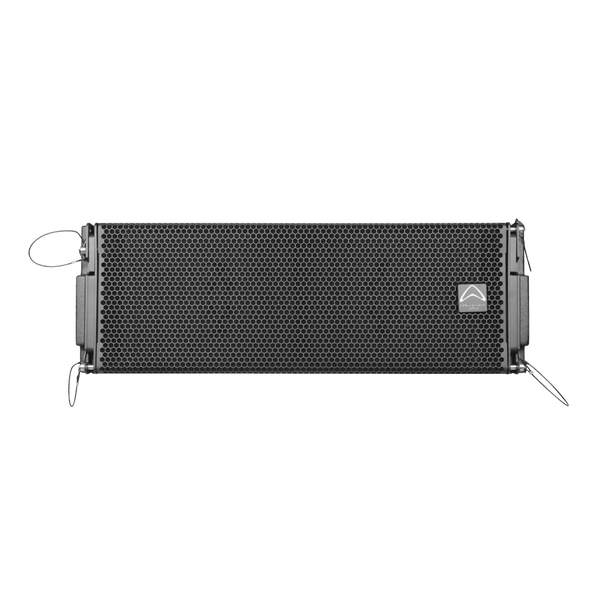

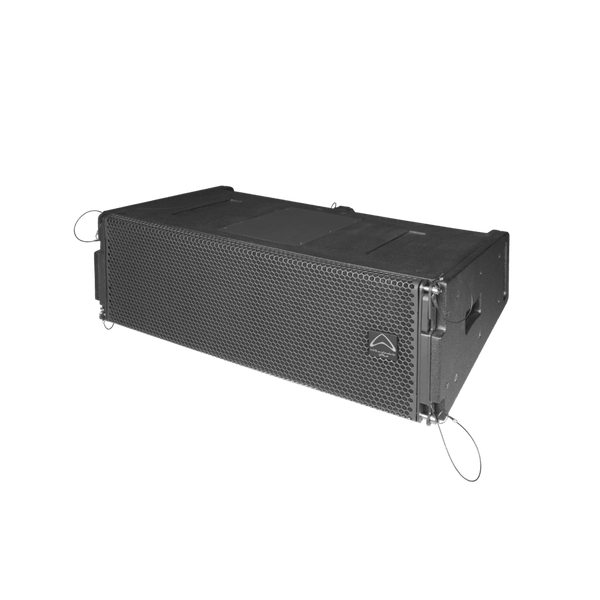

Wharfedale Pro XLA308 Line Array Speaker
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro XLA308 Line Array Speaker
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 2152.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Passive 3-way Bi-amp element
- B&C Coaxial MHF compression driver
- B&C Dual 8″ woofers
- Copper Shorting cap (LF)
- Neodymium inside slug magnet (LF)
- Phase Plugs (LF)
- Time coherent coaxial (MHF)
- EVO-FLOW Waveguide (MHF)
DESCRIPTION
XLA-308 is a passive 3-way Bi-amped element. It contains dual 8″ Low frequency neodymium drivers with a centrally mounted Mid/Hi coaxial driver…….. coupled to our EVO-FLOW waveguide.
SPECIFICATIONS
| Design |
Line Array Element
|
| System Type |
Passive 3-way Bi-ampflied
|
| Configuration | Three-way |
| Frequency Response (+/-3 dB) |
63 Hz – 20 KHz
|
| Frequency Range (- 10 dB) |
48 Hz – 25 KHz
|
| Sensitivity 2.83 V/1 m | 112 dB |
| Calculated Maximum SPL @ 1 m | 140 dB |
| System Peak SPL | 146 dB |
| System Rated Impedance |
LF: 8 Ω – MHF: 8 Ω
|
|
Low Frequency Transducer
|
|
| Size | 2 x 8″ |
| Voice Coil Size |
65 mm / 2.5″ coil
|
| LF Frame Material |
Cast Aluminium
|
|
Mid-High Frequency Transducer
|
|
| MF Driver Type |
Compression Driver (Coaxial)
|
| HF Driver Type |
Compression Driver (Coaxial)
|
| MF Voice Coil Size (mm / inches) | 76 / 3″ |
| HF Voice Coil Size (mm / inches) | 51 / 2″ |
| Exit Size (mm / inches) | 36 / 1.4″ |
| Diaphragm Material | HT Polymer |
| Waveguide Type | EVO-FLOW |
| Nominal Coverage (H x V) | 110 H x 10 V |
| Special Features |
Copper Shorting cap (LF)
|
|
Neodymium inside slug magnet (LF)
|
|
|
Phase Plugs (MF/HF)
|
|
|
Time coherent coaxial (MF/HF)
|
|
| Driver brand | B&C |
|
Low Frequency Transducer
|
|
| Power(AES2) | |
| System Continuous Power (W) | 700 |
| System Programme Power (W) | 1400 |
| System Peak Power (W) | 2800 |
| Crossover Frequency (Hz) | 500 |
| Recommended HPF (Hz) = BW 18 dB/oct. | 55 |
|
Mid-High Frequency Transducer
|
|
| Power(AES2) | |
| System Continuous Power (W) | 150 |
| System Programme Power (W) | 300 |
| System Peak Power (W) | 600 |
| Crossover Frequency (Hz) | 500 |
