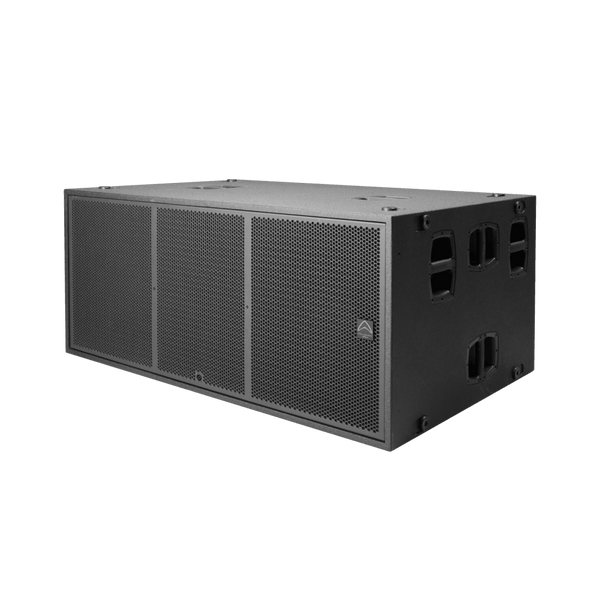

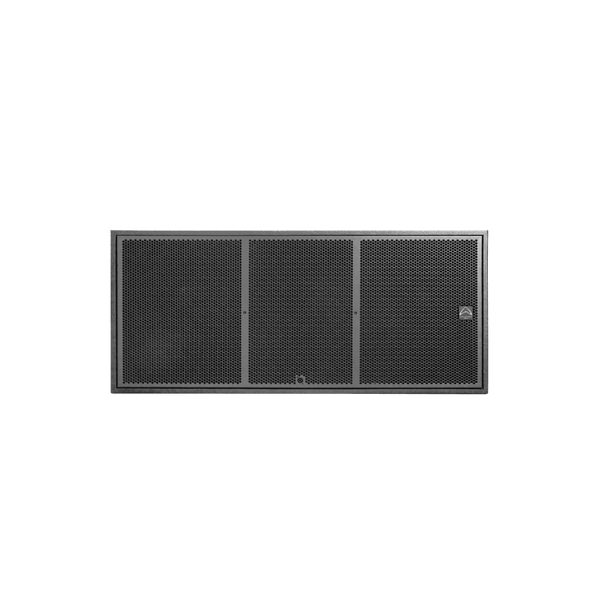

Wharfedale Pro XLA221SUB Line Array Subwoofer Passive
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro XLA221SUB Line Array Subwoofer Passive
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 3097.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Dual 21″ Subwoofer
- Dual Beyma 21” drivers with 4.0″ QUATTRO (4 layers) voice coils
- Waterproof LF cones
- Inverted Stack Gradient Array (iSGA) configurable
- FLP – Flared Laminar Port
DESCRIPTION
The XLA Series is Wharfedale Pro’s all-new flagship line array system. With two subwoofer models and a 3-way full-range coaxial element, the system employs advanced acoustical engineering to deliver stunning, immersive sound.
At the core of the XLA-308 full-range element is a centrally mounted coaxial mid-high transducer, integrated with Wharfedale Pro’s innovative EVO-FLOW waveguide. Flanked by two advanced 8” neodymium woofers in separate vented enclosures, this design ensures precise, high-performance low-frequency output while maintaining compact dimensions and reduced weight. Custom drivers, crafted by B&C in Italy, provide exceptional clarity, uniformity, and sonic detail across all frequencies above 500 Hz.
For deep, powerful bass and unmatched system versatility, XLA Series offers two subwoofers. The XLA-118SUB is Wharfedale Pro’s first cardioid-arrayable flown subwoofer, designed for maximum flexibility and precision. Complementing it is the overwhelming XLA-221SUB, (yes 2 x 21”) which delivers the INFRABASS that customers around the world have been anticipating.
SPECIFICATIONS
| Design | Subwoofer |
| System Type |
2 x 21″ Subwoofer
|
| Configuration |
Dual driver, ported Subwoofer
|
| Frequency Response (+/-3 dB) |
25 Hz – 100Hz
|
| Frequency Range (- 10 dB) |
18 Hz – 125 Hz
|
| Sensitivity 2.83 V/1 m | 106 dB* |
| Calculated Maximum SPL @ 1 m | 147 dB* |
| System Peak SPL | 153 dB** |
| System Rated Impedance | 2 x 4 Ω |
|
Low Frequency Transducer
|
|
| Size |
2 x 545 mm / 21″
|
| Voice Coil Size |
101.6 mm / 4.0″ QUATTRO (4 layers)
|
| LF Frame Material |
Cast Aluminium
|
| Special Features |
Aluminium demodulating ring
|
|
Waterproof LF cone
|
|
|
Maltcross® TCS
|
|
|
Inverted Stack Gradient Array (iSGA) configurable
|
|
|
FLP – Flared Laminar Port
|
|
| Driver brand | BEYMA |
|
Low Frequency Transducer
|
|
| Power(AES2) | |
| System Continuous Power (W) | 2 x 1600 |
| System Programme Power (W) | 2 x 3200 |
| System Peak Power (W) | 2 x 6400 |
| Crossover Frequency (Hz) | 100 |
| Recommended HPF (Hz) = BW 18 dB/oct. | 20 |
|
Mid-High Frequency Transducer
|
|
| Power(AES2) | |
| Crossover Frequency (Hz) | 100 |
