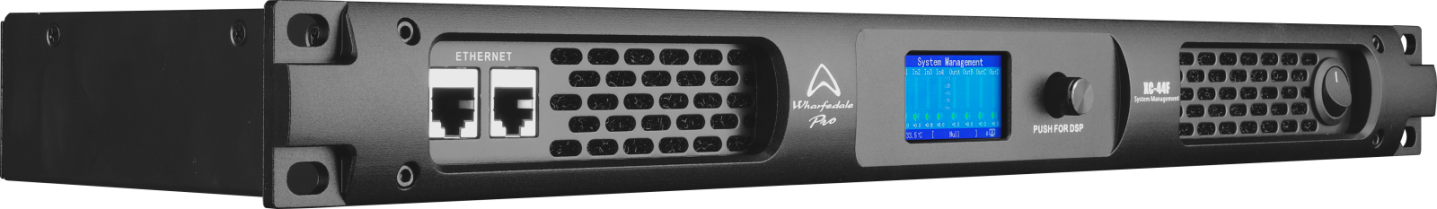

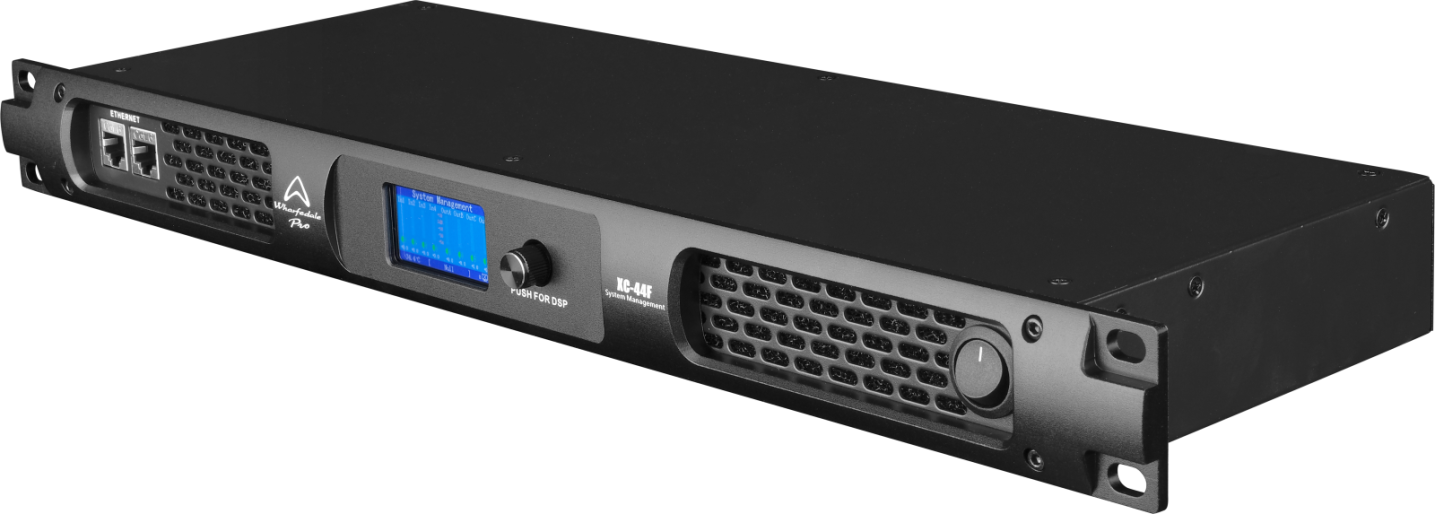

Wharfedale Pro XC44F Digital System Controller with 4-in/4-out DSP, AES/EBU Input
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
FEATURES
- 4 in – 4 out DSP control
- Compatibility with DP-F and DP-N amplifier platforms
- Comprehensive FIR preset library

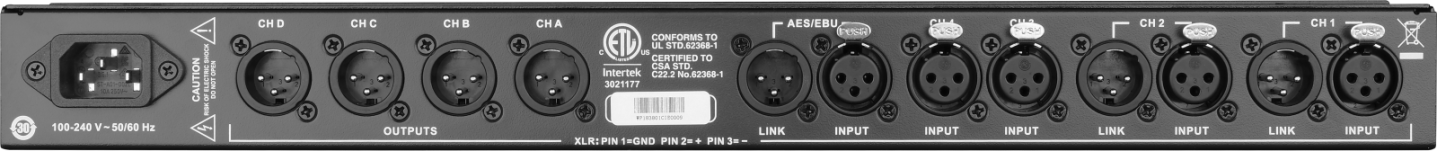

- AES / EBU digital inputs with Link outs.
- Locking XLR input connectors
DESCRIPTION
The XC Series System Management controllers harvest the DSP engine capabilities of our successful DP-F and DP-N amplifiers to deliver both protection and enhanced definition to any system.
Equipped with an extensive loudspeaker preset library, FIR filters and advanced dynamics protection, the XC Series simply improves performance across all applications.
These 4 in – 4 out controllers are available with two interface options. XC-44F with Ethernet and XC-44N with Dante ™ connectivity. Both models are controlled with the Wharfedale Pro DSP Controller software where FIR presets for almost every Wharfedale Pro loudspeaker are available for free download. Both XC Series models feature AES / EBU input and analogue link outputs on Ch 1 and Ch 2.
The Wharfedale Pro ecosystem now allows for users to migrate between DP-F and DP-N amplification platforms to and from the XC platform. Familiar user interfaces and compatible file formats make life easy.
SPECIFICATIONS
| Input / output | 4 x 4 |
| Input type | Analog, AES/EBU, Ethernet |
| Input impedance | 20 kΩ（Balanced，10 kΩ（Unbalanced) |
| Output impedance | 600 Ω |
| Max input level | +20 dBu |
| Max output level | +20 dBu |
| THD+N | <0.02% (1 KHz,0 dB) |
| Frequency response | typical: +0, -1 dB (0 dB, 20 Hz-20 KHz) |
| Cross-talk | <-95 dB（1KHz） |
| SNR | >105 dB（A weighted） |
| Delay | <1.8 ms（Analog input/output，48 KHz） |
| Main power | 100-240 VAC ±10%, 50/60 Hz |
