KEY FEATURES
- Three-way line array element
- 2 x 12” LF drivers
- 1 x 10” Neo Midrange driver
- 2 x 2.55” Neo HF compression drivers
- Birch plywood construction
- 1410 watts AES (RMS)
- 2820 watts Programme
- 5640 watts Peak
- 16 ohms impedance
- Fly frame to support up to 12 elements (900 kg)
DESCRIPTION
WLA-312X is an advanced three-way line array speaker system capable of handling vast amounts of power – while remaining sonically clear, precise and accurate. Rated at 1410 W AES (RMS) per cabinet and boasting highly efficient custom Wharfedale Pro drivers, the WLA-312X can deliver an astonishing 138 dB Max SPL @ 1 meter.
Custom WP drivers have been selected to ensure that this series not only has the power you would expect, but the three-way configuration brings a new sonic dimension and definition.
With dual 12” woofers, a single 10” midrange driver and dual 2.55” compression drivers, the WLA-312X has everything needed for large venue coverage. In addition, there is no need to fly subwoofers within the array – the WLA-312X has already got plenty of low-end punch.
The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.
With full steel grilles, multiple handles and 3 fly frame rigging points, WLA-312X is well suited for touring and for hard work on the road.

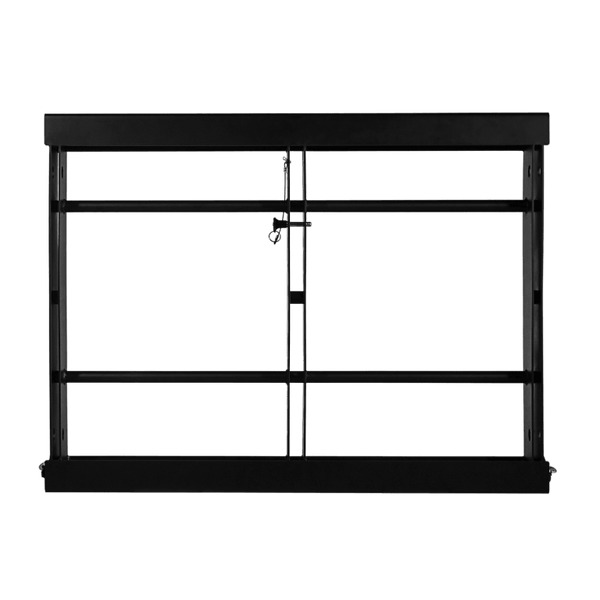

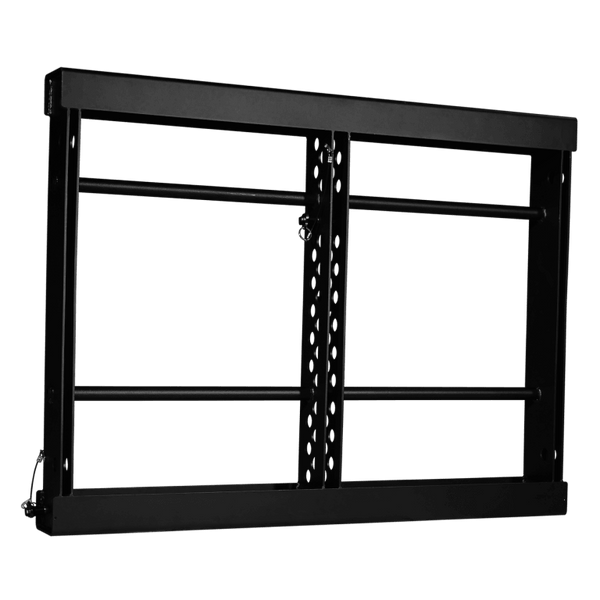

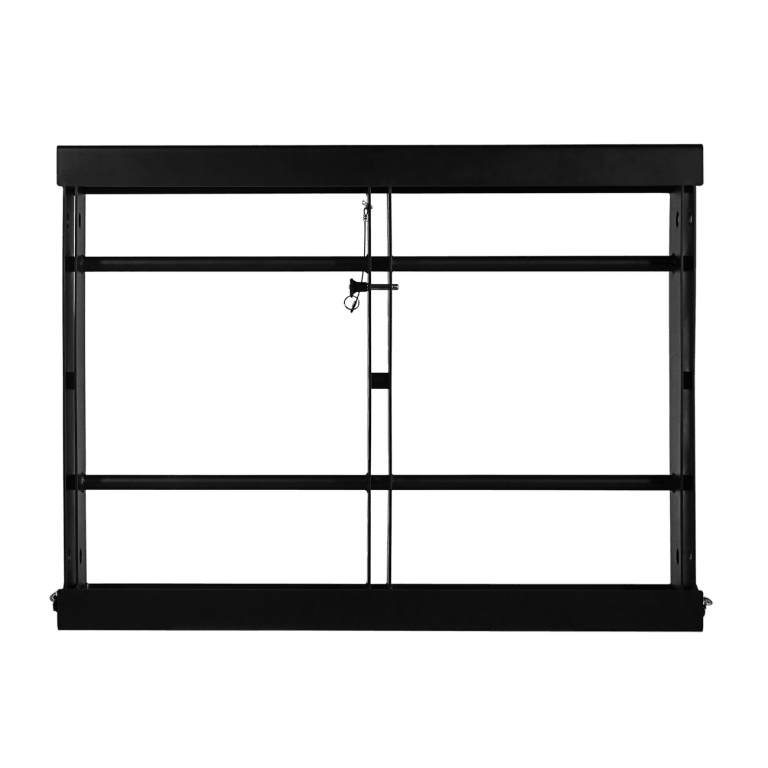

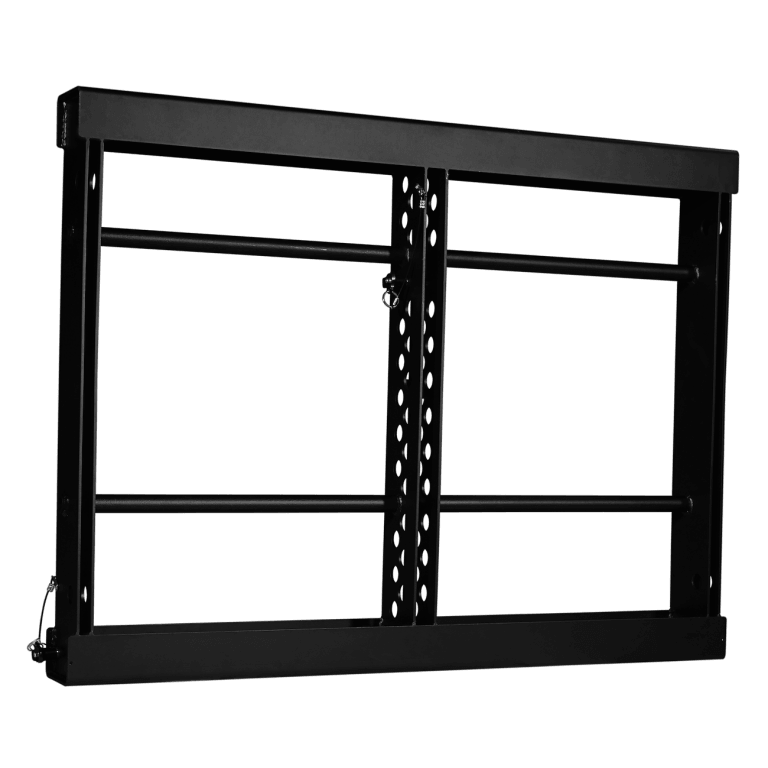

The accompanying WLA-312X Fly frame is solid! Constructed of A3 steel it can hold up to 900 kg (that’s up to 12 pcs of WLA-312X) with a safety factor of 12.
SPECIFICATIONS
| Specification | Value |
|---|---|
| System Type | Passive |
| Configuration | Three-way |
| Frequency Response (+/-3 dB) | 50-18 KHz |
| Frequency Range (-10 dB) | 40-20 KHz |
| Sensitivity (2.83V / 1 Meter) | HF: 114 dB / MF: 105 dB / LF: 102 dB |
| Calculated Maximum SPL @ 1 Meter | HF: 142 dB / MF: 136 dB / LF: 138 dB |
| Low Frequency Transducer | |
| Size | 313 mm / 12” |
| Voice Coil Size | 75.5 mm / 3” |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| Rated Impedance | 2 x 8 Ω |
| LF Power (AES2-2012) | 2 x 450 W |
| Mid Frequency Transducer | |
| Size | 260 mm / 10” |
| Voice Coil Size | 65 mm / 2.55” |
| MF Magnet Material | NdFeB |
| MF Frame Material | Aluminium |
| Rated Impedance | 16 Ω |
| MF Power (AES2-2012) | 350 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size | 65 mm / 2.55” |
| Exit Size | 1.4″ |
| HF Magnet Material | NdFeB |
| Diaphragm Material | Titanium |
| Rated Impedance | 16 Ω (2 x 8 Ω) |
| HF Power (AES2-2012) | 160 W (2 x 80 W) |
| Waveguide Type | Square |
| Nominal Coverage (H x V) | 90H x 7.5V |
| Nominal Impedance | 16 Ω |
| Power Ratings | |
| System Power AES (RMS) | HF: 160 W / MF: 350 W / LF: 900 W |
| System Programme Power | HF: 320 W / MF: 700 W / LF: 1800 W |
| System Peak Power | HF: 640 W / MF: 1400 W / LF: 3600 W |
| Crossover Frequency | 160 Hz / 1.2 KHz |
| Connectivity & Rigging | |
| Input Connector | 2 x Neutrik NL8MPR |
| Rigging | 3 points for rigging |
| Pole Mount | No |
| Handles | Yes |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material & Finish | 15 mm, 18 mm plywood |
| Colour Options | Black paint |
| Grille Material & Finish | Steel |
