Wharfedale Pro WLA-28XF Line Array Passive Speaker 2x8" 2 Way IPX6 Waterproof Rated
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro WLA-28XF Line Array Passive Speaker 2x8" 2 Way IPX6 Waterproof Rated
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 1076.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Dual 8” line array element
- Stainless aluminium hardware
- Wax wrapped components
- 100 H x 10 V dispersion
- Dual WY-24K4Z waterproof input connectors
- Two WY-24K4Z cable connectors included
- 133 dB Max SPL @ 1 m
DESCRIPTION
Around the world, the WLA-28 and WLA-28X line array systems have become highly respected for sound quality, easy rigging and overall reliability. There is however a big ‘enemy’ for these systems. That enemy is…. H20…..water!
Introducing 3 new models in the WLA-28X family which overcome nature and give total peace of mind for outdoor installations and events! The all new F version (waterproof) WLA-28XF, WLA-28SUBXF and WLA-218BXF.
With reliability and high performance characteristics built from the ‘non-F’ models, these new XF models are IPX6 Certified. This certification states that there should be no harmful effects when “Water is projected in powerful jets (12.5mm nozzle) against the enclosure from any direction”
With rust-proof aluminum grilles, components wrapped in wax and anti-corrosion stainless steel screws and hardware, the F models are made for the rain and long-term environmental exposure.
SPECIFICATIONS
| Model Name | WLA-28XF |
| System Type | Passive |
| Configuration | two-way |
| Frequency Response (+/- 3dB) | 65-20 KHz |
| Frequency Range (- 10 dB) | 60-20 KHz |
| (Passive)Sensitivity 2.83v/1m | 101 dB |
| (Passive)Calculated Maximum SPL @1m | 133 dB |
| System Rated Impedance | 16 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 203.2 mm / 8” |
| Voice Coil Size (mm / inches) | 51.6 mm / 2.0” |
| LF Magnet Material | ferrite |
| LF Frame Material | aluminium |
| Rated Impedance | 8 Ω x 2 |
| LF Power re:AES2-2012 | 200 W x 2 |
| High Frequency Transducer | |
| HF Driver Type: | Compression Driver |
| Coil Size (mm / inches) | 75mm / 3” |
| Exit Size (mm / inches) | 1.4″ |
| HF Magnet Material | NdFeB |
| Diaphragm Material | Titanium |
| Rated Impedance | 16 Ω |
| HF Power re:AES2-2012 | 90 W |
| Waveguide Type | square |
| Nominal Coverage (H x V) | 100 H x 10 V |
| System Continuous Power (w) | 400 W |
| System Programme Power (w) | 800 W |
| System Peak Power (w) | 1600 W |
| Crossover frequency | 1.7 KHz |
| Hardware | 2 x WY-24K4Z (waterproof) |

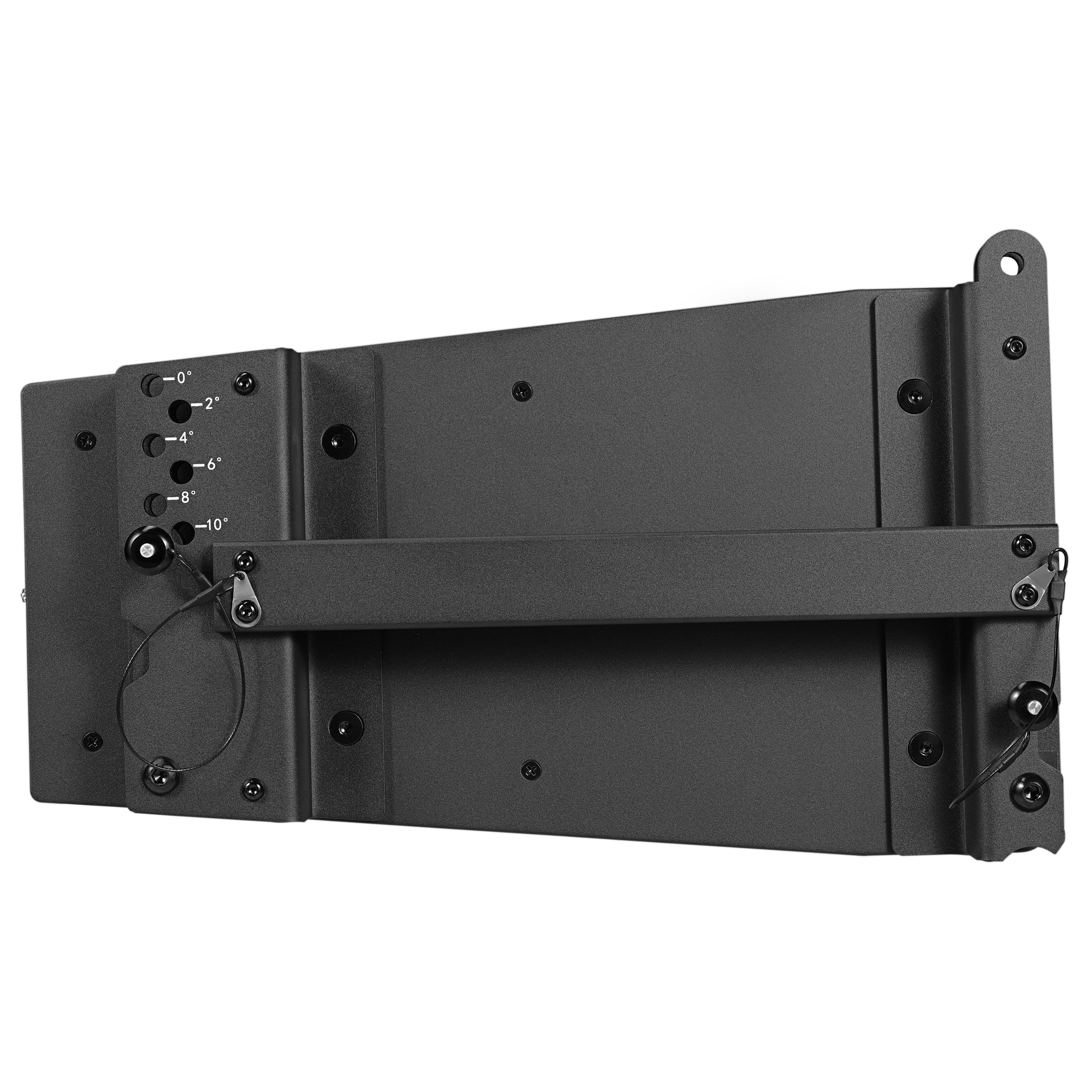

| Rigging | 4 points for rigging |
| pole mount | No |
| handles | Yes |
| cabinet type | Trapezoid |
| Enclosure Material and finish | 15 mm,18 mm plywood/3.0 mm Aluminium |
| Colour Options | Waterproof black paint |
| Grille Material & Finish | 3.0 mm Black Aluminium |
| Dimensions – Unpacked (mm / inches): | |
| Height front | 279 mm / 10.98″ |
| Height Rear | 191.2 mm / 7.53″ |
| Width | 845 mm / 33.3″ |
| Depth | 467 mm / 18.39″ |
| Dimensions – Packed (mm / inches): | |
| Height | 360 mm / 16.7″ |
| Width Front | 944 mm / 37.2″ |
| Width Rear | 944 mm / 37.2″ |
| Depth | 540 mm / 21.3″ |
| Weight | |
| Net Weight (kg / lbs) | 40 kg / 88.0 lbs |
| Gross Weight (kg / lbs) | 43.5 kg / 97.5 lbs |
