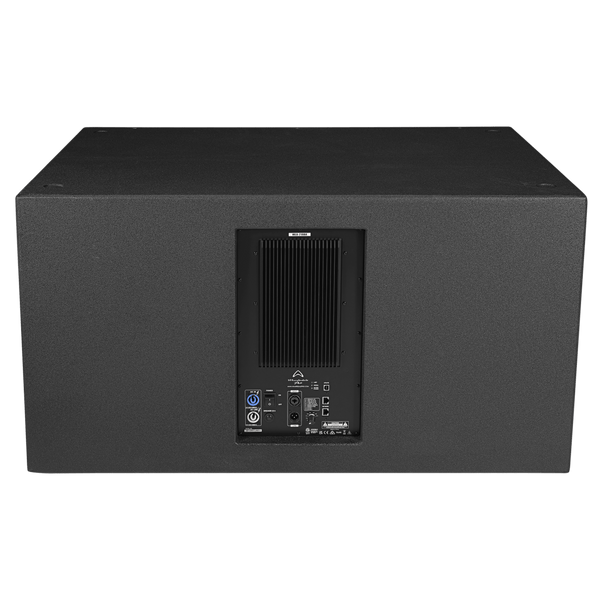

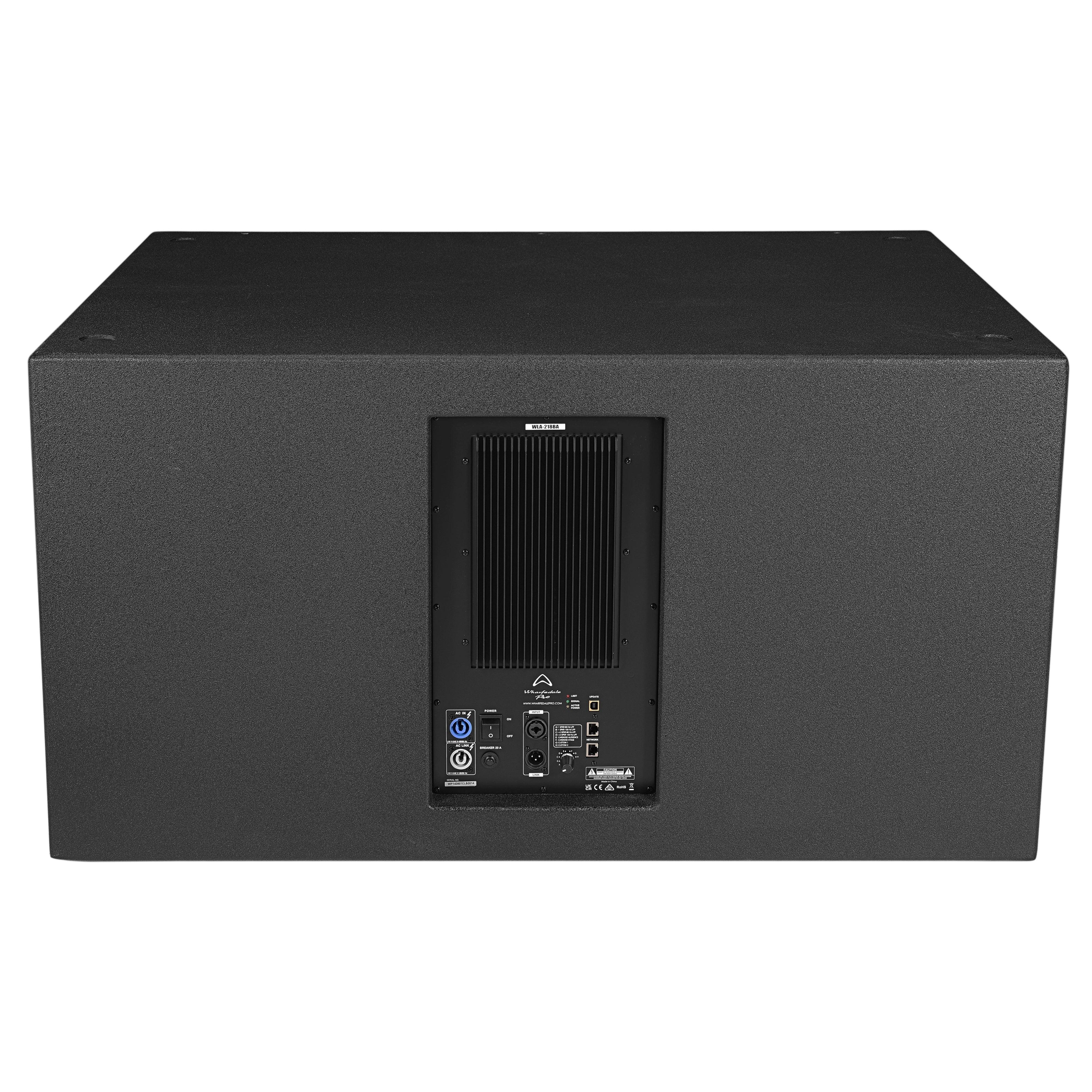

Wharfedale Pro WLA218BA Line Array Active PA Subwoofer
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro WLA218BA Line Array Active PA Subwoofer
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 1863.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES

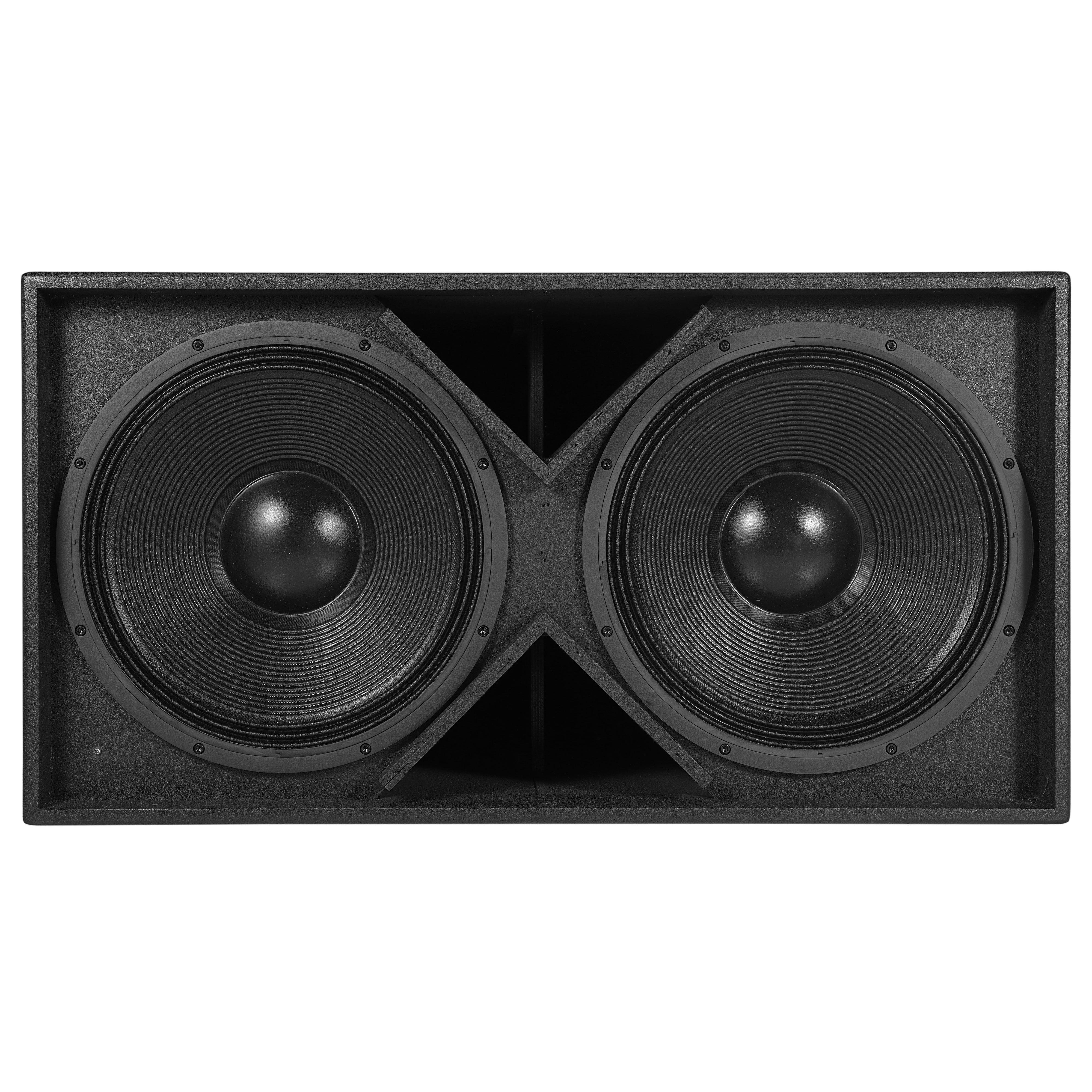

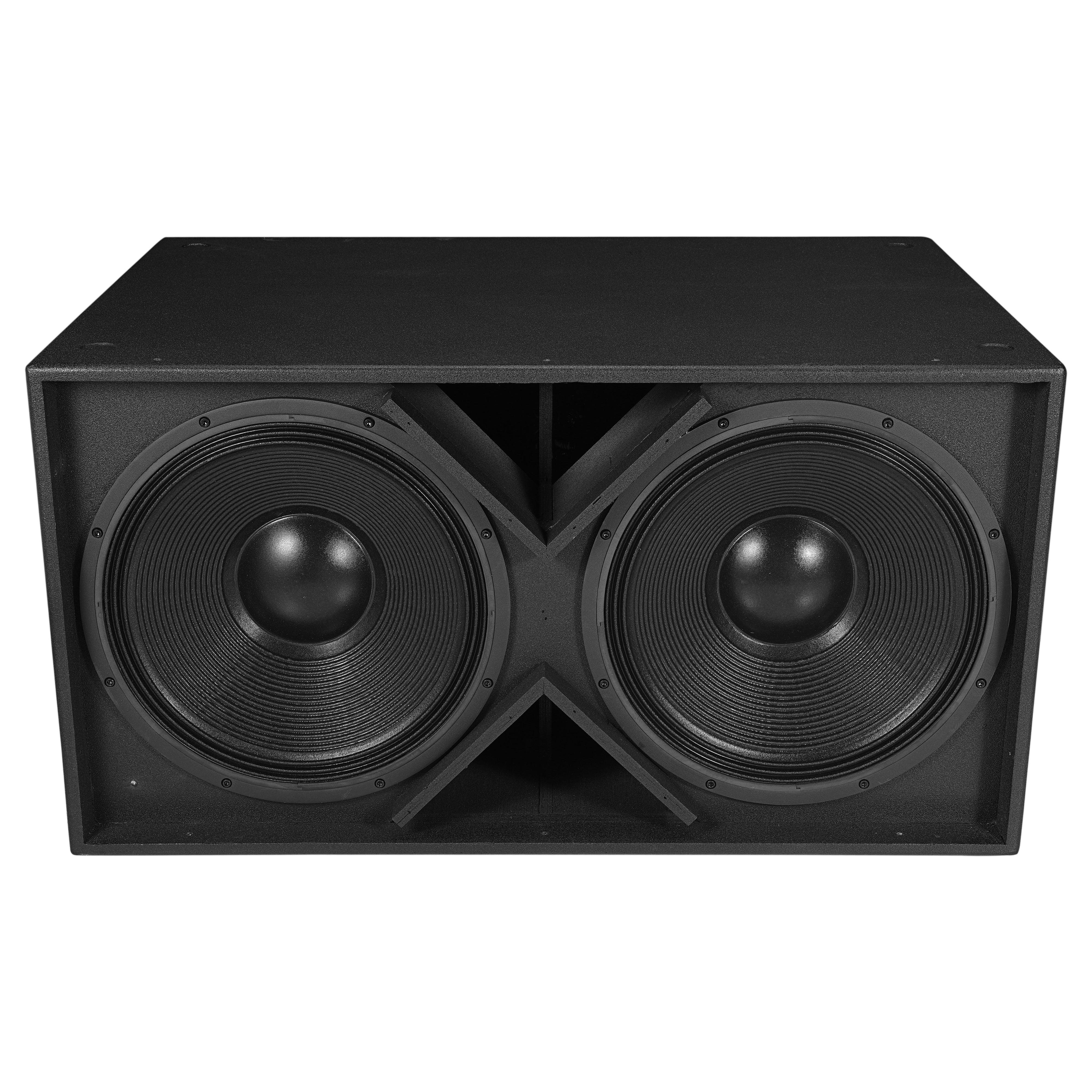

- Dual 18″ LF drivers with 4.0″ voice coils
- 148 dB Max SPL @ 1 meter
- 18 mm Birch plywood construction
- 2000 watts Continuous
- 4000 watts Peak
- 8 x DSP presets
DESCRIPTION
At the heart of the WLA-28A are 2 x 8″ custom Wharfedale Pro LF drivers.
These feature 2.0″ voice coils to ensure high efficiency and high power handling.
These perfectly matched custom transducers are what give a WLA-28A system that special sonic impact.
We recommend using SC48FIR DSP with the Line Array.
Bundle1: 4X WLA28A , 1X WLA28SUBA, WLA28FLYFRAME
Bundle2: 4X WLA28A , 1X WLA218SUBA, WLA28FLYFRAME
Bundle 3: 6 X WLA28A , 1X WLA218SUBA Bundle 4: 6 X WLA28A , 1X WLA28SUBA, WLA28FLYFRAME
SPECIFICATIONS
| Model Name | WLA-218BA |
| System Type | Active 2×18 Subwoofer |
| Frequency Response (+/-3 dB) | 30 Hz-100 Hz |
| Frequency Range (-10 dB) | 25 Hz-150 Hz |
| Loudspeaker Sensitivity @ 1 W / 1 m) | 109 dB |
| Maximum SPL(peak)(@1 m) | 148 dB |
| Nominal Coverage (H x V) | – |
| Signal Processing | DSP based,8 presets resident in Input Module |
| Preset list | A) 1 SPKR 80 Hz LPF |
| B) 1 SPKR 100 Hz LPF | |
| C) >2 SPKR 80 Hz LPF | |
| D) >2 SPKR 100 Hz LPF | |
| E) CARDIOID AUDIENCE | |
| F) CARDIOID STAGE | |
| G) CUSTOM | |
| H) CUSTOM | |
| Amplifiers | |
| Amplifier Design | Class D |
| Power Rating: | 4000 W Peak / 2000 Continuous |
| Power On Protection | Power switch on/off mute |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 80% Nominal Line Voltage |
| Driver Protection | RMS, Peak Limiters and DC |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Input Sensitivity | +4 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | Balanced: 10 KΩ |

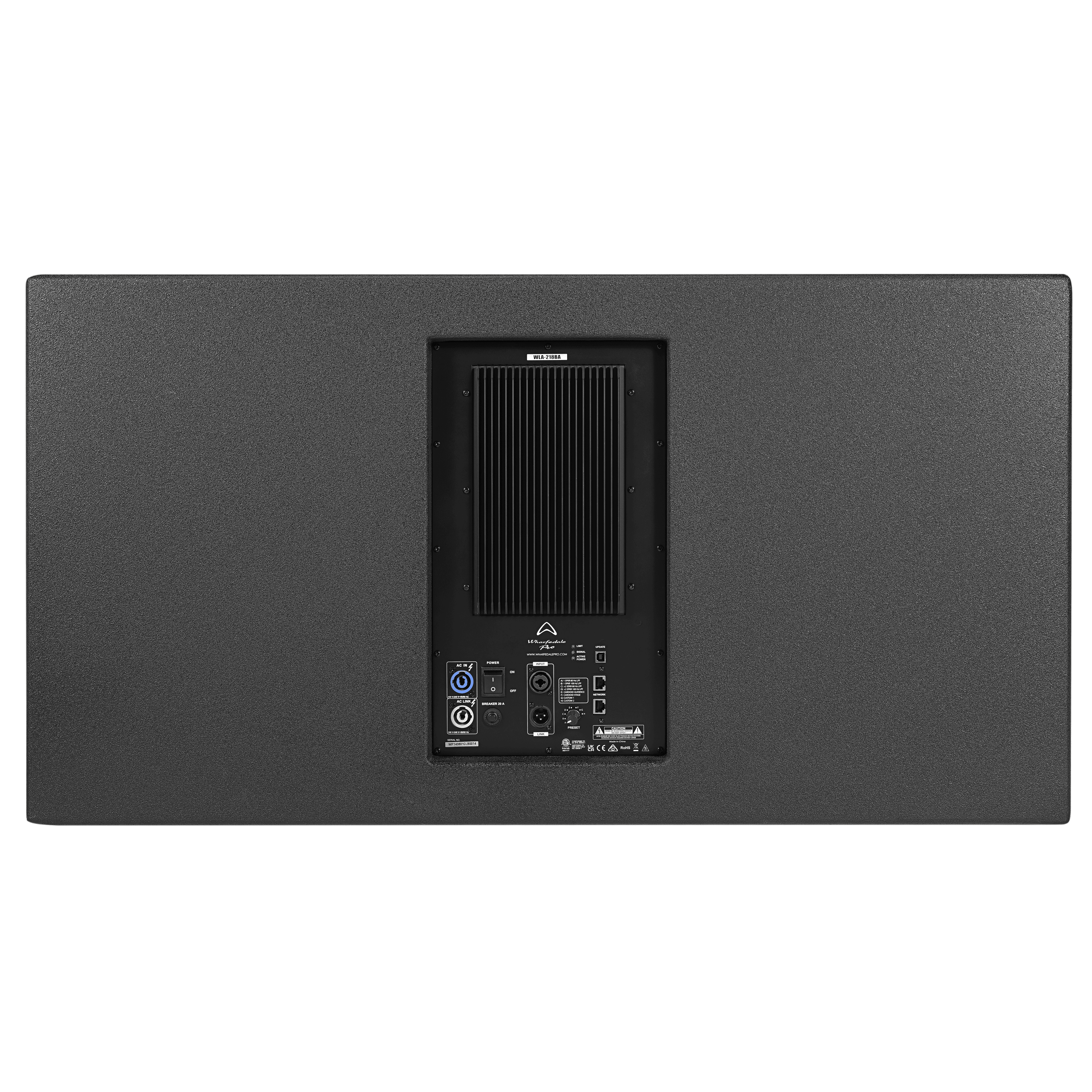

| AC Power details – Power Supply | High Efficiency Switching Mode Power Supply |

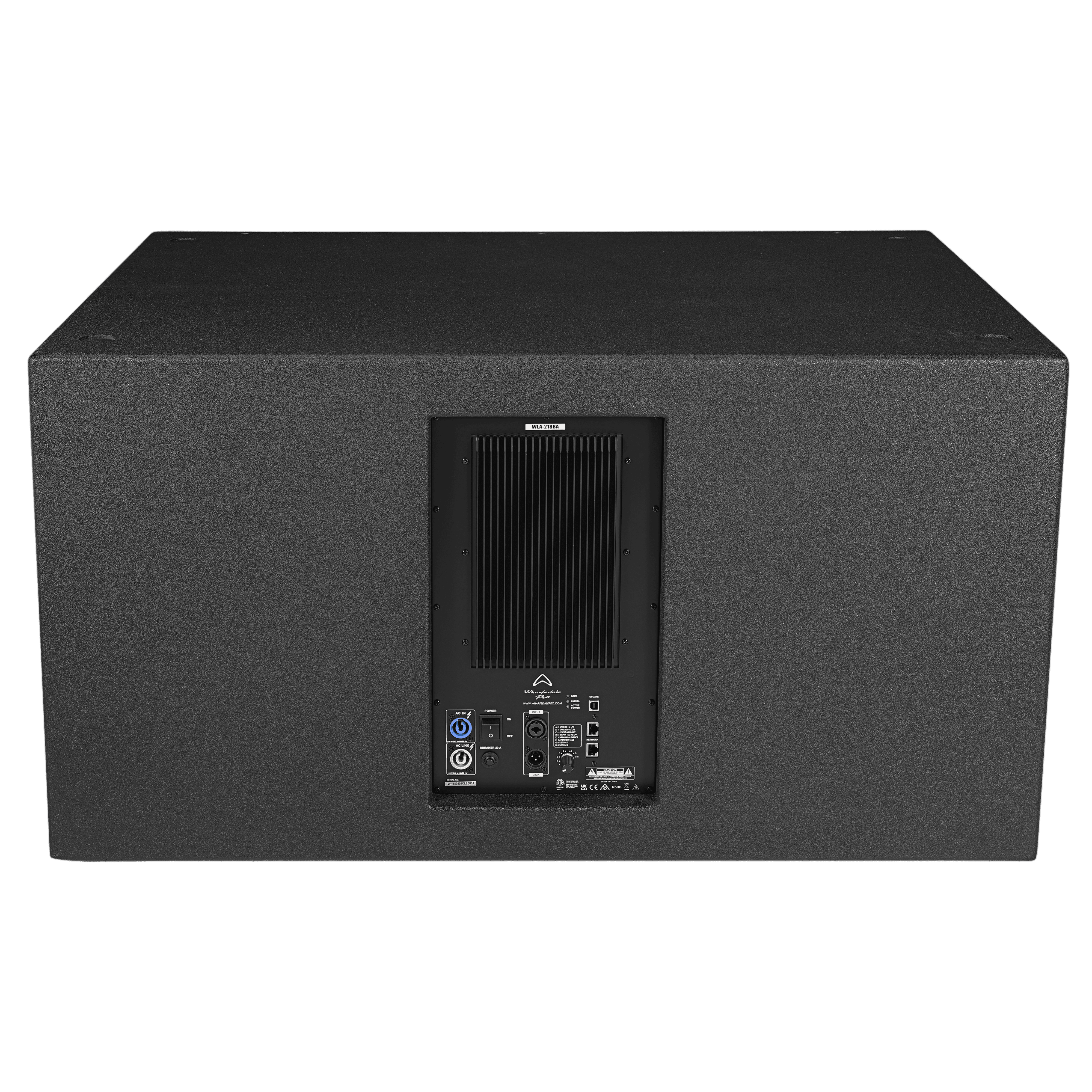

| Connectors | |
| Input Connector | XLR 1/ 4〞Combo jack |
| Link Connector | Balanced XLR pin Connector |
| UPDATE | USB Type B |
| NETWORK (RS485) | RJ45 |
| AC Power Options | AC 100–240 V~,50/60 HZ |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Hardware – Rigging | – |
| Enclosure Material and finish | 18 mm Plywood |
| Colour Options | black paint |

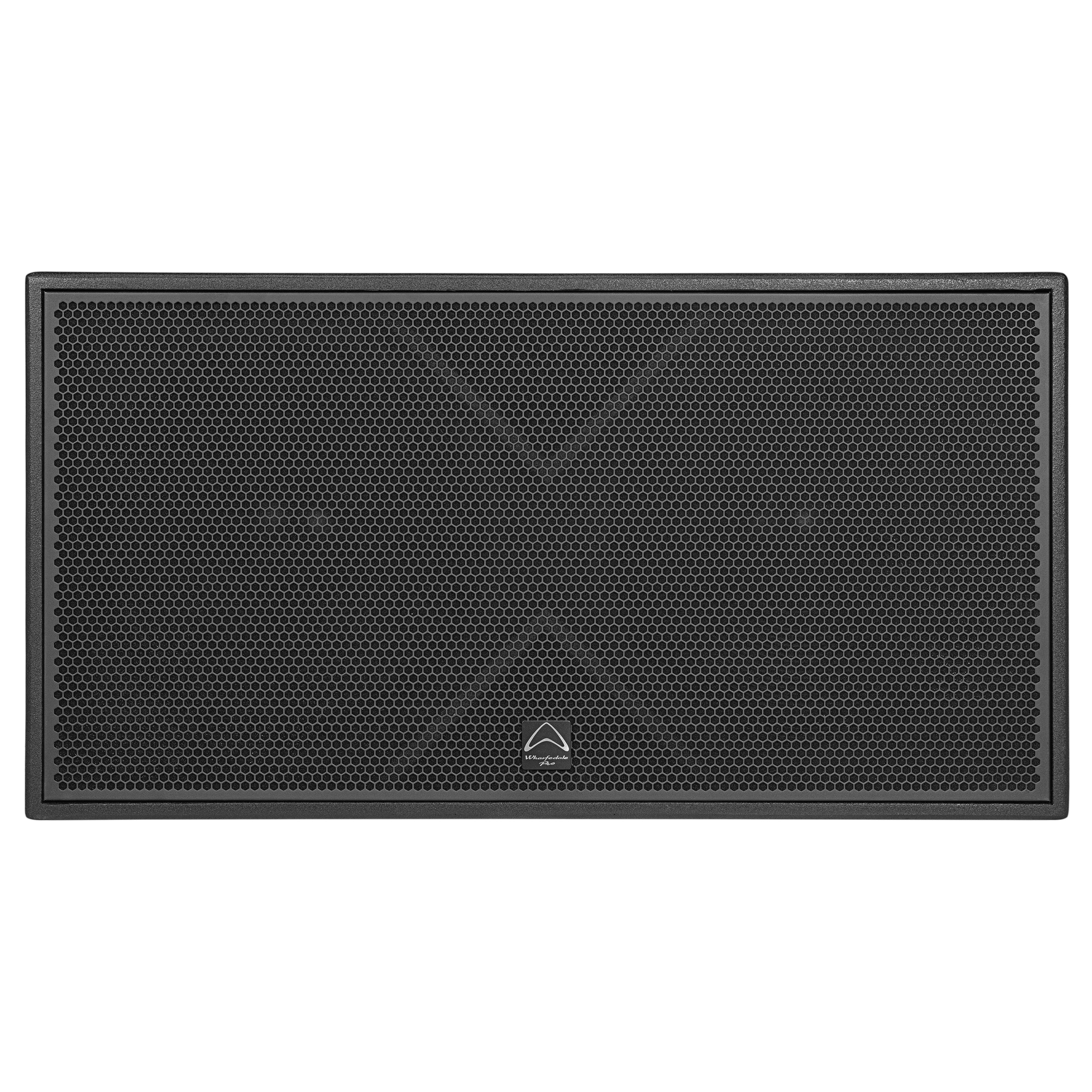

| Grille Material & Finish | 1.5 Steel |
| Unpacked dimensions – Height | 560 mm / 22.0″ |
| Width (Front) | 1065 mm / 41.9″ |
| Width (Back) | 1065 mm / 41.9″ |
| Depth | 756 mm / 29.8″ |
| Packed Dimensions – Height | 638 mm / 25.1″ |
| Width (Front) | 1138 mm / 44.8″ |
| Width (Back) | 1138 mm / 44.8″ |
| Depth | 829 mm / 326.0″ |
| Net Weight (Kg / lbs) | 78.0 Kg / 171.6 lbs |
| Gross Weight (Kg / lbs) | 92.04 Kg / 202.4 lbs |
It is imperative to use the Wharefedale Pro SC48FIR DSP with any Wharfedale Pro WLA Series Line Array
