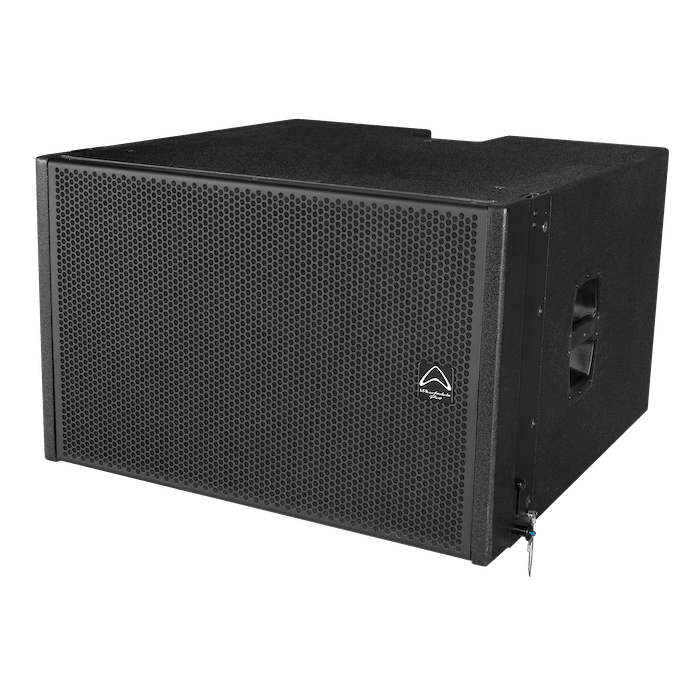

Wharfedale Pro WLA-210SUBA Line Array Subwoofer Active 2x15" 2000W RMS
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro WLA-210SUBA Line Array Subwoofer Active 2x15" 2000W RMS
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 1470.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Dual 15″ LF drivers with 4.0″ voice coils
- 145 dB Max SPL @ 1 meter
- 15 mm / 18 mm Birch plywood construction
- Integral rigging system
- 2000 watts Continuous
- 4000 watts Peak
- 8 x DSP presets
DESCRIPTION
WLA-210A is more than just another dual 10″ active line array system. It incorporates the latest hardware and software technologies from Wharfedale Pro.
The WLA-210A Array Element features custom phase plugs and the extra-ordinary EVO-Fold waveguide. Combined, these lead to a huge reduction in the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array.
The WLA-210A element features an internal 800 W continuous power amplifier and advanced DSP presets including FIR filters. These presets make system tuning simple depending on the physical configuration and size of the array.
The matching dual 15″ active subwoofer, WLA-210SUBA, features a 2000 W continuous internal amplifier, custom Wharfedale Pro drivers and powerful internal DSP making this subwoofer the perfect partner for WLA-210A.
Both loudspeakers can be controlled remotely through software which gives GUI control over the DSP parameters of each individual element.
The optional WLA-210X Common Fly Frame completes the system and allows for multiple system configurations.
The WLA-210A system has been designed and engineered in the UK and is targetted at the touring and fixed install sectors.
SPECIFICATIONS
System Type | Active 2 x 15″ Subwoofer | |
Frequency Response (+/-3 dB) | 39 Hz-125 HZ | |
Frequency Range (-10 dB) | 35 Hz-163 KHz | |
Loudspeaker Sensitivity @ 1 W / 1 m) | 108 dB | |
Maximum SPL(peak)(@1 m) | 145 dB | |
Waveguide Type | ||
Nominal Coverage (H x V) | – | |
Signal Processing | DSP based, 8 presets | |
Preset list | A) FLOWN | |
B) FLOWN with 218 | ||
C) STACK | ||
D) STACK with 218 | ||
E) CARDIOID AUDIENCE | ||
F) CARDIOID STAGE | ||
G) CUSTOM | ||
H) CUSTOM | ||
Amplifiers | ||
Amplifier Design | Class D | |
Power Rating: | 4000 W Peak / 2000 W Continuous | |
Power On Protection | Power switch on/off mute | |
Thermal Protection | Amplifier Shut Down. Auto Reset | |
Low Line Voltage Shut Down | 60% Nominal Line Voltage | |
Driver Protection | RMS, Peak Limiters and DC | |
DC and Short Protection | Yes | |
Limiter Indicator | Red LED | |
Signal Indicator | Green LED | |
Power/Active Indicator | White LED | |
Find Function Indicator | Blue LED | |
Input Sensitivity | +4 dBu | |
Maximum Input Level | +18 dBu | |
Input Impedance | Balanced: 10 KΩ | |
AC Power details – Power Supply | High Efficiency Switching Mode Power Supply | |
Connectors | ||
Input Connector | Balanced socket XLR Connector | |
Link Connector | Balanced pin XLR Connector | |
UPDATE | USB Type B | |
NETWORK (RS485) | RJ45 | |
AC Power Options | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic | |
AC Input Connector | powerCON | |
AC Loop Through Connector | powerCON | |
Hardware – Rigging | Integral side plate | |
Enclosure Material and finish | 15 mm / 18 mm Plywood | |
Colour Options | Black Paint | |
Grille Material & Finish | 1.5 Steel | |
Unpacked dimensions – Height | 485 mm / 19.1″ | |
Width (Front) | 760 mm / 29.9″ | |
Width (Back) | 760 mm / 29.9″ | |
Depth | 775 mm / 30.67″ | |
Packed Dimensions – Height | 575 mm / 22.6″ | |
Width (Front) | 850 mm / 33.5″ | |
Width (Back) | 850 mm / 33.5″ | |
Depth | 865 mm / 34.6″ | |
Net Weight (Kg / lbs) | 68.0 Kg / 149.6 lbs |
