Are you looking for a powerful, compact and portable line array system?

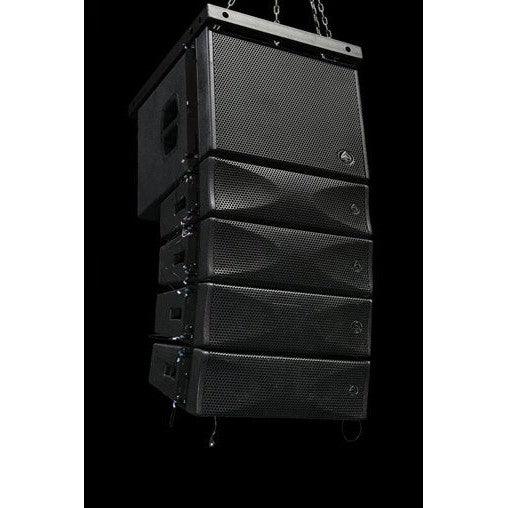

Look no further than the WHARFEDALE WLA-25 5" 2-WAY PASSIVE LINE ARRAY SYSTEM. This two-way passive line array system features the same design philosophy as its larger brother, the WLA-28, and brings long-throw capabilities together with extreme SPL. It features 5" Wharfedale Pro LF drivers, an IRIS X Compression driver and weighs only 13kg.
WLA-25 is a two-way passive line array system which features the same design philosophy as its established larger brother, the WLA-28.
It brings long throw capabilities together with extreme SPL – all from within a compact and portable array system.
The biggest breakthrough during the development process was the creation of a custom Wharfedale Pro neodymium HF compression driver. This newly engineered HF component delivers extreme sensitivity from a very compact and lightweight design. Along with its supersensitive 1.75” voice coil, this HF compression driver also features aluminium back plating which acts as a heat sink to aid heat dissipation. This attention to detail protects the driver from heat damage and mechanical distortion during extreme performance levels.
The 2 x 5” custom LF drivers have been developed to work in partnership with this neo HF driver. Rigid die cast baskets ensure consistent sonic performance with minimum distortion. The placement and physical mounting of all the drivers have been fine tuned to ensure maximum phase coherence and SPL are achieved from the compact cabinet.
The specially designed acoustic grilles in front of the 5” woofers optimise the midrange directivity while the HF exponential horn delivers consistent HF accuracy and detail. In addition, the trapezoidal enclosure has been developed to reduce any acoustic sidelobes within the array.
For low-end punch we have also created the 141 dB SPL WLA-25SUB subwoofer. This subwoofer physically and acoustically matches the WLA-25 system. Using a reversed-phase horn loaded design, the 2 * 10” LF drivers with massive 2.5” coils deliver the consistent low end punch to complete this versatile array.
FEATURES:
- 2 x 5″ LF drivers
- 2.5″ LF voice coils
- Neo HF compression driver
- 15 mm / 18mm Birch plywood construction
- Integral, side plate adjustable rigging
- 100° x 10° dispersion
- 120 watts AES (RMS)
- 240 watts Programme
- 480 watts Peak
SPECIFICATIONS:
| Model Name | WLA-25 |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 108 Hz-18 KHz |
| Frequency Range (-10 dB) | 108 Hz-20 KHz |
| Sensitivity (2.83 v / 1 m) | HF:108 dB / LF:100 dB |
| Calculated Maximum SPL @1 m | HF:135 dB / LF:127 dB |
| System Rated Impedance | 16 Ω |
| Low Frequency Transducer | |
| Size | 2 x 130 mm / 5” |
| Voice Coil Size | 35.0 mm / 1.4” |
| Rated Impedance | 16 Ω |
| LF Power (re:AES2-2012) | 2 x 60 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver – Neo |
| Voice Coil Size | 44 mm / 1.75” |
| Exit Size | 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 16 Ω |
| HF Power (re:AES2-2012) | 40 W |
| Nominal Coverage (H x V) | 100° x 10° |
| Power | |
| System Continuous Power | 120 W |
| System Programme Power | 240 W |
| System Peak Power | 480 W |
| Crossover frequency | 3.7 KHz |
| Input Connector | 2 x speakON compatible |
| Hardware | Integral side plate adjustable |
| rigging 0°-10° | |
| Enclosure | |
| Enclosure Material | 15 mm,18 mm Plywood |
| Finish | Black or white paint |
| Grille Material & Finish | Steel |
| Dimensions – (Unpacked) | |
| Height Front | 164.5 mm / 6.47” |
| Height Rear | 112.5 mm / 4.4” |
| Width | 536 mm / 21.1” |
| Depth | 363 mm / 14.3” |
| Dimensions – (Packed) | |
| Height | 606 mm / 23.85″ |
| Width Front | 430 mm / 16.92″ |
| Width Rear | 430 mm / 16.92″ |
| Depth | 235 mm / 9.25″ |
| Weight | |
| Net Weight (kg / lbs) | 13.0 kg / 28.66 lbs |
| Gross Weight (kg / lbs) | 15.0 kg / 33.06 lbs |
HOW IT WORKS:
The WHARFEDALE WLA-25 5" 2-WAY PASSIVE LINE ARRAY SYSTEM is a two-way passive line array system that features two LF drivers and a HF driver. The system is powered by LF and HF power (re:AES2-2012) of 2*60w and 40w respectively. The system is designed to provide superior sound quality with a frequency response of 108Hz - 18kHz. The system also features an IRIS X Compression driver which ensures that the system can handle a maximum SPL of LF 115dB, HF 131dB.
PRODUCT FAQ:
Q: What is the weight of the WHARFEDALE WLA-25 5" 2-WAY PASSIVE LINE ARRAY SYSTEM?
A: The system weighs only 13kg.
Q: What is the frequency response of the system?
A: The frequency response of the system is 108Hz - 18kHz.
Q: What is the maximum SPL of the system?
A: The maximum SPL of the system is LF 115dB, HF 131dB.
It is imperative to use the Wharefedale Pro SC48FIR DSP with any Wharfedale Pro WLA Series Line Array
