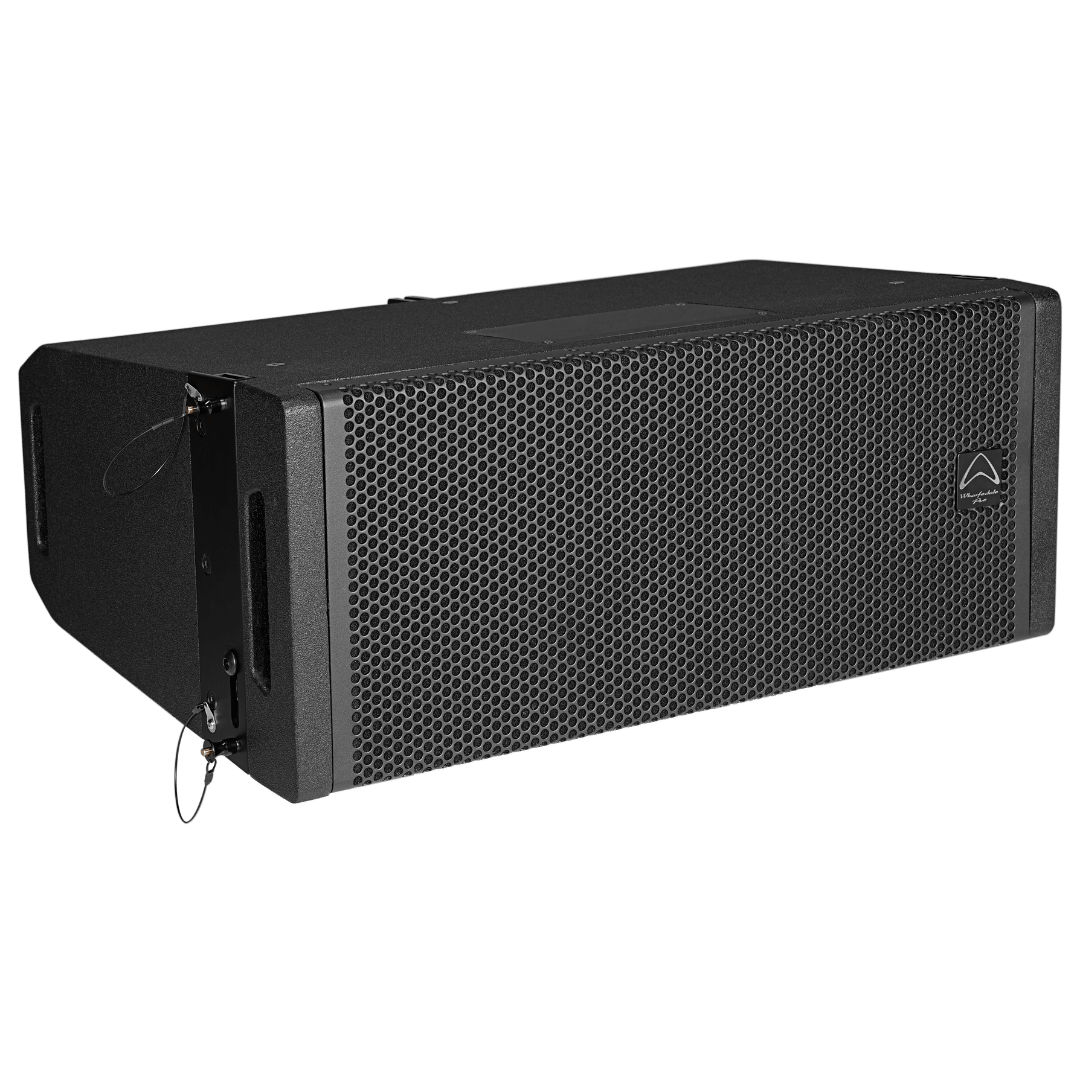

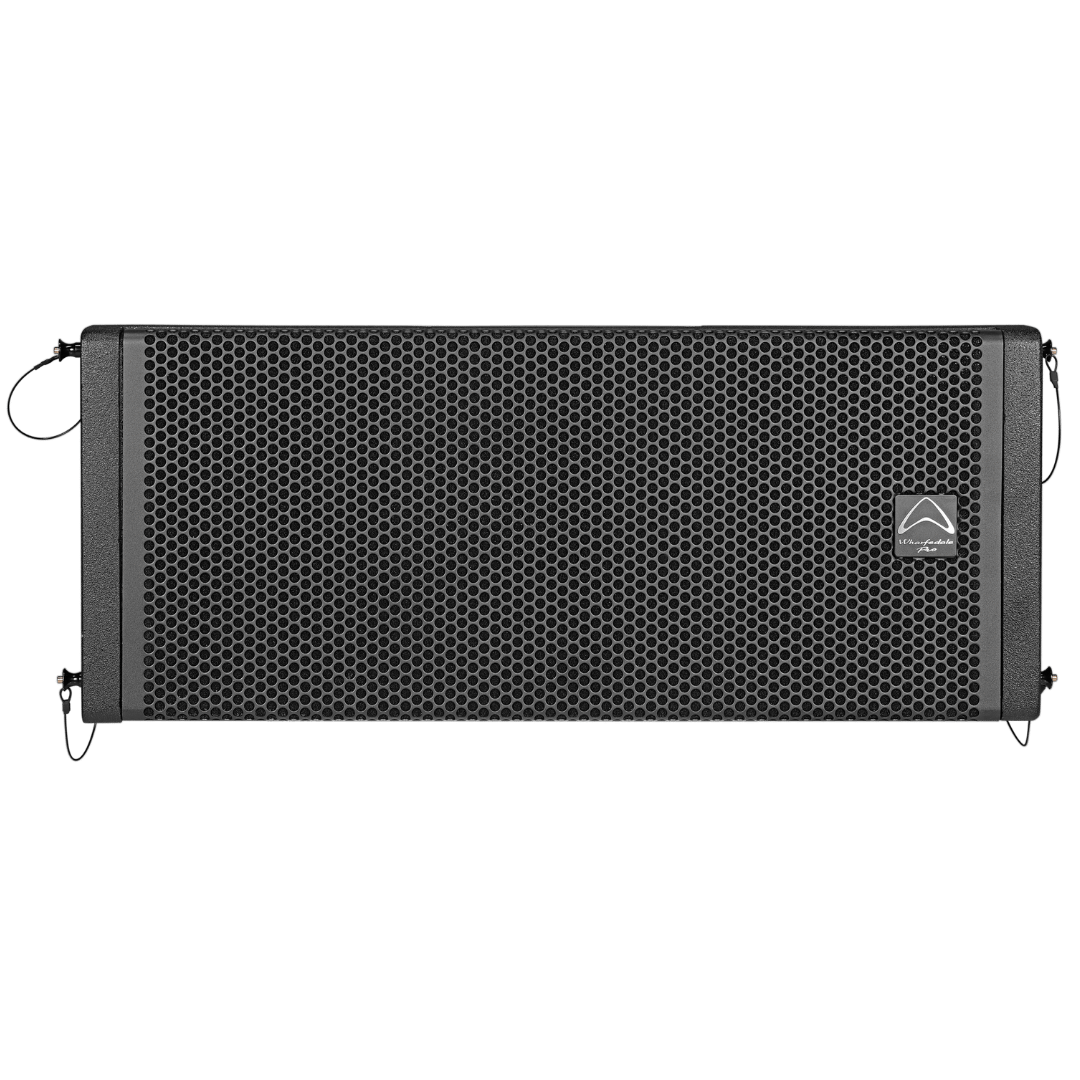

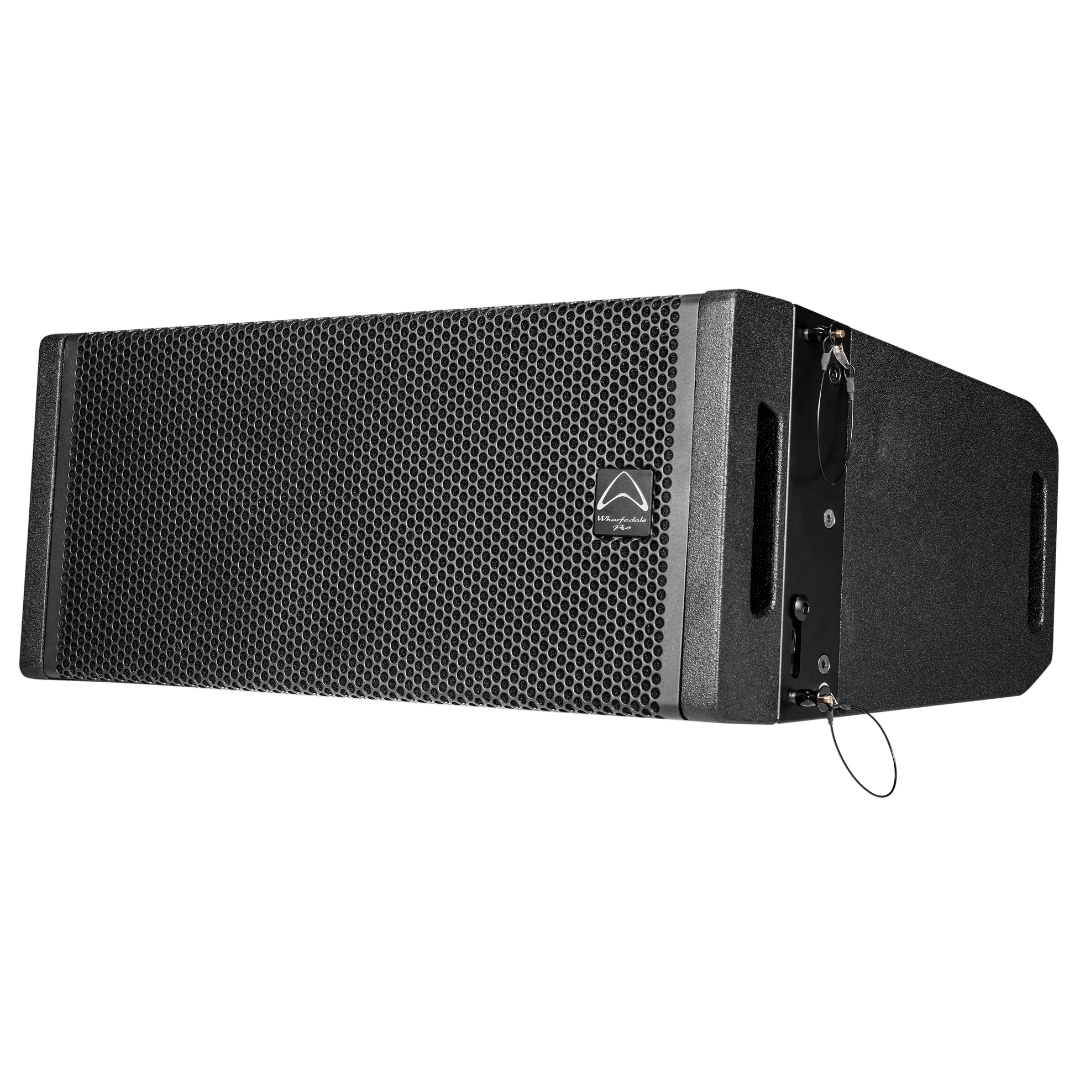

Wharfedale Pro WLA-210XP Dual 10" line array element with EVO-Fold
Out of stock – contact us for more information.
Secure Transactions
Warranty Coverage
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We're here to help ensure every warranty request is handled smoothly and efficiently.
Read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
Read moreTalk to a Pro
Speak to our Music & Audio Pros – the quickest way to get some info.
We're available Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppChoose options
Features
- Driver Configuration: Two custom 10″ low-frequency (LF) drivers and a central 3.0″ high-frequency (HF) titanium diaphragm/neodymium compression driver.
- Acoustic Design: Uses the custom EVO-Fold waveguide and precision-engineered phase plugs to minimize phase distortion and improve off-axis tonal balance.
-
Power Handling:
- Continuous: 800 W LF + 90 W HF
- Programme: 1600 W LF + 180 W HF (Passive: 1600 W total)
- Peak: 3200 W LF + 360 W HF (Passive: 3200 W total)
- Max SPL: 138 dB @ 1 meter
- Frequency Response: 58 Hz – 20 kHz (±3 dB)
- Impedance: 8 Ω (updated from the 16 Ω design of the older WLA-210X model for better DSP array control)
- Dispersion: 100° × 10°
- Operation Modes: Switchable between Passive and Bi-Amp modes
- Enclosure & Build: 15 mm / 18 mm birch plywood construction with a Black Tough-Tone finish, steel grille, and 4 handles.
- Rigging: Integral 3-point side-plate rigging system for ground stacking or flying.
Description
WLA-210XP is a dual 10″ passive line array element designed for professional touring and fixed installation systems that demand clarity, consistency, and power. Sharing the same advanced hardware platform as the acclaimed WLA-210A, this passive variant combines innovative acoustic design with rugged build quality for exceptional performance.

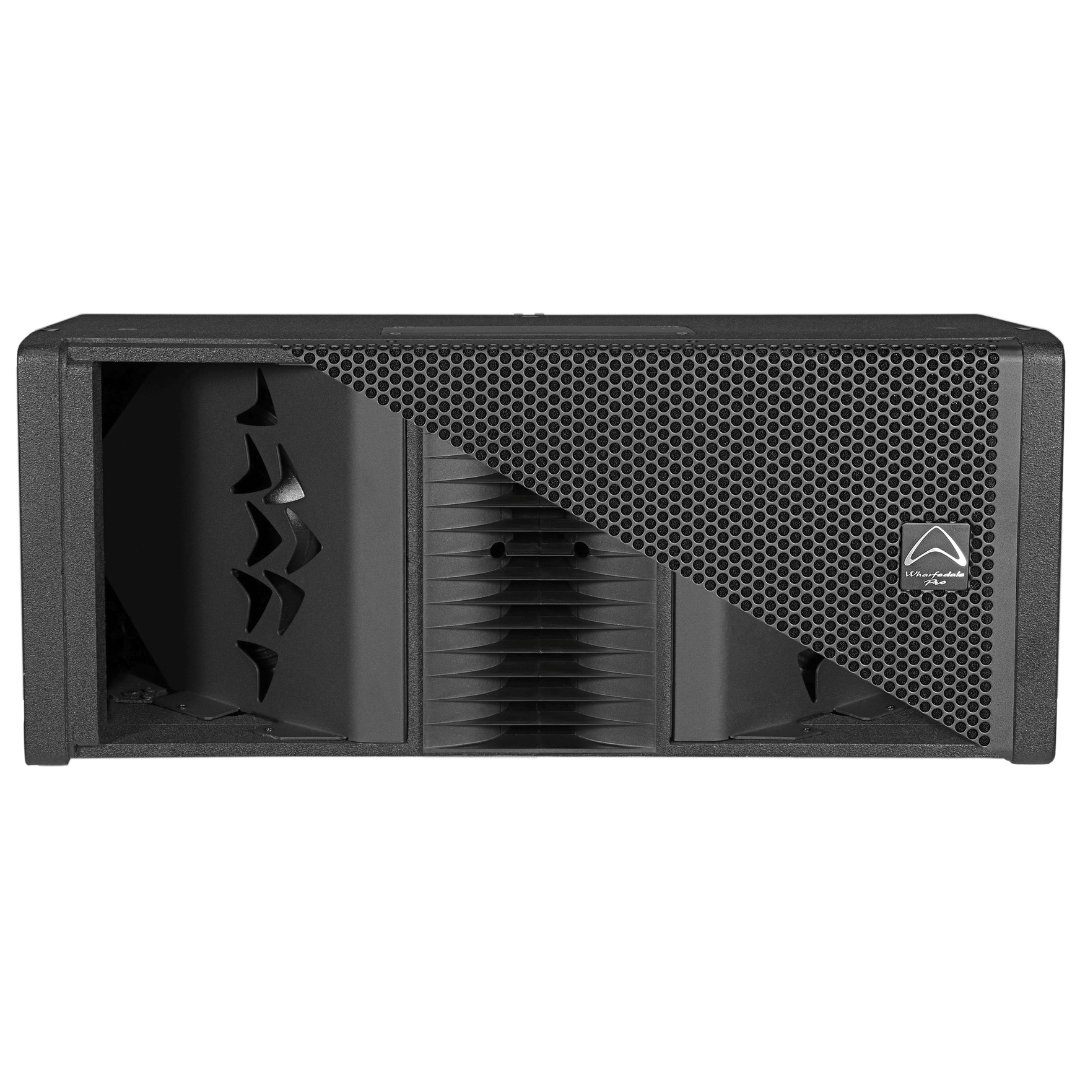

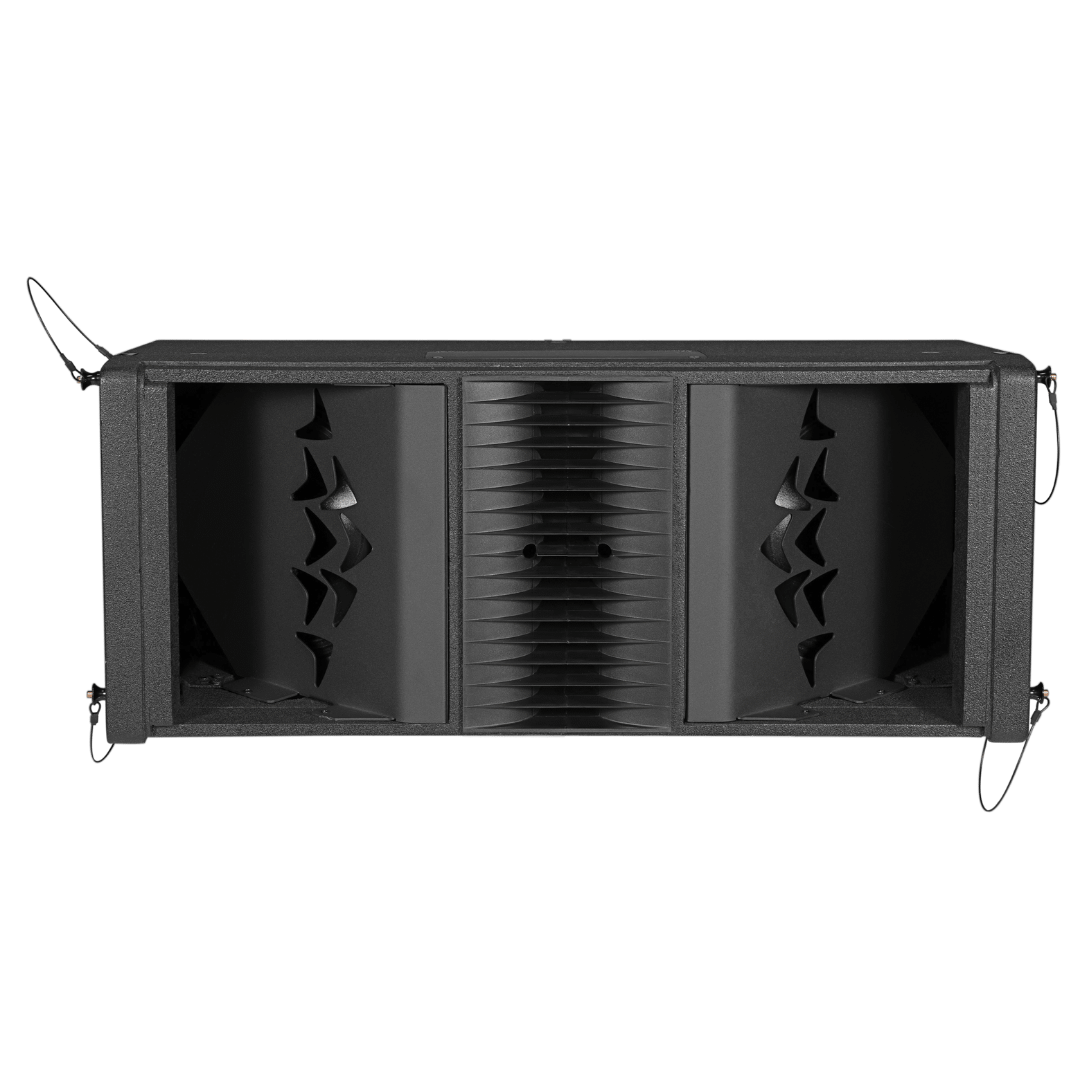

At its core, two custom Wharfedale Pro 10″ LF drivers are paired with a central 3.0″ HF compression driver, coupled to the unique EVO-Fold waveguide. Together with precision-engineered phase plugs, this design significantly reduces phase distortion and delivers a more even frequency response across the listening area.
Built from 15 mm / 18 mm birch plywood, the enclosure ensures strength and minimal resonance. The system can be configured in Bi-Amp or Passive modes, offering flexibility for various setups.
Handling 800 W LF + 90 W HF continuous (3200 W LF + 360 W HF peak) power and delivering 138 dB max SPL @ 1 m, the WLA-210XP offers precise 100° × 10° dispersion. Supported by FIR presets for DP-F / N amplifiers and EASE .gll files, it’s a powerful, road-ready solution for high-performance line array systems.
Specification
| Active or Passive | Passive |
| System Type | Array Element |
| Configuration | 2-way |
| System Continuous Power | Passive: 800 W / Bi-amp LF: 800 W / Bi-amp HF: 90 W |
| System Programme Power | Passive: 1600 W / Bi-amp LF: 1600 W / Bi-amp HF: 180 W |
| System Peak Power | Passive: 3200 W / Bi-amp LF: 3200 W / Bi-amp HF: 360 W |
| Max SPL @ 1m | 138 dB |
| Freq Response (+/-3 dB) | 58 Hz - 20 KHz |
| Freq Range (-10 dB) | 50 Hz - 20 KHz |
| Bi-amp Mode Switch | Yes |
| Bluetooth | No |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 10" |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| LF Voice Coil Size | 2.5” |
| LF Rated Impedance | 2 x 16 Ω (Parallel) |
| LF Power (RE:AES2-2012) | 2 x 400 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 3” |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4″ |
| HF Power (RE:AES2-2012) | 90 W |
| HF Rated Impedance | 8 Ω |
| Preset Library | Yes |
| Input Connector | 2 x 4 Pole speaker connector |
| Waveguide Type | EVO-Fold |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel |
| Finish | Black Tough-Tone |
| Handles | 4 |
| Deployment | Ground, Flying |
| Pole Mount | None |
| Rigging | Yes |
| Integral Rigging | 3 Points |
| Nominal Coverage (H x V) | 100° x System dependant |
| Sensitivity 2.83 V / 1 m | 102 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 1.5 KHz |
| Recommended HPF = BW 18 dB/OCT. | 50 Hz |
| Included Accessory | User Manual |
