FEATURES
- 450 W Continuous
- 900 W Programme
- 1800 W Peak
- 131 dB Max SPL at 1 m
- 12″ Beyma coaxial driver
- Rotatable constant directivity waveguide
- 80° x 40° nominal dispersion
DESCRIPTION
Put your boot on it
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. WDG-X12 and WDG-X15 use Beyma coaxial drivers and are coupled to a rotatable 80° x 40° Constant Directivity waveguide.

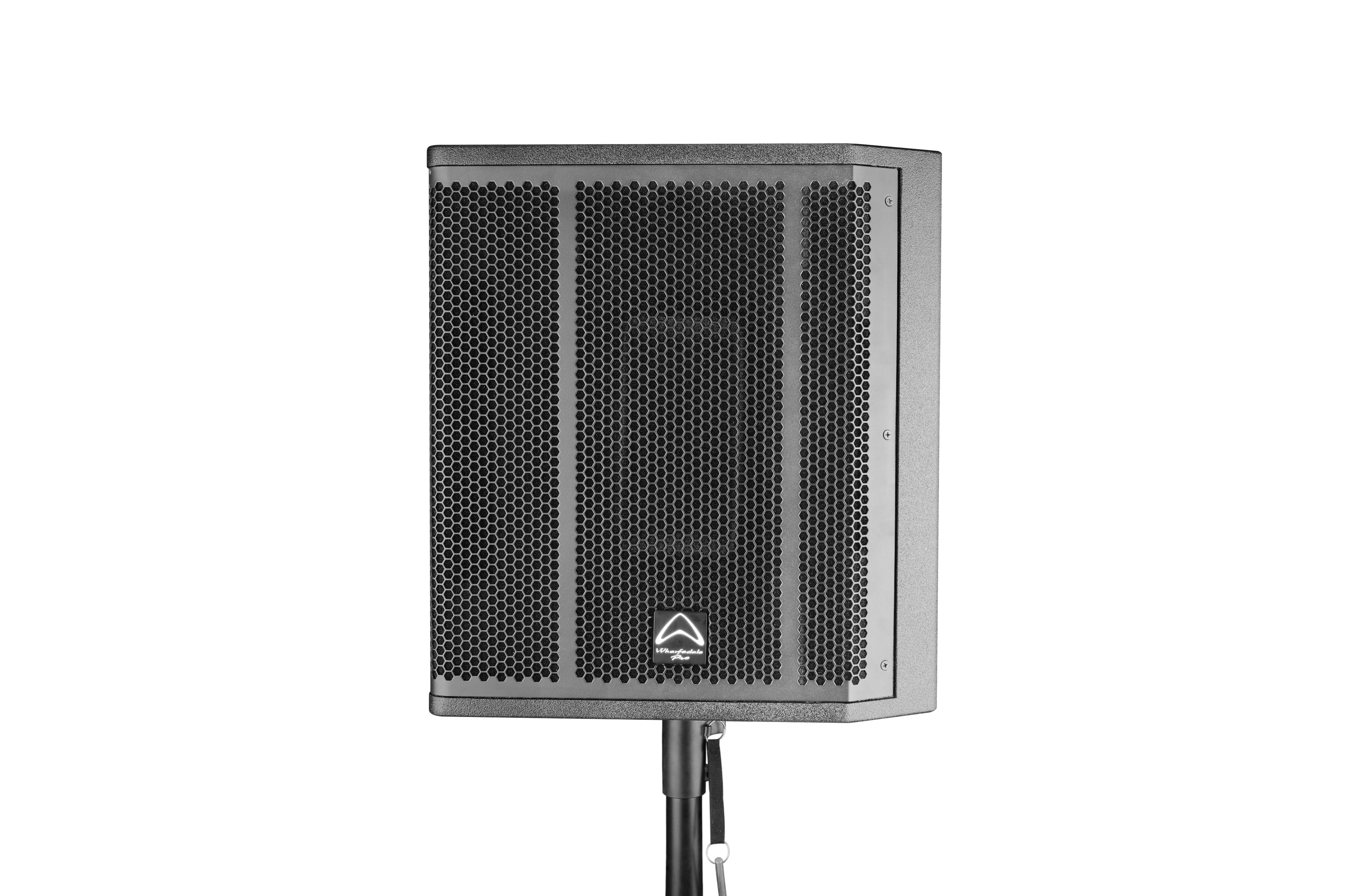

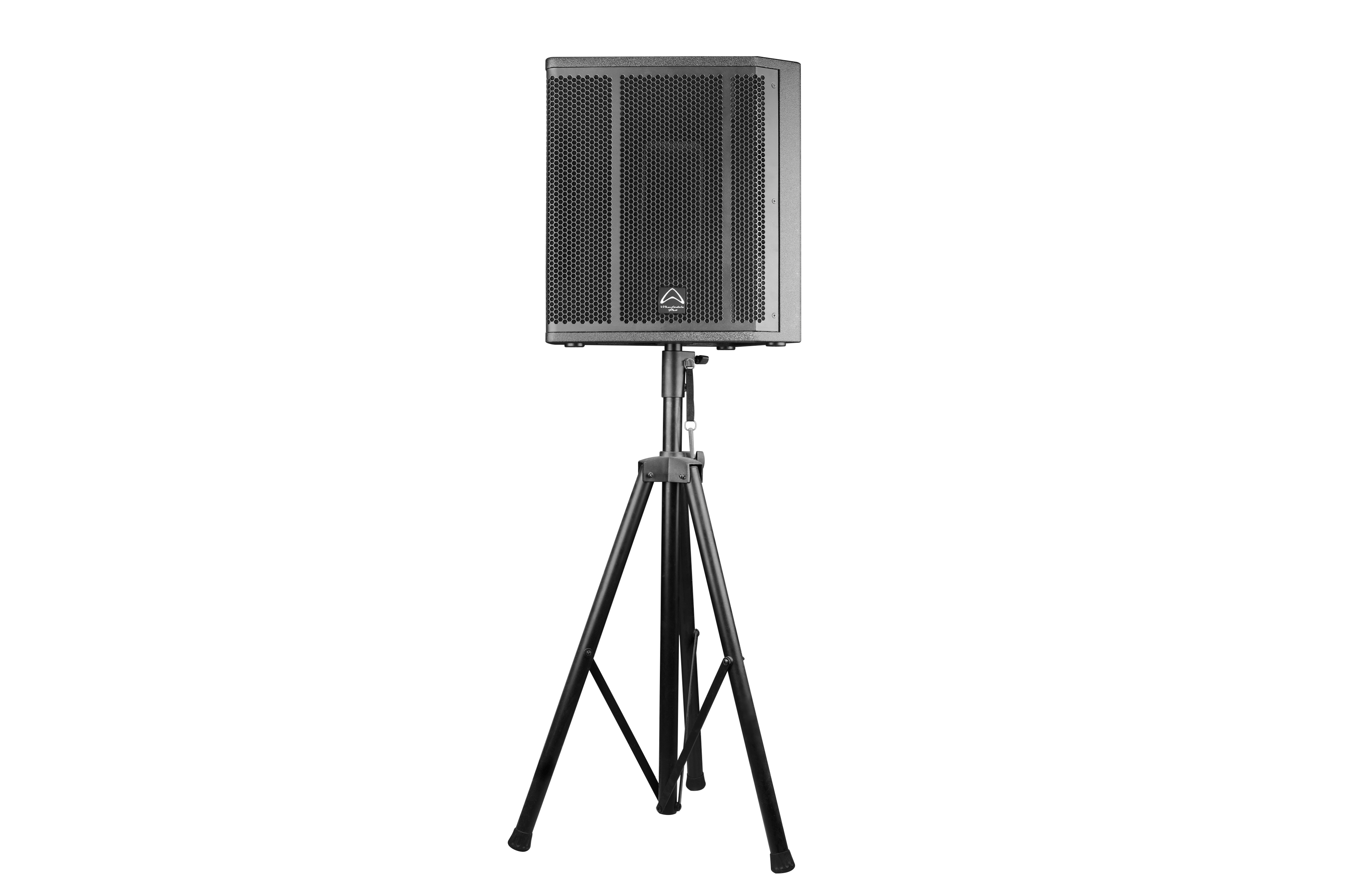

All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model Name | WDG-X12 |
| System Type | 12" coaxial passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz |
| Frequency Range (-10 dB) | 35 Hz – 25 KHz |
| Sensitivity (2.83 V/1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 131 dB |
| System Peak SPL* | 137 dB |
| System Rated Impedance | 8 Ω |
| LF Size | 12" |
| LF Voice Coil Size | 4.0" |
| LF Frame Material | Aluminium |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2.87" |
| Exit Size | 1.5" |
| Diaphragm Material | Composite titanium / polyester |
| Waveguide Type | Constant Directivity |
| Nominal Coverage (H x V) | 80° x 40° (rotatable) |
| Special Features | Copper demodulating rings in LF & HF, waterproof LF cone, shared high performing ferrite magnet |
| Driver Brand | Beyma |
| System Continuous Power (W) | 450 W |
| System Programme Power (W) | 900 W |
| System Peak Power (W) | 1800 W |
| Crossover Frequency | 1.2 KHz |
| Recommended HPF (BW 18 dB/oct.) | 30 Hz |
| Rigging & Hardware | 35 mm pole-mount; 4 x M8 threaded points for WPB-7 or Powerdrive™ Series 100 |
| Optional Accessories | WDG-12 horizontal flying yoke, heavy-duty transport soft cover |
| Handle | 1 on top |
| Cabinet Type | Polygonal shape |
| Enclosure Material & Finish | 15 mm plywood, Tough-Tone |
| Colour Options | Black paint (white on request) |
| Grille Material & Finish | Powder-coated steel |
| Monitor Angle | 60° – 25° |
| Dimensions (Unpacked H x W x D) | 310 x 540 x 471.7 mm (12.2" x 21.3" x 18.6") |
| Dimensions (Packed H x W x D) | 635 x 560 x 398 mm (24.9" x 22.1" x 15.7") |
| Net Weight | 25.1 kg / 55.2 lbs |
| Gross Weight | 28.1 kg / 61.8 lbs |
