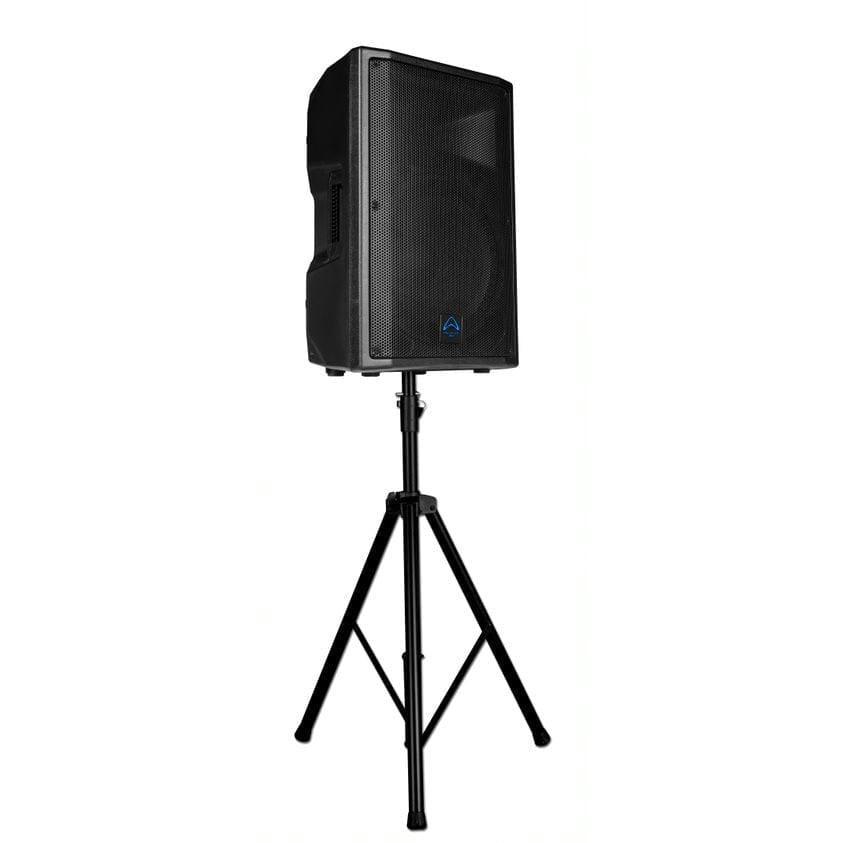

Wharfedale Pro TOURUS-AX15MBT Active Loudspeakers
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro TOURUS-AX15MBT Active Loudspeakers
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 304.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Are you looking for an active loudspeaker that combines power, value, and versatility? Look no further than Wharefedale Pro's latest Tourus series of plastic active loudspeakers!
FEATURES:
- On stage, DJ, bands and performance
- Bluetooth, TWS models with MP3 player
- Bi-amplified
- Wharfedale Pro drivers
- Portable and powerful
- Huge power output
- RCA, XLR and Jack inputs
- M8 rigging points
- Optional soft covers
SPECIFICATIONS:
| System Type | Active 15" 2-way Bi-Amplified |
| Frequency Response (+/-3dB) | 50-20 KHz |
| Sensitivity @ 1w / 1m | 97dB |
| Maximum SPL (peak @1m) | 130dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 381 mm / 15” |
| Coil Size (mm / inches) | 50.8mm / 2.0" |
| Impedance | 4Ω |
| High Frequency Transducer | |
| Type | Compression Driver |
| Coil Size (mm / inches) | 44.5mm / 1.75" |
| Exit Size (mm / inches) | 25mm / 1" |
| Diaphragm Material | Titanium |
| Impedance | 8Ω |
| High Frequency Coverage (H x V) | 90° x 60° |
| Amplifiers | |
| LF Power Amplifier (Class D) | 350w Continuous / 700w Peak |
| HF Power Amplifier (Class AB ) | 100w Continuous / 200w Peak |
| Crossover Frequency | HI PASS 2.4kHz LOW PASS 2.4kHz |
| Equalization | +/-12dB Gain for bass and treble |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED |
| Input type | Balanced / BT / USB |
| Input Connectors | 2 x TRS JACK, 2 x RCA AND 2 x XLR |
| Input Impedance | 47KΩ Balanced |
| Maximum Input Level | 5V |
| Line Input Sensitivity | -10dB |
| Mic Input Sensitivity | -40dB |
| Line Output Connector | Male XLR |
| Power Supply | SMPS |
| AC Power Options | 100V-120V and 220V-240V |
| Power On Indicator | LED / Illuminated front logo |
| Rigging / Bracket / Mounting Options | 4 x M8 |
| 35mm Pole-mount with lock screw | |
| 3 handles (2 on sides, 1 on top) | |
| Optional wall bracket (WPB-2) | |
| Enclosure | |
| Enclosure Material | Injection Moulded Polypropylene |
| Colour | Black |
| Grille | 1.2mm steel |
| Dimensions (Unpacked) | |
| Height | 693mm / 27.3" |
| Width - Front | 455mm / 17.9" |
| Width - Rear | 262mm / 10.3" |
| Depth | 401.8mm / 15.1" |
| Dimensions (packed) | |
| Height | 762mm / 30.0" |
| Width | 4508mm / 20.0" |
| Depth | 425mm / 16.7" |
| Weight | |
| Net Weight (kg / lbs) | 119.2kg / 42.2lbs |
| Gross Weight (kg / lbs) | 22.0kg / 48.4lbs |
HOW IT WORKS:
The Tourus-AX15BT active loudspeaker is bi-amplified with a 15" low frequency transducer and a compression driver with a titanium diaphragm for high frequency. It has a range of inputs and connectors, including balanced/BT/USB, 2 x TRS JACK, 2 x RCA, and 2 x XLR. It also has a frequency response of 50-20 KHz and a maximum SPL of up to 130dB. It comes with two amplifiers - a 350w Continuous / 700w Peak LF Power Amplifier (Class D) and a 100w Continuous / 200w Peak HF Power Amplifier (Class AB). It has a power switch on/off mute, amplifier shutdown, auto reset, driver, DC and short protection, and a limiter indicator.
PRODUCT FAQ:
Q: What type of loudspeaker is the Tourus-AX15BT?
A: The Tourus-AX15BT is an active 15" 2-way bi-amplified loudspeaker.
Q: What type of amplifiers does the loudspeaker come with?
A: The loudspeaker comes with a 350w Continuous / 700w Peak LF Power Amplifier (Class D) and a 100w Continuous / 200w Peak HF Power Amplifier (Class AB).
Q: What type of inputs and connectors does the loudspeaker have?
A: The loudspeaker has balanced/BT/USB, 2 x TRS JACK, 2 x RCA, and 2 x XLR inputs and connectors.
