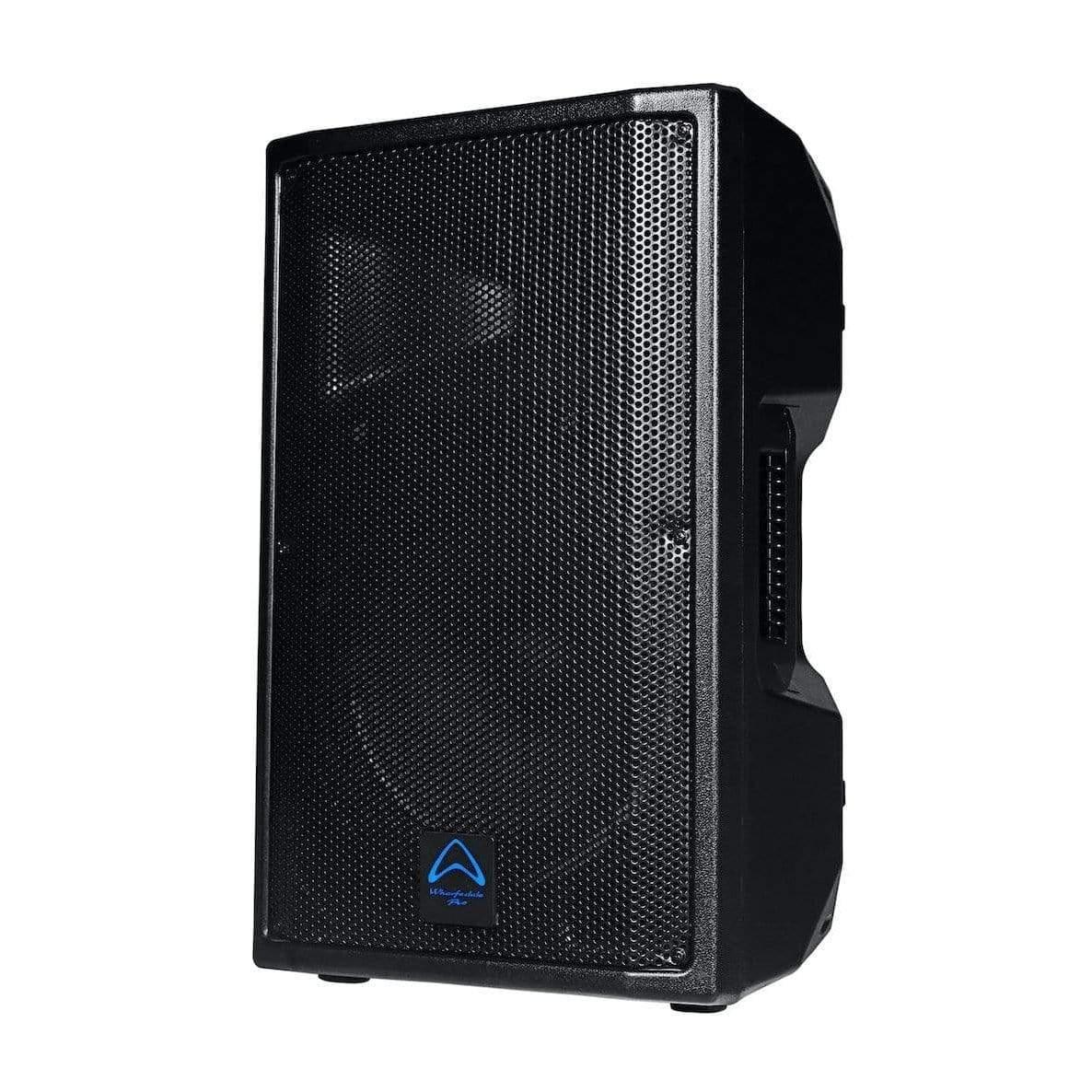

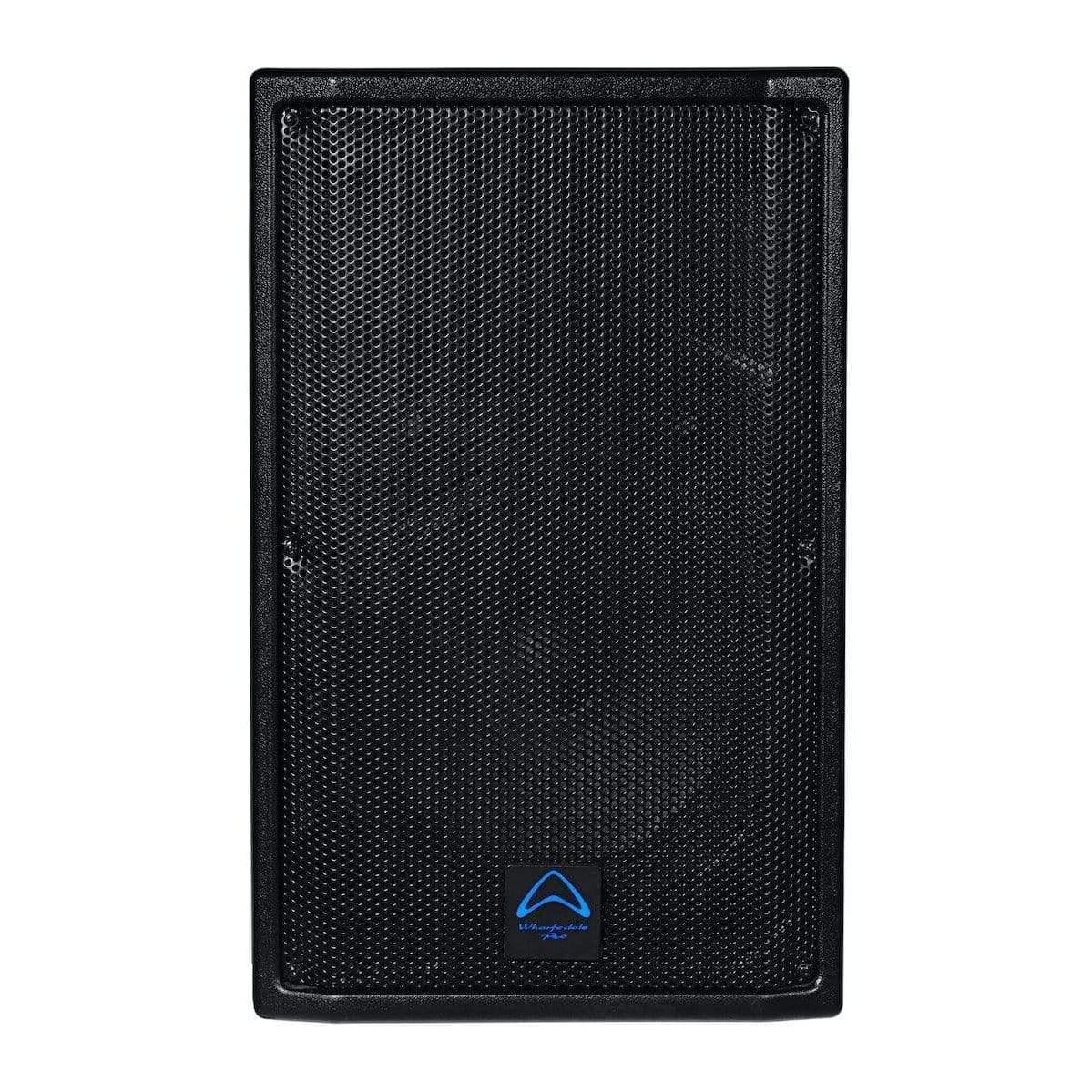

Wharfedale Pro TOURUS-AX12BT Active Loudspeakers
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 328.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Are you looking for a powerful, versatile and value-packed loudspeaker?
Look no further than the Wharfedale Tourus-AX12BT Active Loudspeakers! This latest series from Wharefedale Pro delivers in every way, with a 12" 2-way bi-amplified system with a maximum SPL of 128dB and frequency response of 55-20kHz. With 250w continuous and 500w peak LF power, and 100w continuous and 200w peak HF power, you'll get all the power you need. Plus, with a range of input connectors and rigging/bracket/mounting options, you'll have all the versatility you need.
FEATURES:
🔊 Powerful: 12" 2-way bi-amplified system with a maximum SPL of 128dB and frequency response of 55-20kHz. With 250w continuous and 500w peak LF power, and 100w continuous and 200w peak HF power.
🔌 Versatile: Range of input connectors and rigging/bracket/mounting options.
📦 Value-Packed: Injection moulded poly enclosure with 3 handles and a 35mm pole-mount with lock screw. Optional wall bracket available.
SPECIFICATIONS:
System Type |
Active 12" 2-way Bi-Amplified |
Frequency Response (+/-3dB) |
55-20kHz |
Sensitivity @ 1w / 1m |
96dB |
Maximum SPL (peak @1m) |
128dB |
Low Frequency Transducer |
|
Size (mm / inches) |
305mm / 12" |
Coil Size (mm / inches) |
50.8mm / 2.0" |
Impedance |
4Ω |
High Frequency Transducer |
|
Type |
Compression Driver |
Coil Size (mm / inches) |
44.5mm / 1.75" |
Exit Size (mm / inches) |
25mm / 1" |
Diaphragm Material |
Titanium |
Impedance |
8Ω |
High Frequency Coverage (H x V) |
90° x 60° |
Amplifiers |
|
LF Power Amplifier (Class D) |
250w Continuous / 500w Peak |
HF Power Amplifier (Class AB ) |
100w Continuous / 200w Peak |
Crossover Frequency |
HI PASS 2.5kHz LOW PASS 2.5kHz |
Equalization |
+/-12dB Gain for bass and treble |
Power On Protection |
Power switch on / off mute |
Thermal Protection |
Amplifier shutdown, auto reset |
Driver, DC and Short Protection |
Yes |
Limiter Indicator |
Red LED |
Power Indicator |
Green LED |
Input type |
Balanced / BT / USB |
Input Connectors |
2 x TRS JACK, 2 x RCA AND 2 x XLR |
Input Impedance |
47KΩ Balanced |
Maximum Input Level |
5V |
Line Input Sensitivity |
-10dB |
Mic Input Sensitivity |
-40dB |
Line Output Connector |
Male XLR |
Power Supply |
SMPS |
AC Power Options |
100V-120V and 220V-240V |
Power On Indicator |
LED / Illuminated front logo |
Rigging / Bracket / Mounting Options |
4 x M8 |
|
|
35mm Pole-mount with lock screw |
|
|
3 handles (2 on sides, 1 on top) |
|
|
Optional wall bracket (WPB-2) |
Enclosure |
|
Enclosure Material |
Injection Moulded Polypropylene |
Colour |
Black |
Grille |
1.2mm steel |
Dimensions (Unpacked) |
|
Height |
603mm / 23.7" |
Width - Front |
377mm / 14.8" |
Width - Rear |
217mm / 8.54" |
Depth |
347mm / 13.7" |
Dimensions (packed) |
|
Height |
666mm / 26.2" |
Width |
430mm / 16.9" |
Depth |
408mm / 16.1" |
Net Weight (kg / lbs) |
15.0kg / 33.0lbs |
Gross Weight (kg / lbs) |
17.0kg / 37.4lbs |
HOW IT WORKS:
The Wharfedale Tourus-AX12BT Active Loudspeakers are powered by a 250w continuous/500w peak LF power amplifier (Class D) and a 100w continuous/200w peak HF power amplifier (Class AB). With the range of input connectors, you can easily connect the loudspeakers to your preferred sound system. The injection moulded poly enclosure is designed to ensure maximum sound quality and the 3 handles and 35mm pole-mount with lock screw make it easy to transport and set up.
FAQ:
Q: What type of system does the Wharfedale Tourus-AX12BT Active Loudspeakers use?
A: The Wharfedale Tourus-AX12BT Active Loudspeakers use a 12" 2-way bi-amplified system.
Q: What is the maximum SPL of the loudspeakers?
A: The maximum SPL of the loudspeakers is 128dB.
Q: What type of power amplifiers are used?
A: The LF power amplifier is a Class D amplifier with 250w continuous/500w peak power and the HF power amplifier is a Class AB amplifier with 100w continuous/200w peak power.
