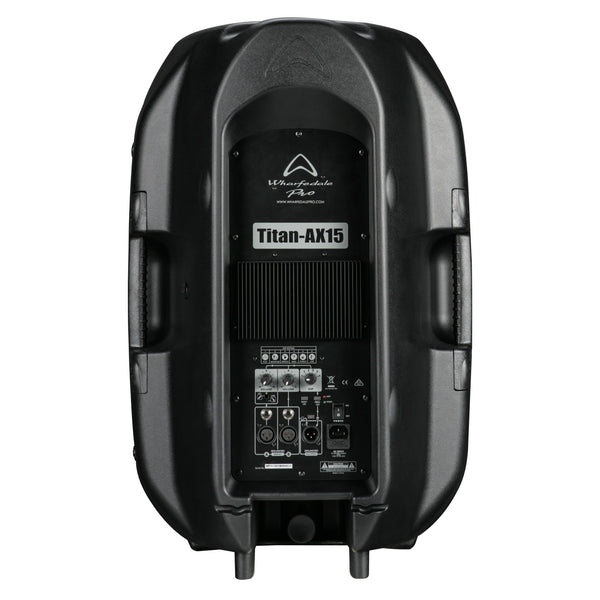

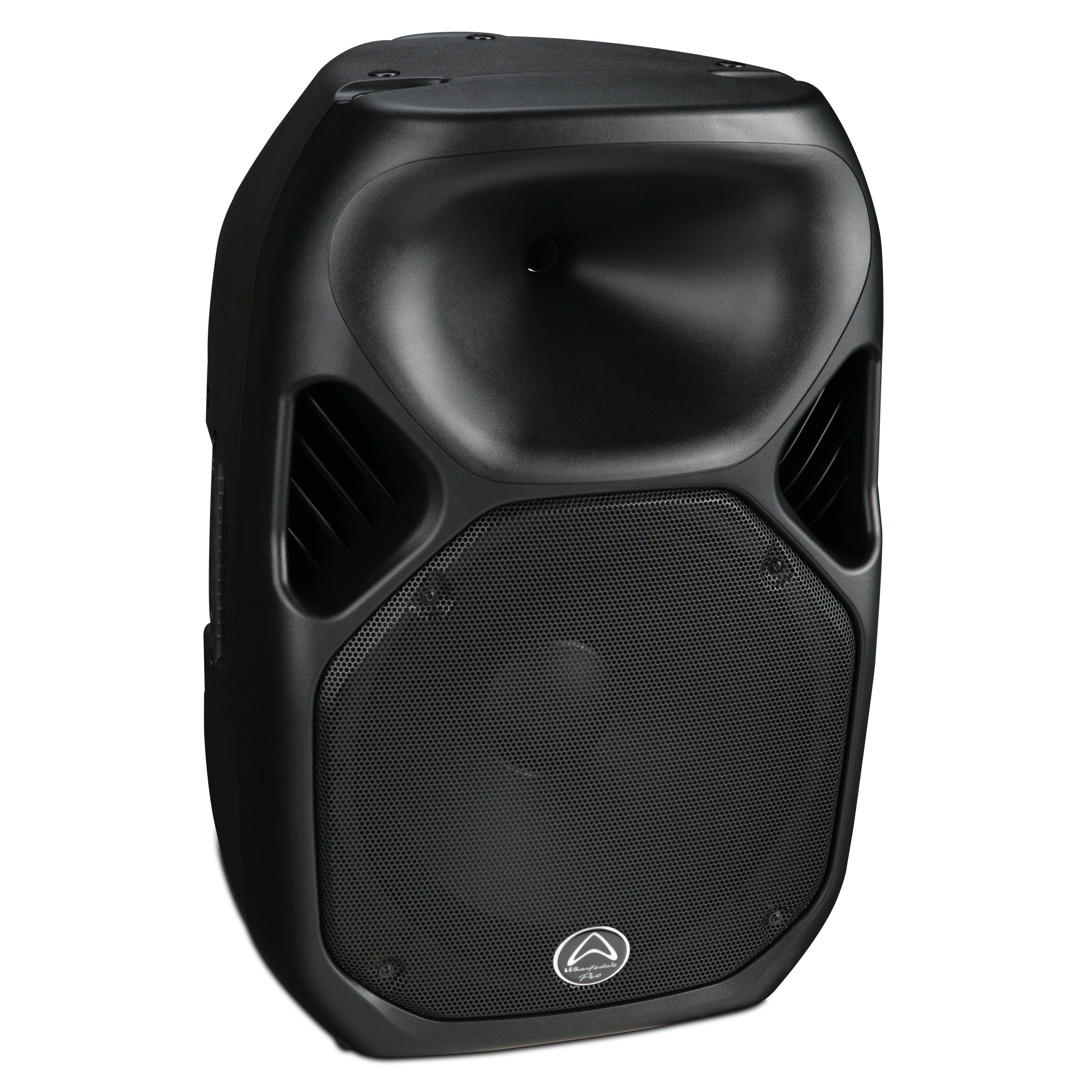

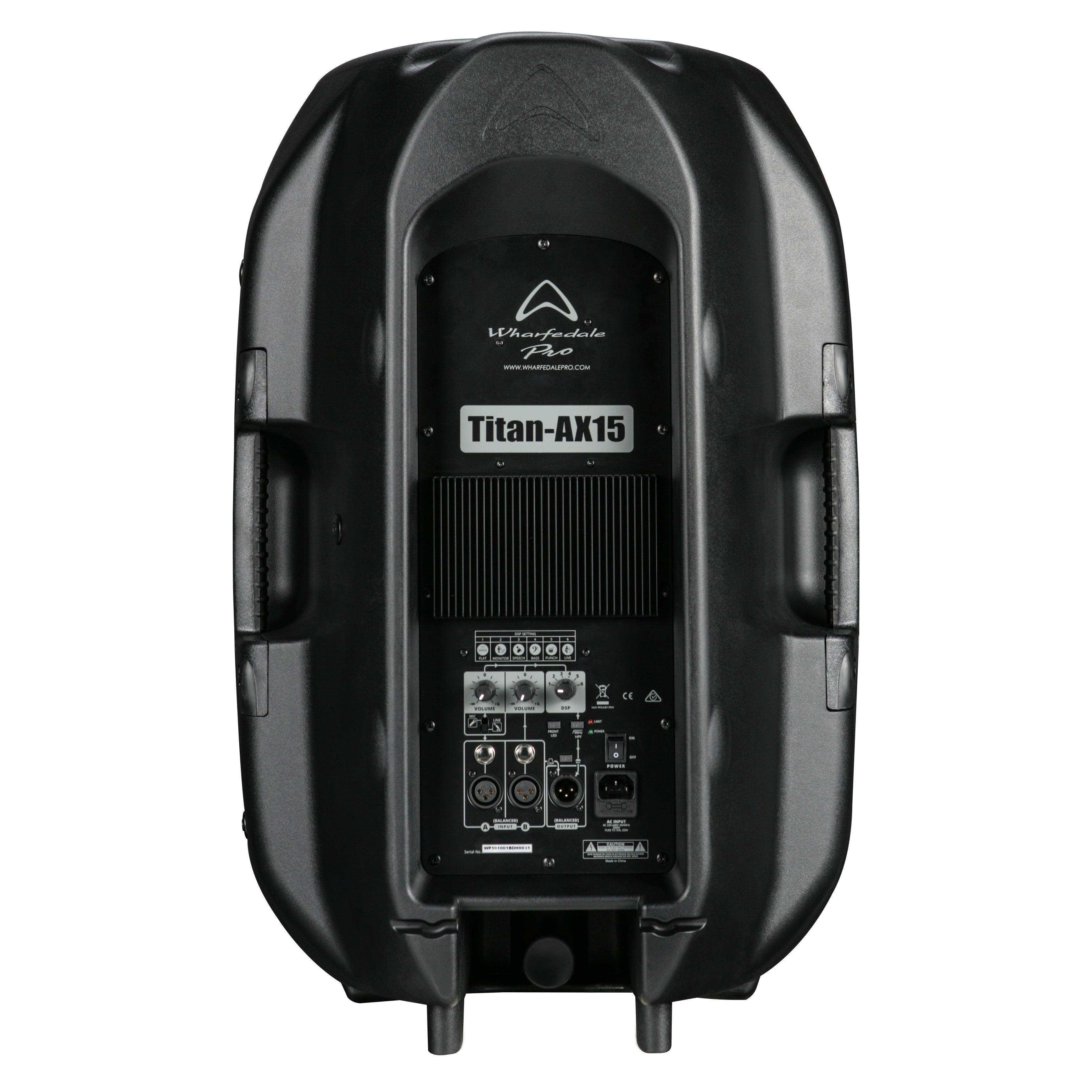

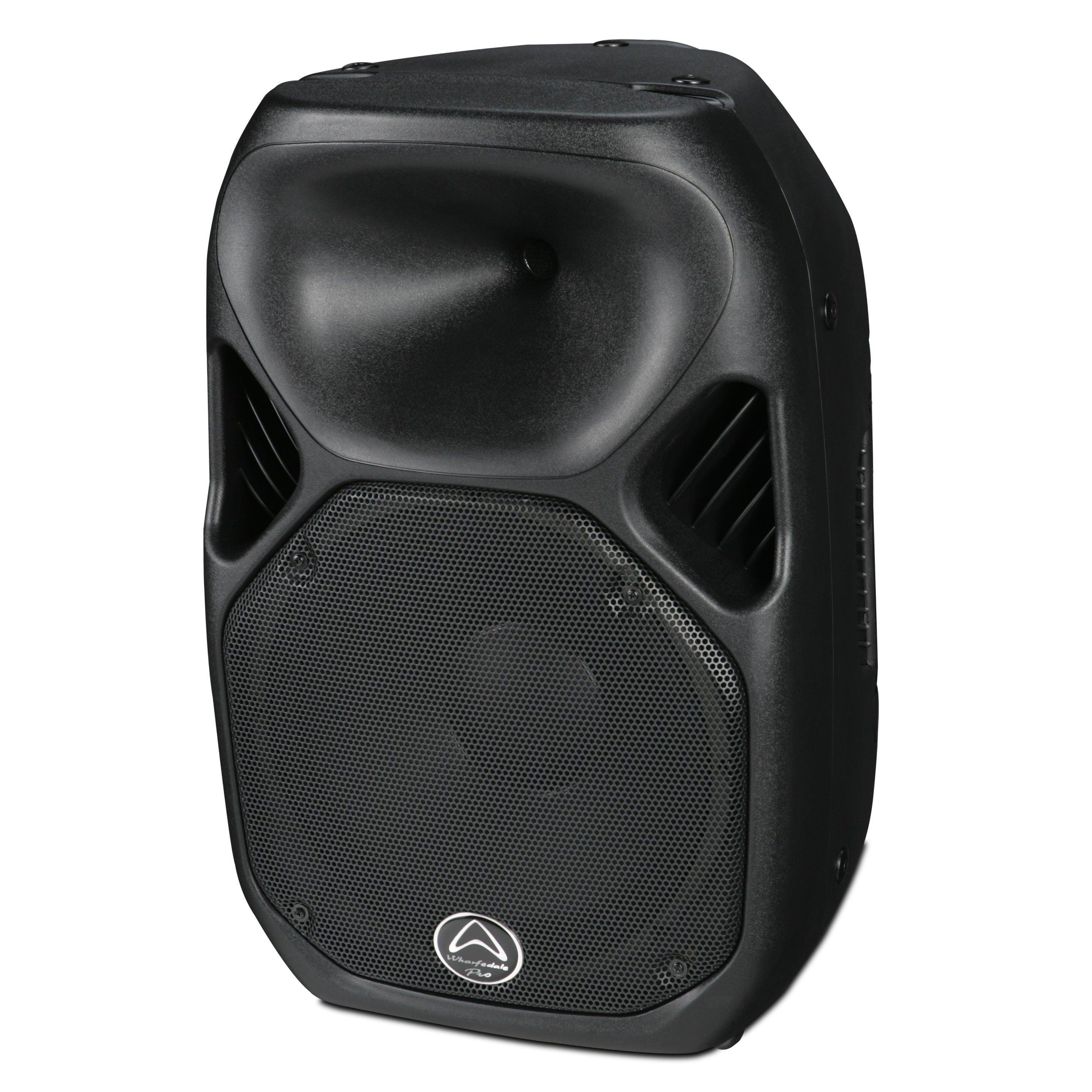

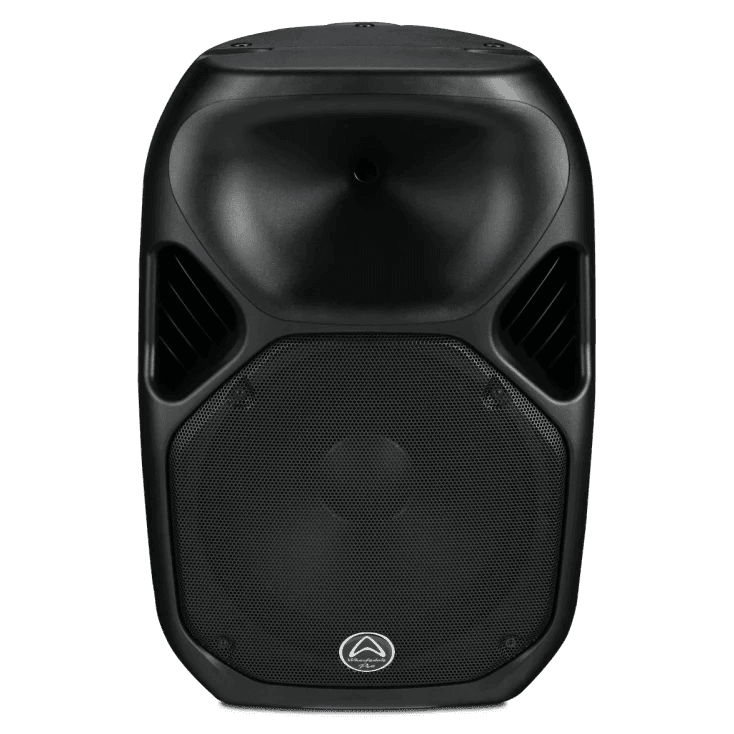

Wharfedale Pro TitanAX15 Active Loudspeaker
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsApp
Secure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Choose options
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Download Product Data Sheet
FEATURES
- 15″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 3.0″ LF voice coil
- 420 w Continuous
- 840 w Peak
- Internal 6-position DSP
DESCRIPTION
Titan-AX models with IRIS-X
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
SPECIFICATIONS
| Model Name | Titan-AX15 |
| System Type | Active 15” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 50 Hz-20 KHz |
| Frequency Range (-10 dB) | 40 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 129 dB |
| LF Transducer Size (mm / inches) | 381 mm / 15” |
| Coil Size (mm / inches) | 75 mm / 3.0″ |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75″ |
| Exit Size (mm / inches) | 25 mm / 1” |
| Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100° x 80° |
| Amplifiers | |
| Low-Frequency Power Amplifier | 350/700 W (Class D) |
| RMS/Peak Watts | |
| High-Frequency Power Amplifier RMS/Peak Watts | 70/140 W (Class D) |
| Controls—EQ | Note – EQ changed by DSP knob |
| DSP | 6 user presets |
| Hi Pass switch | 90 Hz |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~350 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |
| Connectors | |
| Input – type | Switchable balanced mic/line level (Chan 1) |
| Input Connector | 2 * XLR & 2 * 1/4″ jack (Chan 1 Line/MIC) |
| Line Output Connector | Switchable LOOP/MIX Balanced socket XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V/220-240 V~ 50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint |
| 35 mm receptacle with lock screw | |
| 2 carry handles (one on each side) | |
| Optional wall-mount bracket | |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Black / White |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 728.5 mm / 28.7″ |
| Width Front | 480.6 mm / 18.9″ |
| Depth | 395.6 mm / 15.6″ |
| Dimensions – packed – Height | 830 mm / 32.7″ |
| Width Front | 514 mm / 20.2″ |
| Depth | 489 mm / 19.3″ |
| Net Weight (kg / lbs) | 22.94 kg / 50.3 lbs |
| Gross Weight (kg / lbs) | 27.7 kg / 60.9 lbs |
