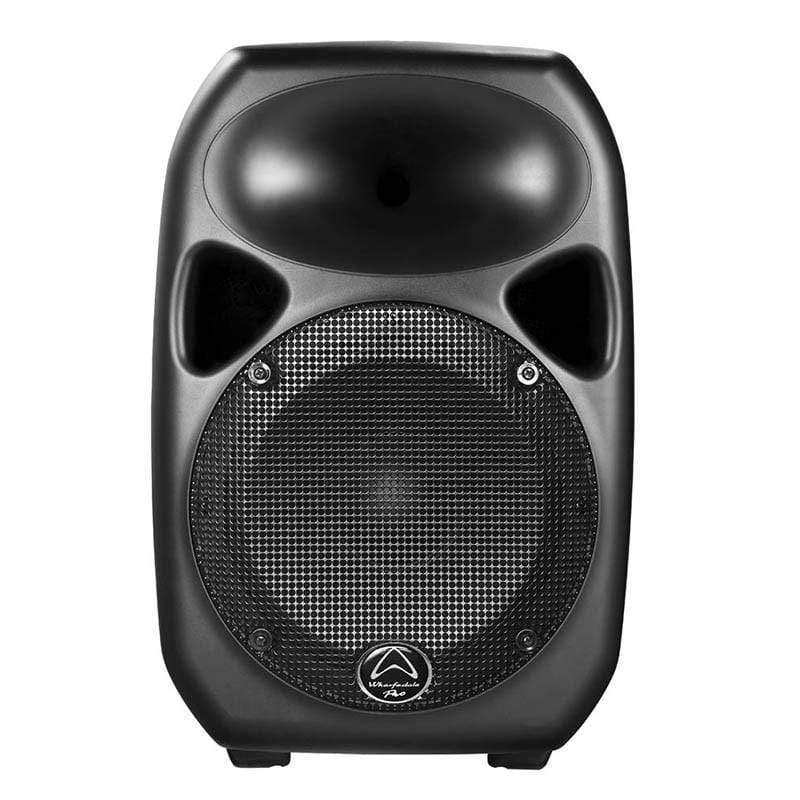

Wharfedale Pro Titan 8A MKII Active Speaker
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 262.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Download Product Data Sheet
FEATURES
- 8″ Bi-amplified active loudspeaker
- 1.0″ HF compression driver
- Treble & Bass controls + / – 12 dB
- 180 w Continuous
- 360 w Peak
DESCRIPTION
Titan-AX models with IRIS-X
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
IP54 Certified
IP54 certification assures that the product has
- Limited protection against dust ingress.
- Protection against splash water from any direction.
The picture shows some of the extreme testing that goes into the Titan series IP54 certification. All of this means that you can have full confidence installing a TITAN in extreme conditions.
EASY INSTALL
All Titan loudspeakers are versatile. For on stage, or for an installation, there are fixtures and fittings to suit.
SPECIFICATIONS
| Model Name | Titan 8A MKII |
| System Type | Active 8” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 70 Hz-20 KHz |
| Frequency Range (-10 dB) | 65 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 124 dB |
| LF Transducer Size (mm / inches) | 205 mm / 8” |
| Coil Size (mm / inches) | 38.86 mm / 1.53” |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 25 mm / 1” |
| Exit Size (mm / inches) | 30 mm / 1.2” |
| Diaphragm Material | Mylar |
| Nominal Coverage (H x V) | Elliptical waveguide 90° x 60° |
| Amplifiers | |
| Low-Frequency Power Amplifier | 150/300 W (Class D) |
| RMS/Peak Watts | |
| High-Frequency Power Amplifier RMS/Peak Watts | 30/60 W (Class D) |
| Controls—EQ | High (±10 dB)10 KHz Shelving |
| Low (±10 dB) 100 Hz Shelving | |
| DSP | None |
| Hi Pass switch | |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~150 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |
| Connectors | |
| Input – type | Switchable balanced mic/line level |
| Input Connector | XLR 1/4”Combo Jack |
| Line Output Connector | Switchable LOOP/MIX Balanced socket XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V~/220-240 V~,50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 8 M6 threaded inserts inc 4 M6 threaded inserts on base in OmniMount 30.0-type footprint |
| 35 mm with lock screw | |
| 1 carry handle on side | |
| Optional wall-mount bracket | |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Grey / White / Black |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 396 mm / 15.59” |
| Width Front | 266 mm / 10.47” |
| Depth | 221 mm / 8.7” |
| Dimensions – packed – Height | 463 mm / 18.2” |
| Width Front | 325 mm / 12.8” |
| Depth | 282 mm / 11.1” |
| Net Weight (kg / lbs) | 6.25 kg / 13.75 lbs |
