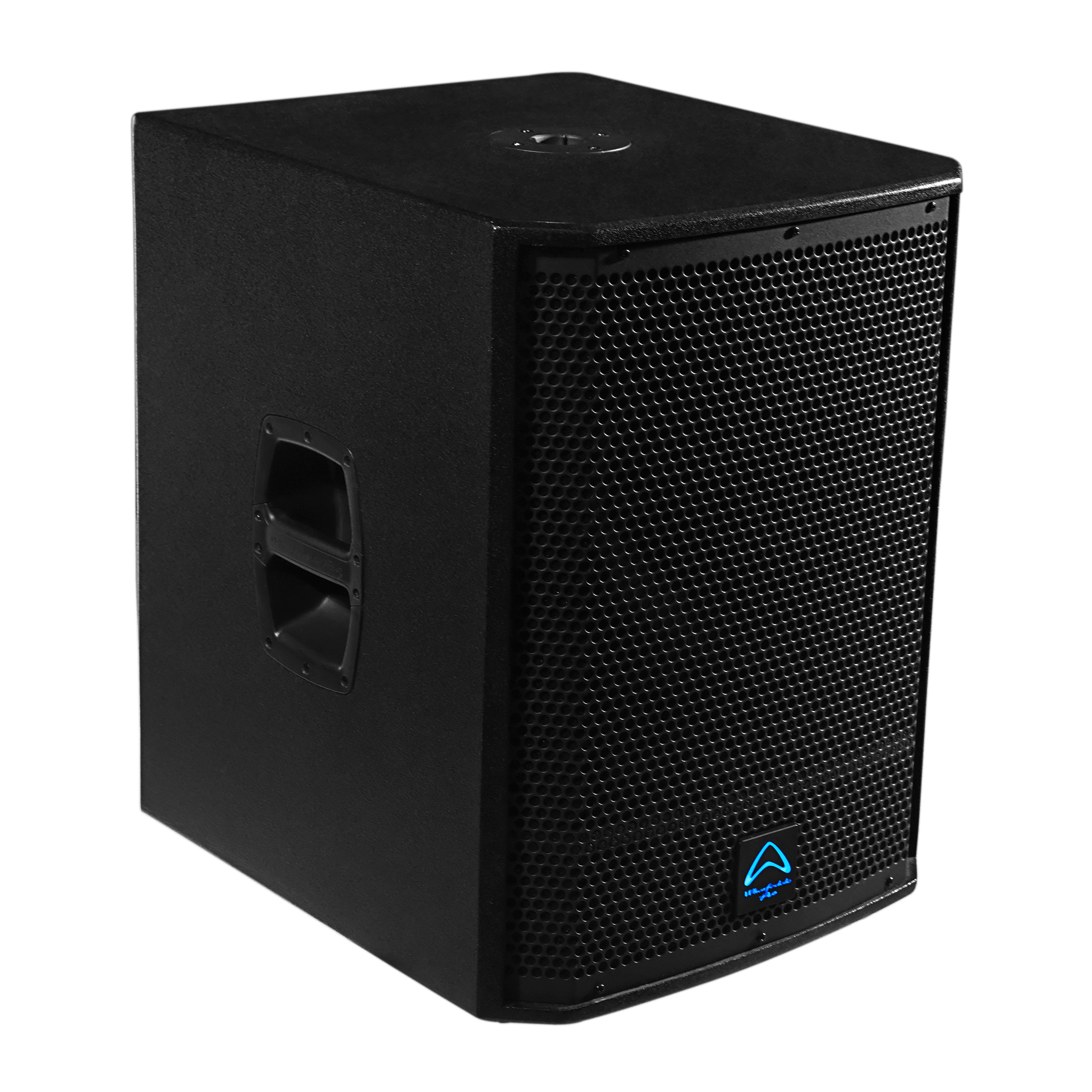

Wharfedale Pro TSUBAX15B Subwoofer
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsApp
Secure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Choose options
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
- This product may be available on request.
- Kindly note: Pricing is indicative and subject to change.
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Open WhatsAppSecure transactions
All products come with a 1–3 year manufacturer warranty, depending on the brand and model. For exact coverage details, simply reach out to our support team. We’re here to help ensure every warranty request is handled smoothly and efficiently.
read more7-Day Returns Policy
Shop with confidence. Returns can be requested within 7 days of delivery for unused, unopened items, in line with our Return & Refund Policy. Please review the full policy for complete details here.
read moreSecure Transactions
Download Product Data Sheet
FEATURES
- 700 Watts Continuous
- 1400 Watts Peak
- 129 dB Max SPL @ 1 meter
- Birch plywood construction
- Illuminated LED front logo badge
- Convection cooled Class D amplifier
- Adjustable low pass filter
- 3.0″ voice coil
- Quad layer driver design
- 35 mm pole socket & durable handles
DESCRIPTION
Everyone Loves BAss !
That is exactly why we have created the T-Sub-AX15B – our 700 W Continuous, 1400 W Peak 15” active subwoofer.
The internal Class D amplifier delivers huge output power into the custom quad-layer 15” Wharfedale Pro LF driver to produce extreme subs and low end pressure into any system. Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable black paint.

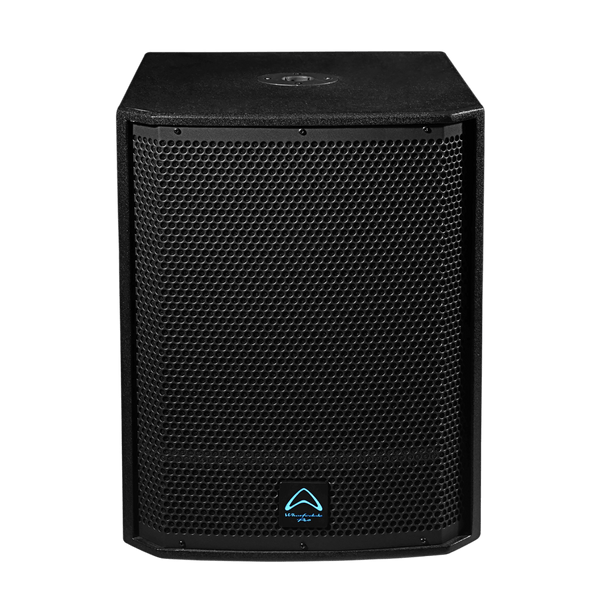

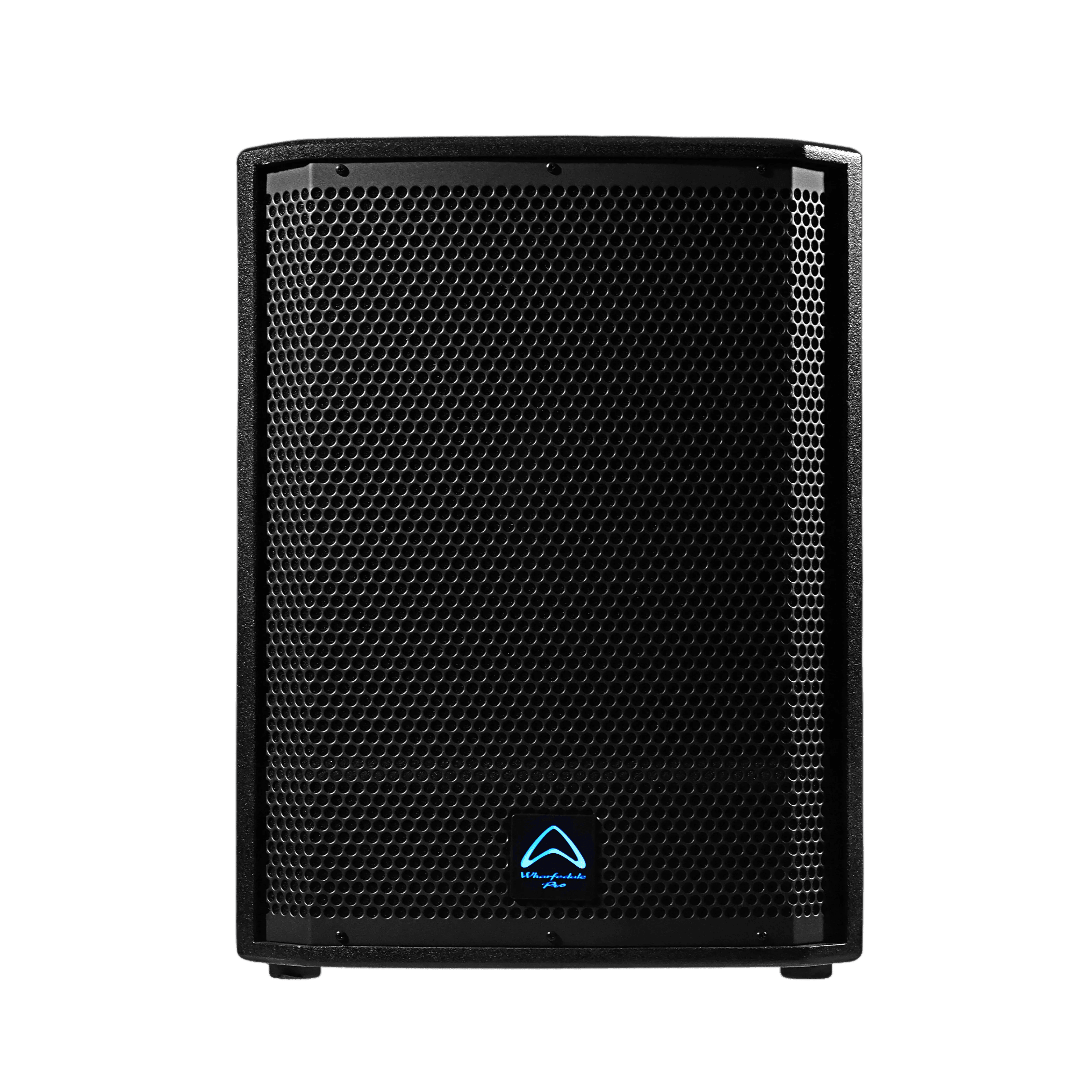

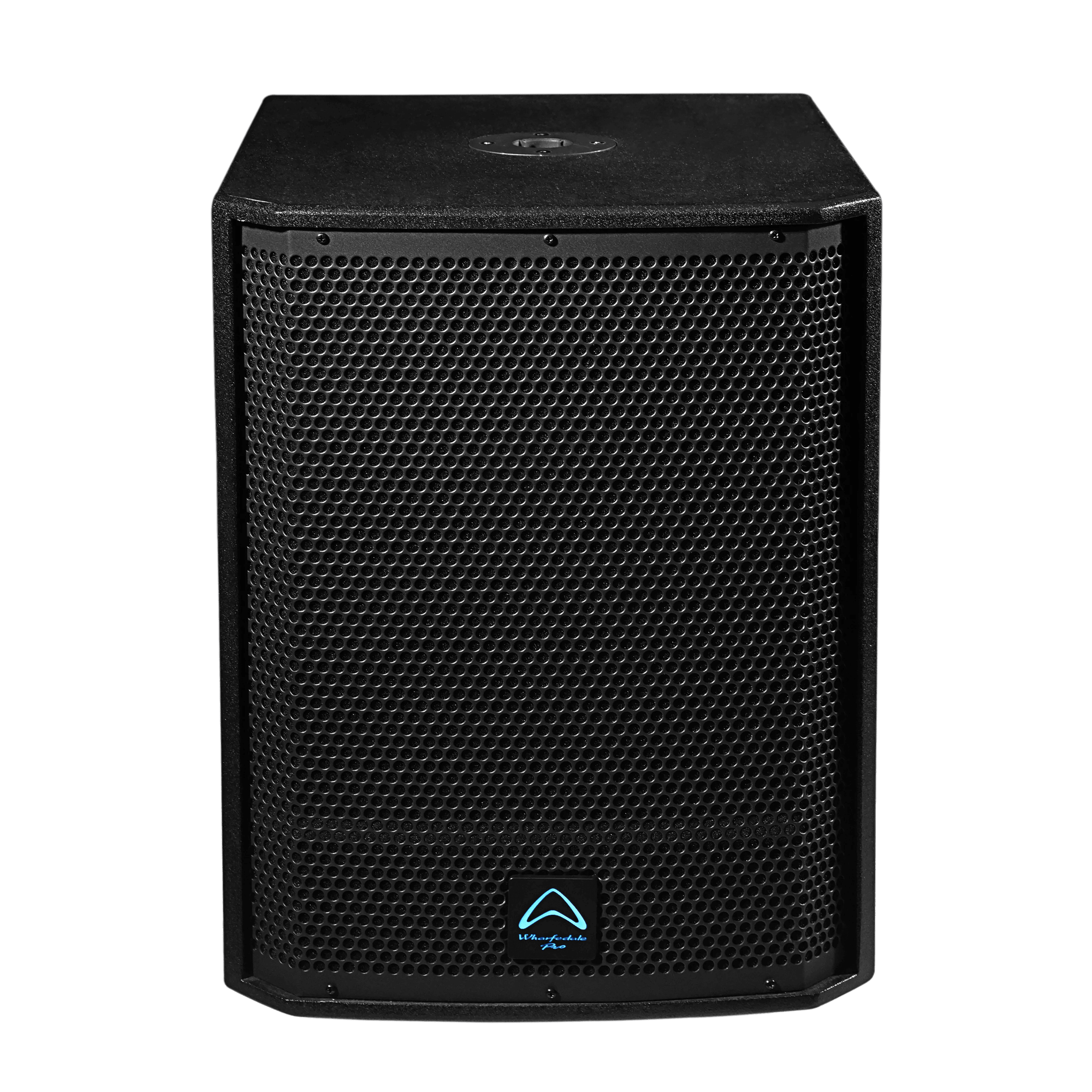

You’ll not only ‘feel’ the T-Sub-AX15B, but you will also see it! A new illuminated WP logo badge subtly glows and adds to the overall on-stage “power” of the new T-Sub.
T-Sub-AX15B is the perfect companion for a Typhon or a Titan active loudspeaker. It also has 75% more power than the current Titan Sub-A15 MKII.
SPECIFICATIONS
| System Type | Active 15″ Subwoofer |
| Frequency Response (+/-3 dB) |
45 Hz-200 Hz |
| Sensitivity @ 1W / 1 m | 97 dB |
| Maximum SPL (peak @ 1 m) |
129 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 404 mm / 15” |
| Coil Size (mm / inches) | Quad layer 3.0″ |
| Impedance | 4Ω |
| Amplifier | |
| Low-Frequency Power Amplifier (Class D) | 700 w Continuous / 1400 w Peak |
| Crossover Frequency | LPF 80-200 Hz (adjustable) |

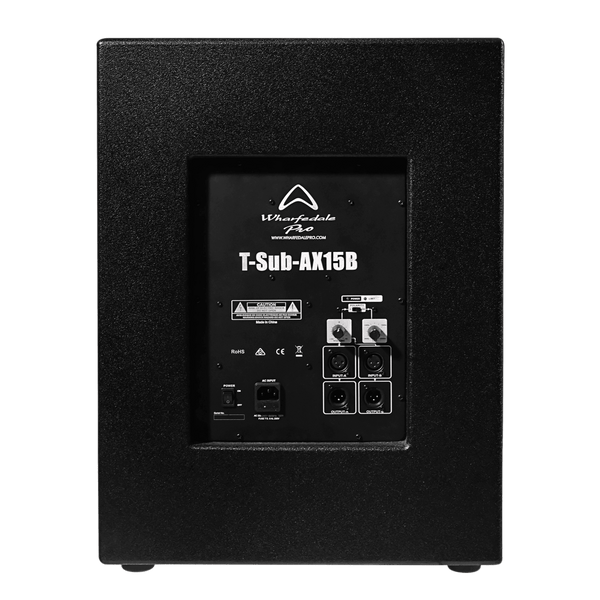

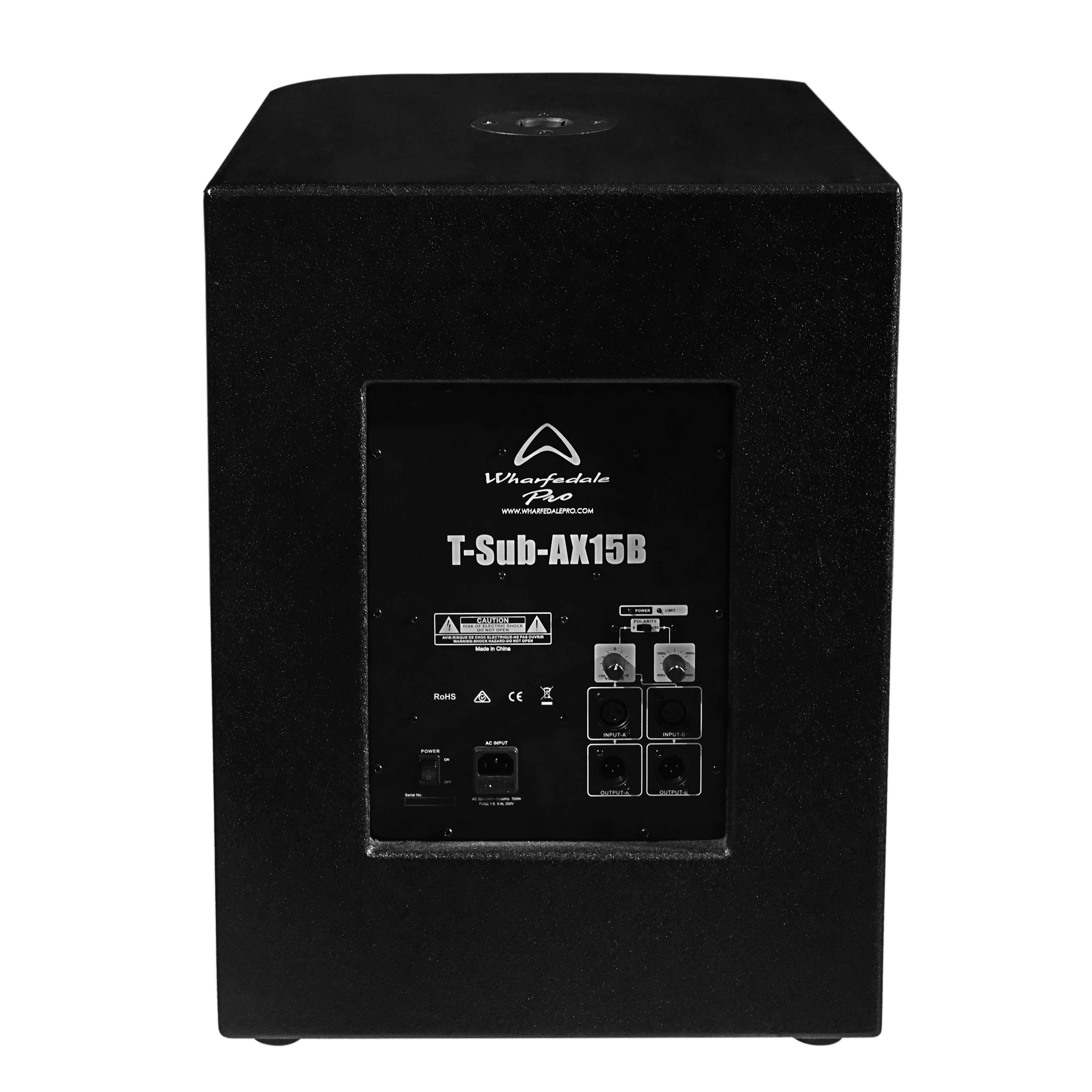

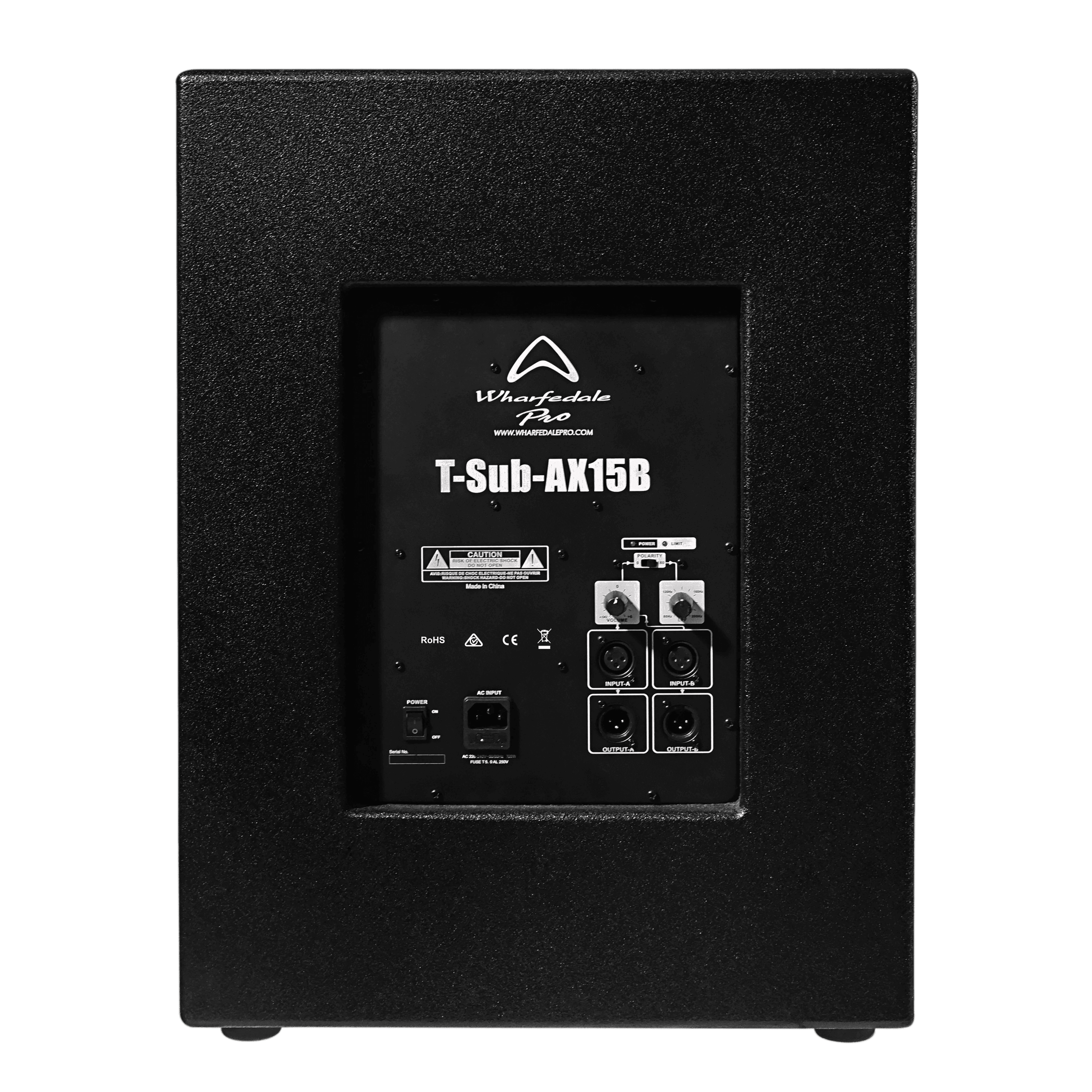

| Controls | |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver Protection | Yes |
| DC Protection | Yes |
| Short Protection | Yes |
| Limiter Indicator | Red LED |
| Input type | Balanced |
| Input Connector | Female XLR |
| Input Impedance | 47 KΩ Balanced |
| Maximum Input Level | 5V |
| Input Sensitivity | -10 dB |
| Line Output Connector | Male XLR |
| Phase Switch Selection | 0° / 180° |
| AC Power details | |
| Power Supply | SMPS |
| AC Power Options | 100V-120V and 200V-240V |
| Power Indicator | Green(back) / Blue logo(front) |
| Enclosure | |
| Enclosure Material | 15 mm Plywood |
| Colour | Black |
| Grille | 1.5 mm steel |
| Pole Mount (Top) | 35 mm |
| Dimensions / Weight | |
| Height | 591 mm / 23.27″ |
| Width | 454 mm / 17.9″ |
| Depth | 523.9 mm / 20.63″ |
| Weight (kg / lbs) | 29.5 kg / 64.9lbs |
HOW IT WORKS:
The T-Sub-AX15B is an active subwoofer that requires connection to a power source in order to run. It has a 15” custom quad-layer Wharfedale Pro LF driver that delivers huge output power to produce extreme subs and low end pressure. The cabinet is constructed from plywood and is protected with a durable Rhino Rock paint. It also features a new illuminated WP logo badge.PRODUCT FAQ:
