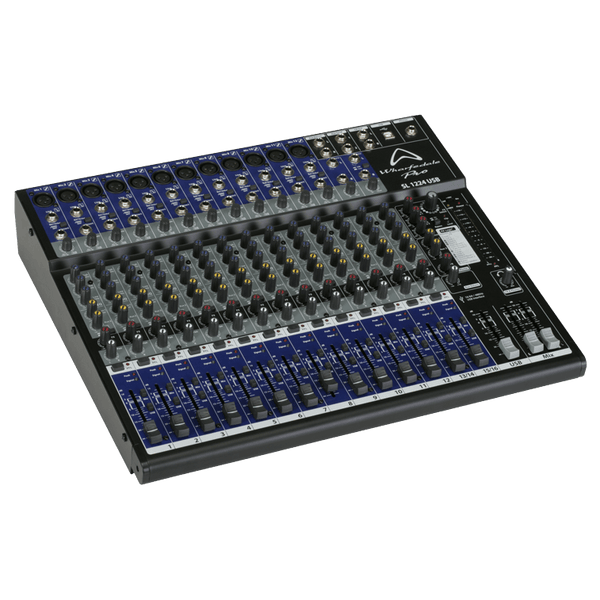

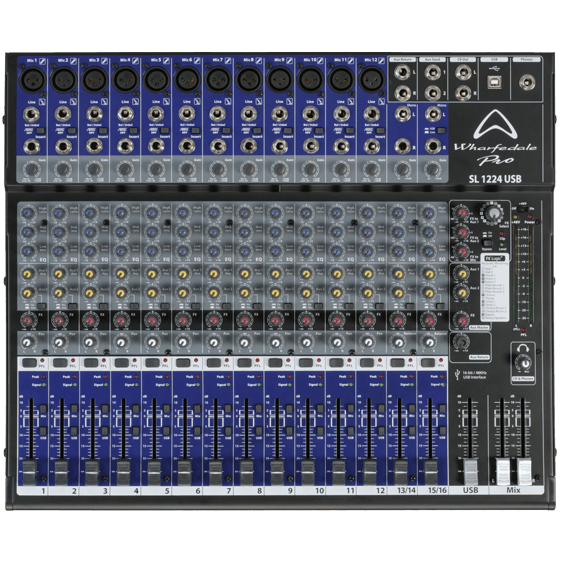

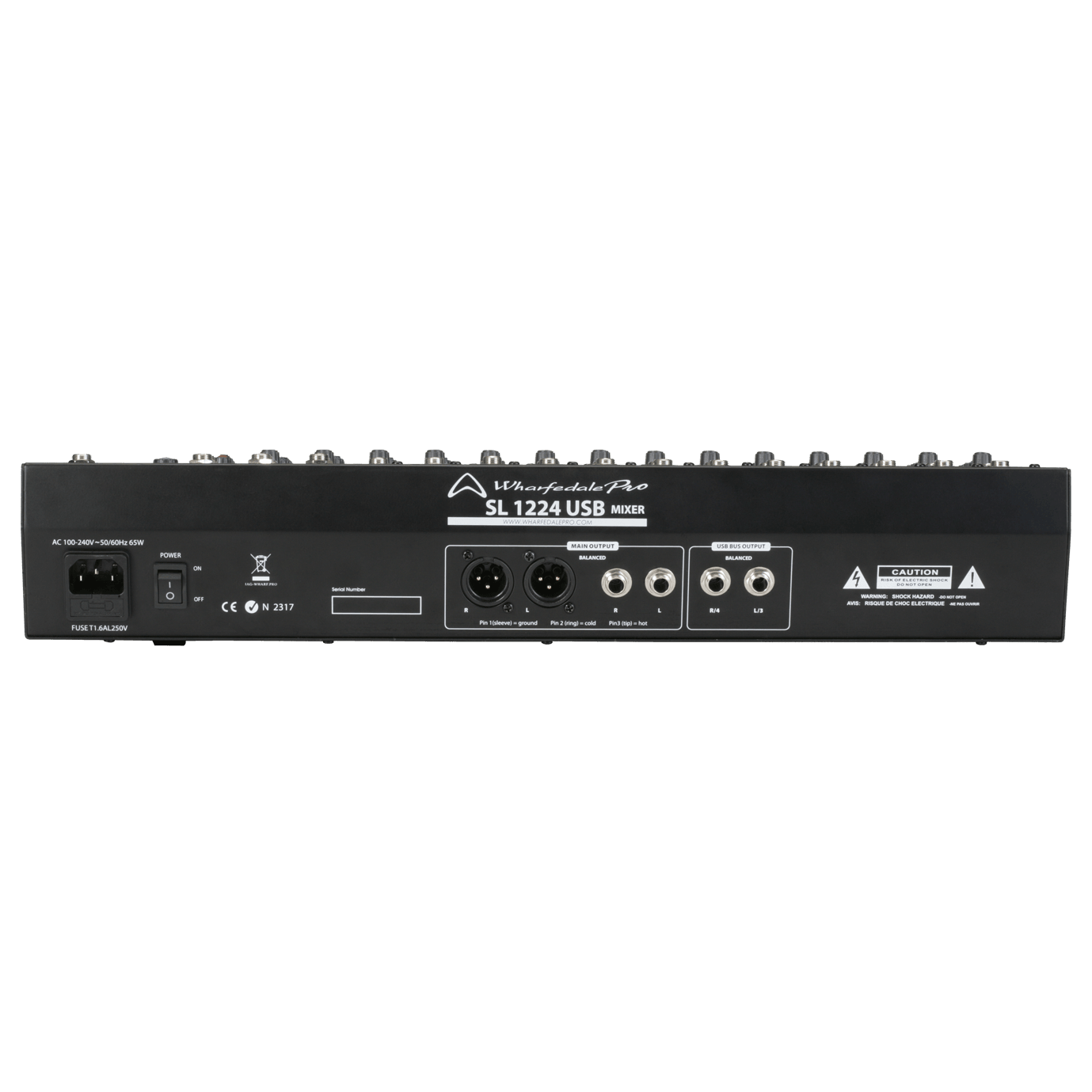

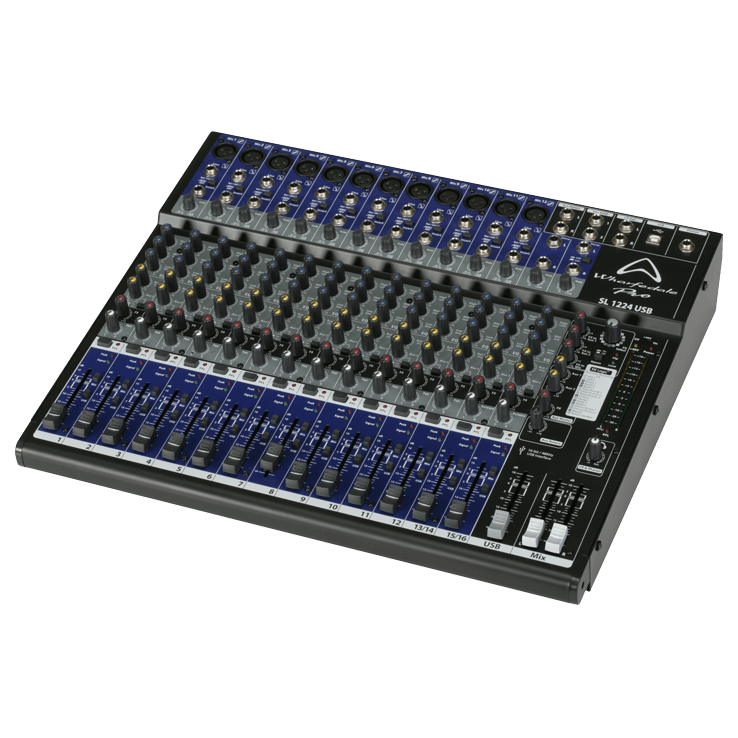

Wharfedale Pro SL1224USB Mixer Audio 16 CH 12 Mono & 2 Stereo FX and USB Interface
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro SL1224USB Mixer Audio 16 CH 12 Mono & 2 Stereo FX and USB Interface
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 498.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES-
- 12 x XLR input
- 14 x 6.3mm line input
- 3-band EQ
- Insert points
- 2 x 6.3mm outputs
- 2 x XLR balanced outputs
- USB Interface
- 16 x internal FX
DESCRIPTION-
Designed to cater for a wide range of mid format mixing duties, the SL Series includes many features suited to both live sound and home studio applications.
A high quality class-compliant 2-input 2-output 16-bit / 48 KHz USB interface features on all models, with larger models featuring a flexible record bus and dedicated return channel that is great for live and home recording.
Studio grade microphone preamps are used throughout the range and have balanced XLR inputs. All channels also deliver balanced/unbalanced TRS line level connectivity. In addition, all of the mono channels on larger models have a TRS insert point.
An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels. The SL824 USB and SL1224 USB feature a built in FX processor with 16 presets, giving unlimited creative potential. The on-board FX is supplemented by a dedicated FX send and 2 auxiliaries.
SPECIFICATIONS-
| Model Name | SL1224USB |
| Channels | 14 |
| Inputs | 12 x XLR, 14 x 6.3 mm jack |
| Outputs | 2 x XLR, 2 x 6.3 mm jack |
| Headphone Output | 6.3 mm jack |
| Auxiliary sends | 2 |
| FX | 16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2 |
| (5)Room3 (6)Platereverb1 (7)Platereverb2 | |
| (8)Platereverb3 (9)Chorus (10)Flange (11)Delay1 | |
| (12)Delay2 (13)Chorus/Room1 (14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker | |
| EQ | 3 Band with HPF |
| Phantom Power | Yes |
| USB | 16 bit / 48 KHz |
| Signal To Noise Ratio | -127 dBu ±5 dBu Mic Pre Equivalent Input Noise |
| Frequency Response | 20 Hz – 20 KHz ±2 dB |
| Display | 12 Segment Level LED with power and Phantom Power indicato |
| Rack mount kit | No |
| Dimensions: (H x W x D) | 80 x 400 x 475 mm |
| Weight | 6.85 kg / 15.10 lbs |
