FEATURES

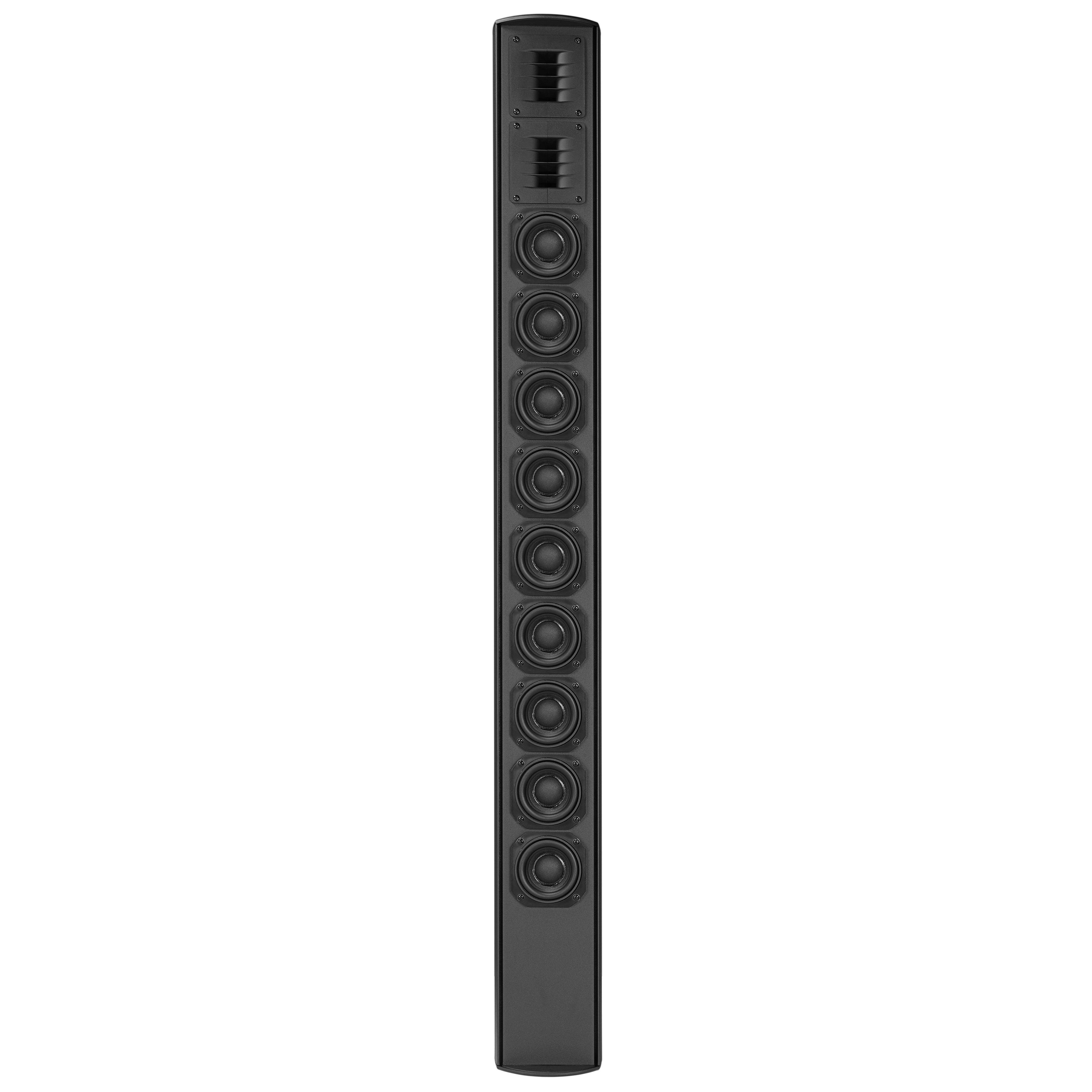

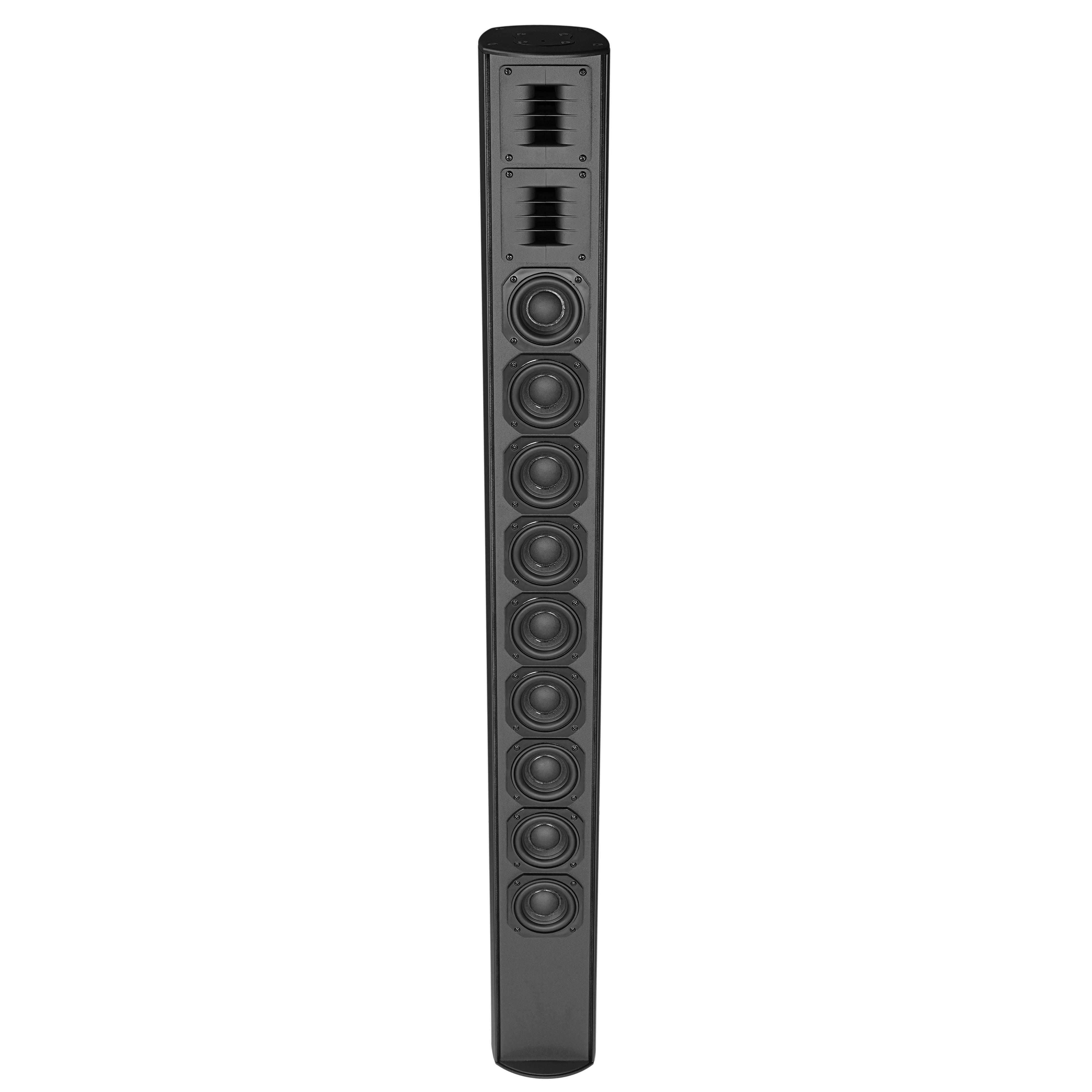

- 9 x 3″ full range drivers
- 2 x HF compression driver
- 360 W AES (Continuous)
- 720 W Programme
- 1440 W Peak
- 128 dB Max SPL @ 1 m
- 70 V / 100 V Hi-Z model available
DESCRIPTION
A complete re-design of the classic SIGMA series of Installation loudspeakers. 7 new models with a fresh new cosmetic for 2022.
Building on the reliable performance of the established SIGMA series, the new SIGMA-X features newly designed front grilles and support materials to make the installation simply look and sound great. Available in black or white durable paint finishes, SIGMA-X models now also include both speakON and barrier strip connections, making installation easy!Improved mounting and rigging options make SIGMA-X simple to install into almost any location. The improved audio definition is also welcomed as SIGMA-X has been completely re-evaluated by the Wharfedale Pro International R&D team.
New column models (Sigma-XV5 and XV9) also now feature HF compression drivers coupled to the innovative mini EVO-Fold waveguide developed for the flagship WLA-1 Hybrid Curvature Array system.
SPECIFICATIONS:
| Model Name | SIGMA-XV9 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 130 Hz – 18 KHz |
| Frequency Range (-10 dB) | 120 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 97 dB |
| Calculated Maximum SPL @1 m | 128 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 9 x 75 mm / 3″ |
| Voice Coil Size (mm / inches) | 33 mm / 1.3″ |
| Rated Impedance | 4 Ω |
| LF Power re:AES2-2012 | 40 W |
| High Frequency Transducer | |
| HF Driver Type | 2 x 1″ High Frequency drivers |
| Coil Size (mm / inches) | 25.4 mm / 1″ |
| Exit Size (mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Rated Impedance | n/a |
| HF Power re:AES2-2012 | n/a |
| Waveguide Type | Mini EVO-Fold |
| Nominal Coverage (H x V) | 120˚ x 20˚ |
| LF Driver | 9 x 3″ |
| HF Driver | 2 x 1″ PEI EVO-Fold Driver |
| Power | |
| System Continuous Power | 360 W |
| System Programme Power | 720 W |
| System Peak Power | 1440 W |
| Transformer (T) | |
| Transformer Taps (70 V) | |
| Transformer Taps (100 V) | |
| Crossover frequency | 2.5 KHz |
| Recommended HPF | 160 Hz |
| = BW 18 dB/oct. | |
| Input Connector | 1 x speakON / 1x Barrier Strip |

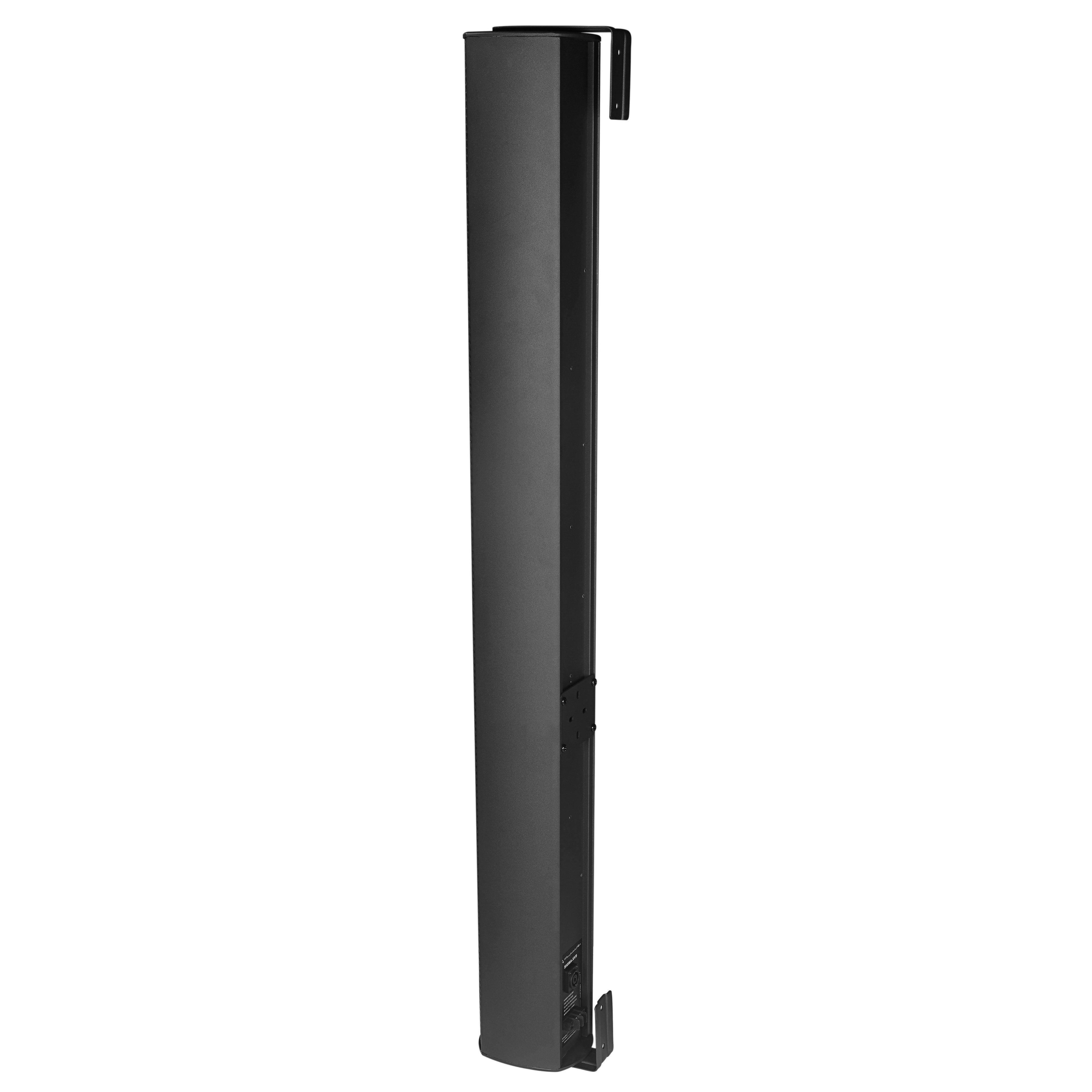

| Hardware | U Bracket included |
| Enclosure | |
| Enclosure Material | Aluminum |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 1210 mm / 47.6″ |
| Width Front | 126 mm / 4.96″ |
| Width Rear | 92 mm / 3.62″ |
| Depth | 145 mm / 5.71″ |
| Dimensions – Packed | |
| Height | 1285 mm / 50.6″ |
| Width Front | 210 mm / 8.27″ |
| Width Rear | 210 mm / 8.27″ |
| Depth | 210 mm / 8.27″ |
| Weight | |
| Net Weight | 10.1 kg / 22.2 lbs |
| Gross Weight | 11.6 kg / 25.5 lbs |
| Optional Wall-mount bracket | WPB-SV |
HOW IT WORKS:
The Wharfedale Pro SIGMAXV9 Column Array Speaker Passive 9x3" 360W RMS 4Ohm Aluminum Paint Body is a powerful speaker system that features 9 x 3″ full range drivers and 2 x HF compression drivers. The mini EVO-Fold waveguide provides consistent dispersion coverage on both the horizontal and vertical planes, creating a sound radiating from one, singular and coherent source. This speaker system is rated for 360 W AES (Continuous), 720 W Programme, and 1440 W Peak, with a maximum SPL of 128 dB @ 1 m.
PRODUCT FAQ:
Q: What is the maximum SPL of this speaker system?
A: The maximum SPL of the Wharfedale Pro SIGMAXV9 Column Array Speaker is 128 dB @ 1 m.
Q: How many drivers does this speaker system have?
A: The Wharfedale Pro SIGMAXV9 Column Array Speaker has 9 x 3″ full range drivers and 2 x HF compression drivers.
