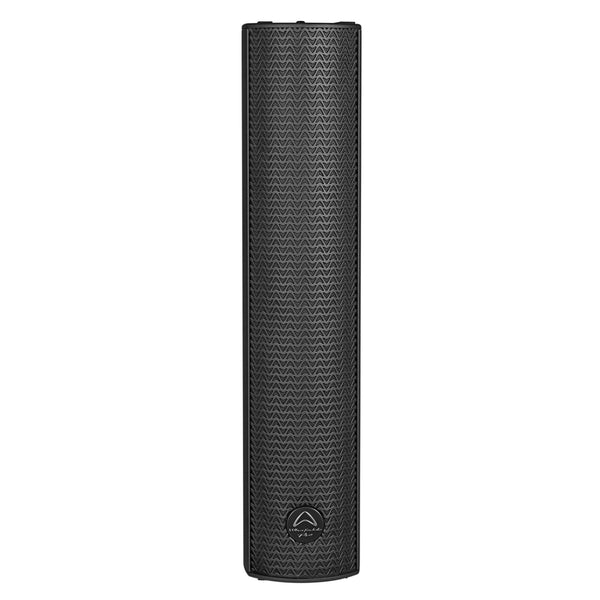

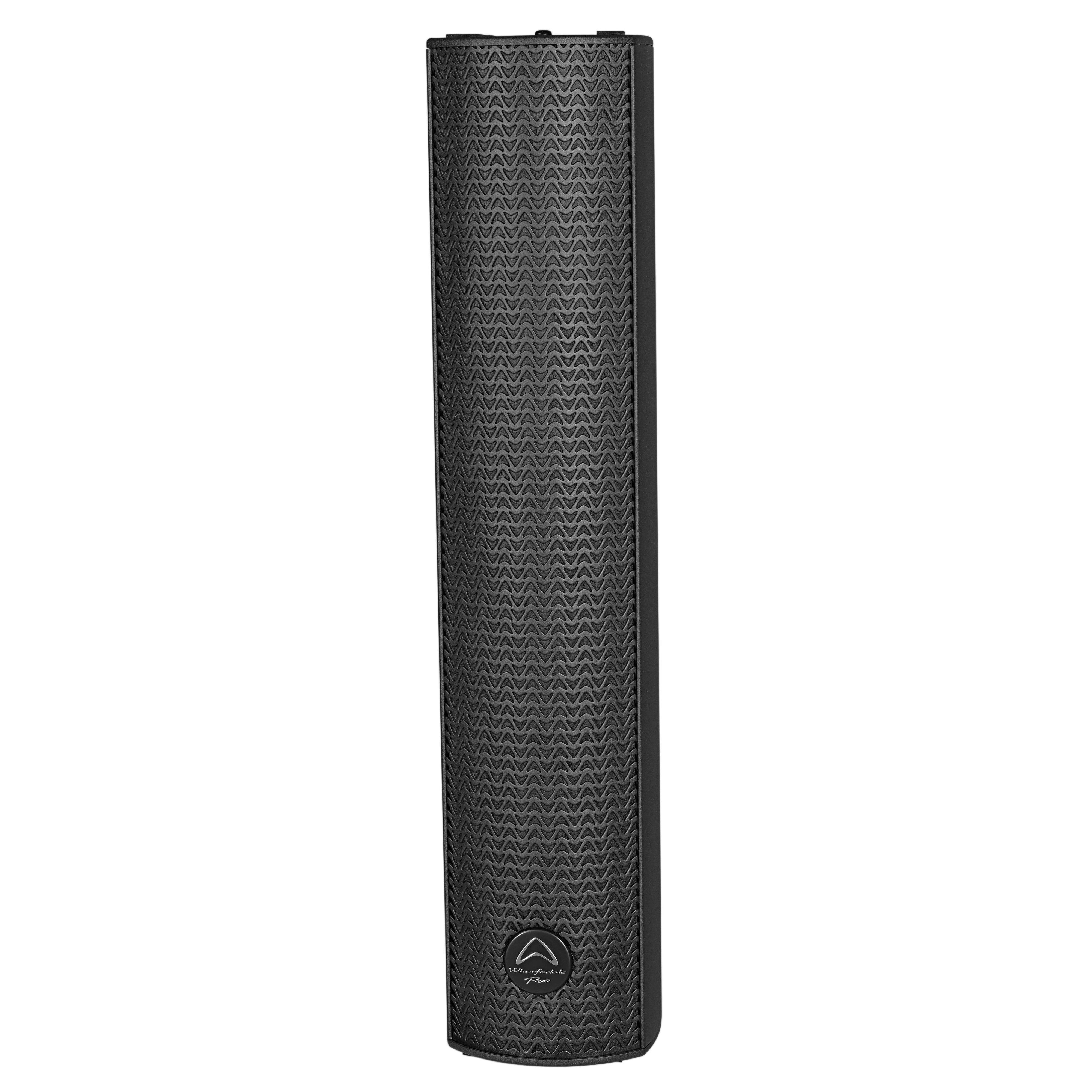

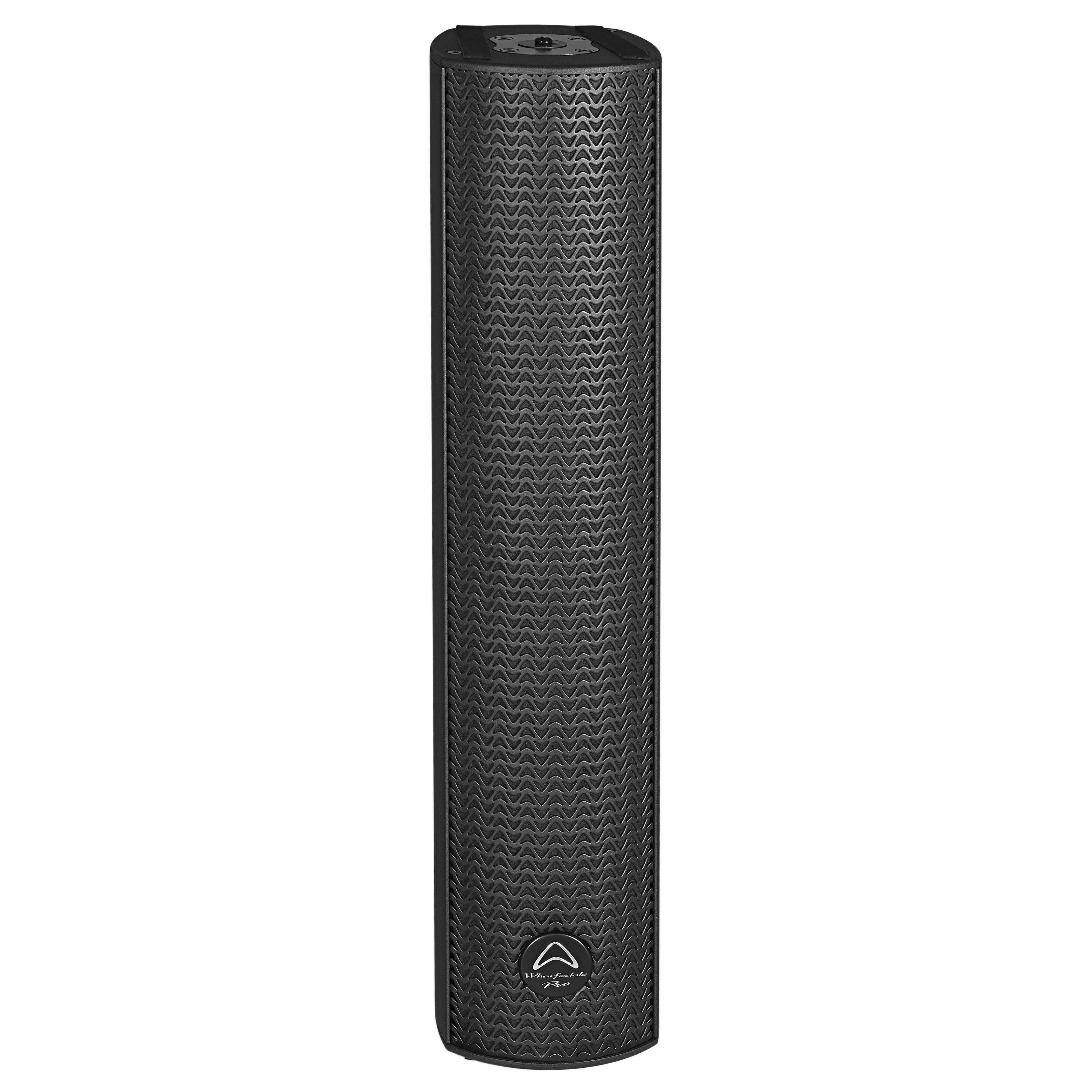

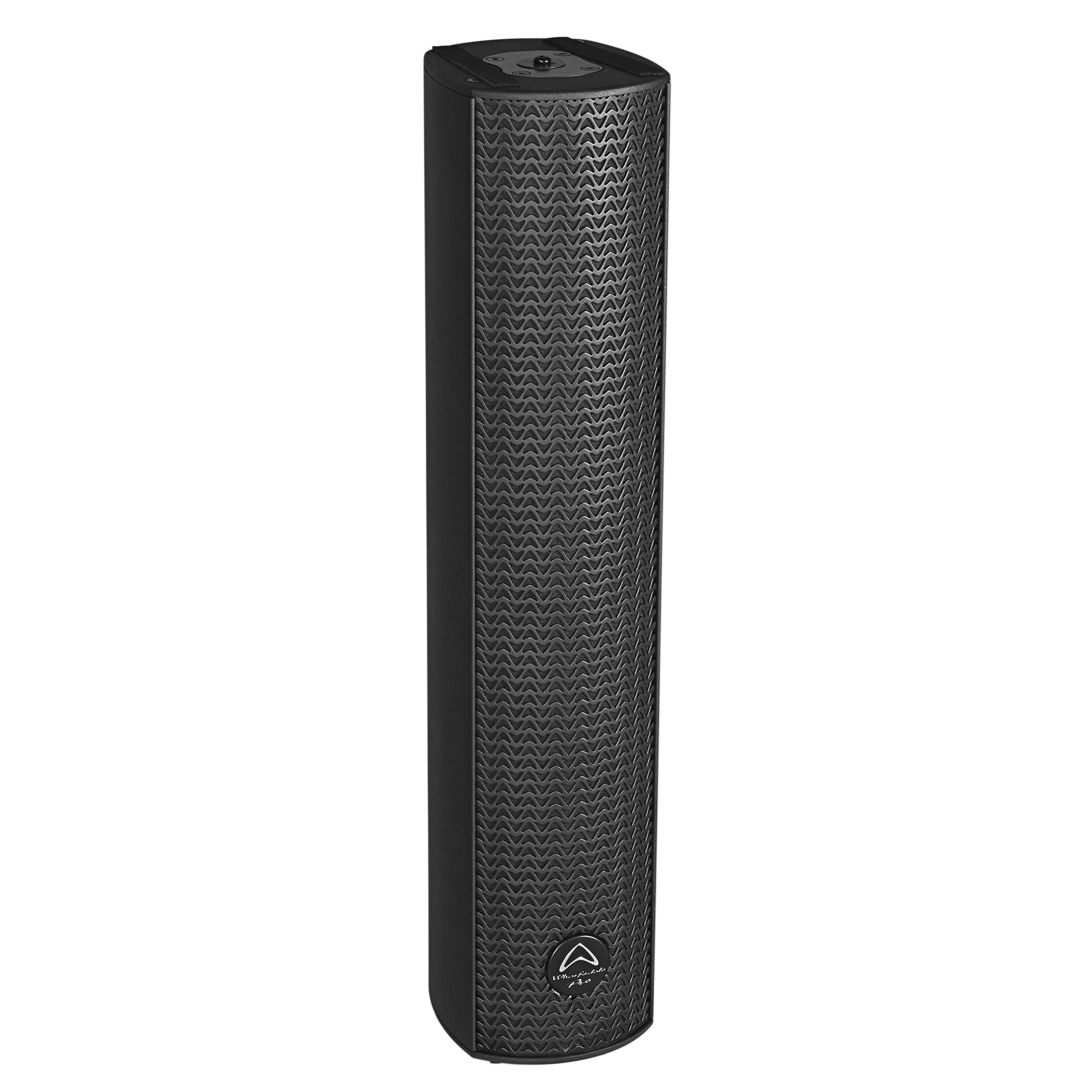

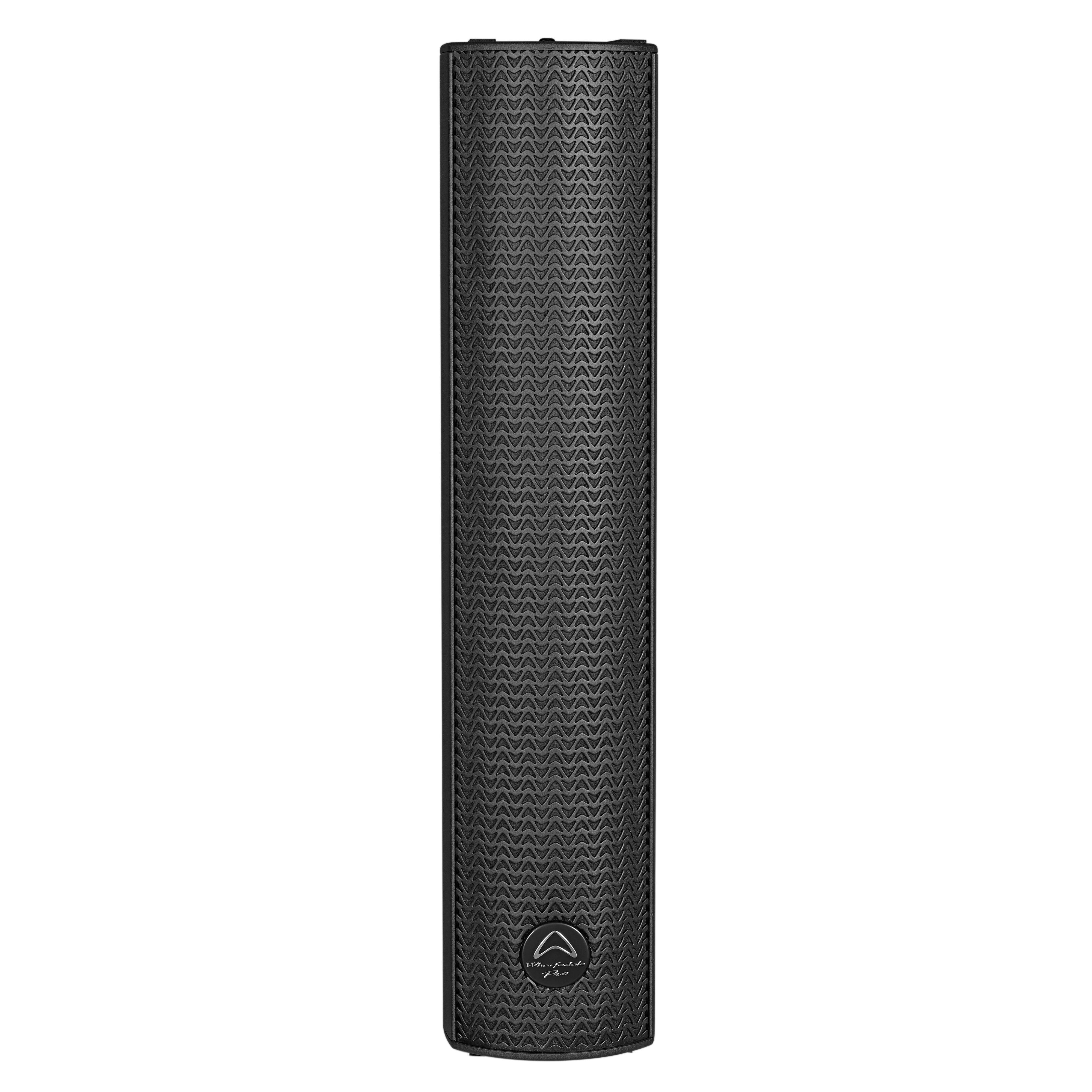

Are you looking for a speaker that can provide your sound system with a powerful and consistent sound? Look no further than the Wharfedale Pro SIGMAXV5 Column Array Speaker. This passive two-way speaker features five 3" full range drivers and one HF compression driver, delivering a maximum SPL of 123 dB @ 1 m and 180 W AES (Continuous) power. The mini EVO-Fold waveguide ensures consistent dispersion coverage on both the horizontal and vertical planes, providing your sound system with a unified and coherent source.
SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers. For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.
FEATURES
- Newly designed cosmetics
- Rotatable HF waveguides
- Re-evaluated performance
- Updated column models with HF drivers
- Column models with mini EVO-Fold waveguides
- 70 V / 100 V Hi-Z Column models
- EASE gll files available for download
- Supported with system diagrams
- Supported with downloadable FIR presets
- Easy fixings and brackets
SPECIFICATIONS:
| Model Name | SIGMA-XV5 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 160 Hz – 18 KHz |
| Frequency Range (-10 dB) | 150 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 95 dB |
| Calculated Maximum SPL @1 m | 123 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 5 x 75 mm / 3″ |
| Voice Coil Size (mm / inches) | 33 mm / 1.3″ |
| Rated Impedance | 4 Ω |
| LF Power re:AES2-2012 | 40 W |
| High Frequency Transducer | |
| HF Driver Type | 1 x 1″ High Frequency driver |
| Coil Size (mm / inches) | 25.4 mm / 1″ |
| Exit Size (mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Rated Impedance | n/a |
| HF Power re:AES2-2012 | n/a |
| Waveguide Type | Mini EVO-Fold |
| Nominal Coverage (H x V) | 120˚ x 30˚ |
| LF Driver | 5 x 3″ |
| HF Driver | 1 x 1″ PEI EVO-Fold Driver |
| Power | |
| System Continuous Power | 180 W |
| System Programme Power | 360 W |
| System Peak Power | 720 W |
| Transformer (T) | |
| Transformer Taps (70 V) | |
| Transformer Taps (100 V) | |
| Crossover frequency | 2.5 KHz |
| Recommended HPF | 160 Hz |
| = BW 18 dB/oct. | |

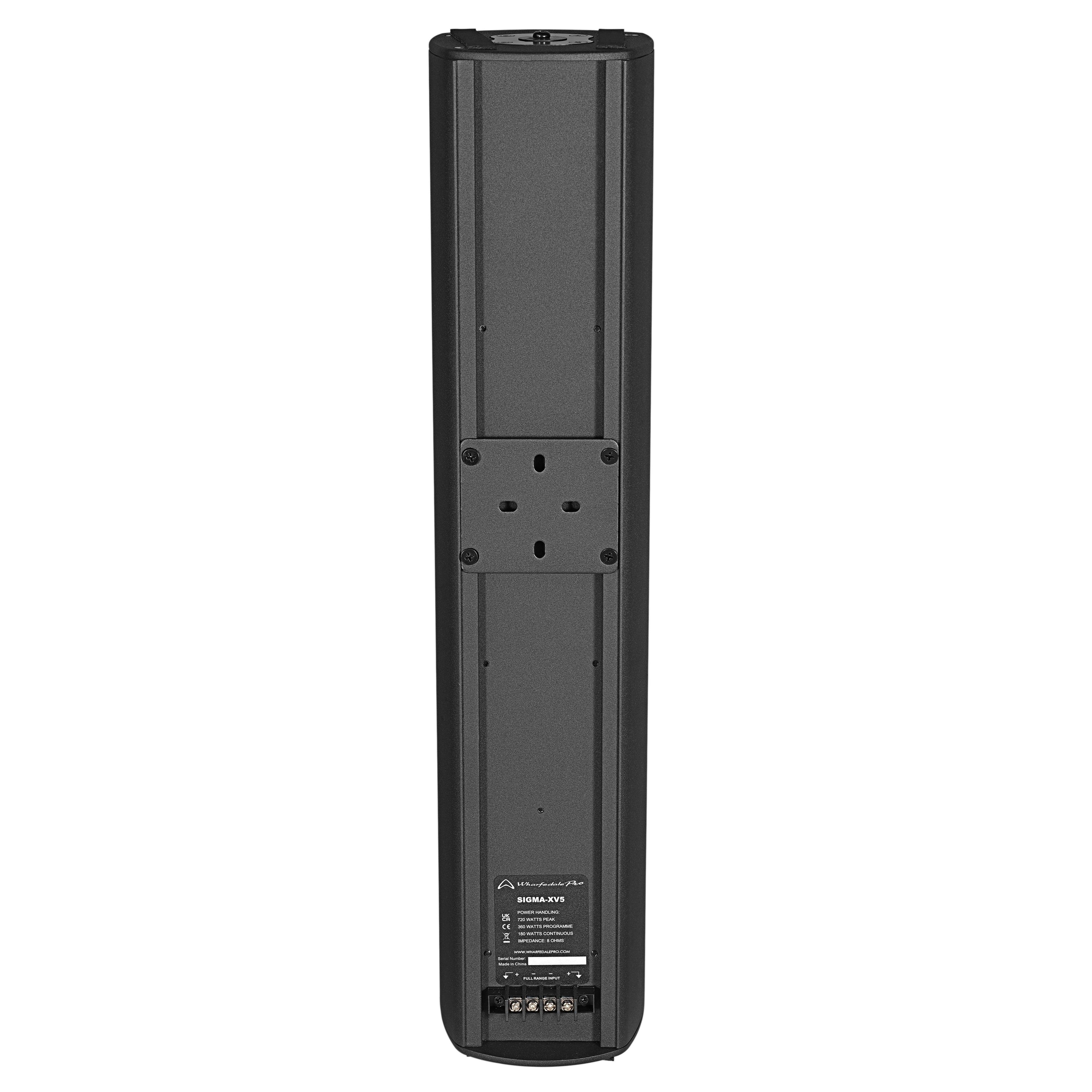

| Input Connector | 1 x speakON / 1x Barrier Strip |

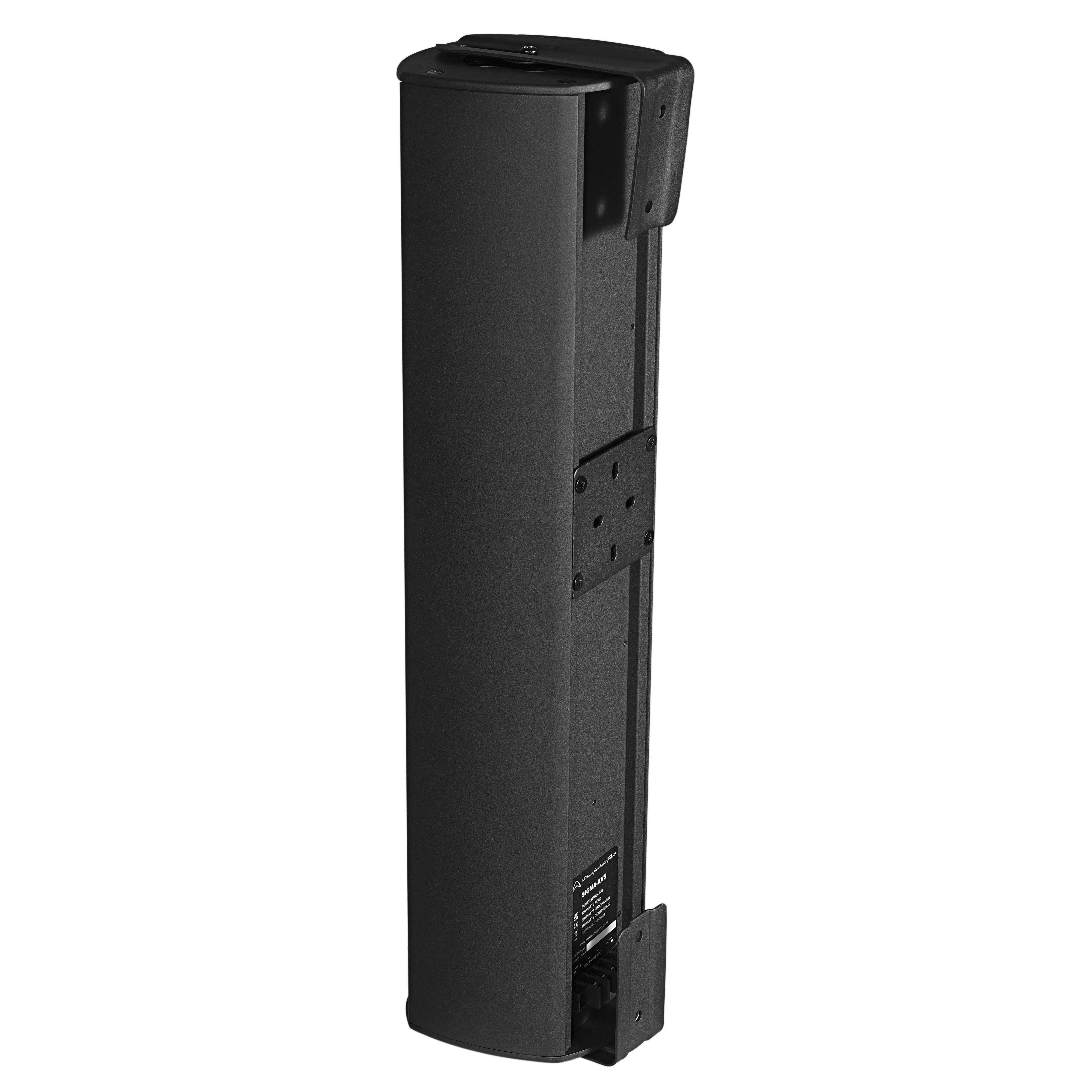

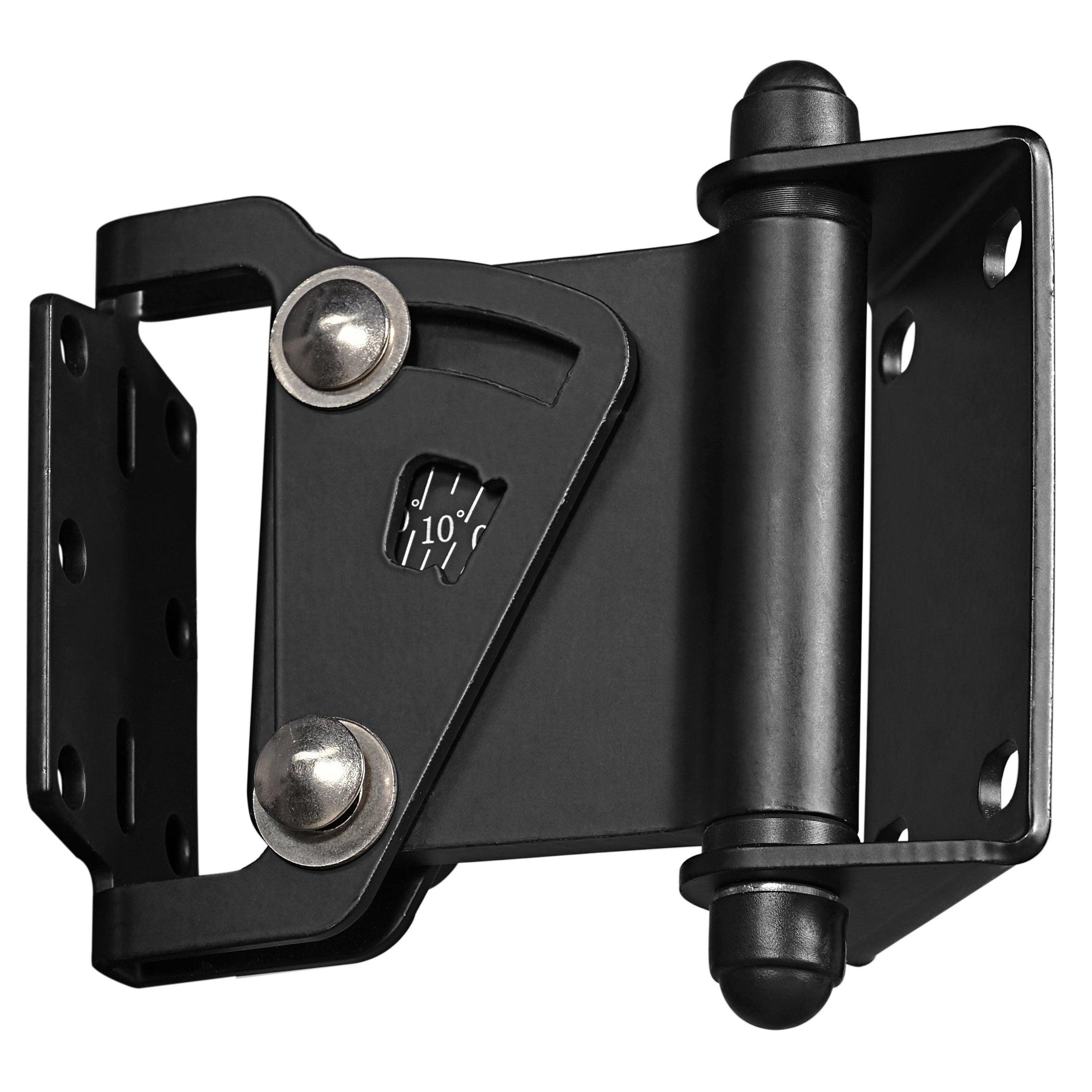

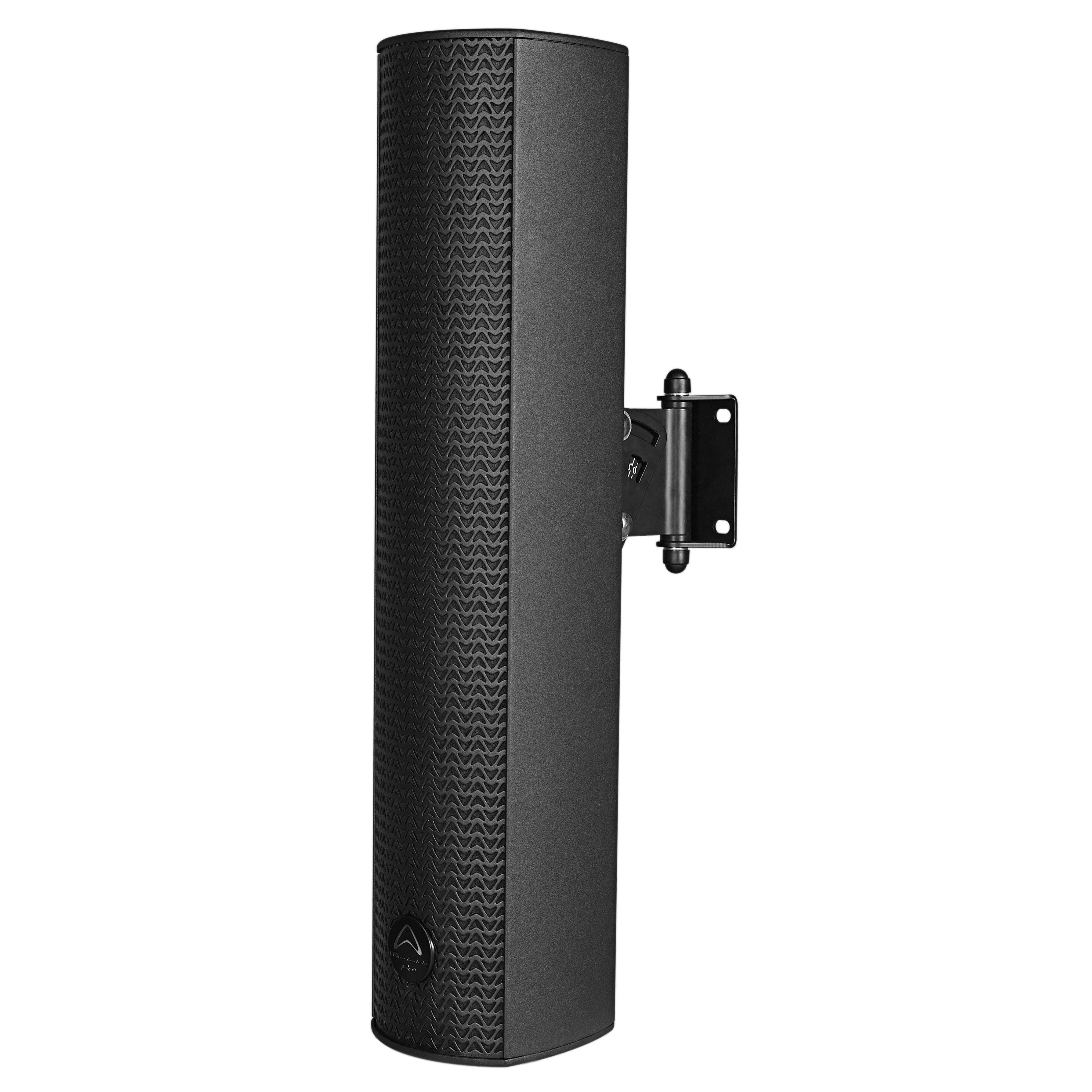

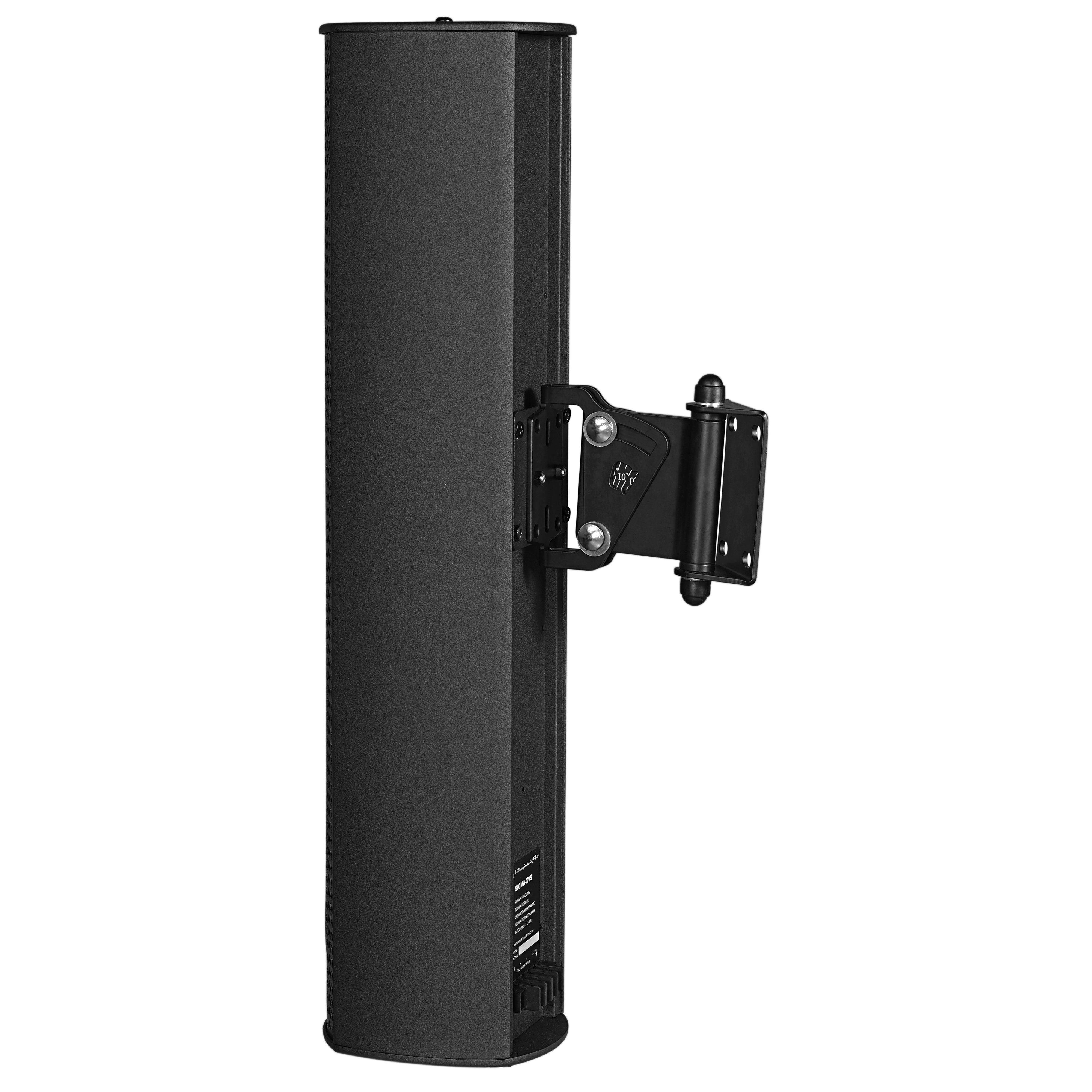

| Hardware | U Bracket included |
| Enclosure | |
| Enclosure Material | Aluminum |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 720 mm / 28.3″ |
| Width Front | 126 mm / 4.96″ |
| Width Rear | 92 mm / 3.62″ |
| Depth | 145 mm / 5.71″ |
| Dimensions – Packed | |
| Height | 865 mm / 30.1″ |
| Width Front | 210 mm / 8.27″ |
| Width Rear | 210 mm / 8.27″ |
| Depth | 210 mm / 8.27″ |
| Weight | |
| Net Weight | 6.8 kg / 14.96 lbs |
| Gross Weight | 7.6 kg / 16.72 lbs |
| Optional Wall-mount bracket | WPB-SV |
HOW IT WORKS:
The Wharfedale Pro SIGMAXV5 Column Array Speaker Passive 5x3" 180W RMS 8Ohm Aluminum Paint Body utilizes five 3" full range drivers and one HF compression driver to deliver a powerful and consistent sound. The mini EVO-Fold waveguide ensures consistent dispersion coverage on both the horizontal and vertical planes, providing your sound system with a unified and coherent source.
PRODUCT FAQ:
Q: What is the frequency range of this speaker?
A: The frequency range of this speaker is 150 Hz – 20 KHz.
Q: What is the maximum SPL of this speaker?
A: The maximum SPL of this speaker is 123 dB @ 1 m.
Q: What type of waveguide does this speaker use?
A: This speaker uses a mini EVO-Fold waveguide.
