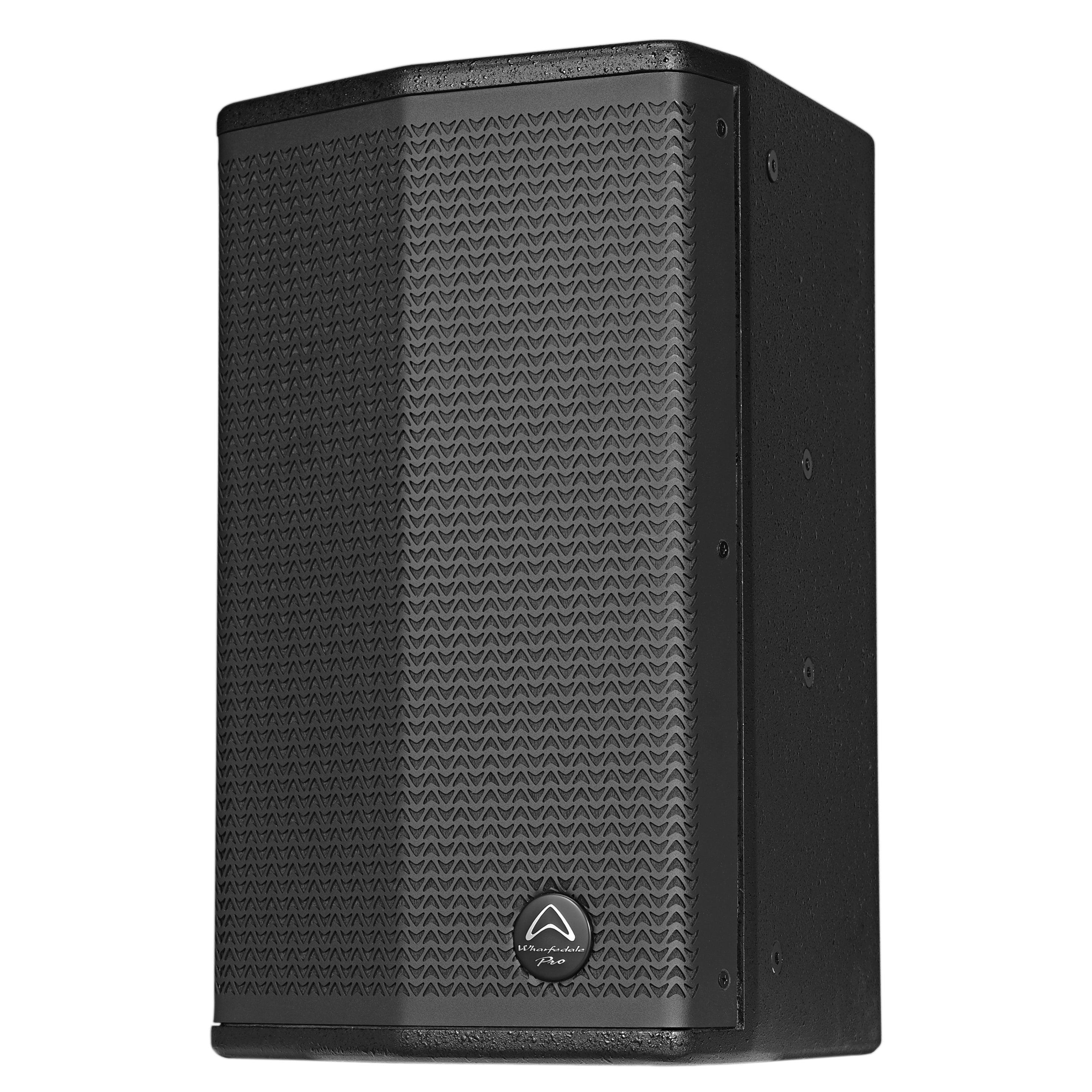

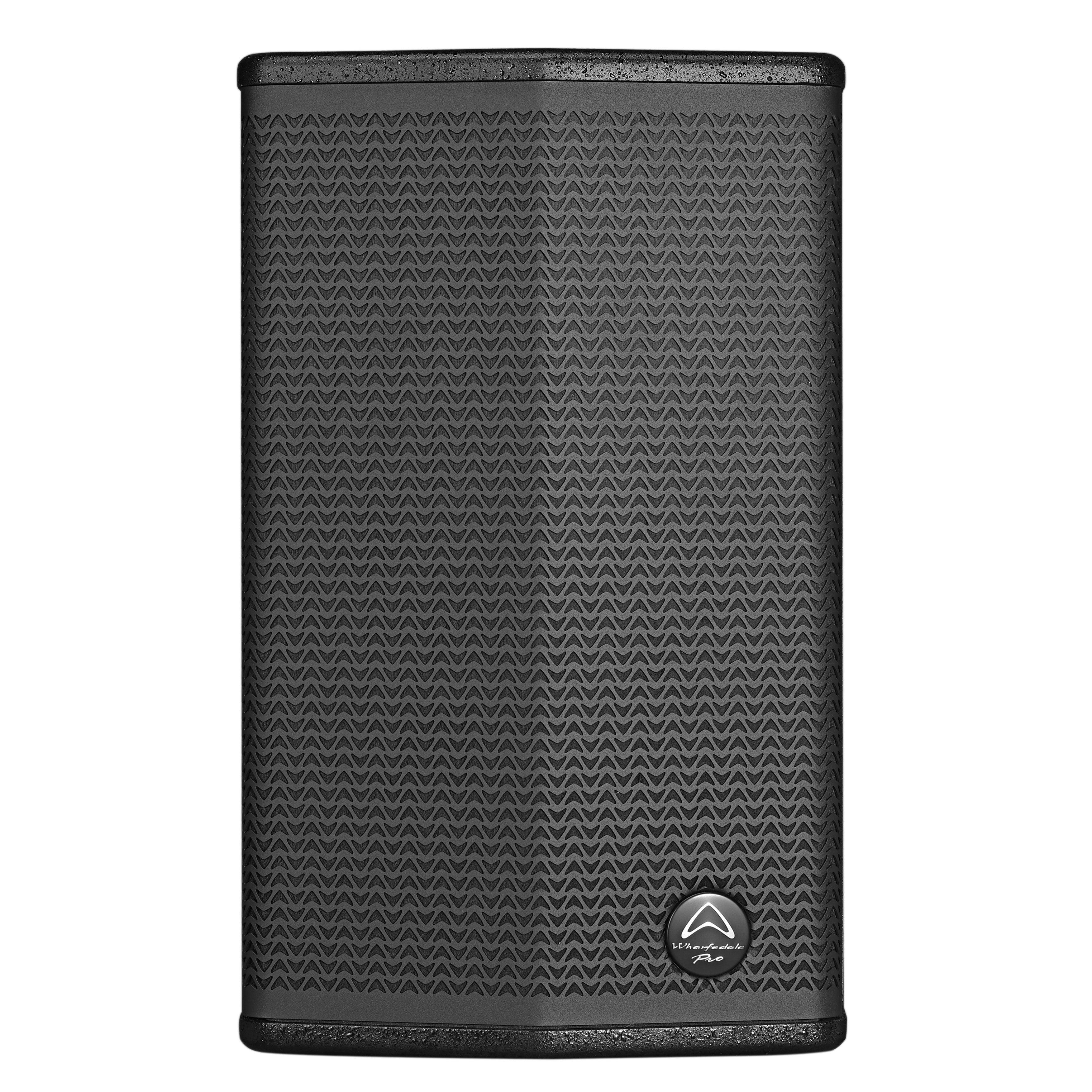

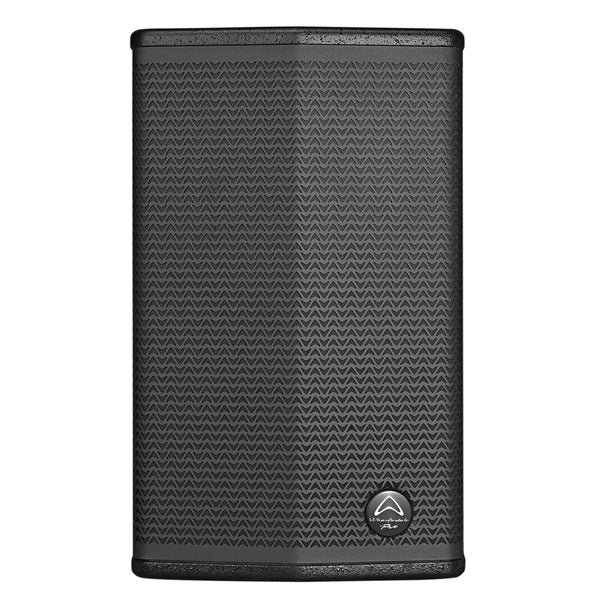

Wharfedale Pro SIGMA-X8 Installation Loudspeakers
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro SIGMA-X8 Installation Loudspeakers
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 183.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Newly designed cosmetics
- Rotatable HF waveguides
- Re-evaluated performance
- Updated column models with HF drivers
- Column models with mini EVO-Fold waveguides
- 70 V / 100 V Hi-Z Column models
- EASE gll files available for download
- Supported with system diagrams
- Supported with downloadable FIR presets
- Easy fixings and brackets
DESCRIPTION
A complete re-design of the classic SIGMA series of Installation loudspeakers. 7 new models with a fresh new cosmetic for 2022.
Building on the reliable performance of the established SIGMA series, the new SIGMA-X features newly designed front grilles and support materials to make the installation simply look and sound great. Available in black or white durable paint finishes, SIGMA-X models now also include both speakON and barrier strip connections, making installation easy!Improved mounting and rigging options make SIGMA-X simple to install into almost any location. The improved audio definition is also welcomed as SIGMA-X has been completely re-evaluated by the Wharfedale Pro International R&D team.
SPECIFICATIONS
| Model Name | SIGMA-X8 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 70 Hz – 18 KHz |
| Frequency Range (-10 dB) | 65 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 96 dB |
| Calculated Maximum SPL @1 m | 124 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 203 mm / 8” |
| Voice Coil Size (mm / inches) | 38 mm / 1.5” |
| Rated Impedance | 8 Ω |
| LF Power re:AES2-2012 | 150 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75” |
| Exit Size (mm / inches) | 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power re:AES2-2012 | 40 W |
| Waveguide Type | Constant Directivity / |
| Rotatable | |
| Nominal Coverage (H x V) | 90˚ x 60˚ |
| LF Driver | 1 x 8″ |
| HF Driver | 1 x 1.75″ Titanium Compression Driver |
| Power | |
| System Continuous Power | 150 W |
| System Programme Power | 300 W |
| System Peak Power | 600 W |
| Crossover frequency | 2.8 KHz |
| Recommended HPF | 55 Hz |
| = BW 18 dB/oct. | |

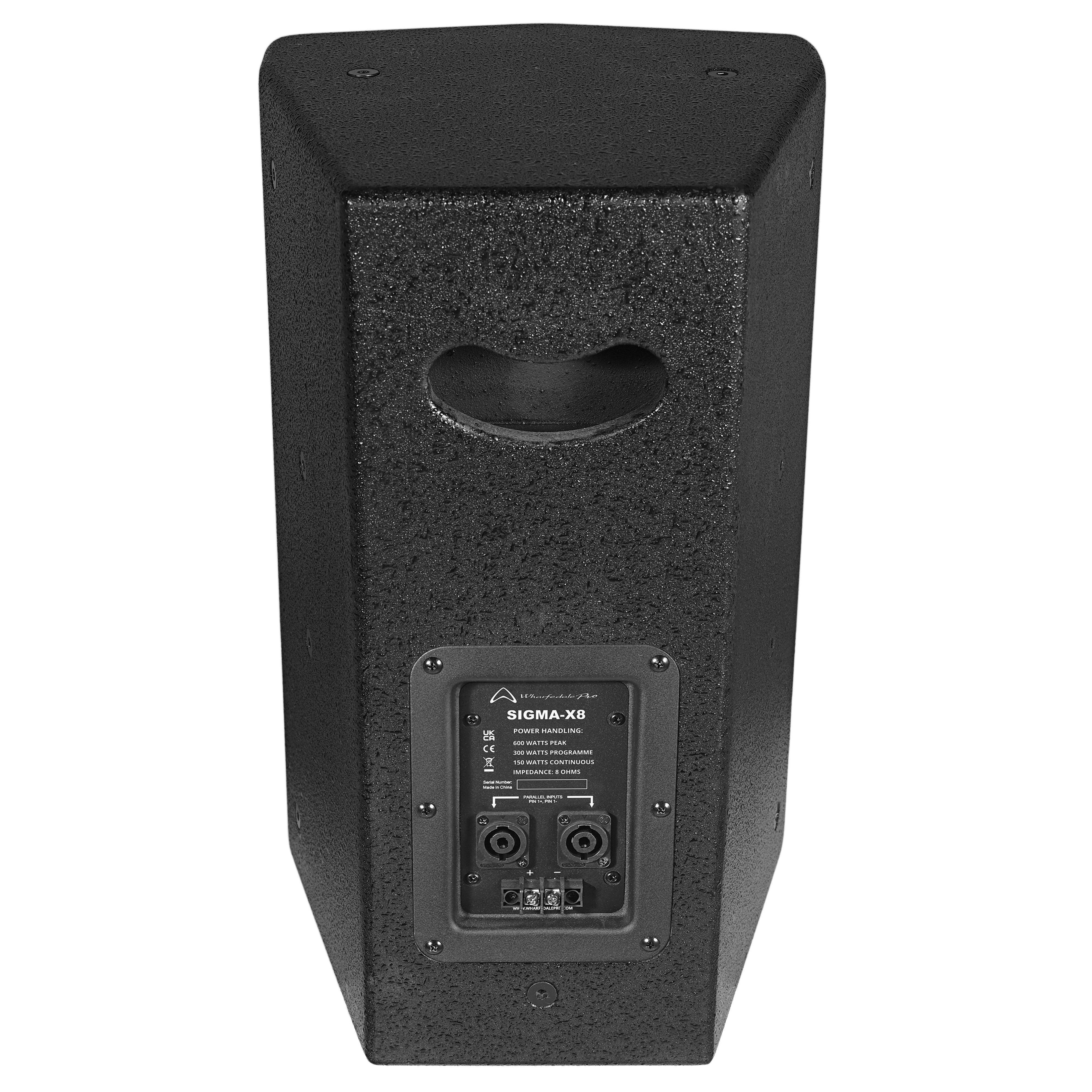

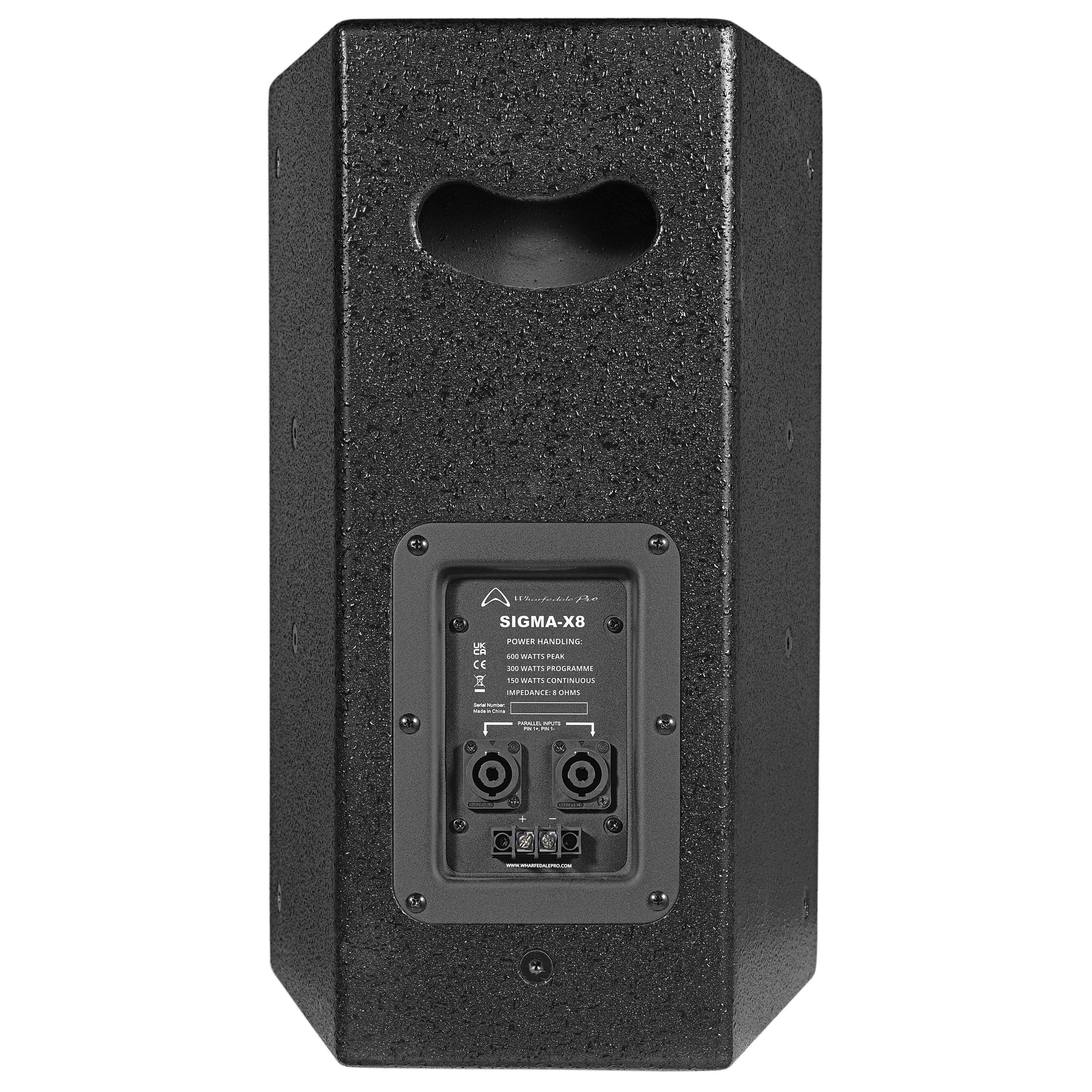

| Input Connector | 2 x speakON / 1x Barrier Strip |

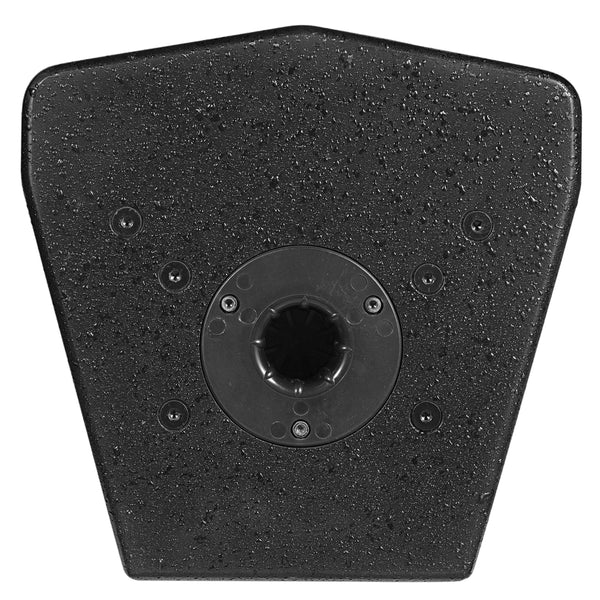

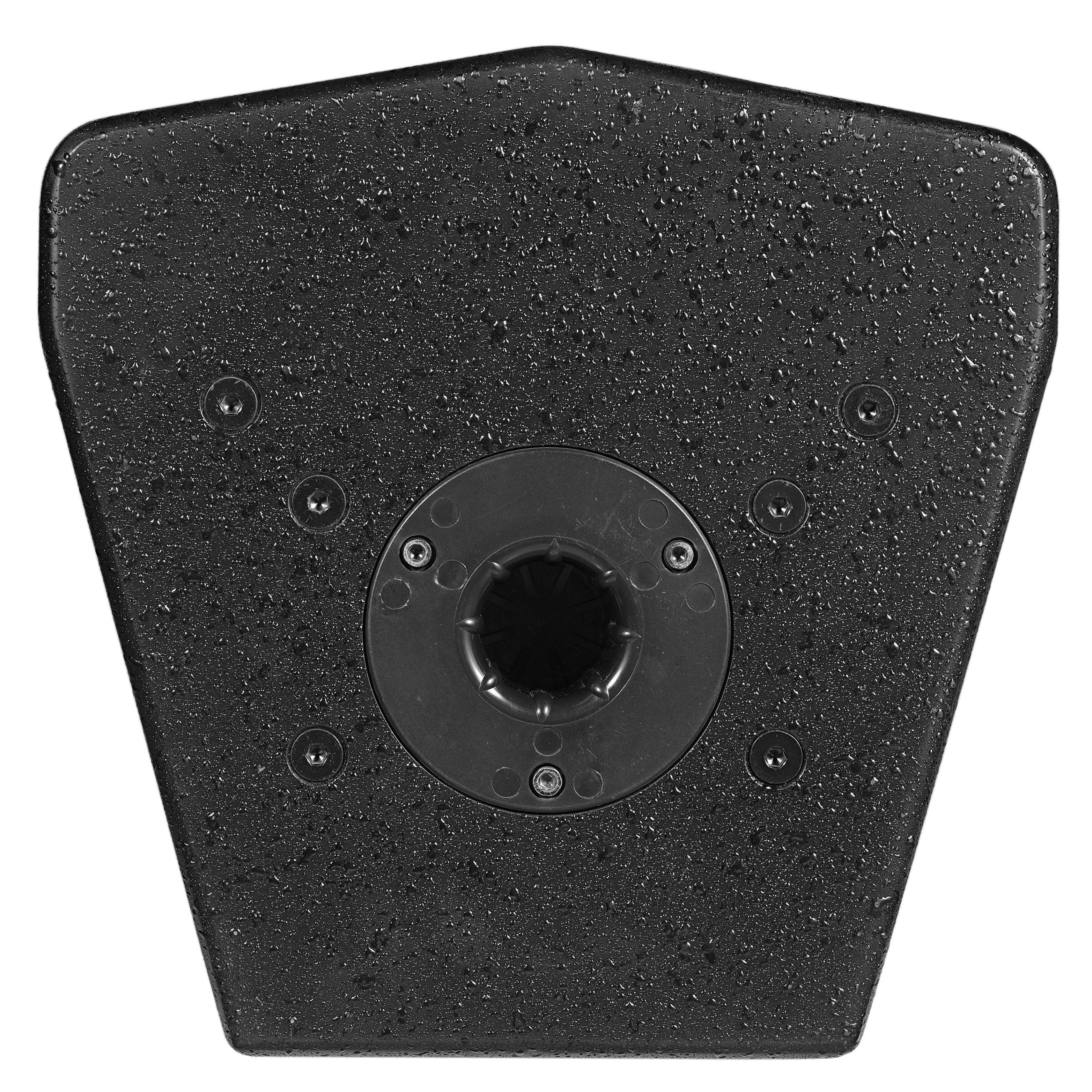

| Hardware | 35 mm pole socket |
| M8 x 17 | |
| 1 handle on back | |
| Enclosure | |
| Enclosure Material | 15 mm MDF |
| Finish | Black Paint / White Paint |

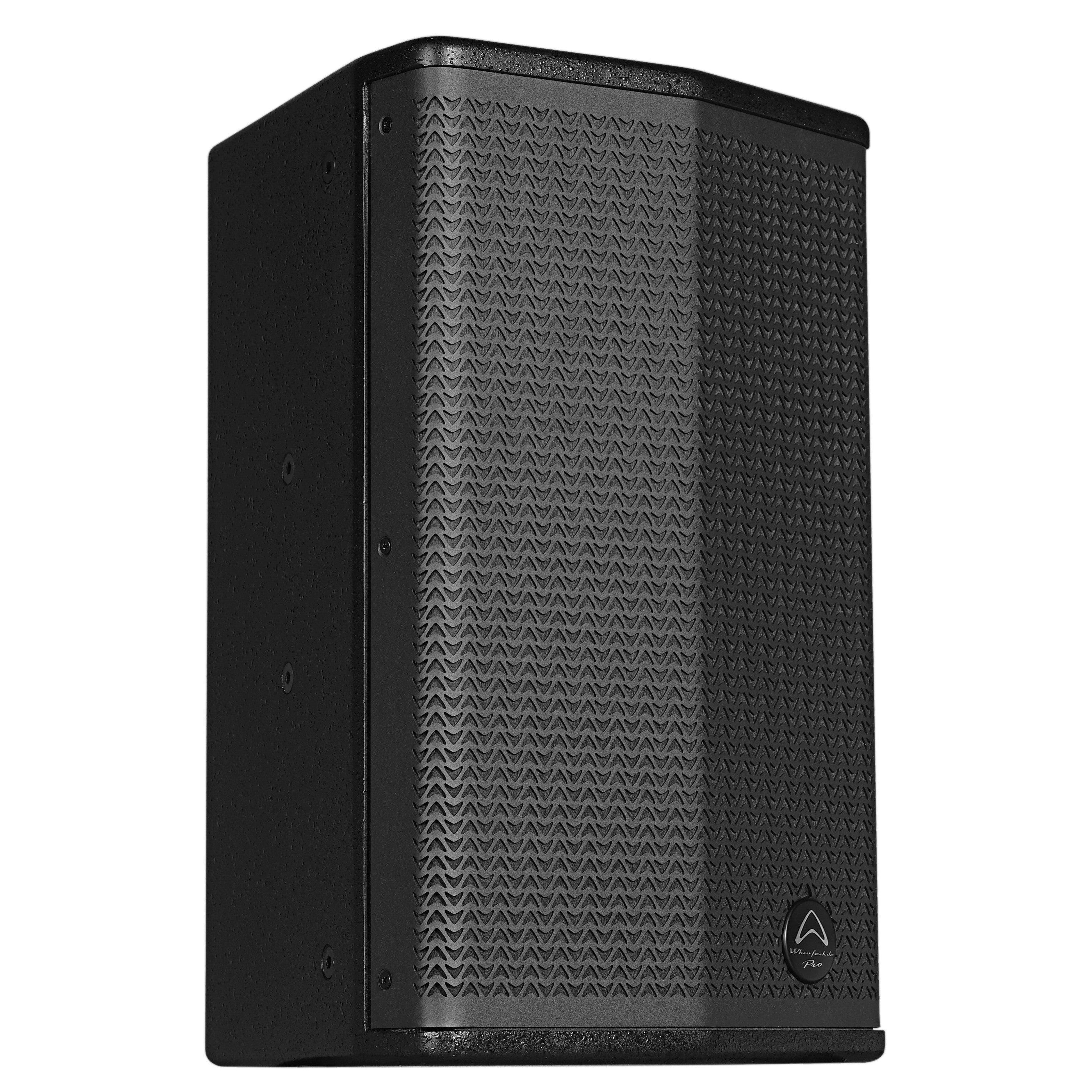

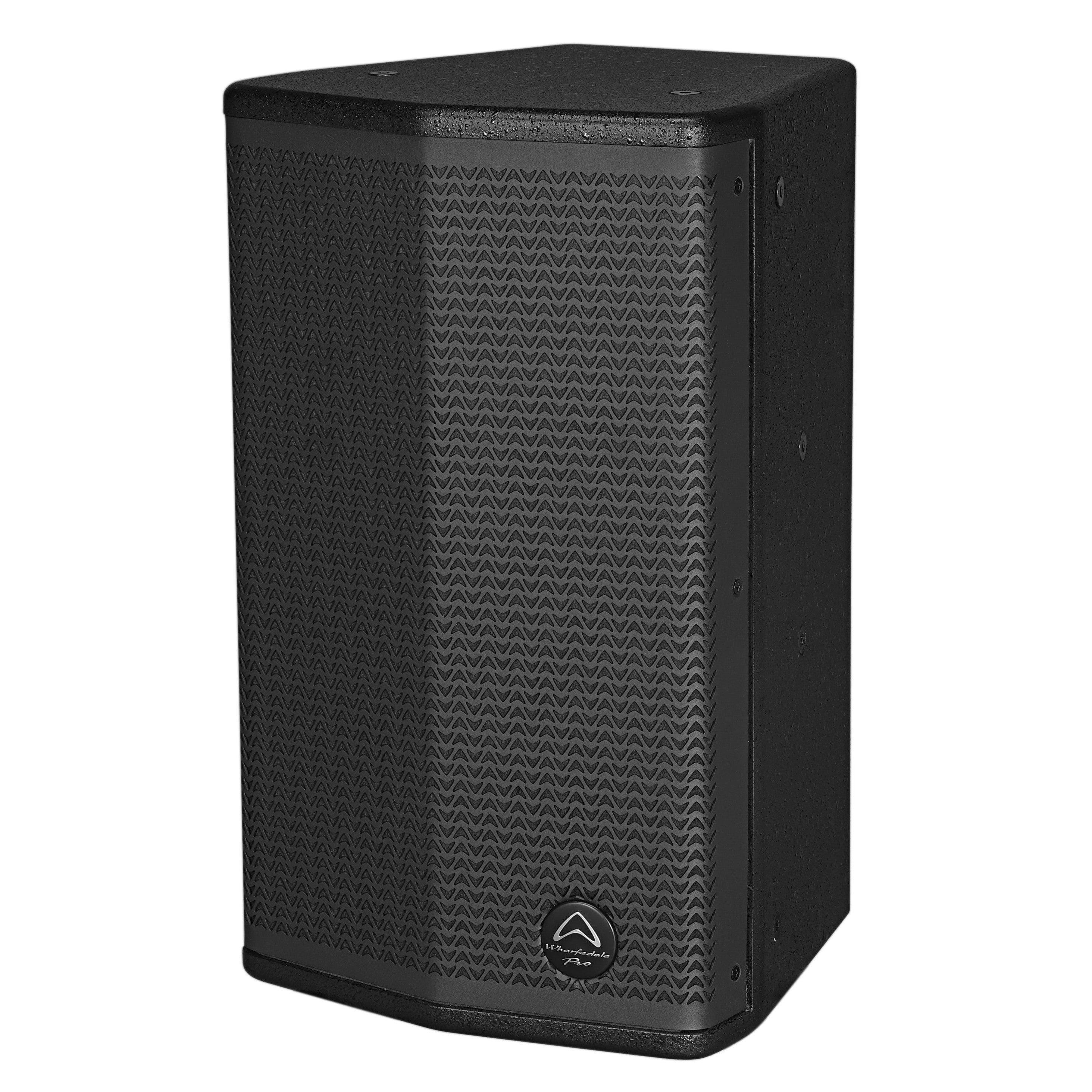

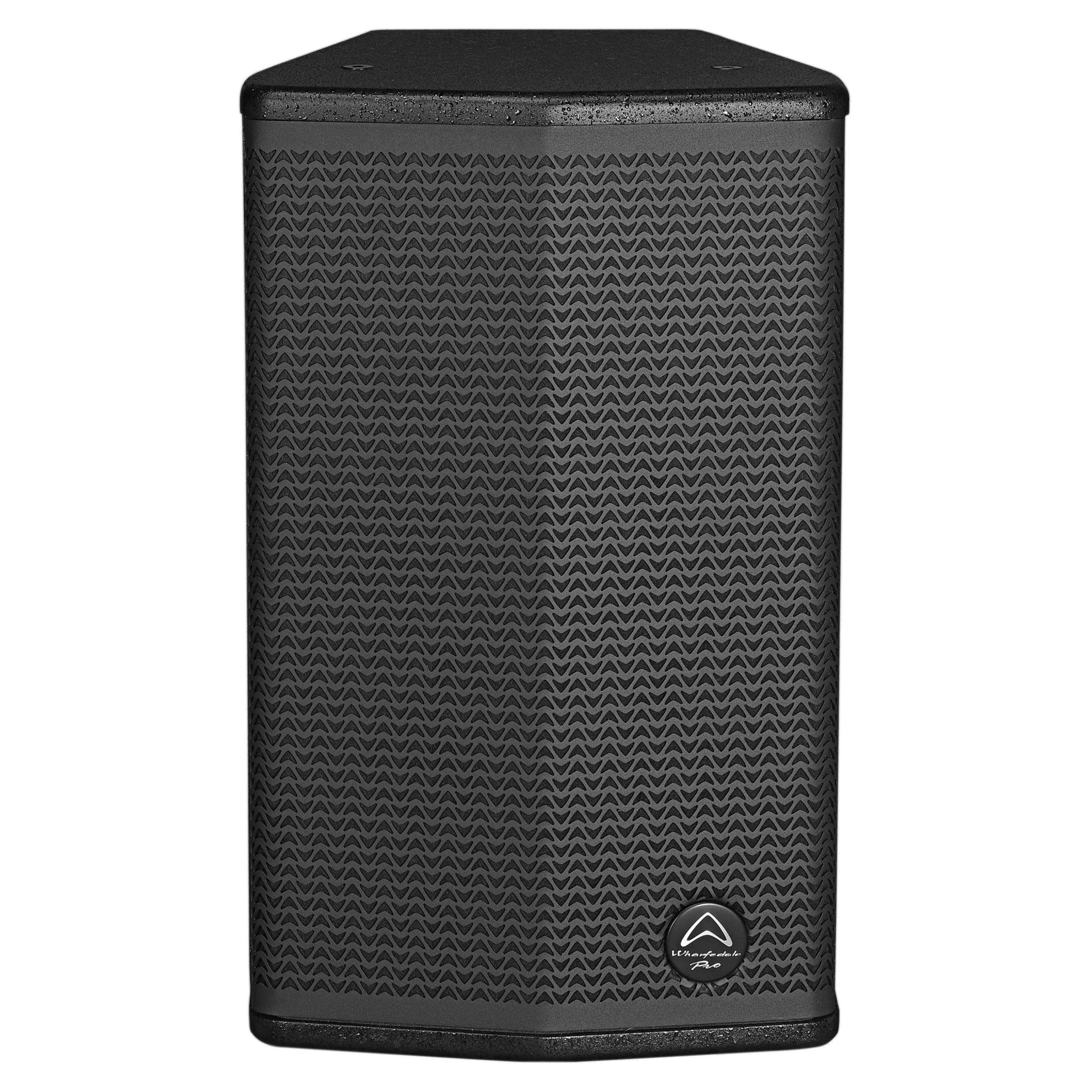

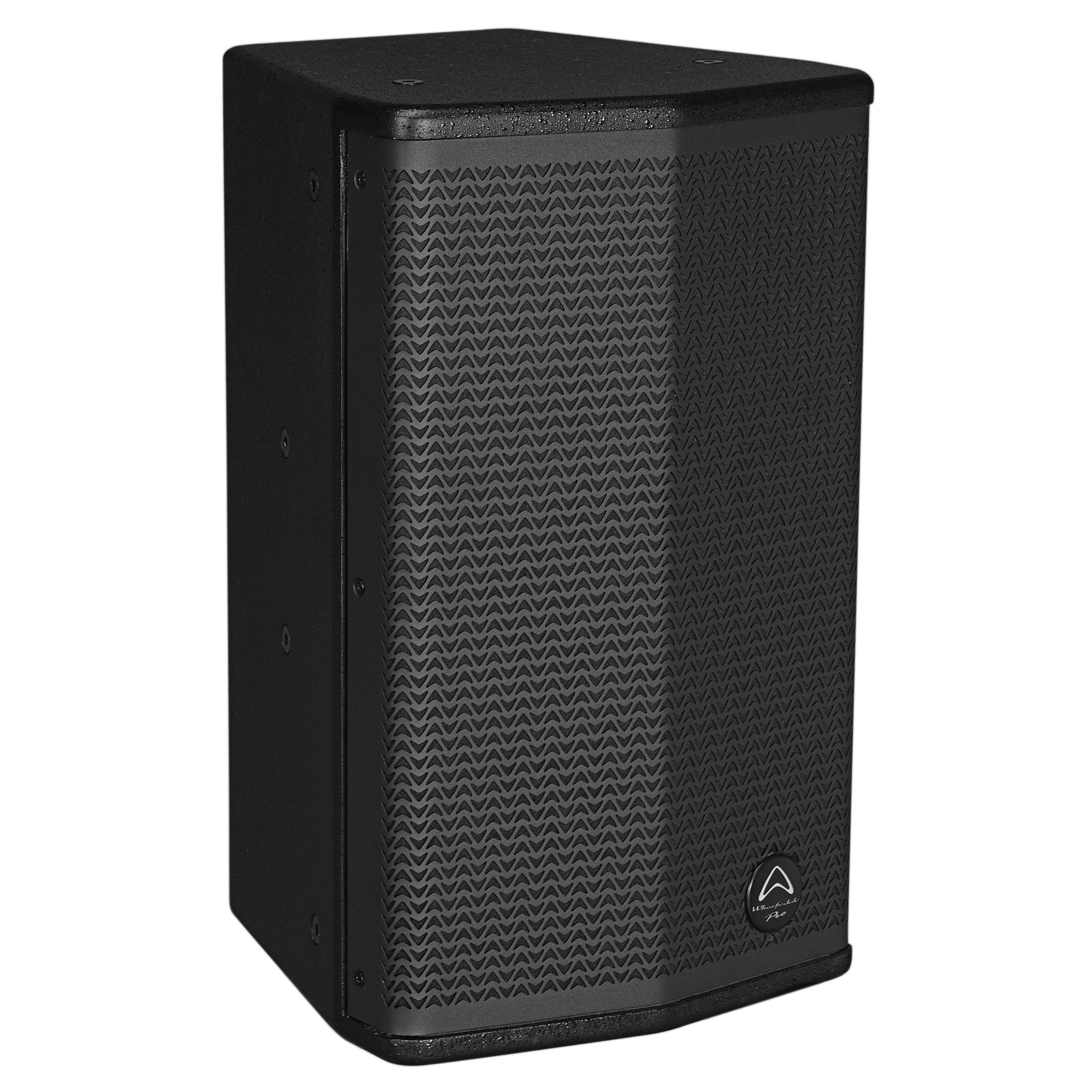

| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 465 mm / 18.3″ |
| Width Front | 284 mm / 11.2″ |
| Width Rear | 176 mm / 6.9″ |
| Depth | 282.7 mm / 11.1″ |
| Dimensions – Packed | |
| Height | 505 mm / 19.9″ |
| Width Front | 364 mm / 14.3″ |
| Width Rear | 214.4 mm / 8.43″ |
| Depth | 333 mm / 13.1″ |
| Weight | |
| Net Weight | 12.2 kg / 26.8 lbs |
| Gross Weight | 13.5 kg / 29.7 lbs |
| Optional Wall-mount bracket | WPB-1 / WPB-2 |
