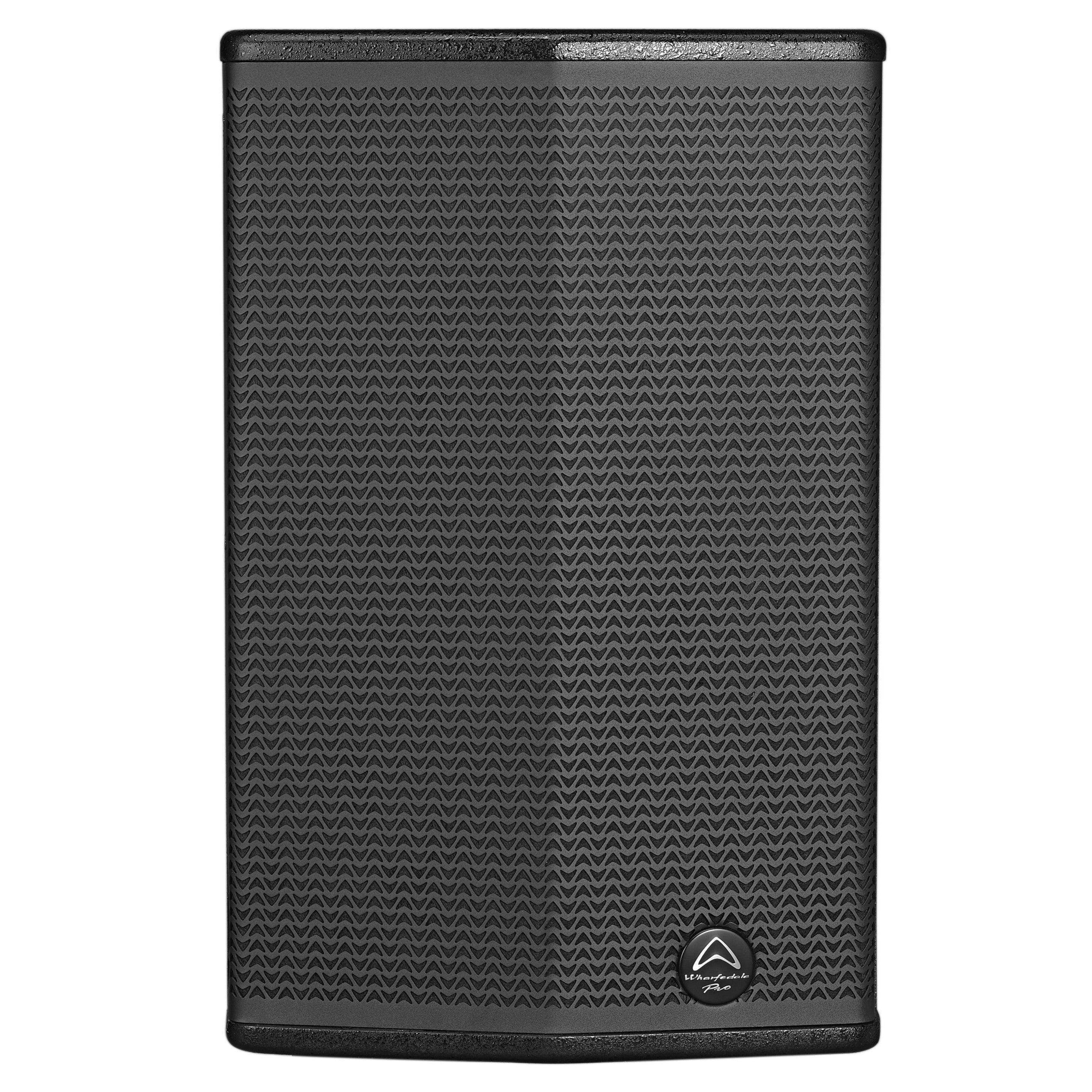

Wharfedale Pro SIGMA-X10 Installation Loudspeakers
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro SIGMA-X10 Installation Loudspeakers
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 241.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Newly designed cosmetics
- Rotatable HF waveguides
- Re-evaluated performance
- Updated column models with HF drivers
- Column models with mini EVO-Fold waveguides
- 70 V / 100 V Hi-Z Column models
- EASE gll files available for download
- Supported with system diagrams
- Supported with downloadable FIR presets
- Easy fixings and brackets
DESCRIPTION
A complete re-design of the classic SIGMA series of Installation loudspeakers. 7 new models with a fresh new cosmetic for 2022.
Building on the reliable performance of the established SIGMA series, the new SIGMA-X features newly designed front grilles and support materials to make the installation simply look and sound great. Available in black or white durable paint finishes, SIGMA-X models now also include both speakON and barrier strip connections, making installation easy!Improved mounting and rigging options make SIGMA-X simple to install into almost any location. The improved audio definition is also welcomed as SIGMA-X has been completely re-evaluated by the Wharfedale Pro International R&D team.
SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers. For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.
This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.
SPECIFICATIONS
| Model Name | SIGMA-X10 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 65 Hz – 18 KHz |
| Frequency Range (-10 dB) | 60 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 97 dB |
| Calculated Maximum SPL @1 m | 126 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 254 mm / 10” |
| Voice Coil Size (mm / inches) | 38 mm / 1.5” |
| Rated Impedance | 8 Ω |
| LF Power re:AES2-2012 | 200 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75” |
| Exit Size (mm / inches) | 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power re:AES2-2012 | 40 W |
| Waveguide Type | Constant Directivity / |
| Rotatable | |
| Nominal Coverage (H x V) | 90˚ x 60˚ |
| LF Driver | 1 x 10″ |
| HF Driver | 1 x 1.75″ Titanium Compression Driver |
| Power | |
| System Continuous Power | 200 W |
| System Programme Power | 400 W |
| System Peak Power | 800 W |
| Crossover frequency | 2.4 KHz |
| Recommended HPF | 45 Hz |
| = BW 18 dB/oct. | |

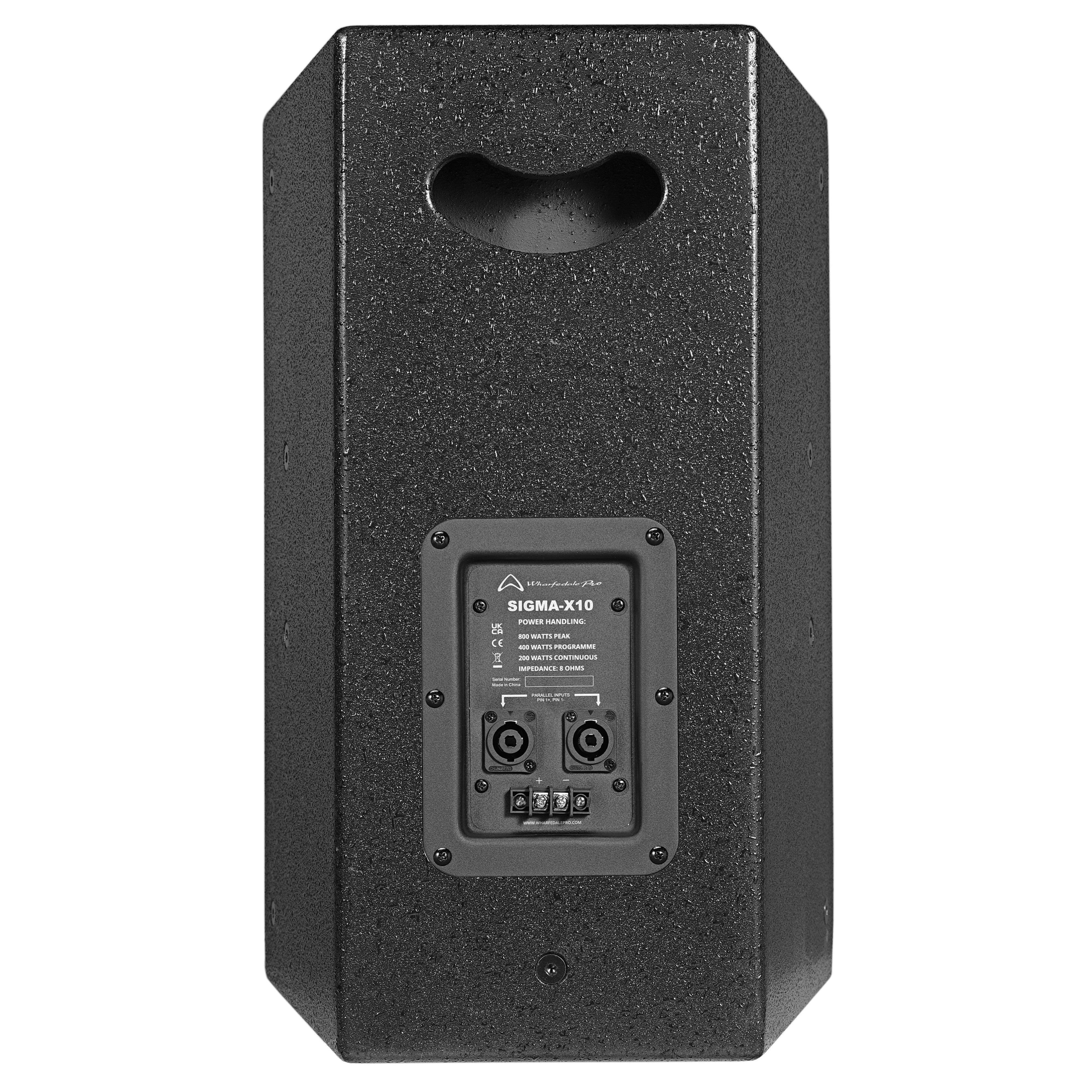

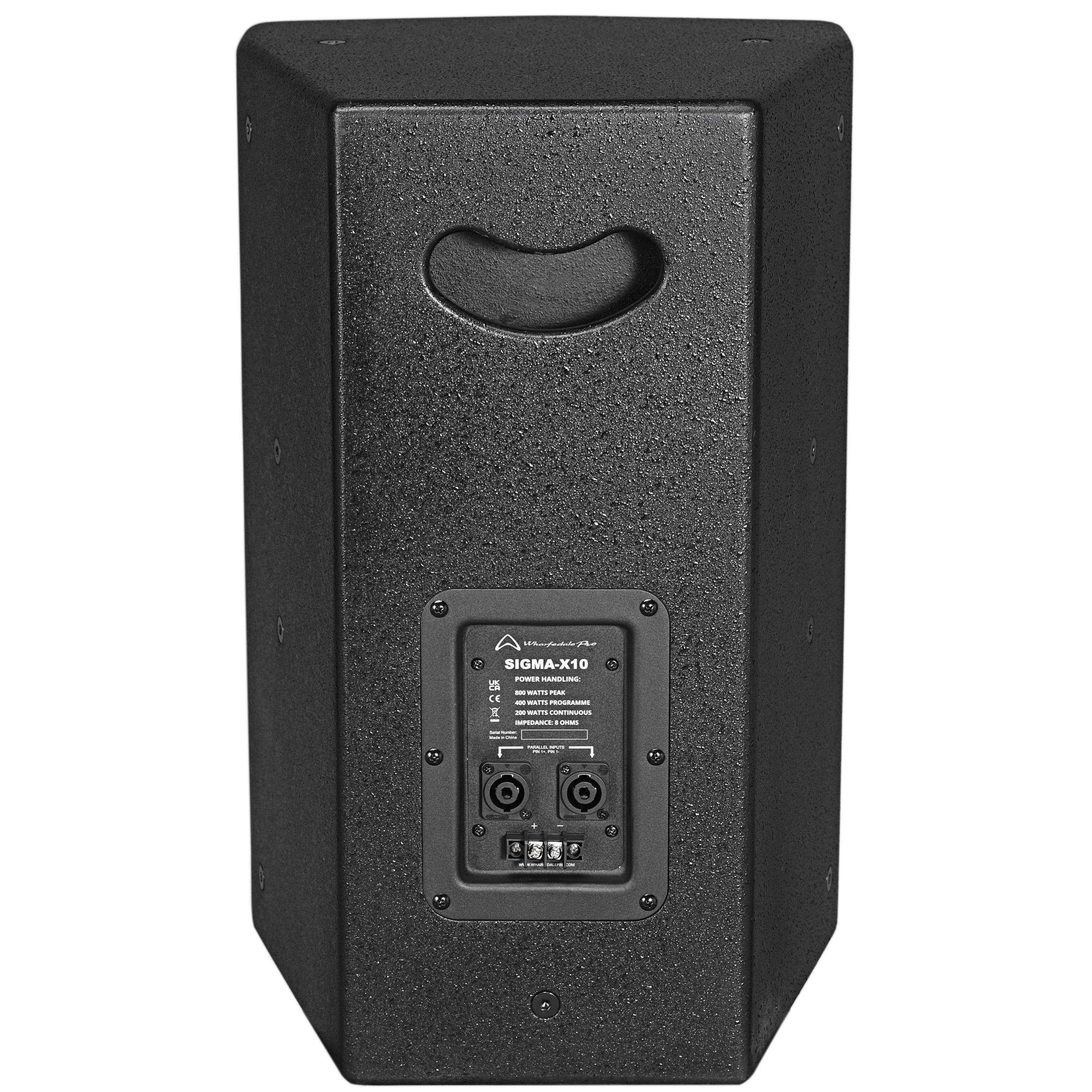

| Input Connector | 2 x speakON / 1x Barrier Strip |

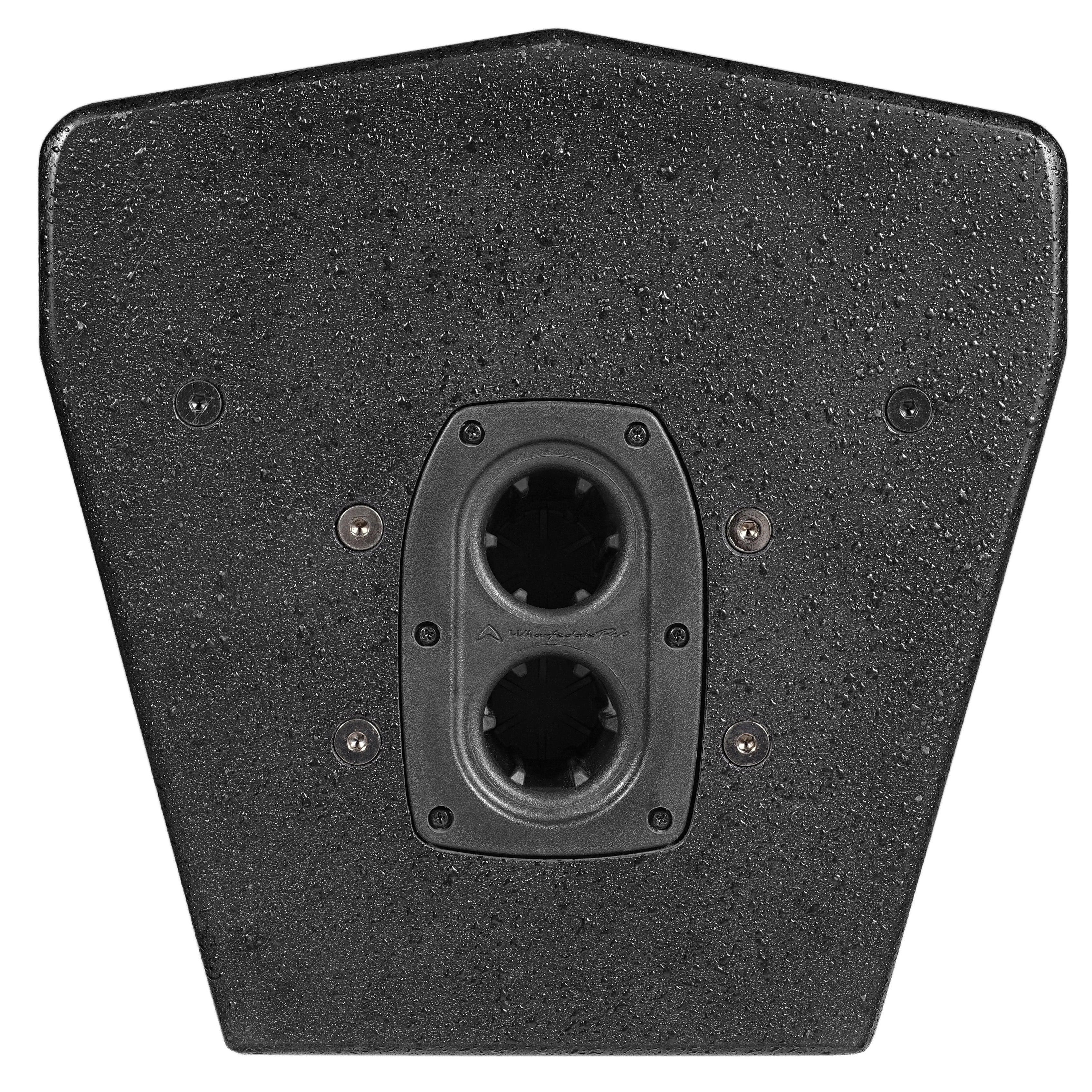

| Hardware | Dual-angle (0° /10°) 35 mm socket |
| M8 x 17 | |
| 1 handle on back | |
| Enclosure | |
| Enclosure Material | 15 mm MDF |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 520 mm / 20.5″ |
| Width Front | 338 mm / 13.3″ |
| Width Rear | 213 mm / 8.4″ |
| Depth | 338.3 mm / 13.3″ |
| Dimensions – Packed | |
| Height | 585 mm / 23″ |
| Width Front | 441 mm / 17.3″ |
| Width Rear | 251 mm / 9.9″ |
| Depth | 389 mm / 15.3″ |
| Weight | |
| Net Weight | 17.1 kg / 37.62 lbs |
| Gross Weight | 18.8 kg / 41.4 lbs |
| Optional Wall-mount bracket | WPB-1 / WPB-2 |
