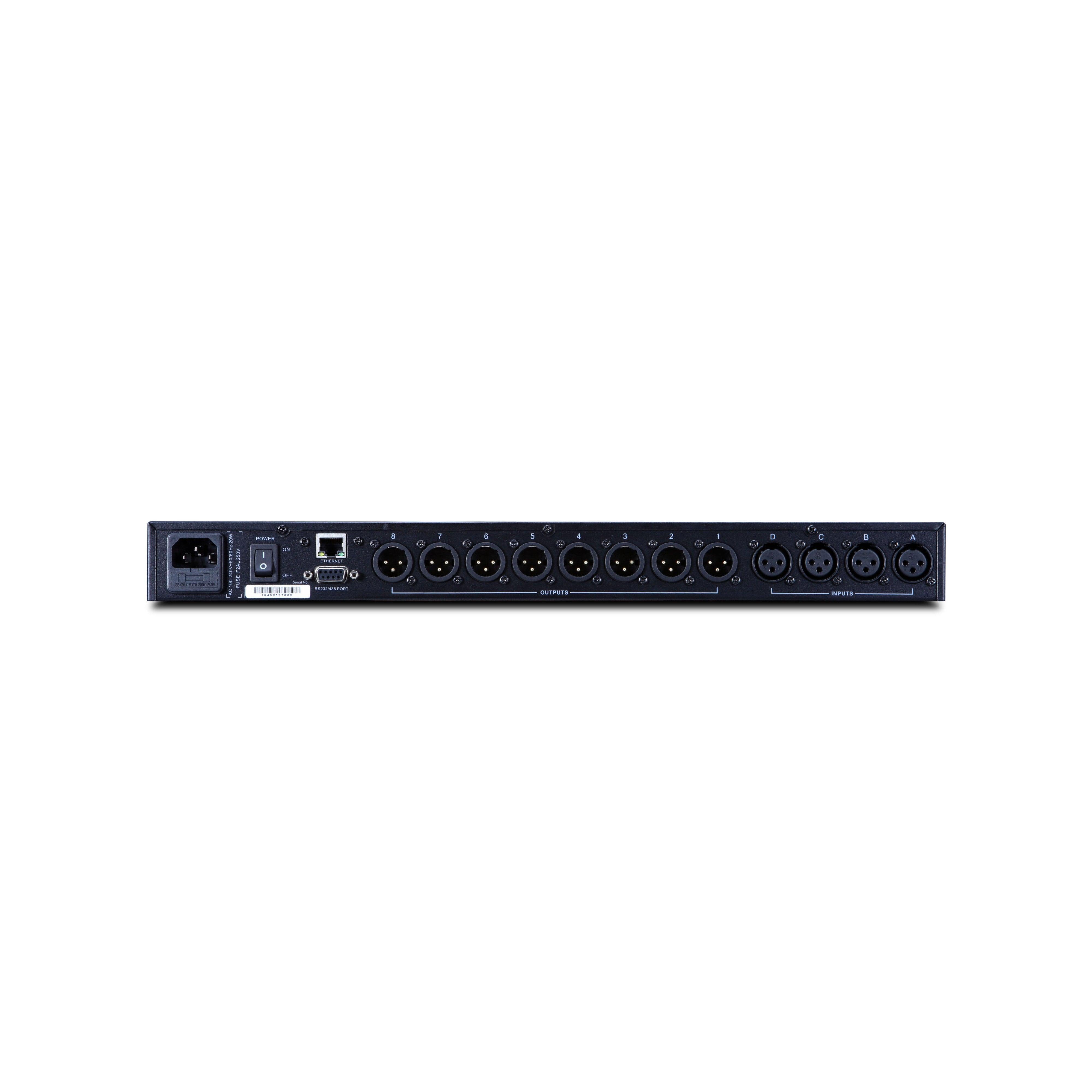

Wharfedale Pro SC48 Complete digital sound processing solution
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 997.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Complete digital sound processing solution
- 8-band parametric EQ with low/high shelf
- Limiter / Crossover / Filter
- Independent processing for each output channel
- Password protection for venue install
- 24-bit 96 KHz AD/DA convertors
- 40-bit internal processing
- USB / RS232 and RS485 connectivity
- User friendly software included
DESCRIPTION
Effects to control your rig
A huge selection of effects are at your fingertips.
The input side includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay.
For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.
Expand your rig
While one Versadrive is powerful in its own right, the RS485 connection opens up capabilities to link up to 255 units, with remote control from up-to 1500 metres.
Complete stadiums, superclubs or any multi-room install is now easily managed by one person on their laptop. The USB connection and supplied software work as another visual aid with access to update your own presets for different events.
SPECIFICATIONS
| Input Effects | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay |
| Output Effects | Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link |
| Software | Included via CD or download, with full matrix input-output control and intuitive UI |
| User Presets | 20 |
| Total Units Linkable | 255 via RS485 and optional wireless router |
| Audio Inputs | 4 x Balanced XLR |
| Audio Outputs | 8 x Balanced XLR |
| USB | 1 (PC Control) |
| Ethernet | 1 |
| RS232 Port | 1 |
| Frequency Response | 20 Hz – 20 KHz |
| S/N Ratio | >115 dB |
| Distortion (THD) | <0.005 at 1 KHz (0 dBu) |
| Max Output Level | +20 dBu |
| Impedance | <500 Ω |
| D/A Converters | 24-bit Sigma Delta |
| Sampling Rate | 96 KHz |
| Display | 20 x 2 LCD Parameter / Function Display, 5-Segment LED Level Display |
