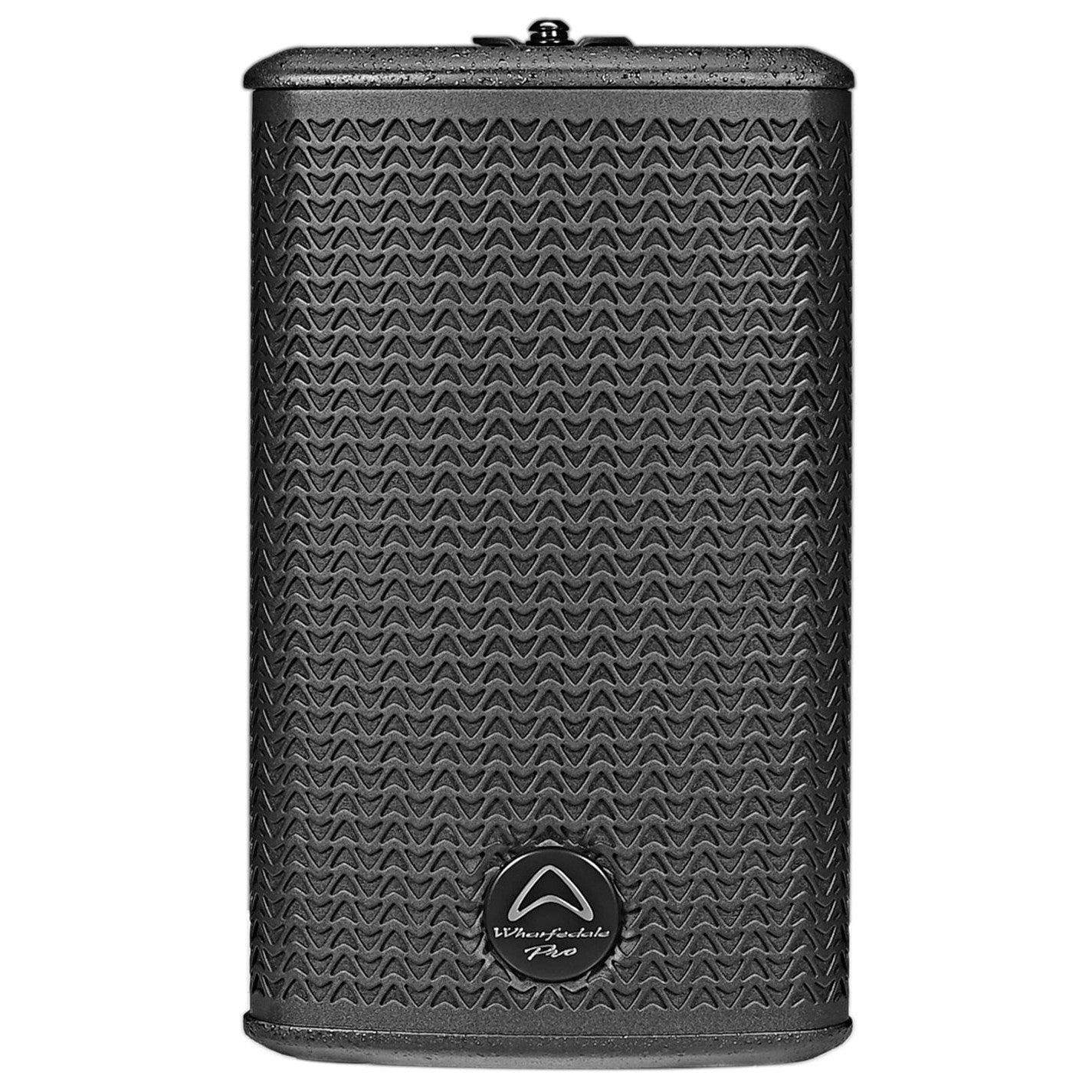

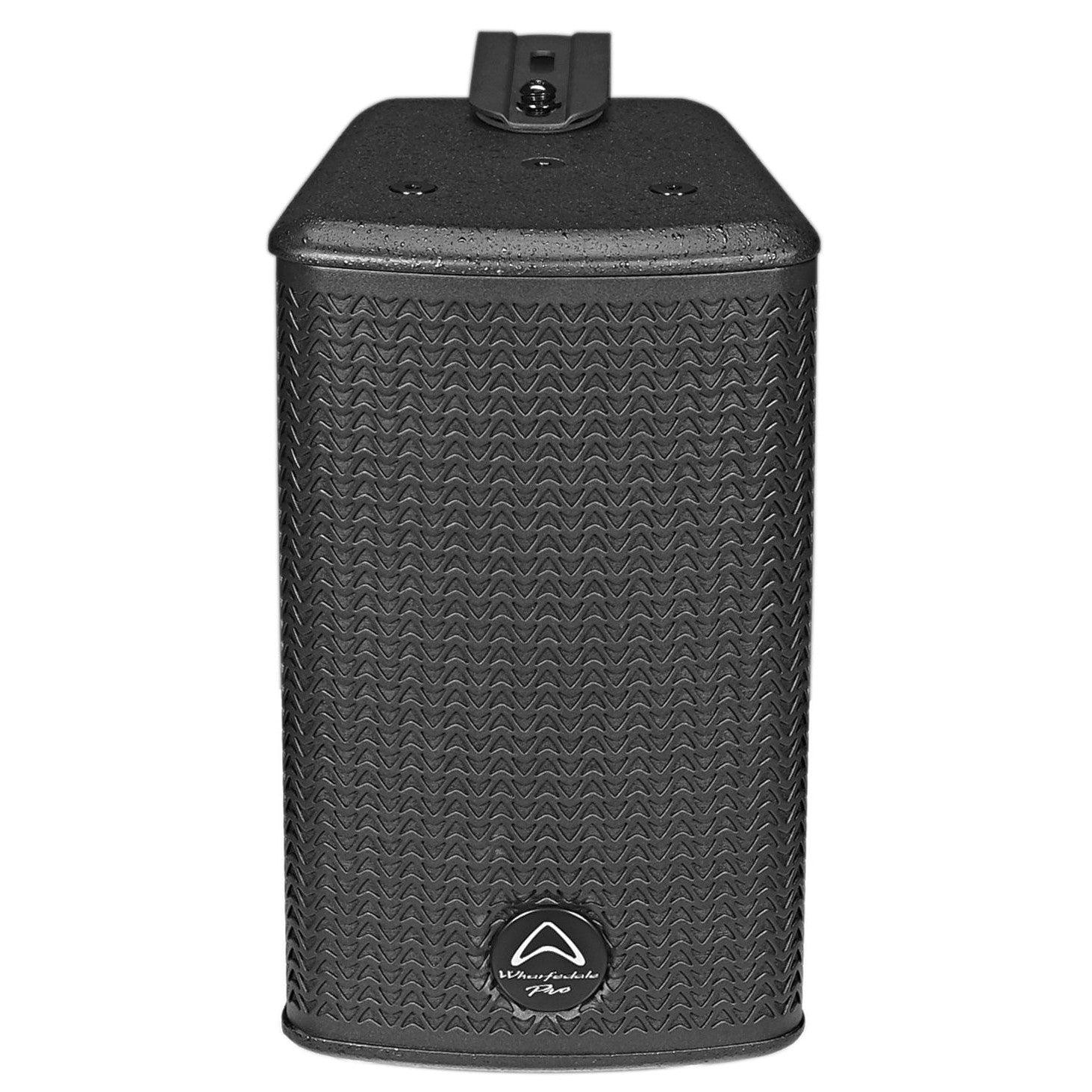

Wharfedale Pro PROGRAMME-X105 Speaker Passive Wall Mount 1x5" 80W RMS 8Ohm Wooden Paint Body (Black)
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro PROGRAMME-X105 Speaker Passive Wall Mount 1x5" 80W RMS 8Ohm Wooden Paint Body (Black)
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 141.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- 5.0″ Passive
- 80 Watts Continuous power
- 160 Watts Programme power
- 320 Watts Peak power
- T version – 70 V Taps 7.5/15/30/60 W
- T version – 100 V Taps 15/30/60 W
- 14 x M8 rigging points
- 60° x 60° dispersion
DESCRIPTION
In a constant quest for performance improvements, our R&D Team have done it again.
The original Programme series have been a main-stay of installation business for over a decade, but….. it’s time for improvements.
The new Programme-X series brings increased SPL’s, new drivers, higher than normal quality 70 V / 100 V transformer options and new physical dimensions to aid any installation configuration. Every feature has been meticulously considered to suit the fixed installation market.

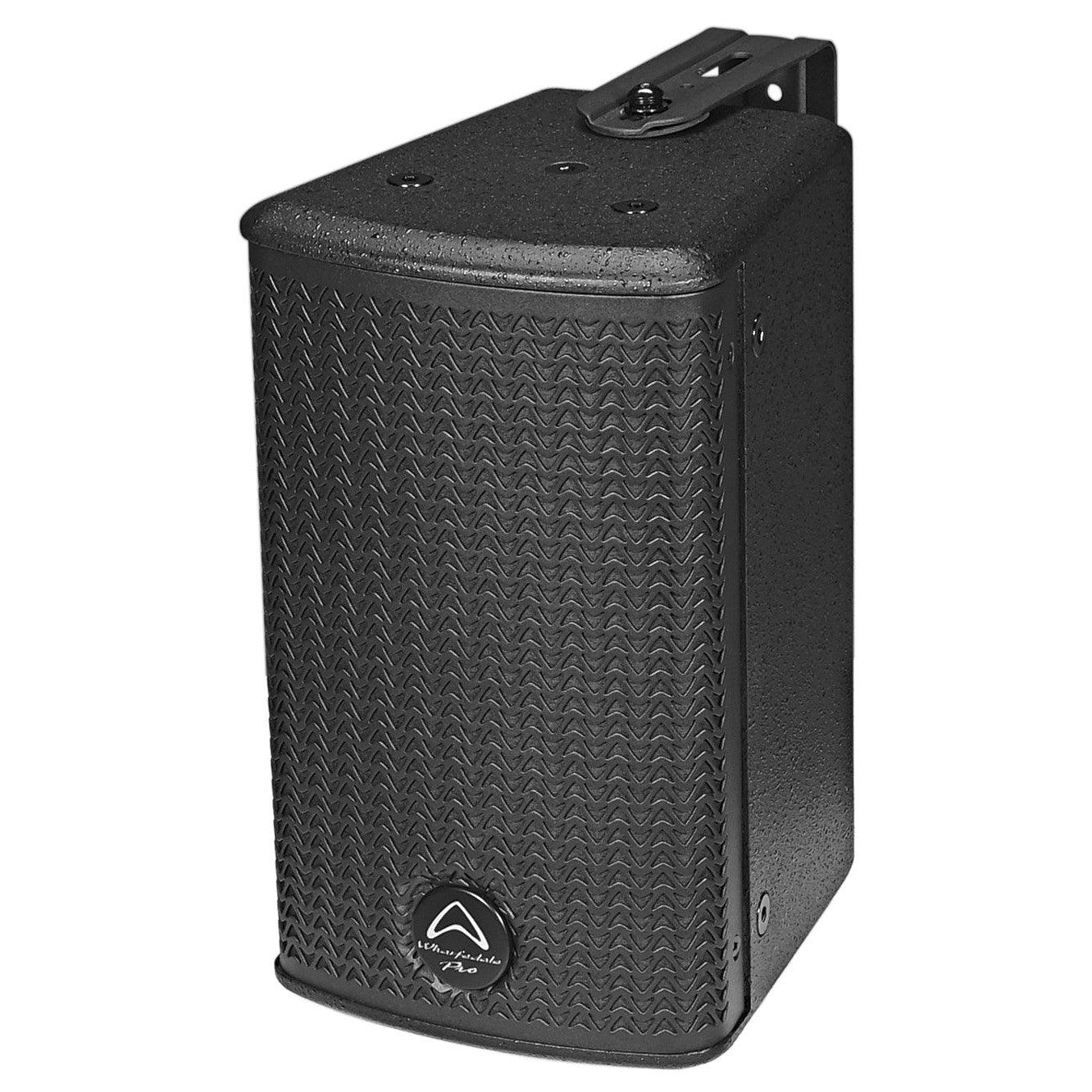

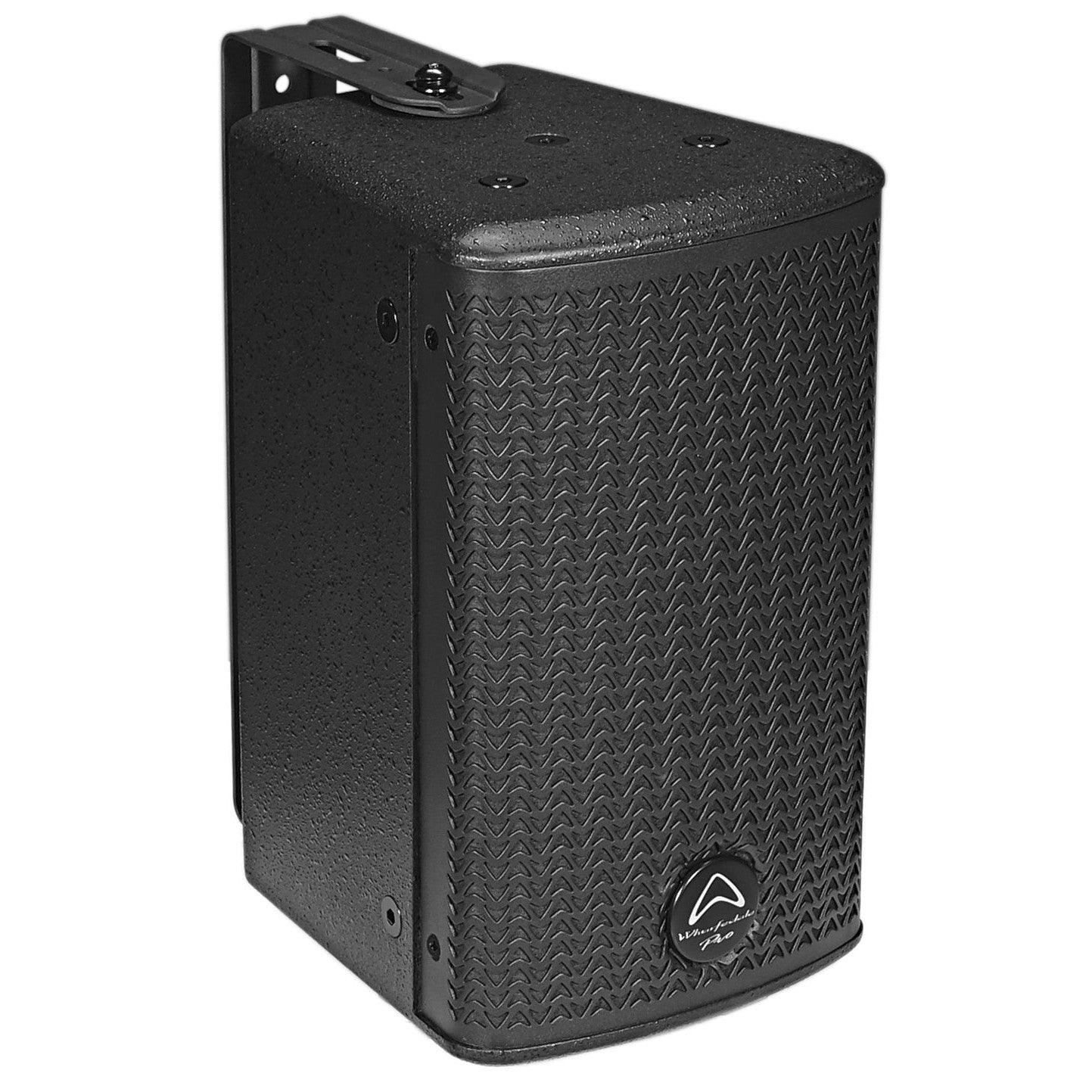

Five new models, plus with the improved high impedance 70 V / 100 V (T) options using specifically selected low distortion transformers. Available in black or white paint finish and supplied with U brackets to make the installation easy!
SPECIFICATIONS
| System Type | 6.5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 65 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 60 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 88 dB |
| Calculated Maximum SPL @1 m | 112 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 165.1 mm / 6.5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 60 w |
| High Frequency Transducer | |
| HF Driver Type | Dome Tweeter |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | silk Dome |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 10 w |
| Nominal Coverage (H x V) | 70˚ x 70˚ |
| Power | |
| System Continuous Power | 60 w |
| System Programme Power | 120 w |
| System Peak Power | 240 w |
| Crossover frequency | 2.3 KHz |
| Recommended HPF = BW 18 dB/oct. | 43 Hz |

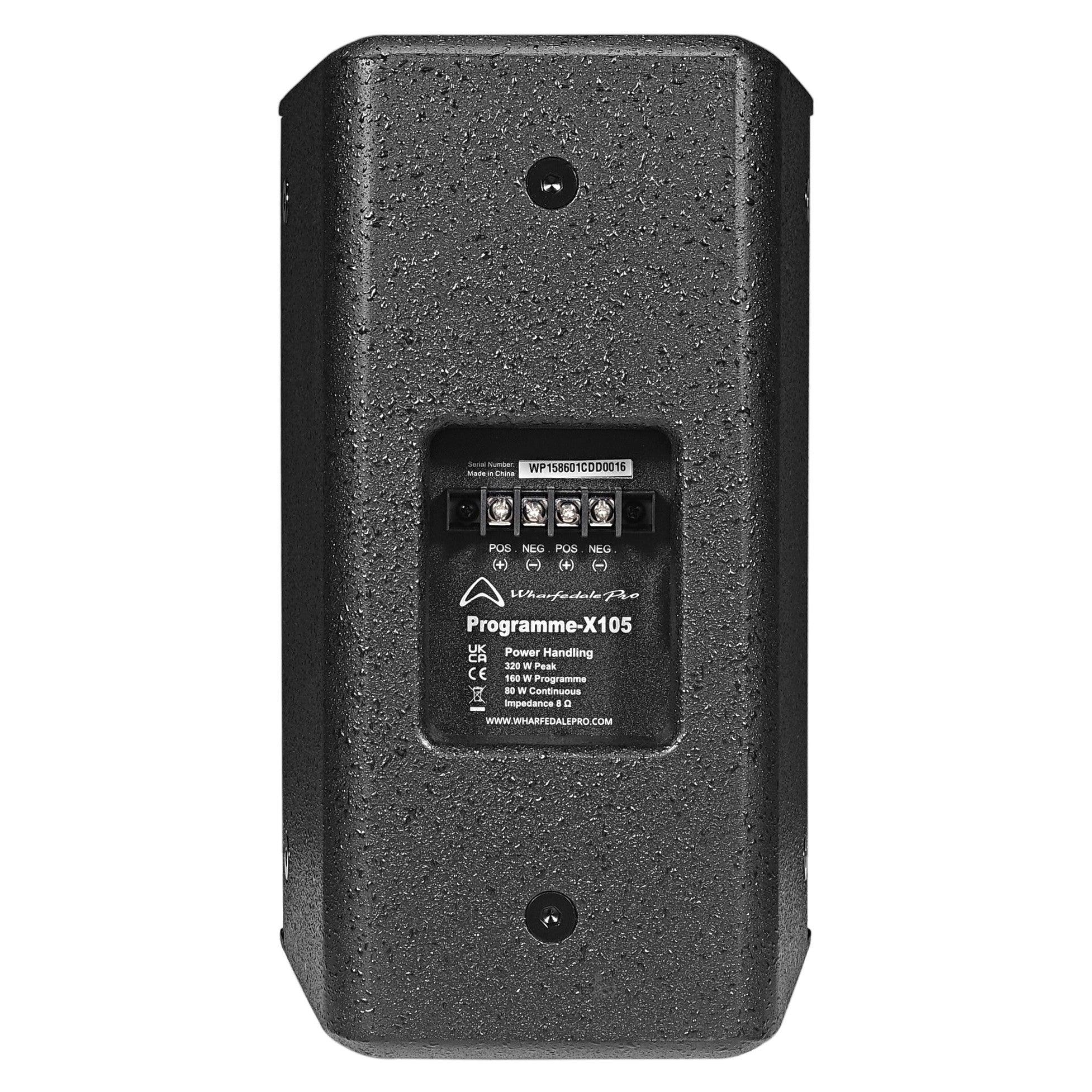

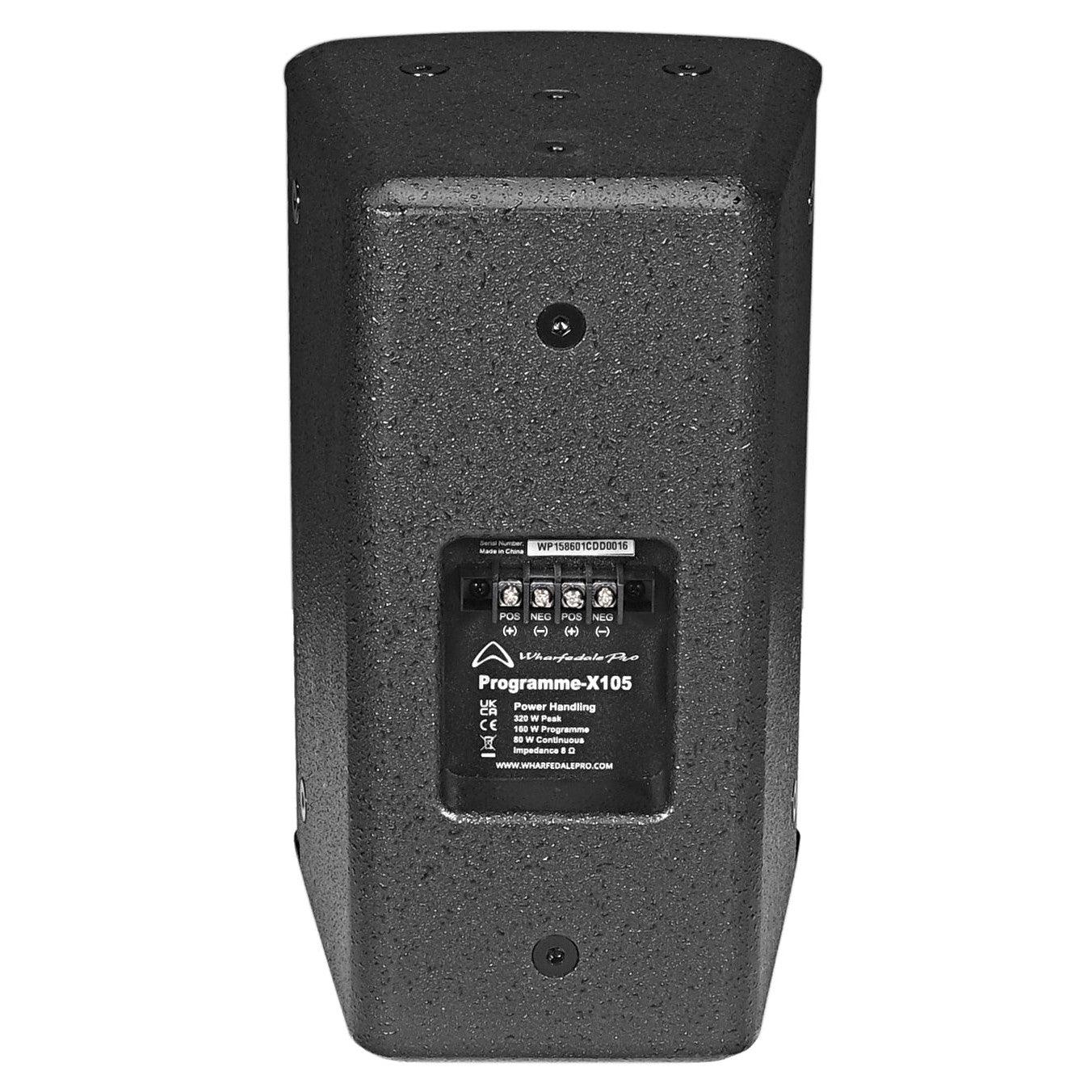

| Input Connector | Bare Wire Spring |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) | 5,10,20,40 W |
| Transformer Taps (100 V) | 10,20,40 W |
| Hardware | |
| Rigging | M6 x 4 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black Paint |
| Grille Material & Finish | Black Full (Steel) |
| Dimensions – Unpacked | |
| Height | 275 mm / 10.83″ |
| Width Front | 196 mm / 7.72″ |
| Width Rear | 196 mm / 7.72″ |
| Depth | 192 mm / 7.56″ |
| Dimensions – Packed | |
| Height | 326 mm / 12.8″(pair) |
| Width Front | 488 mm / 19.2″(pair) |
| Width Rear | 488 mm / 19.2″(pair) |
| Depth | 256 mm / 10.1(pair) |
| Weight | |
| Net Weight : Regular / T-Version | 8.04 kg / 9.06 kg(pair) |
| Gross Weight : Regular / T-Version | 10.2 kg / 11.2 kg(pair) |
