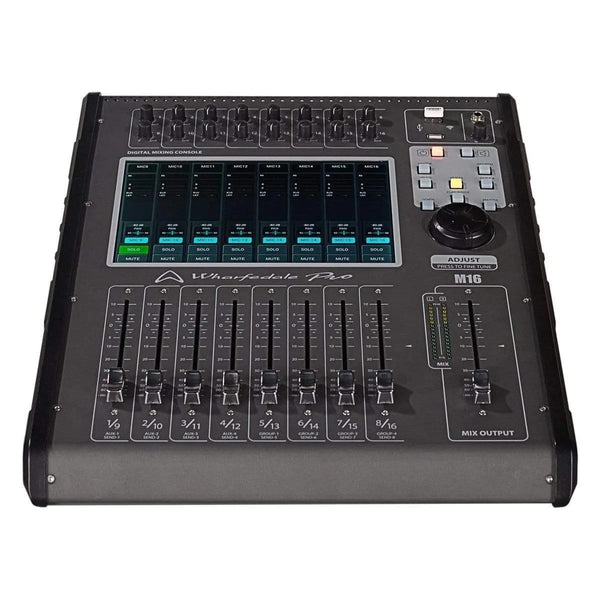

Wharfedale Pro M16 Digital Mixing Console

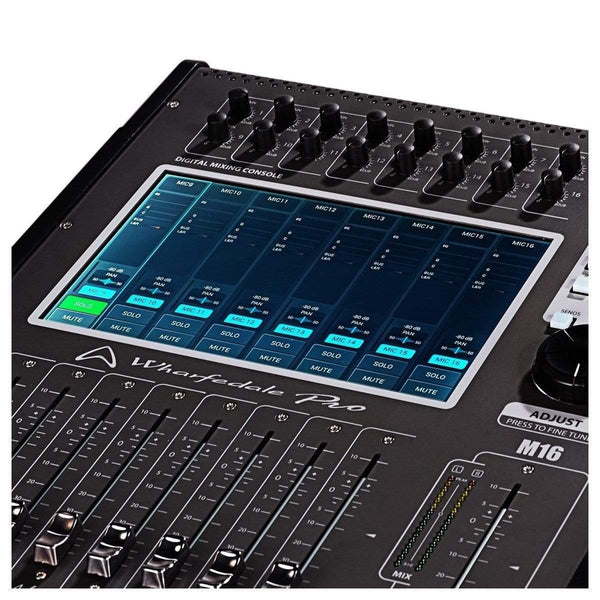

M16 is a unique and innovative multi-function digital mixing console, with many advantages such as its small size, lightweight construction, high-quality audio path, user-friendly interface and a ‘class-leading’ premium touch-sensitive 10.1” screen.
Using the 4th generation industrial floating-point SHARC processor and 24bit / 192kHz AD/DA conversion, M16 delivers high-quality audio with a responsive feel.
The custom layer, channel link and mute group modes make it ideal for live performances, conferences, schools, churches, cultural auditoriums, weddings, concerts, homes, bands, multi-purpose halls and other sound reinforcement systems.

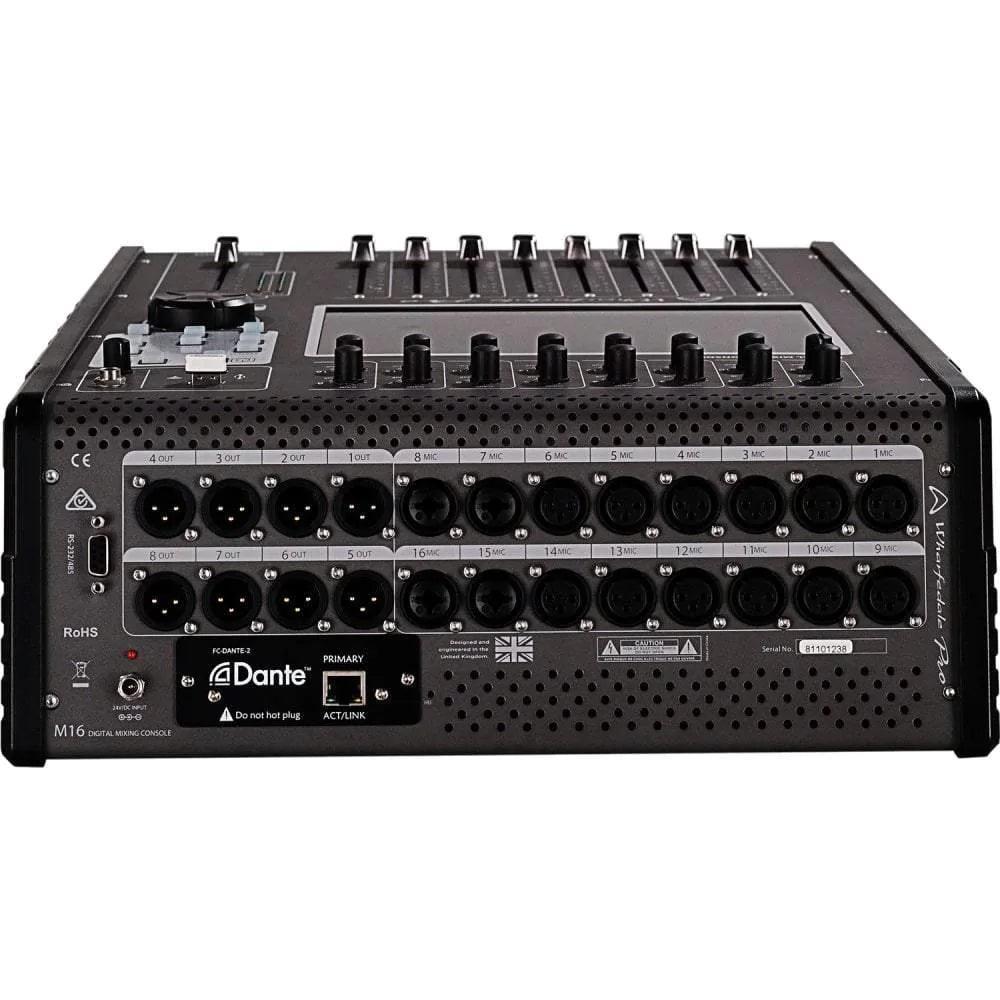

The system also includes WiFi interfacing allowing the mixer to be controlled remotely with mobile devices. A rear-panel expansion bay also allows for optional interface boards to be inserted. Currently, these include Dante, AES/EBU and USB protocols.
The 9 x 100mm motorised faders make control simple and custom layers can be created to make M16 easy to use for the most inexperienced operator.



Features

  • 16 inputs (12 x XLR / 4 x combi-jack)
  • 8 assignable balanced outputs
  • 10.1” touch screen | 1280 x 800 resolution
  • Expansion bay for optional interfacing
  • 8 internal DSP processors
  • 9 x 100mm motorised faders
  • WiFi connectivity & control. Dongle included
  • iPAD app for complete remote control
  • Optional flight case also available
Tech Specs



Model Name M16
Mic inputs 16 channel inputs (balanced)
Mic input connectors 12 x XLR + 4 combi connectors
Impedance 3kΩ
Frequency response 20Hz - 20kHz (+/-0.5dB)
Max input level +20dBu (balanced)
S/N ratio 105dB
Gain range 60dB
THD 0.005%
Phantom power +48v (Chan 1 to 16)
LIne inputs 4 x combo inputs
Input impedance 20kΩ
Max input level +30dBu (balanced)
Frequency response 20Hz - 20kHz (+/-0.5dB)
THD 0.008%
Gain range 60dB
S/N Ratio 105dB
Phase Normal / Reverse
Delay 0 -200msec
EQ 4-band
Frequency 20Hz - 20kHz +/-18dB
Q = 0.5 to 10.0
HPF, Low, Mid/Low, Hi Mid, High
Mode Bypass, Flat, Library
GATE Threshold -80dB to 0dB
Attack 0.5ms to 100ms
Release 2ms to 2s
Hold 2ms to 2s
Depth -80dB to 0dB
Compressor Threshold -80dB to 0dB
Attack 0.5ms to 100ms
Release 2ms to 2s
Gain -12dB to +12dB
Ratio 1.0 to 20
Outputs 8 assignable XLR
L/R + 4 Mono buss + 2 stereo buss
THD 0.005% (20Hz-20kHz)
Max output level +18dBu
Output impedance 470Ω
Digital IO USB stereo input and REC function
USB format 2.0
USB Max Memory capacity 32GB
I/O latency <1.8ms
Recording format .wav
General
Dynamic range 106dBu analog in to analog out.
Crosstalk -85dB
AD/DA convertor Up to 24bit / 192kHz
Signal processing 40-bit floating point
FX processing Modulation x 2, Delay x 2, Reverb x 2
GEQ 2 x 31bands
Screen resolution 10.1" touchscreen. 1280 x 800
Faders 100m x 9. Motorised
System Wifi external USB adaptor included
Hardware
Power supply External 24V DC (AC 90-240V 50/60Hz)
Power consumption 50w
Dimensions (DxWxH) 504 x 379 x 136mm
Net weight 8.5kg
Gross weight 10.5kg
Included accessories WiFi USB adaptor
Power supply / power cord
