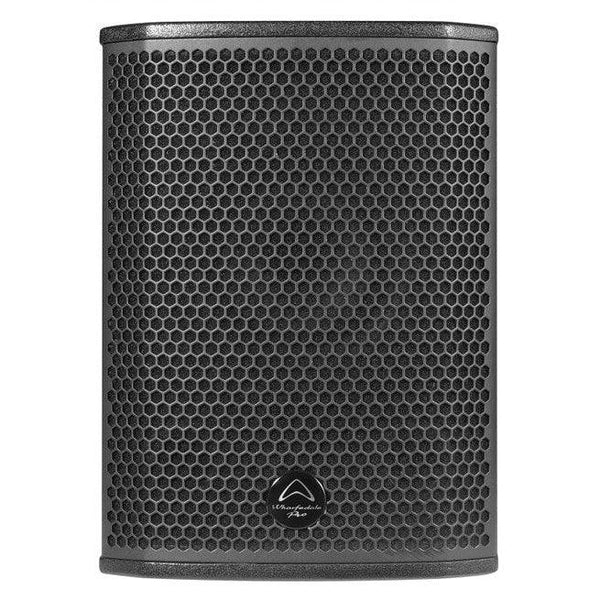

Wharfedale Pro GPL8T Speaker Speaker Passive 1x8" 1400W Peak 70V/100V Transformer Wooden Paint Body
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro GPL8T Speaker Speaker Passive 1x8" 1400W Peak 70V/100V Transformer Wooden Paint Body
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 477.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Compact birch plywood construction
- Beyma Coaxial design drivers
- Multiple mounting options (Yoke brackets included)
- Conical or 80° x 40° (HQ models) dispersion options
- Band-pass or Bass Reflex subwoofers
- speakON compatible and barrier strip connections
- FIR Preset libraries and EASE .gll files available for download
DESCRIPTION
All GPL models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
SPECIFICATIONS
| System Type | 8″ coaxial passive |
| Configuration | two-way |
| Frequency Response (+/-3 dB) | 65 Hz – 20 KHz |
| (DP-N preset) | |
| Frequency Range (- 10 dB) | 53 Hz – 25 KHz |
| (DP-N preset) | |
| Sensitivity 2.83 V/1 m | 97 |
| Sensitivity 2.83 V/1 m half space | / |
| Calculated Maximum SPL @1 m | 128 dB |
| System Peak SPL* | 134 dB |
| *level at 1 m using pink noise with crest factor 4, with dedicated preset. | |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 211.5 mm / 8” |
| Voice coil size | 63.5 mm / 2.5″ |
| LF Frame Material | Aluminium |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44.4 mm / 1.75″ |
| Exit Size (mm / inches) | 25.4 / 1″ |
| Diaphragm Material | PM4 |
| Waveguide Type | Spherical |
| Nominal Coverage (H x V) | 70° conical |
| Special Features | Shorting cap for extended response |
| Waterproof LF cone | |
| FEA optimized, Shared High performing Ferrite magnet system design | |
| Driver brand | Beyma |
| POWER | |
| T Model | 70 V : 200 / 100 / 50 / 25 W |
| 100 V : 200 / 100 / 50 W | |
| System Continuous Power (W) | 350 |
| System Programme Power (W) | 700 |
| System Peak Power (W) | 1400 |
| Crossover Frequency | 1.6 KHz |
| Recommended HPF = BW18dB/oct. | 48 Hz |

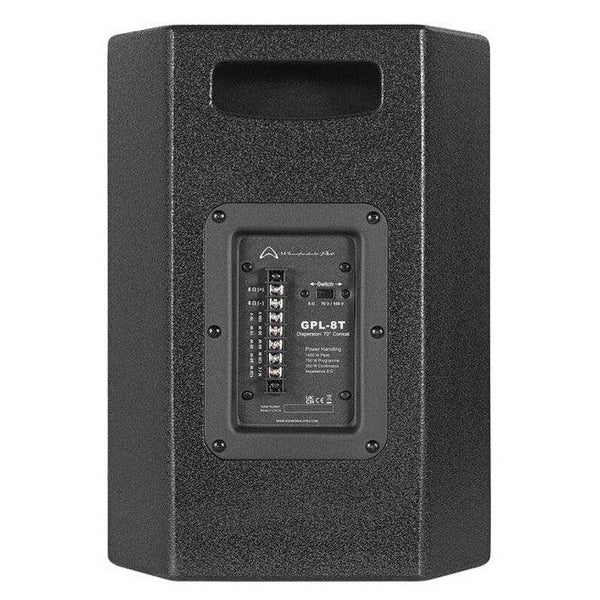

| Input Connector | 2 x speakON compatible / 1 x Barrier Strip |
| Rigging & Hardware: | 2 x M10 threaded rigging points. |
| 4 x M8 threaded points for WPB-3 | |
| Included Accessories | GPL-8 horizontal flying yoke |
| Handle | 1 on back |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 12 mm plywood |
| / Rhino Rock | |
| Colour Options | Black paint, White on request |
| Grille Material & Finish | Powder coated steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 388 mm / 15.3″ |
| Width Front | 280 mm / 11.0″ |
| Width Rear | 180 mm / 7.1″. |
| Depth | 275 mm / 10.8″ |
| Dimensions – Packed (mm / inches): | |
| Height | 448 mm / 17.6″ |
| Width Front | 335 mm / 13.2″ |
| Width Rear | 335 mm / 13.2″ |
| Depth | 340 mm / 13.4″ |
| Weight | |
| Net Weight | 9.78 kg / 21.52 lbs |
| Gross Weight | 10.82 kg / 23.80 lbs |
