Download Product Data Sheet
KEY FEATURES
• 70° conical coverage
• 200 W AES (Continuous)
• 400 W Programme
• 800 W Peak
• 1.5” LF Voice coil
• 125 dB Max SPL @ 1 m

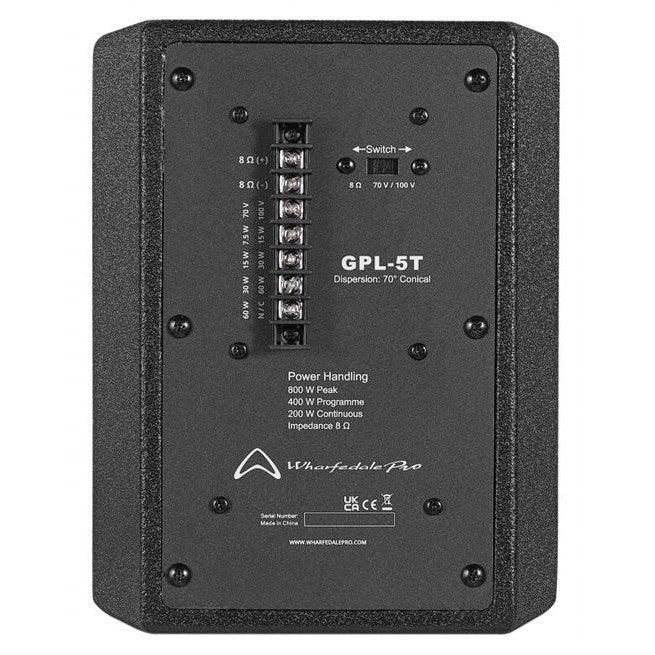

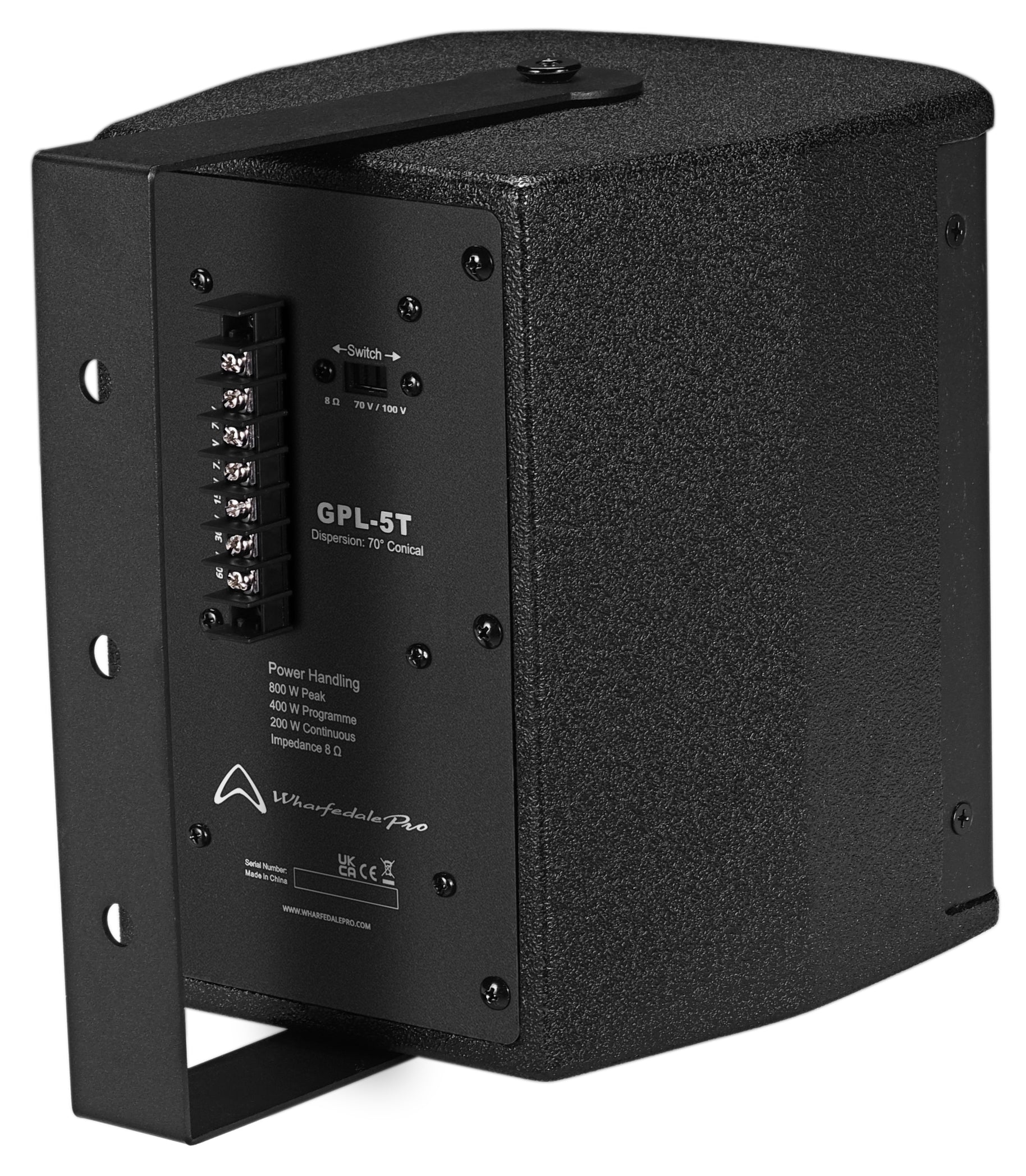

• 70 V / 100 V connections via barrier strip
DESCRIPTION
With a more natural and prominent sound than standard point source systems, Wharfedale Pro announce the GPL Series.
Compact cabinets and coaxial drive units make the GPL series perfect for theatre, enterprise, bars, nightclubs and live music applications. 12 new models, including bass-reflex and a band-pass subwoofer, available in either black or white finishes means that the GPL series is serious for fixed installation projects where audio quality matters.
A unique characteristic of the GPL series is that all full range models feature an original design waveguide horn. This allows the high frequency range to be addressed directly to the audience and reduces undesired reflections. The “HQ” models of the series are equipped with a turntable constant directivity horn for even more accurate asymmetrical coverage.
All GPL models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
SPECIFICATIONS
| System Type | 5″ coaxial passive |
| Configuration | two-way |
| Frequency Response (+/-3 dB) | 80 Hz – 20 KHz |
| (DP-N preset) | |
| Frequency Range (- 10 dB) | 68 Hz – 25 KHz |
| (DP-N preset) | |
| Sensitivity 2.83 V/1 m | 96 dB |
| Sensitivity 2.83 V/1 m half space | / |
| Calculated Maximum SPL @1 m | 125 dB |
| System Peak SPL* | 131 dB |
| *level at 1 m using pink noise with crest factor 4, with dedicated preset. | |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 155 mm / 5” |
| Voice coil size | 38.1 mm / 1.5” |
| LF Frame Material | Aluminium |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 38.1 mm / 1.5″ |
| Exit Size (mm / inches) | 25.4 / 1″ |
| Diaphragm Material | PM4 |
| Waveguide Type | Spherical |
| Nominal Coverage (H x V) | 70° conical |
| Special Features | Shorting cap for extended response |
| Waterproof LF cone | |
| Driver brand | Beyma |
| POWER | |
| T Model | 70 V : 120 / 60 / 30 / 15 W |
| 100 V : 120 / 60 / 30 W | |
| System Continuous Power (W) | 200 |
| System Programme Power (W) | 400 |
| System Peak Power (W) | 800 |
| Crossover Frequency | 2.5 KHz |
| Recommended HPF = BW18dB/oct. | 63 Hz |
| Input Connector | 2 x speakON compatible / 1 x Barrier Strip |
| T Model barrier strip only | |
| Rigging & Hardware: | 2 x M10 threaded rigging points. |
| 4 x M8 threaded points for WPB-3 | |
| Included Accessories | GPL-5 horizontal flying yoke |
| Handle | NO |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 12 mm plywood |
| / Rhino Rock | |
| Colour Options | Black paint, White on request |
| Grille Material & Finish | Powder coated steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 235 mm / 9.25″ |
| Width Front | 190 mm / 7.5″ |
| Width Rear | 145 mm / 5.7″. |
| Depth | 205 mm / 8.1″ |
| Dimensions – Packed (mm / inches): | |
| Height | 275 mm / 10.8″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 265 mm / 10.4″ |
| Weight | |
| Net Weight | 5.12 kg / 11.30 lbs |
| Gross Weight | 5.70 kg / 12.5 lbs |
