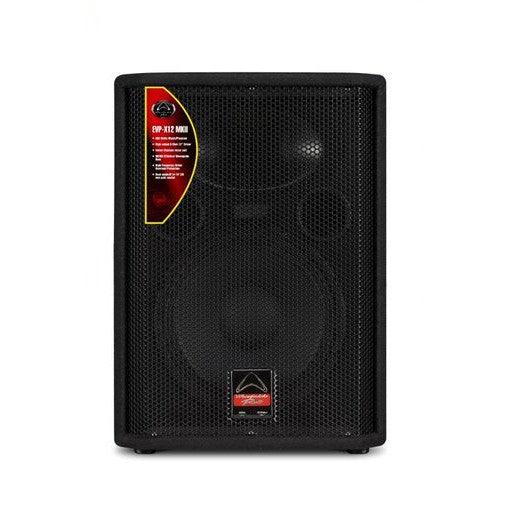

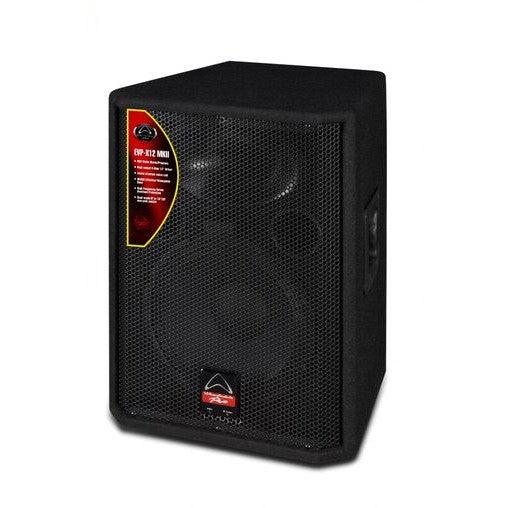

Wharfedale Pro EVPX12MKII Speaker Passive 1x12" 300W RMS 8Ohm Wooden Carpet Body
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro EVPX12MKII Speaker Passive 1x12" 300W RMS 8Ohm Wooden Carpet Body
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 178.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- 12″ 2-way passive
- 1.75″ voice coil HF driver
- 12″ LF driver with 2.0″ voice coil
- 300 watts AES (RMS)
- 600 watts Programme
- 1200 watts Peak
- 129 dB Max SPL @ 1 meter
DESCRIPTION
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the EVP-X MKII series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.
TOUGH CARPET
Each EVP-X MKII PA speaker and subwoofer is protected by a durable carpet covering and steel grille.
The MKII version features a 4-way carry handle and a dual angle pole mount making it both portable and versatile for varying installation applications, ensuring the HF sound is directed straight at your audience.
SPECIFICATIONS
| Model Name | EVP-X12 MKII |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz |
| Frequency Range (-10 dB) | 50 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 129 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 305 mm / 12″ |
| Voice Coil Size | 51.6 mm / 2″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 300 w |
| High Frequency Transducer | |
| HF Driver Type | Compression driver |
| Voice Coil Size | 44.5 mm / 1.75″ |
| Exit Size | 25 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 40 w |
| Nominal Coverage (H x V) | 90° x 60° |
| Power | |
| System Continuous Power | 300 w |
| System Programme Power | 600 w |
| System Peak Power | 1200 w |
| Crossover frequency | 2.3 KHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| + 2 x 1/4” Jacks | |
| Hardware | |
| Pole Mount | Dual Angle (0⁰ or 10⁰) 35 mm |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | Particle Board |
| Finish | Black Carpet |
| Grille Material & Finish | 1.2 mm Steel |
| Dimensions – Unpacked | |
| Height | 590 mm / 23.23″ |
| Width Front | 430 mm / 16.93″ |
| Width Rear | 297.5 mm / 11.71″ |
| Depth | 370 mm / 14.57″ |
| Dimensions – Packed | |
| Height | 655 mm / 25.79″ |
| Width Front | 492 mm / 19.37″ |
| Width Rear | 328 mm / 12.91″ |
| Depth | 408 mm / 16.06″ |
| Weight | |
| Net Weight (kg / lbs) | 18.92 kg / 41.6 lbs |
| Gross Weight (kg / lbs) | 21.6 kg / 47.5 lbs |
