Wharfedale Pro EVOX15 Passive Speaker
934.00 Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Did You Find a Better Price?
On of our goals is to ensure that we deliver the best value possible to MusicMajlis customers.
Authorized dealers that are selling genuine music instruments and audio equipment in the GCC are required to comply with Minimum Advertised Price (MAP) policies as set by the manufacturers.
Please note: we only match product prices vs other UAE websites.
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)

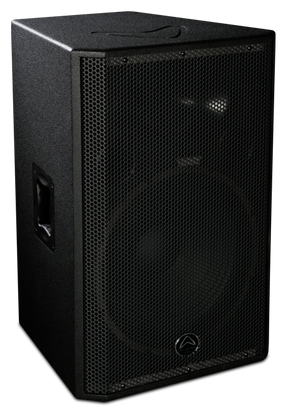

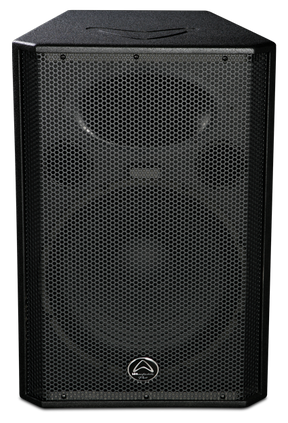

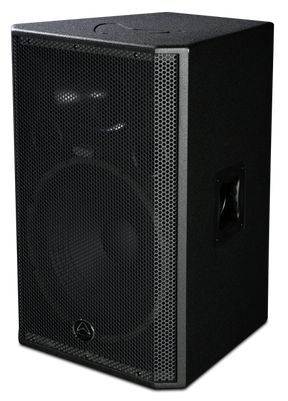

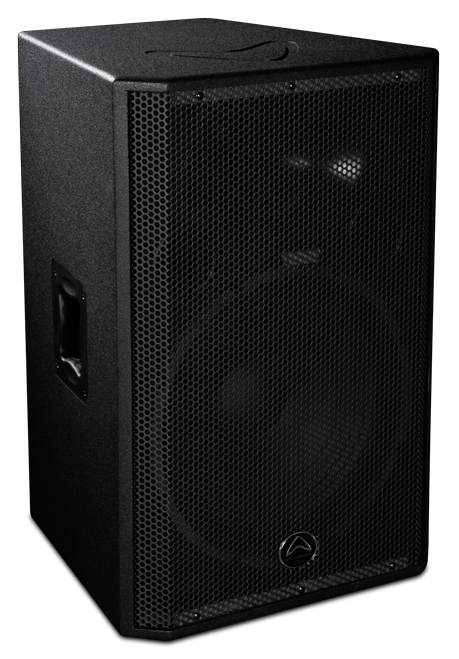

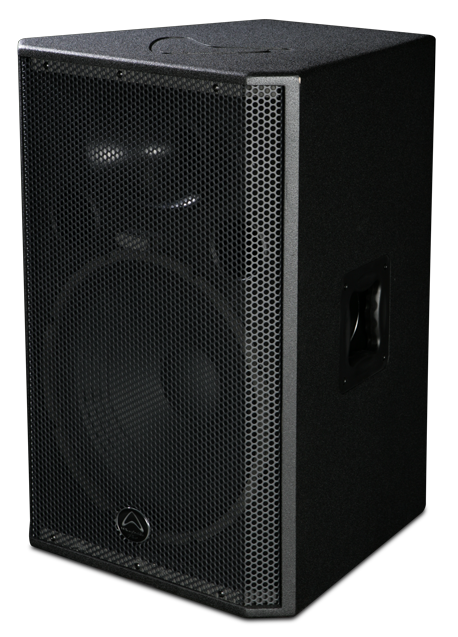

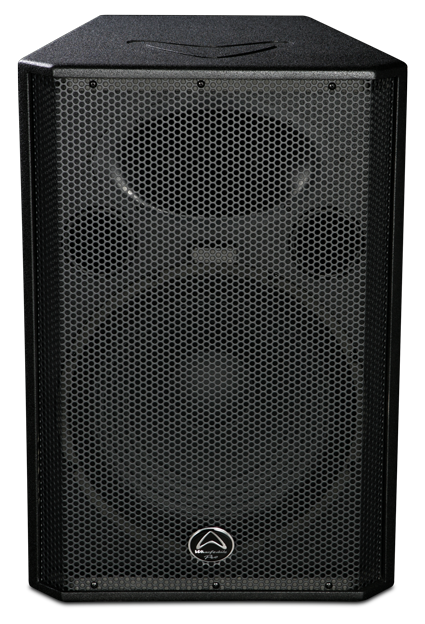

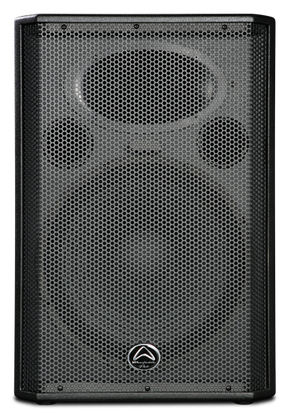

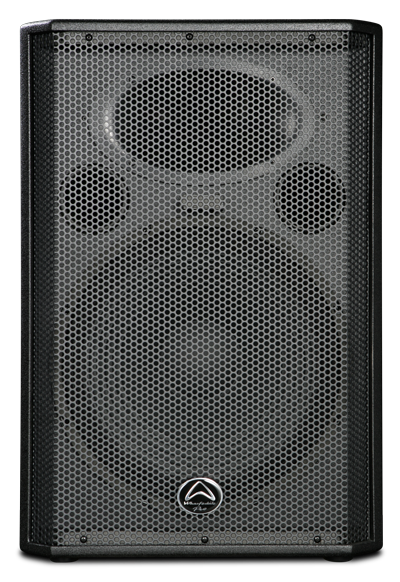

Wharfedale Pro EVOX15 Passive Speaker
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 233.5\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
Download Product Data Sheet
DESCRIPTION:
The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.
All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique +3 dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.
Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.
FEATURES:
- 15″ 2-way passive
- 1.75″ IRIS X HF driver
- 15″ LF driver with 2.5″ voice coil
- 350 watts AES (RMS)
- 700 watts Programme
- 1400 watts Peak
- 130 dB Max SPL @ 1 meter
SPECIFICATIONS:
| Model name | EVO-X15 |
| System Type | Passive |
| Configuration | 2-way |
| Frequency Response (+/-3dB) | 45Hz-20kHz |
| Frequency Range (-10dB) | 40Hz- 20kHz |
| Sensitivity (2.83v/1m) | 98dB |
| System rated impedance | 8Ω |
| Calculated Maximum SPL @1m | 130dB |
| Low Frequency Transducer | |
| Size | 381mm / 15″ |
| Voice coil size | 64.26mm / 2.5″ |
| Rated impedance | 8Ω |
| LF Power (re:AES-2012) | 350w |
| Hi Frequency Transducer | |
| HF Driver type | Compression driver |
| Voice coil size | 44.5mm / 1.75″ |
| Exit size | 25mm / 1″ |
| Diaphragm Material | Titanium |
| Rated impedance | 8Ω |
| HF Power (re:AES-2012) | 40w |
| Nominal coverage | 90° x 60° |
| Power | |
| System continuous power | 350w |
| System programme power | 700w |
| System peak power | 1400w |
| Crossover Frequency | 2.2kHz |

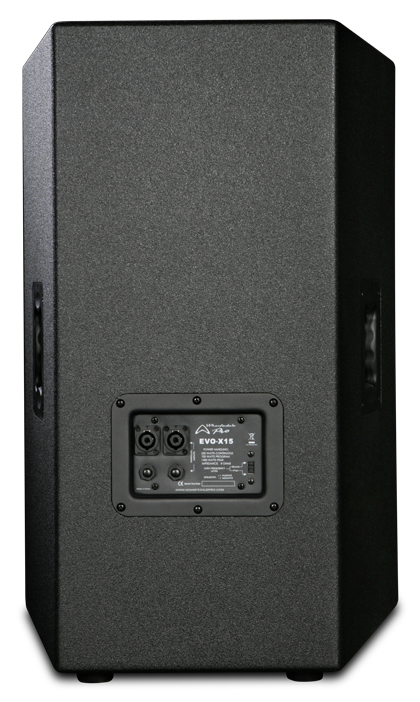

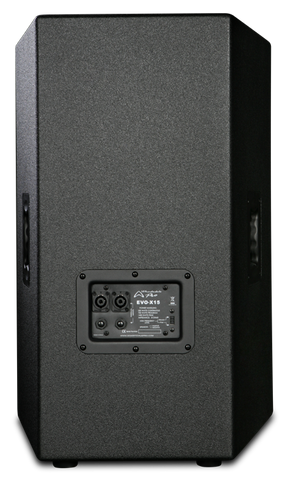

| Input connectors | 2 x NL4 (speakON Compatible) + 2 x 1/4″ Jacks |
| Hardware | |
| Pole mount | Dual Angle (0⁰ or 10⁰) 35mm Pole Socket |
| Handles | 2 on sides |
| Enclosure | |
| Enclosure material | MDF |
| Finish | Rhino rock paint |
| Grille material and finish | 1.2mm steel |
| Dimensions – unpacked | |
| Height | 675mm / 26.57″ |
| Width front | 460mm / 18.11″ |
| Width rear | 294.5mm / 11.59″ |
| Depth | 450mm / 17.72″ |
| Dimensions – packed | |
| Height | 750mm / 29.53″ |
| Width front | 524mm / 21.02″ |
| Width rear | 324mm / 12.76″ |
| Depth | 486mm / 19.13″ |
| Weight | |
| Net weight | 24.7kg / 54.3lbs |
| Gross weight | 28.4kg / 62.3lbs |
