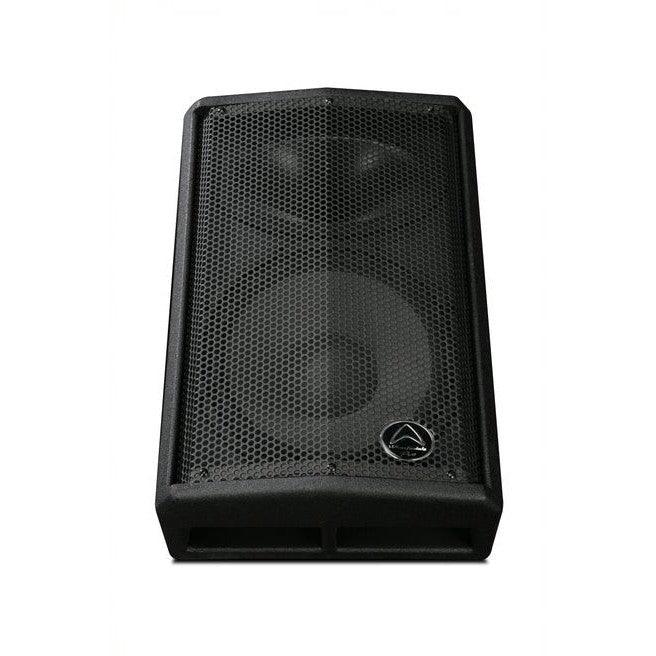

Wharfedale Pro DVPAX12M Speaker Monitor Active 1x12" 500W RMS 8Ohm Wooden Carpet Body
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro DVPAX12M Speaker Monitor Active 1x12" 500W RMS 8Ohm Wooden Carpet Body
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 383.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- 12″ two-way bi-amplified monitor
- 250 watts Continuous power
- 500 watts Peak power
- 90° x 60° dispersion
- 1.75″ HF Compression driver
- 2.5″ LF voice coil
- 7-band Graphic EQ
- Power output for secondary passive loudspeaker
- 129 dB Max SPL @ 1 meter
DESCRIPTION
DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.
While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.
DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.
SPECIFICATIONS
| System Type | Active 12″ 2-way monitor |
| Frequency Response (+/-3 dB) | 60-18 KHz |
| Frequency Range (-10 dB) | 55-20 KHz |
| Maximum SPL @1 m | 129 dB |
| Sensitivity @ 1 W / 1 m | 98 dB |
| LF Transducer Size (mm / inches) | 305 mm / 12″ |
| LF Coil Size (mm / inches) | Dual layer 2.5″ |
| HF Transducer Type | Compression Driver |
| HF Coil Size (mm / inches) | 44 mm / 1.75″ |
| HF Exit Size (mm / inches) | 25 mm / 1″ |
| HF Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | 90° x 60° |
| LF Power Amplifier | Class D, 250 W / 500 W (8 Ω ) RMS/Peak Watts |
| HF Power Amplifier | Class D, N/A RMS/Peak Watts |
| DSP | 7-band EQ |
| Controls—D-EQ | 60 Hz, 120 Hz, 480 Hz, 1 KHz, 4 KHz, 8 KHz, 16 KHz |
| Amplifier Protection | Power On, Thermal, Low Voltage |
| Driver Protection | DC, Short, Clip Indicator |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED (Red LED front) |
| INPUTS | |
| Input Sensitivity | Balanced: 775 mV |
| Maximum Input Level | 6 V |
| Input Connector | 2XLR & 21/4″ (Line/MIC) |
| Input Impedance | Balanced: 20 K |
| LPF control | N/A |
| Polarity Control | N/A |
| OUTPUTS | |
| Line Output Connector | XLR (Balanced out) |
| AC Power Options | SMPS |
| Voltage | 220-240 V 50/60 Hz, 100-120 V 50/60 Hz |
| Pole Socket | N/A |
| Handles | 2 carry handles (one on each side) |
| Enclosure Material and Finish | MDF / Black paint |
| Grille Material & Finish | Steel |
