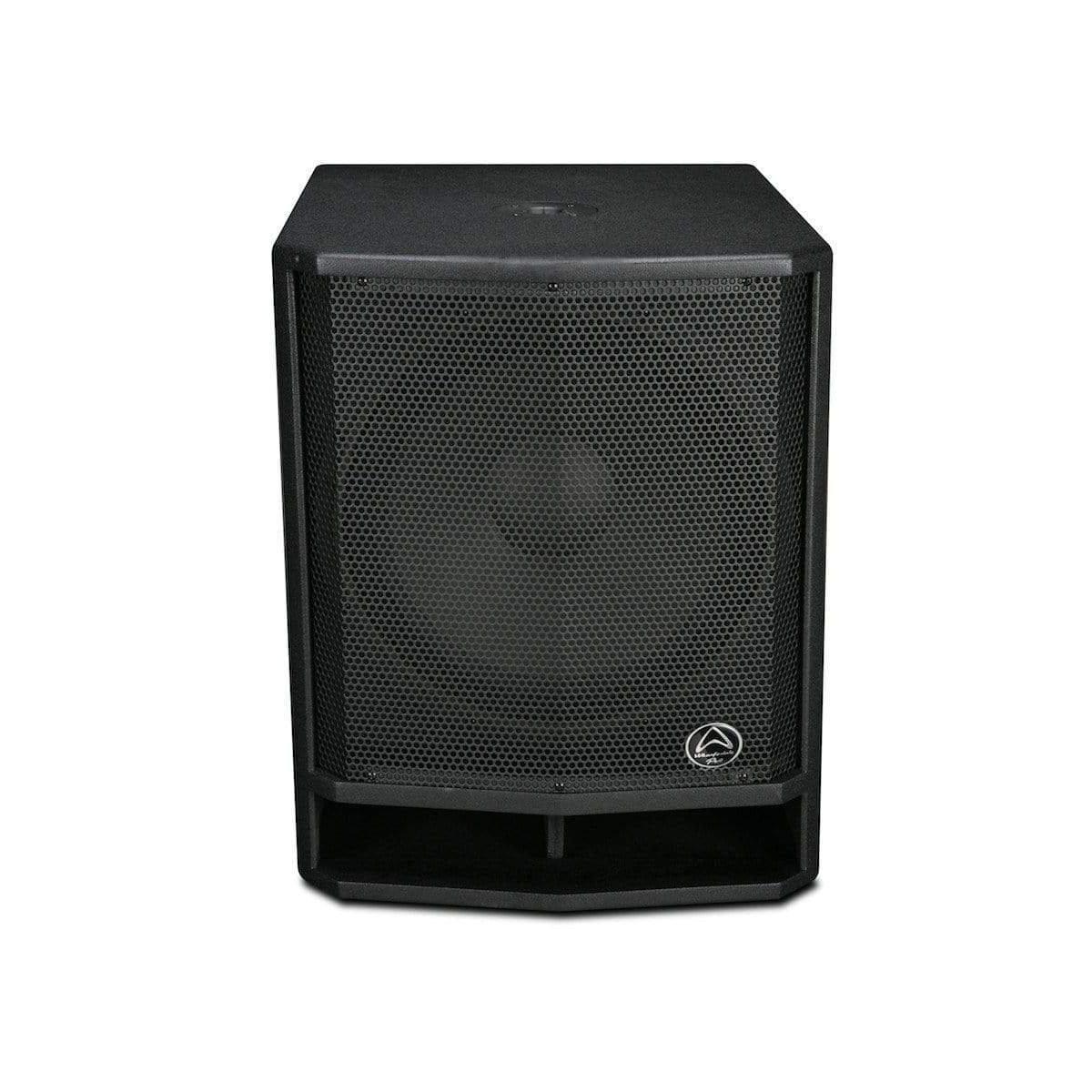

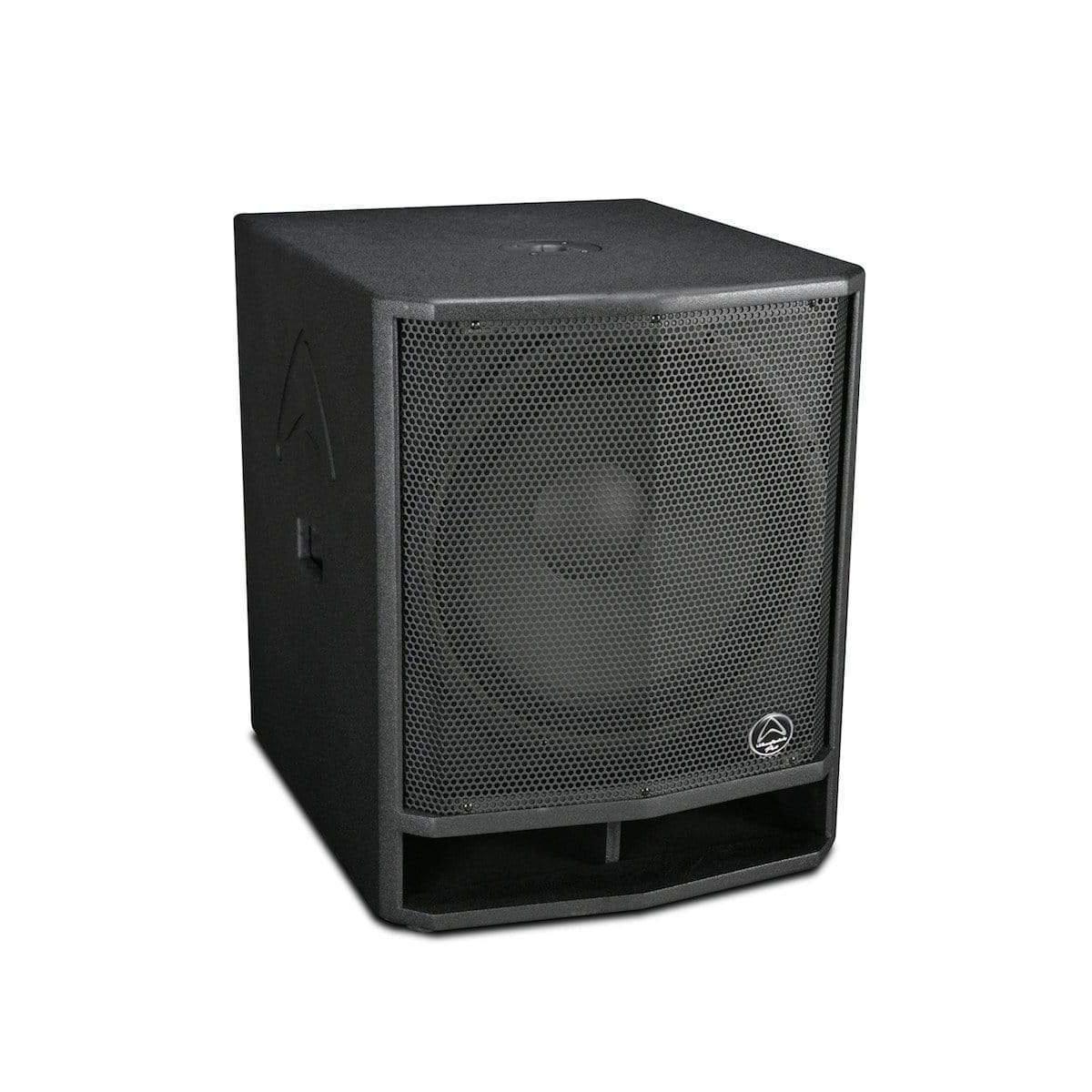

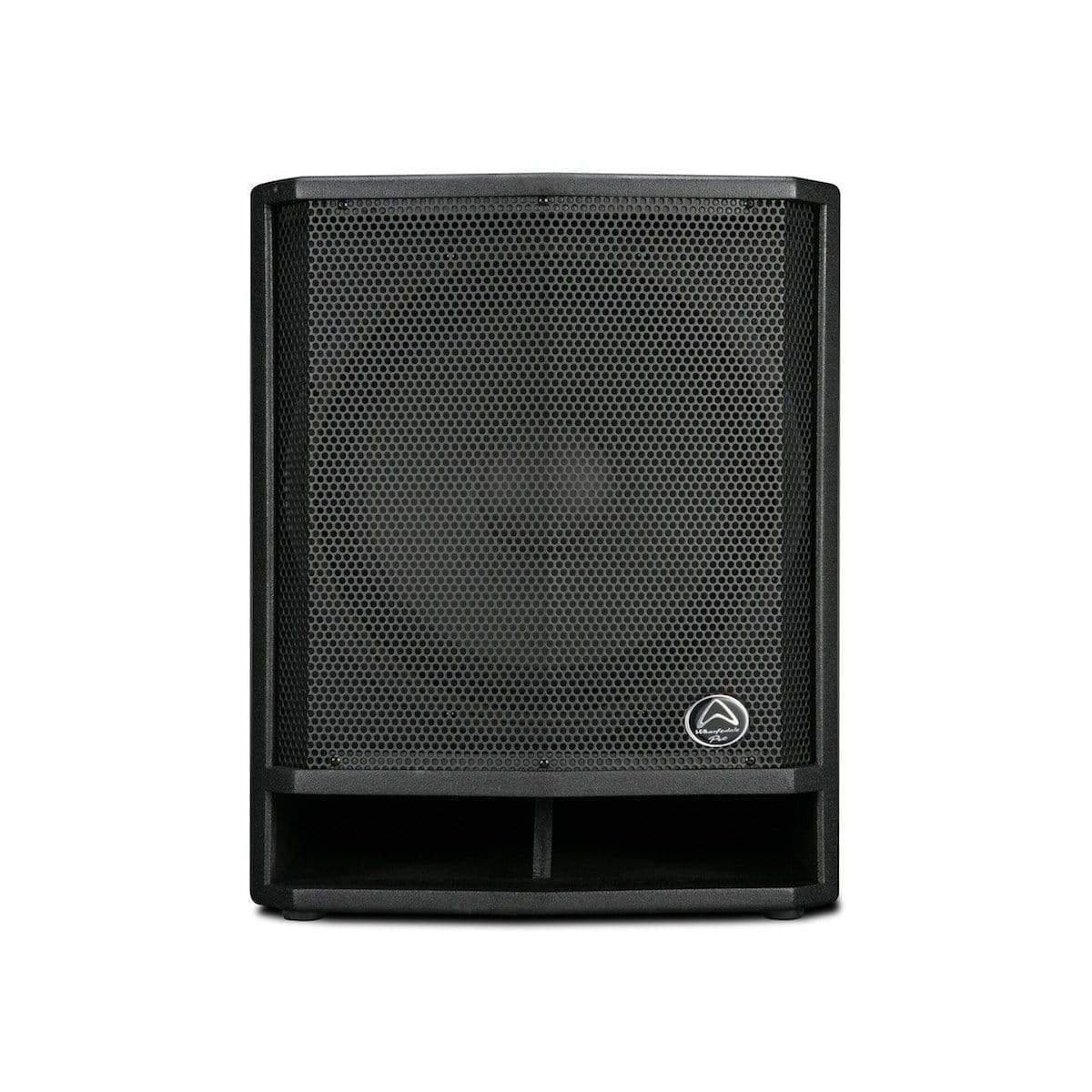

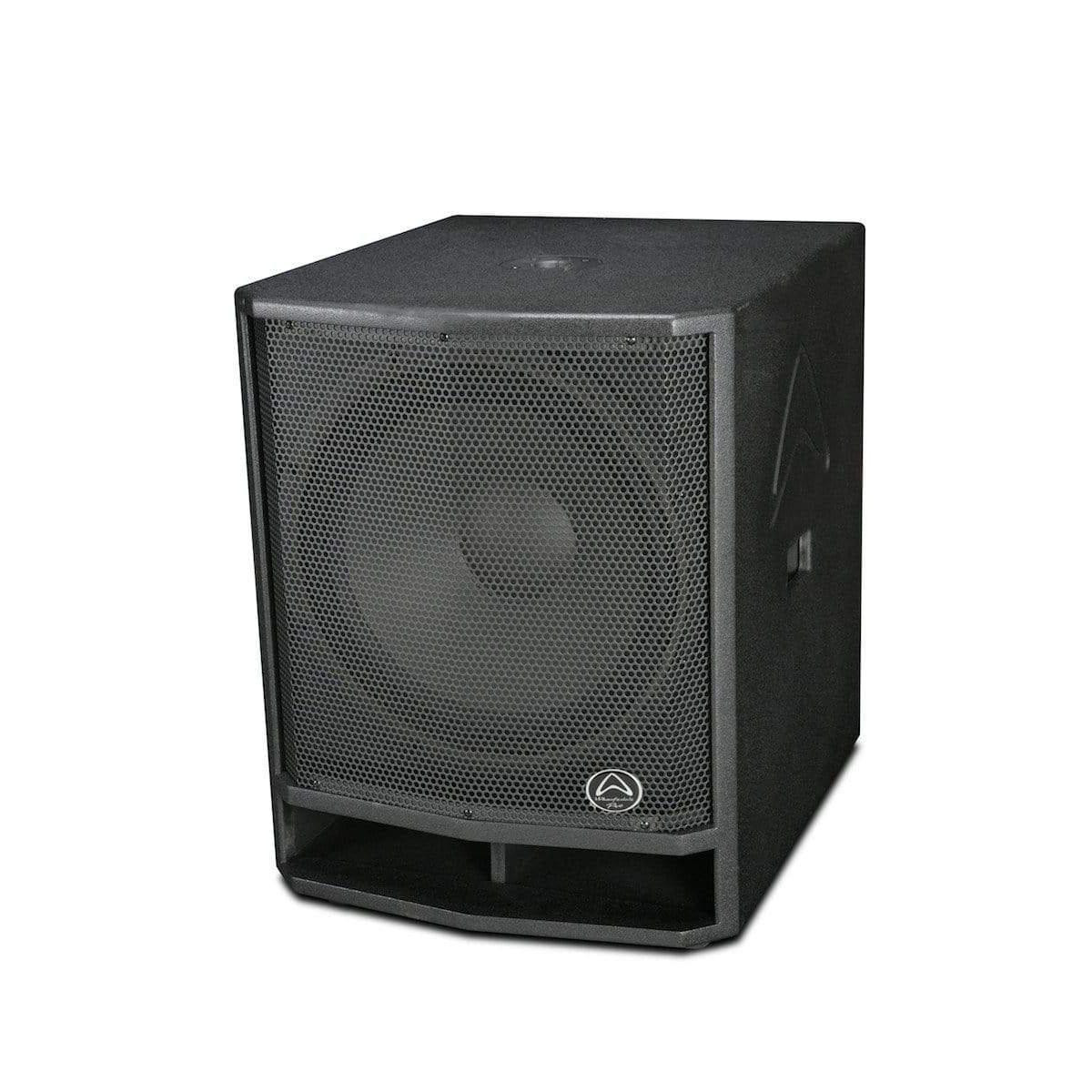

Wharfedale Pro DVP-AX18B Subwoofer
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 433.0\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
With an internal Class D amplifier using fan-less convection cooling, the DVP-AX18B subwoofer delivers power and functionality from a road ready MDF cabinet. An internal adjustable Low Pass Filter makes connection to other loudspeakers simple and 0° / 180° polarity switching means that phasing issues are no longer a problem. Add in balanced High Pass and Thru outputs and DVP-AX18B is a powerful and versatile addition to your system.
Key Features
- 18" Active subwoofer
- MDF construction
- Class D amplification
- 600w RMS
- 1200w Peak
- Adjustable low pass filter
- 132dB Max SPL @1m
- Custom quad layer LF driver
- 2.5" voice coil
- Hi Pass Outputs
SPECIFICATION
| System Type | Active 18″ Subwoofer |
| Frequency Response (+/-3dB) | 35-150Hz |
| Frequency Range (-10dB) | 30-150Hz |
| Max SPL @1m | 132dB |
| Sensitivity @1w / 1m | 99dB |
| LF transducer | |
| Size | 470mm / 18″ |
| LF Coil size | Quad Layer 2.5″ |
| Amplification | |
| LF Power Amplifier -Class D, RMS/Peak Watts | 600w / 1200w |
| HF Power Amplifier -Class D, RMS/Peak Watts | N/A |
| DSP | N/A |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection, DC, Short, Clip limiter, clip indicator | Yes |
| Limiter indicator | Yes |
| Power indicator | Green LED (Red LED front) |
| Inputs | |
| Input Sensitivity : Balanced | 775mv |
| Max input level | 6v |
| Input connectors | XLR & 1/4″ (Line/MIC) |
| Input impedance | Balanced:20k |
| LPF Control | 80Hz – 120Hz |
| Polarity control | 0° / 180° |
| Outputs | |
| Line output connector | XLR THRU/HPF(OUT) |
| AC Power Options : SMPS | 220-240V 50/60Hz |
| 100-120V 50/60Hz | |
| Pole socket | 35mm |
| Handles | 2 (one on each side) |
| Enclosure Material and finish | MDF / Black paint |
| Grille material | Steel |
