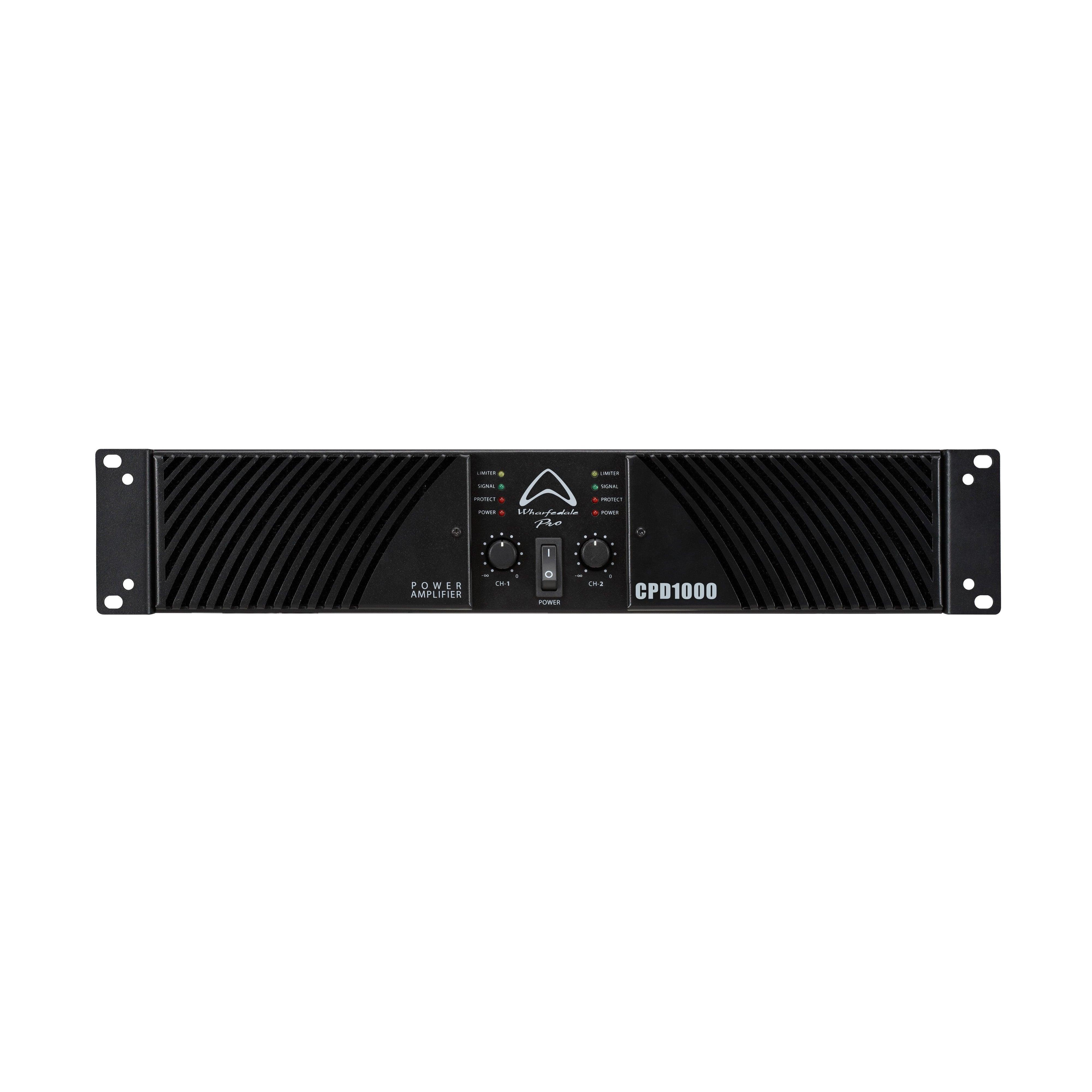

Wharfedale Pro CPD1000 Power Amplifier 2x350W @ 4Ohm / 2x230W @ 8Ohm
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro CPD1000 Power Amplifier 2x350W @ 4Ohm / 2x230W @ 8Ohm
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 309.75\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
KEY FEATURES
- Class H Technology (CPD2600 / CPD3600 / CPD4800)
- Class AB Technology (CPD1000 / CPD1600)
- Suitable for mobile use, touring, rental and installation
- Stereo, Parallel and Bridge modes
- 2 x XLR inputs
- 2 x speakON compatible outputs
- Switchable limiter
- Status and clip LEDs
- Thermal, overcurrent, DC and output short protect circuitry
- Continuously variable speed fan
DESCRIPTION
Massive transformers
CPD series are built around a massive heavy-duty toroidal transformer.
This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.
Easy Cleaning
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating.
Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments. That’s cool !
SPECIFICATIONS
| Stereo Power Output (RMS) |
8 Ω x 2: 230 W 4 Ω x 2: 350 W |
| Bridged Mono Power Output | 8 Ω: 700 W |
| Frequency Response | 20 Hz – 30 kHz |
| Topology | Class AB |
| Inputs | 2 x XLR |
| Outputs | 2 x NL4 2 x XLR |
| Input Sensitivity & Impedance |
Sensitivity: 0 dBu (0.775 Vrms) Balanced XLR input: 20 KΩ Maximum Input Level: 22 dBu (9.7 Vrms) |
| Voltage Gain | 35 dB |
| Slew Rate | >40 V/µs |
| Crosstalk | <-70 dB |
| S/N Ratio | >100 dB |
| Distortion (1 W) | <0.02% |
| Damping Factor | >300 |
| Controls |
Front Panel: AC Switch, CH 1 and CH 2 Gain Knobs Rear Panel: Parallel, Stereo & Bridge Mode Switch; Limiter Switch |
| Protections | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Indicators | Power, Protect, Signal, Peak |
| Cooling | Variable Speed Fan |
