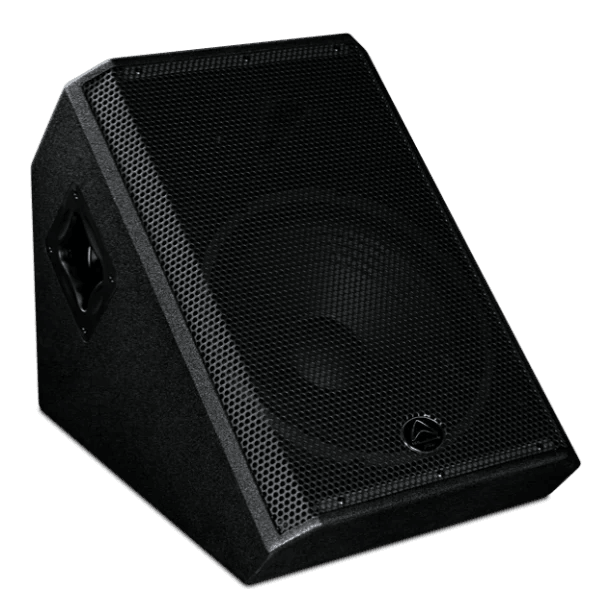

Wharfedale Pro EVOX15M Passive Monitor Speaker 1x15" 350W (Discontinued)
Talk to a Pro
Chat with our Pros on Whatsapp
We're available from Monday to Saturday (9.30am-6.30pm GST)
Wharfedale Pro EVOX15M Passive Monitor Speaker 1x15" 350W (Discontinued)
MM HO
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Market
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
MM Warehouse
Al Shoala Building, Near Deira City Center, Port Saeed Area
Techniline Electronics Showroom, Ground Floor, Block E
Dubai DU
United Arab Emirates
Pay as low as Dhs. 236.25\/mo. without fees with Tabby.
Free & Express Shipping in UAE Available.
FEATURES
- MDF construction
- Durable Rhino Rock paint finish
- 4-way rubberised handles
- Elliptical 90° x 60° dispersion
- Full series lineup consisting of 8 models
- NL4 (speakON compatible) and 1/4” connectors
- Iconic Wharfedale Pro boomerang engraving
- +3 dB HF Frequency boost switch
- Subwoofers feature internal crossover
DESCRIPTION
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the EVO-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
SPECIFICATIONS
| System Type | Passive |
| Configuration | Two-way Monitor |
| Frequency Response (+/-3 dB) | 50 Hz – 20 KHz |
| Frequency Range (-10 dB) | 45 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 130 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 381 mm / 15″ |
| Voice Coil Size | 64.26 mm / 2.5″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 350 w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 44.5 mm / 1.75″ |
| Exit Size | 25 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 40 w |
| Nominal Coverage (H x V) | 90° x 60° |
| Power | |
| System Continuous Power | 350 w |
| System Programme Power | 700 w |
| System Peak Power | 1400 w |
| Crossover frequency | 2.3 KHz |
